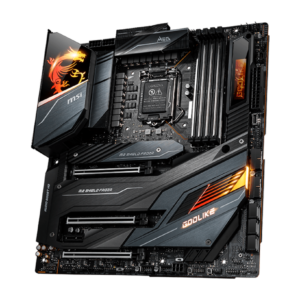

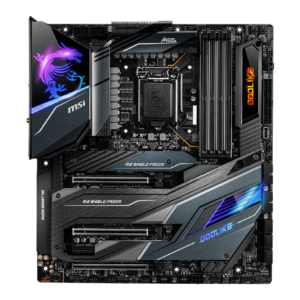

Z490 GODLIKE

Description

• Socket: LGA 1200
• Chipset: Intel® Z490
• Form Factor: E-ATX
• CPU Support: 10th & 11th Gen Intel® Core™, Pentium® Gold, and Celeron® processors

Memory

• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 128
• Supported Speeds: Up to DDR4 5000 MHz (OC)

Expansion Slots

• PCI-E x16: 3
• PCI-E x1: 1
• SLI: Yes (2-Way)
• CrossFire: Yes (3-Way)

Storage

• SATA III: 6
• M.2 Slots: 3
• RAID: 0/1/5/10

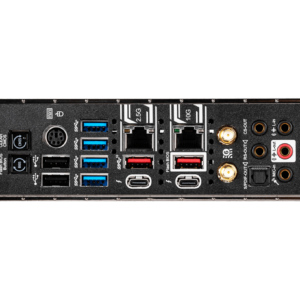

USB Ports

• USB 3.2 (Front): 1 × Gen 2 (Type-C), 4 × Gen 1 (Type-A)
• USB 3.2 (Rear): 2 × Gen 2 (Type-A), 2 × Thunderbolt™ 3 (USB-C), 4 × Gen 1 (Type-A)
• USB 2.0 (Front): 4
• USB 2.0 (Rear): 2

Networking

• LAN: 10G (Aquantia AQC107) + 2.5G (Realtek RTL8125B)
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Bluetooth: 5.1

Audio

• Codec: Realtek® ALC1220 + ESS SABRE9018Q2C DAC
• Channels: 7.1-Channel HD Audio

Video Output

• DisplayPort: Via Thunderbolt™ 3 (USB-C)
• HDMI: No

Other Features

• DirectX: 12
• Dynamic Dashboard II: Built-in OLED screen for system info
• Smart Button: Multi-function reset, safe boot, turbo fan, LED control
• Cooling Solutions: Advanced VRM heatsink, Frozr Heatsink, M.2 Shield Frozr
