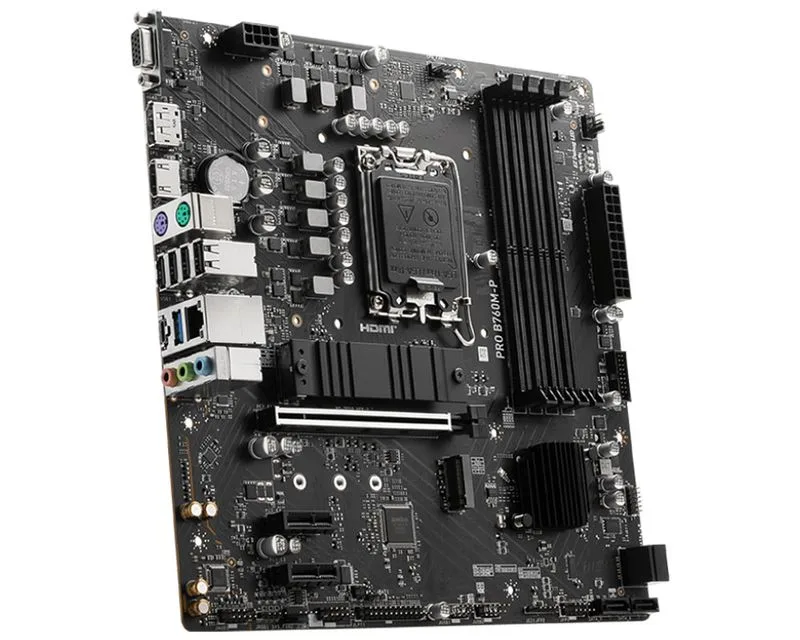

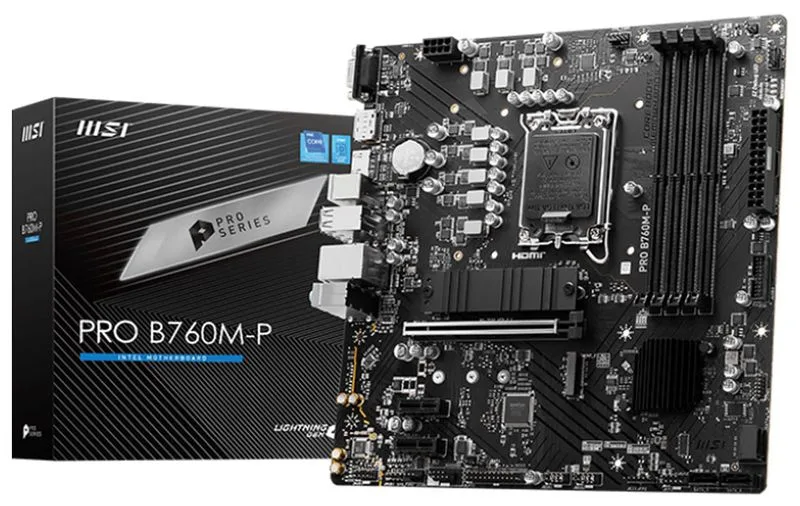

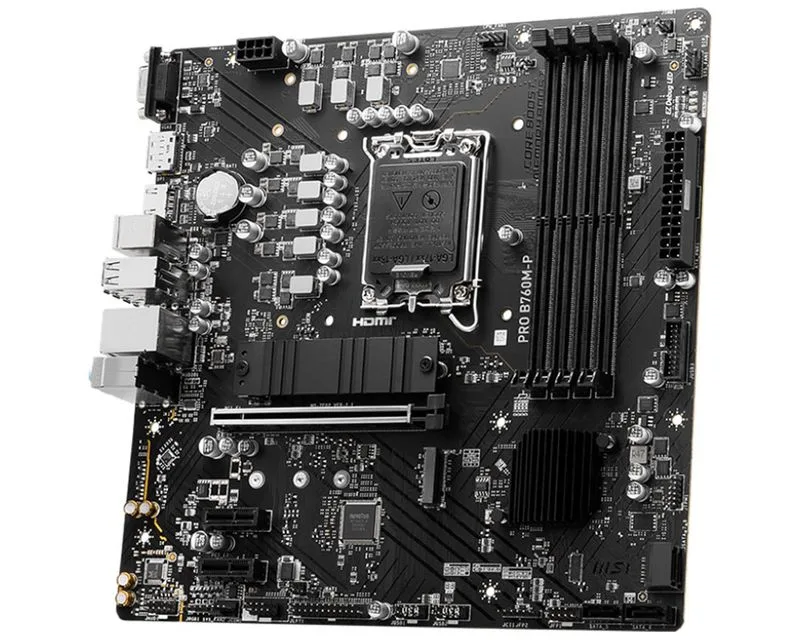

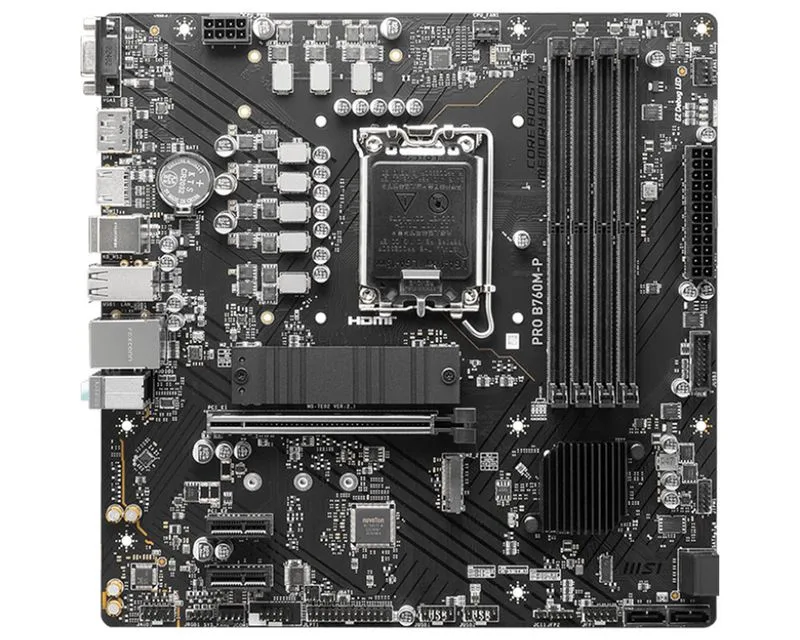

PRO B760M-P DDR5

Description

Specifications:

CPU Support:

• Intel Core 14th / 13th / 12th Gen

• LGA 1700 Socket

• Optimized power design for efficient thermal management

Memory:

• 2× DDR5 DIMM slots

• Up to 96GB total capacity

• Up to 6800+ MHz (OC)

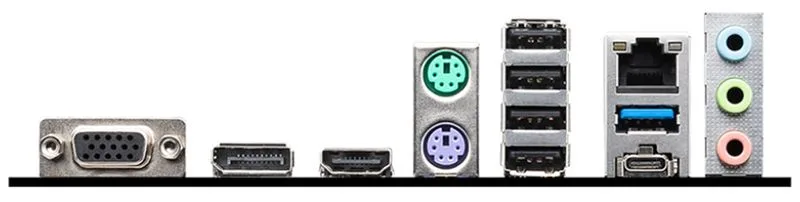

Graphics Output:

• 1× HDMI (4K @ 30Hz)

• 1× DisplayPort (8K @ 60Hz)

• 1× VGA

• Support for integrated graphics (CPU dependent)

Expansion Slots:

• 1× PCIe 4.0 x16

• 2× PCIe 3.0 x1

Storage:

• 2× M.2 Slots (PCIe 4.0 x4)

• 4× SATA 6Gb/s Ports

• RAID 0/1/5/10 supported

Networking:

• Realtek Gigabit LAN (1G)

Audio:

• 7.1-Channel High Definition Audio

• Audio Boost technology for clearer sound

Internal Features:

• USB 3.2 Gen 2 Type-C header

• USB 3.2 Gen 1, USB 2.0 headers

• ARGB and RGB LED headers

• TPM Header

• EZ Debug LED for quick troubleshooting

Ideal For:

• Budget-friendly DDR5 office or home builds

• Entry-level content creation

• Compact business desktops with reliable performance
