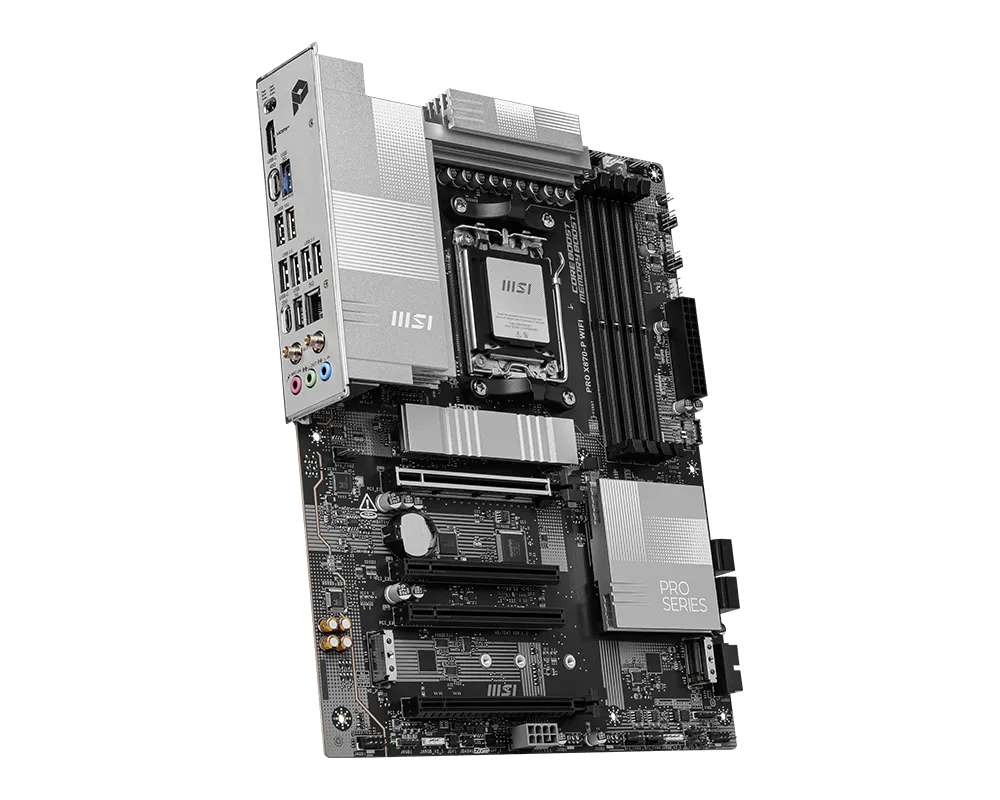

PRO X870-P WIFI

Description

Specifications:

CPU Support:

• AMD Ryzen 9000 / 8000 / 7000 Series

• AM5 Socket

• 14+2+1 Duet Rail Power System with premium VRMs

• High-efficiency thermal pads and extended heatsinks

Memory:

• 4× DDR5 DIMM slots

• Supports up to 256GB

• Up to 8200+ MHz (OC)

• AMD EXPO support

• Dual-channel architecture

Graphics Output:

• 1× HDMI 2.1

• 1× DisplayPort 1.4
  Integrated graphics available only with G-Series Ryzen processors

Expansion Slots:

• 1× PCIe 5.0 x16 (reinforced)

• 1× PCIe 4.0 x16 (x4 mode)

• 2× PCIe 3.0 x1

Storage:

• 3× M.2 Slots

  • 1× PCIe 5.0 x4

  • 1× PCIe 4.0 x4

  • 1× PCIe 4.0 x2

• 4× SATA 6Gb/s Ports

• RAID 0/1/10 support

• M.2 Shield Frozr II for thermal management

Networking:

• Realtek 5G LAN

• Wi-Fi 7 (latest gen)

• Bluetooth 5.4

Audio:

• Realtek ALC897

• 7.1 Channel High Definition Audio

Other Features:

• Rear and front USB 3.2 Gen 2×2 Type-C

• USB 3.2 Gen 2, Gen 1, and USB 2.0 ports

• ARGB and RGB headers

• Debug LEDs

• BIOS Flash Button

• Pre-installed I/O shield

• Steel Armor on key slots

---

Ideal For:

• Ryzen 9000 series workstations

• High-performance professional builds

• Users seeking a stable, next-gen AMD platform with the latest connectivity
