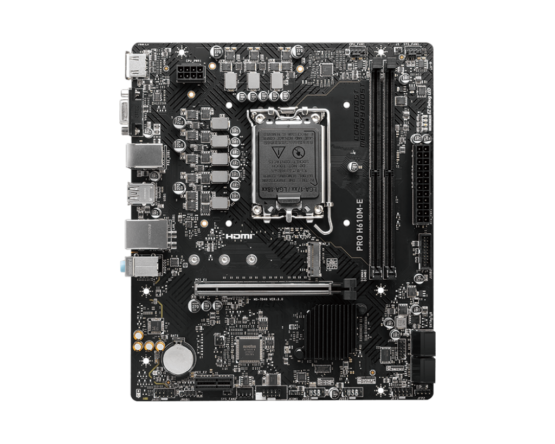

PRO H610M-E DDR5

Description

• Socket: LGA 1700
• Chipset: Intel® H610
• Form Factor: Micro-ATX
• CPU Support: 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors

Memory

• Memory Channel: Dual
• DIMM Slots: 2
• Max Memory (GB): 96
• Supported Speeds: Up to DDR5 5600 MHz (JEDEC & POR)
• Features: Supports Intel® XMP 3.0 OC, non-ECC, un-buffered memory

Expansion Slots

• PCI-E x16: 1 (PCIe 4.0 from CPU)
• PCI-E x1: 1 (PCIe 3.0 from Chipset)

Storage

• SATA III: 4
• M.2 Slots: 1 (PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices)

USB Ports

• USB 3.2 (Front): 2 × Gen 1 (Type-A)
• USB 3.2 (Rear): 2 × Gen 1 (Type-A)
• USB 2.0 (Front): 4
• USB 2.0 (Rear): 4

Networking

• LAN: Realtek® RTL8111H Gigabit LAN

Audio

• Codec: Realtek® ALC897
• Channels: 7.1-Channel HD Audio

Video Output

• VGA: 1
• HDMI: 1 (Supports HDMI™ 1.4 with HDR, max resolution 4K @ 30Hz)

Other Features

• DirectX: 12
• Operating System Support: Windows® 11 64-bit, Windows® 10 64-bit
