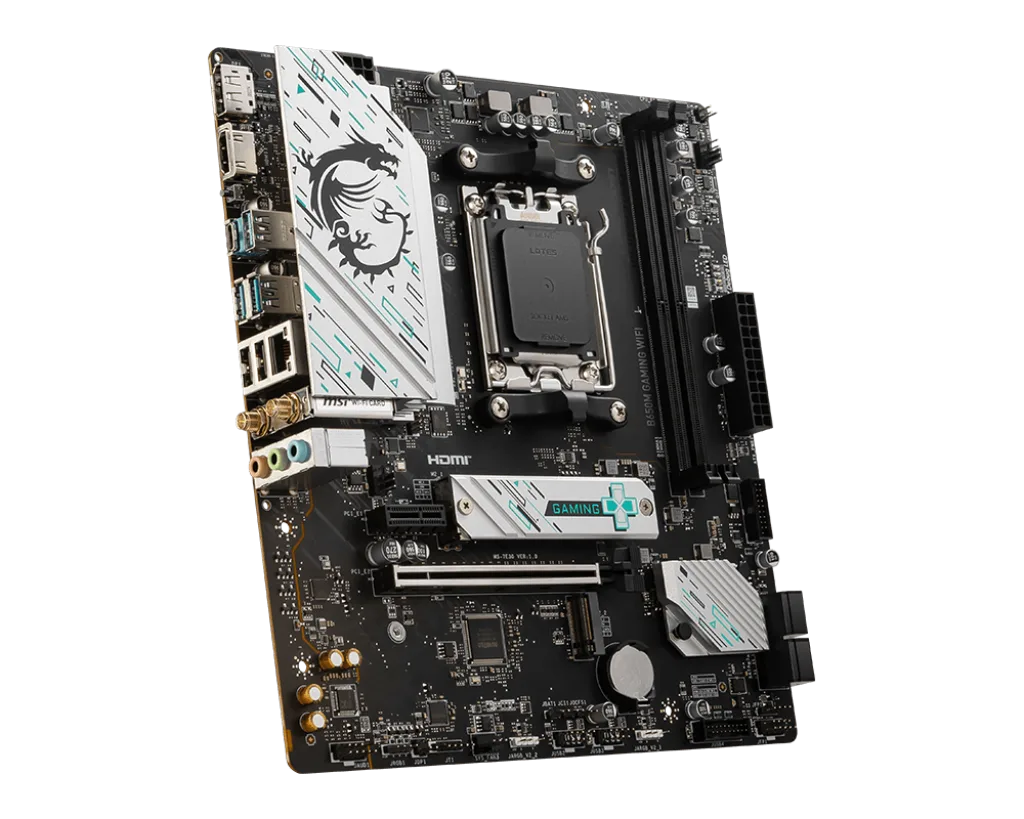

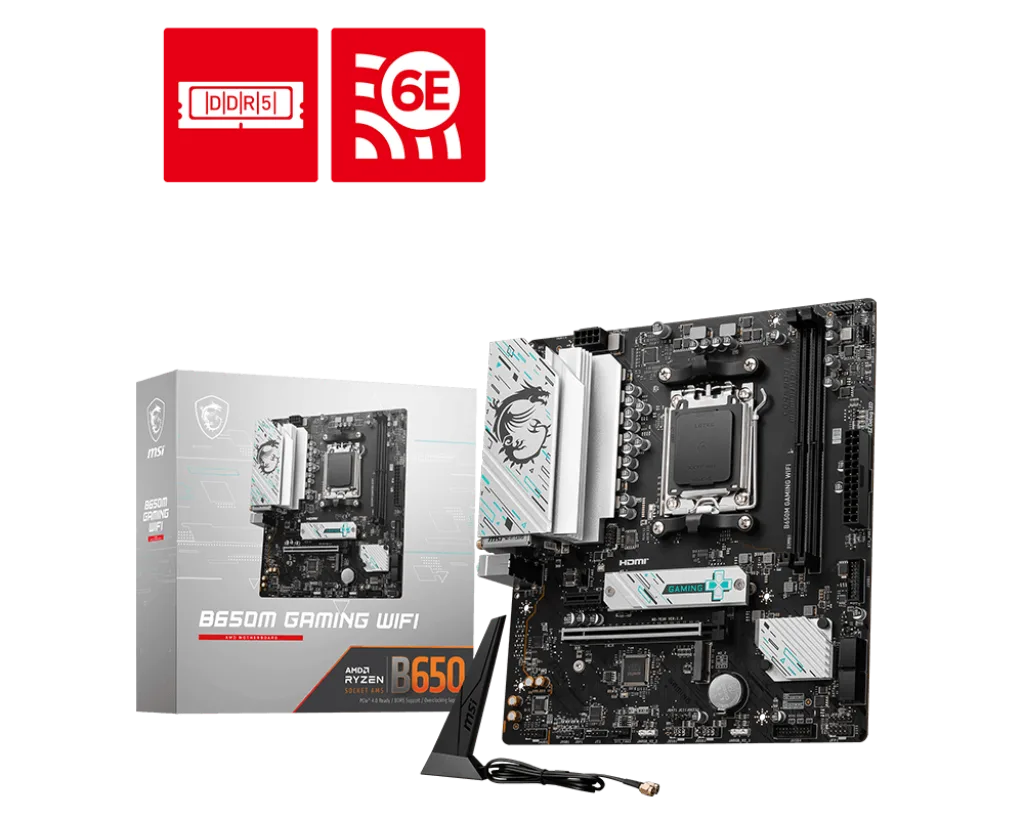

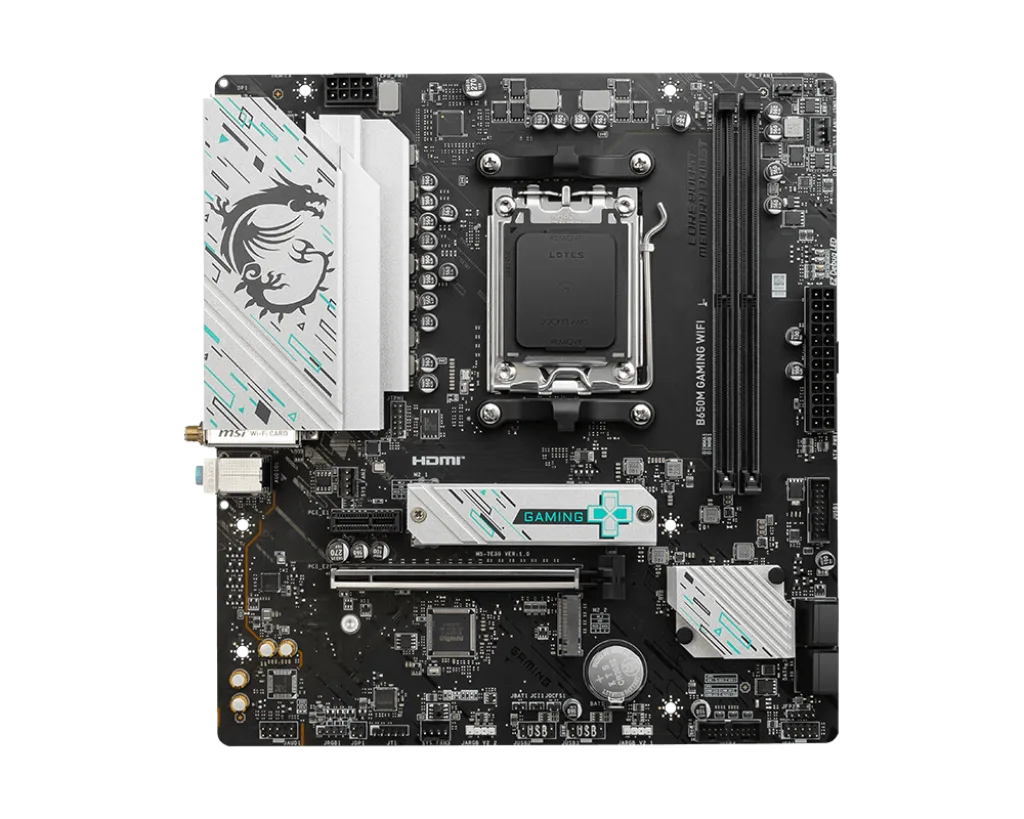

MSI B650M GAMING WIFI DDR5

Description

MSI B650M GAMING WIFI DDR5

Specifications

Form Factor Micro-ATX
Chipset AMD B650
Socket AM5
BIOS MSI Click BIOS 5 (UEFI)
Supported Processors AMD Ryzen 7000 Series

Memory
4 x DDR5 DIMM slots, up to 192GB, supports up to 6600+ MHz (OC), dual-channel

Expansion Slots
1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1

Storage
1 x PCIe 4.0 x4 M.2 slot, 1 x PCIe 3.0 x2 M.2 slot, 4 x SATA III (6Gbps)

Graphics Support (APU Required)
1 x HDMI 2.1 (4K @ 60Hz), 1 x DisplayPort 1.4 (4K @ 60Hz)

USB Connectivity
Rear I/O: 1 x USB 3.2 Gen 2 Type-C (10Gbps), 2 x USB 3.2 Gen 1 (5Gbps), 4 x USB 2.0
Internal Headers: Supports additional USB 3.2 Gen 1 and USB 2.0 ports

Networking & Wireless
Realtek 2.5Gb Ethernet, Wi-Fi 6E (802.11ax), Bluetooth 5.3

Audio
Realtek ALC897, 3 audio ports (Line-In, Line-Out, Mic-In), supports 7.1 surround sound with front panel connection

Power & Cooling
24-pin ATX main power, 8-pin CPU power, VRM heatsinks, 1 x CPU fan header, 2 x system fan headers
