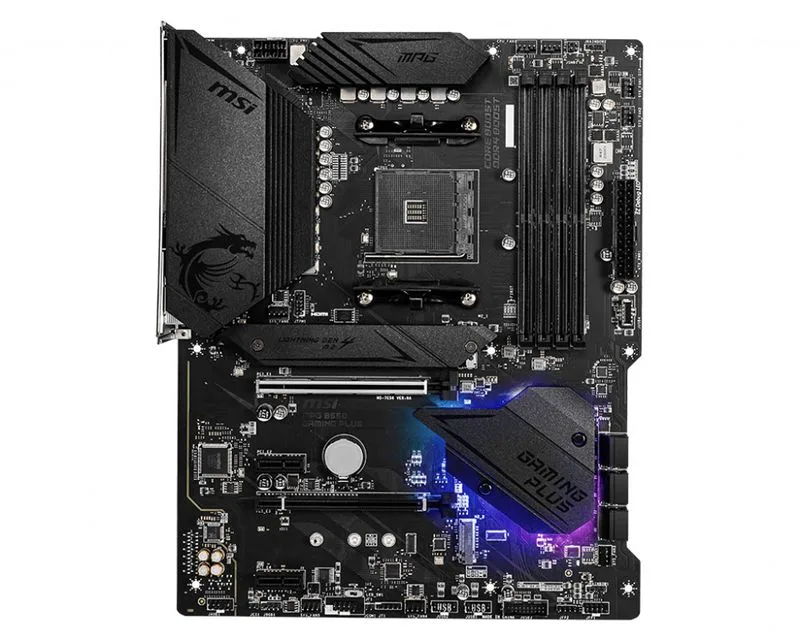

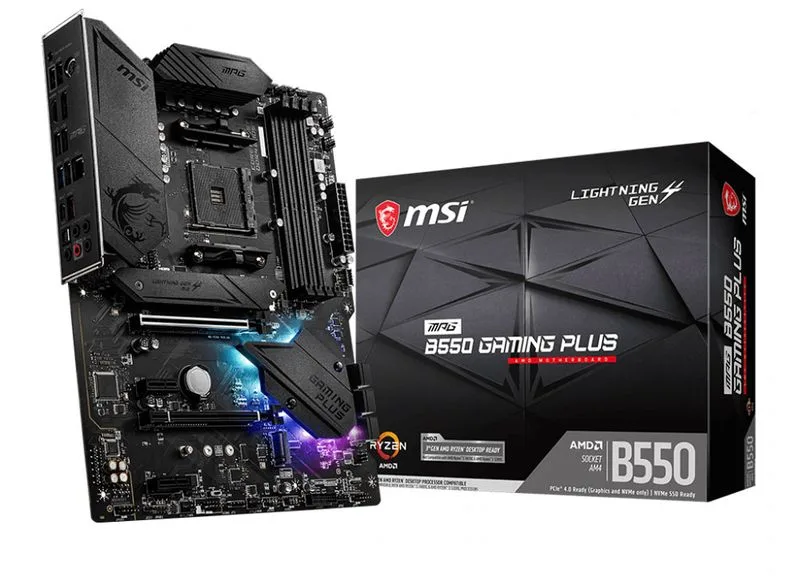

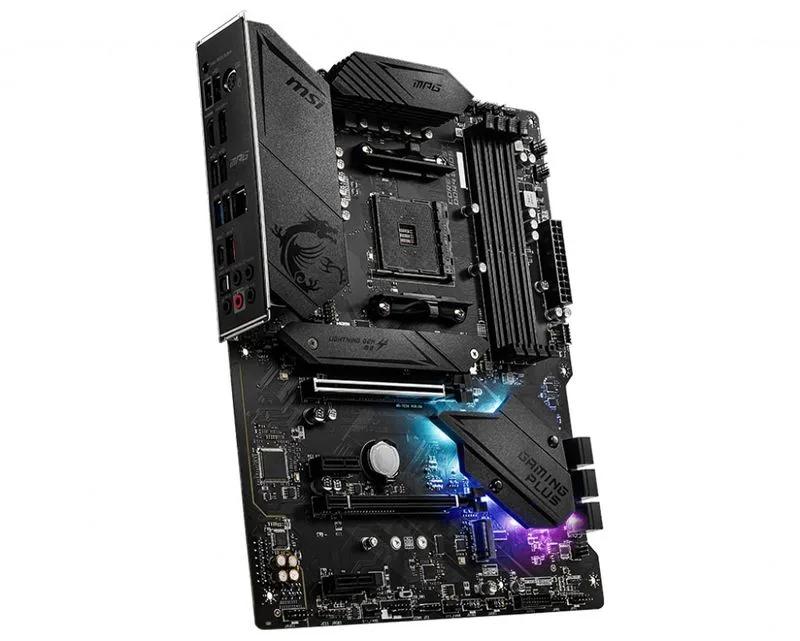

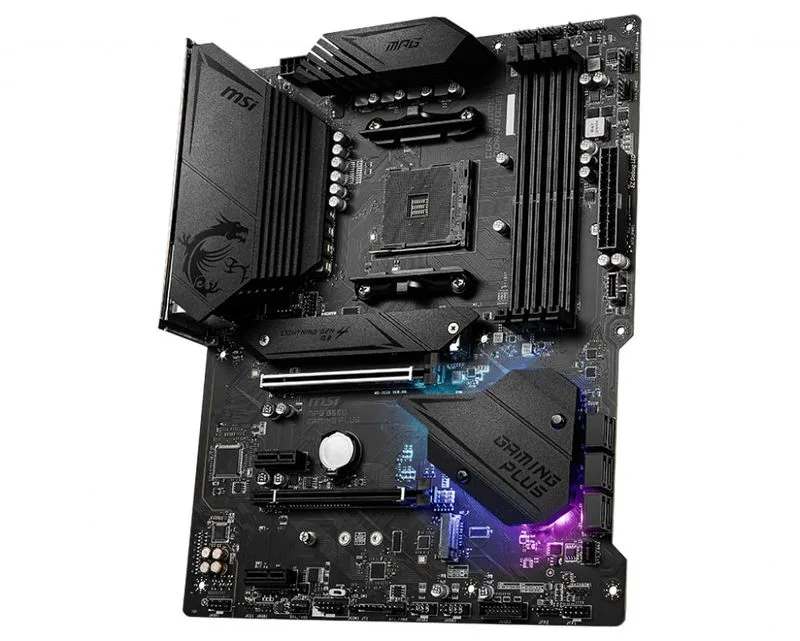

MPG B550 GAMING PLUS

Description

Specifications:

CPU Support:

• AMD Ryzen 5000 / 4000G / 3000 Series (except Ryzen 3200G/3400G)

• AM4 Socket

• 10+2 Power Phase Design with extended heatsinks

Memory:

• 4× DDR4 DIMM slots

• Up to 128GB total

• Up to 4400+ MHz (OC)

Graphics Output:

• 1× HDMI 2.1

• Supports integrated graphics on compatible APUs

Expansion Slots:

• 1× PCIe 4.0 x16 (with Ryzen 3000 or newer)

• 1× PCIe 3.0 x16 (x4 mode)

• 2× PCIe 3.0 x1

Storage:

• 2× M.2 Slots

  • 1× PCIe 4.0 x4 (CPU)

  • 1× PCIe 3.0 x4 (Chipset)

• 6× SATA 6Gb/s Ports

• RAID 0/1/10 support

Networking:

• Realtek 8111H Gigabit LAN

Audio:

• Realtek ALC892

• 7.1 Channel High Definition Audio

Internal Features:

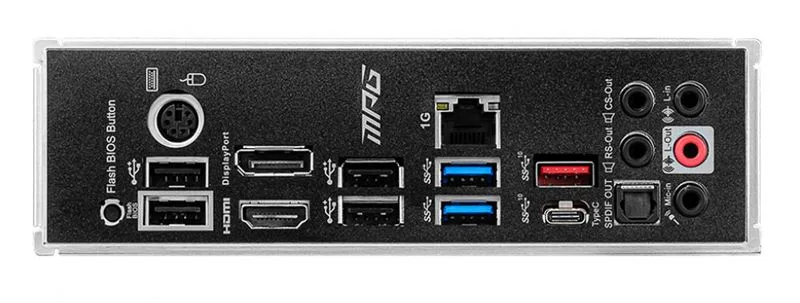

• USB 3.2 Gen 2 Type-C (rear)

• USB 3.2 Gen 1 & USB 2.0 headers

• ARGB + RGB LED headers

• EZ Debug LED

• BIOS Flash Button

---

Ideal For:

• Mid-range gaming PCs

• Budget-friendly Ryzen 5000 builds

• Builders looking for PCIe 4.0 without the cost of X570
