Dr. Power III

Specifications:

• Model Number: AC-069-OO1NAN-A1

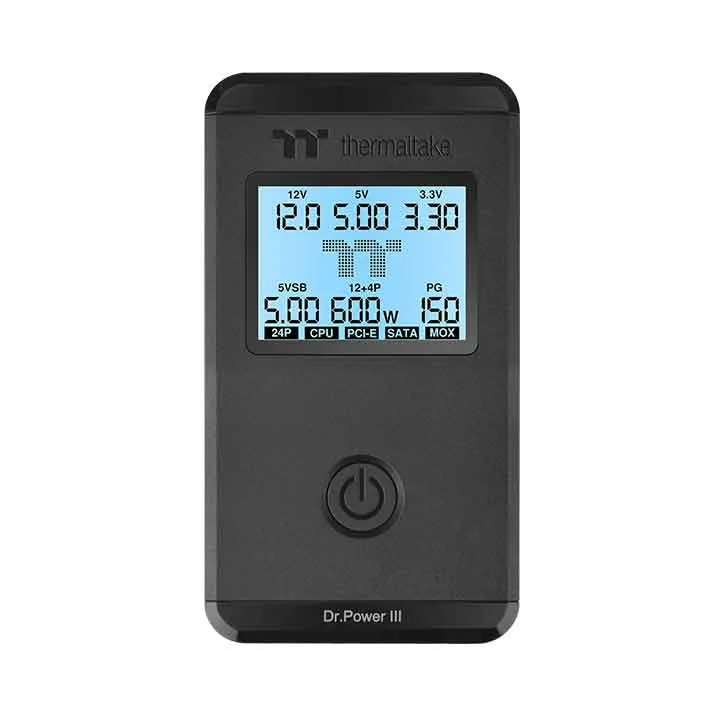

• Display: LCD screen for real-time voltage readings and diagnostics
• Supported PSU Standards: Compatible with all ATX power supplies, up to ATX12V v3.1
• Connector Support:
  • 24-pin ATX (motherboard power)
  • 8-pin +12V EPS (CPU power)
  • 6+2 pin PCIe (GPU power)
  • SATA power (storage devices)
  • 4-pin Molex (legacy peripherals)
  • 12+4 pin PCI Express 5.0 (supports modern GPUs with 150W, 300W, 450W, and 600W detection through SENSE0/SENSE1 sideband signals)

Key Features:

• LCD Display for Voltage Monitoring: Displays real-time PSU voltage levels and diagnostics, allowing quick and easy assessment.
• Multiple Testing Modes: Supports various modes for thorough evaluation of power supply functionality.
• PCIe Gen 5.0 Support: Can detect PCIe 5.0 power levels, ensuring compatibility with the latest high-performance graphics cards.
• User-Friendly Interface: Plug-and-play design with simple connections for fast troubleshooting.
• Portable and Lightweight: Compact design makes it easy to carry and use for both professionals and hobbyists.

Usage Instructions:

1. Connect PSU cables to the tester, following the labeled ports.
2. Turn on the PSU and check voltage readings on the LCD display.
3. Identify irregularities—if voltage levels deviate from the expected range, it may indicate PSU failure or instability.
4. Test different connectors to ensure all power outputs are functioning properly.

This power supply tester is an essential diagnostic tool for anyone building, maintaining, or troubleshooting PCs, ensuring stable power delivery and preventing system failures caused by faulty power supplies.
