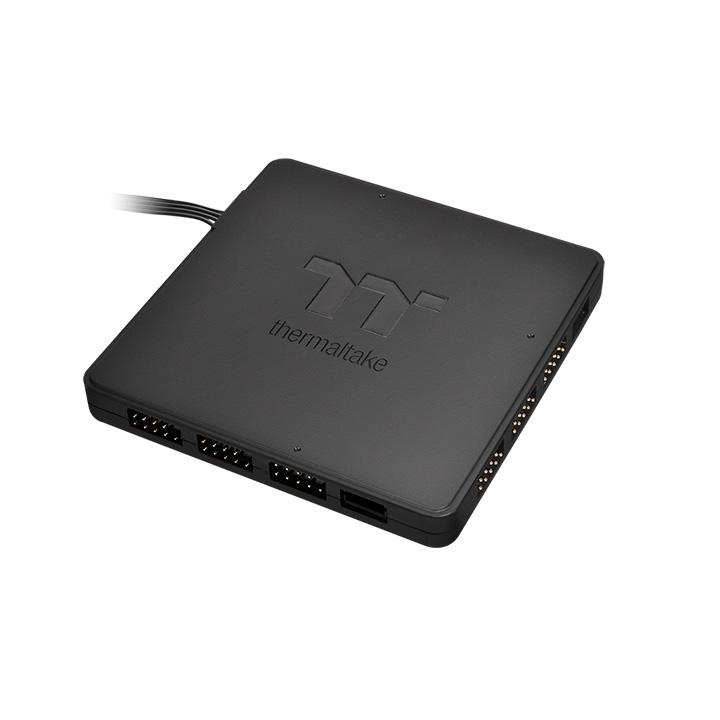

Description
Specifications:
- Dimensions: 90 x 90 x 7.5 mm

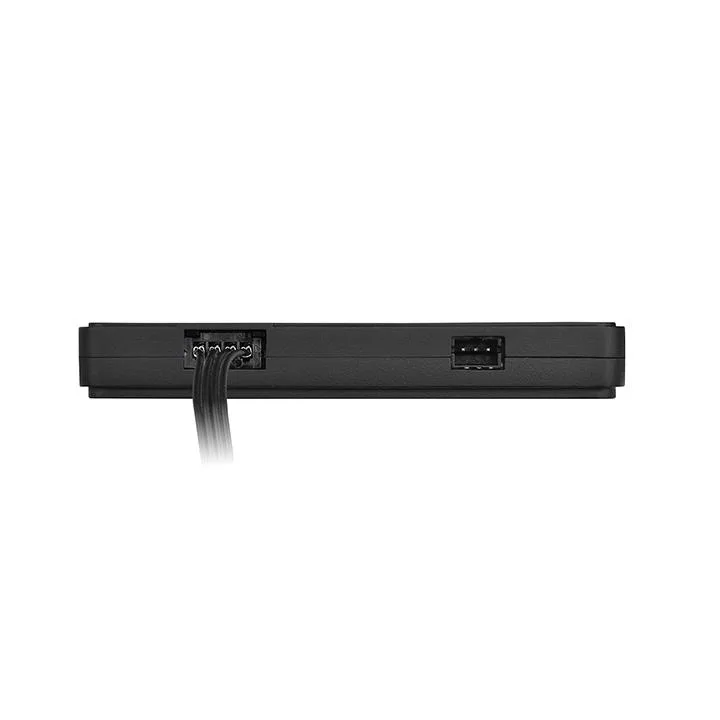

- Power Connector: SATA
- Rated Voltage: 12V & 5V
- Weight: 85g
- Ports: 9 addressable RGB ports for Thermaltake LED products
Key Features:
- 9-Port Design: Supports multiple Thermaltake RGB devices, including Riing Plus RGB fans, Pure Plus RGB fans, Pacific W series water blocks, and LED strips.
- Motherboard Synchronization: Works with 5V addressable RGB headers on supported motherboards for unified lighting control.
- SATA Power Connection: Provides stable and efficient power directly from the PSU.
- PWM Signal Integration: Three PWM signal cables allow for fan speed control through the motherboard.
- Easy Installation: Includes necessary cables to bridge motherboard signals and connect Thermaltake RGB components.
Installation Notes:
- Always connect devices starting from Port 1 and move sequentially.
- If using Pacific Lumi Plus LED strips, connect other addressable LED devices first and add Lumi Plus last.
- If using Riing Plus RGB fans, connect them before other products.
Usage Guidelines:
- Maximum Load: The SATA power connection is rated for 5A (±5%).
- Do not exceed the following recommended limits:
- Up to 5 Riing Quad RGB or Riing Trio RGB fans
- Up to 6 SWAFAN EX RGB fans (in 2 groups of 3)
- Up to 5 SWAFAN RGB fans
- Up to 5 TOUGHFAN RGB fans
This controller is an ideal solution for synchronizing multiple Thermaltake RGB components with motherboard software while maintaining efficient power distribution and cable management.
