Description

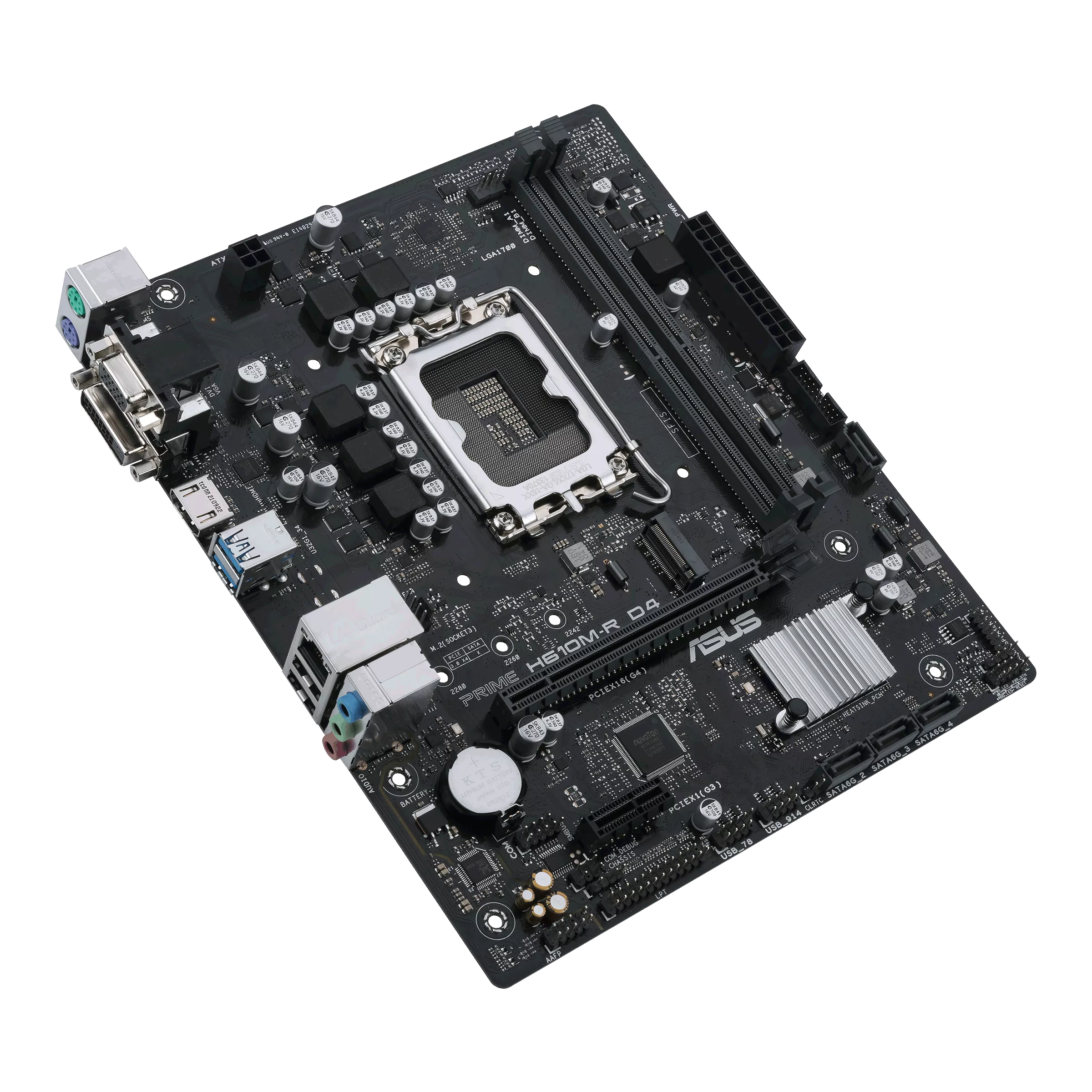

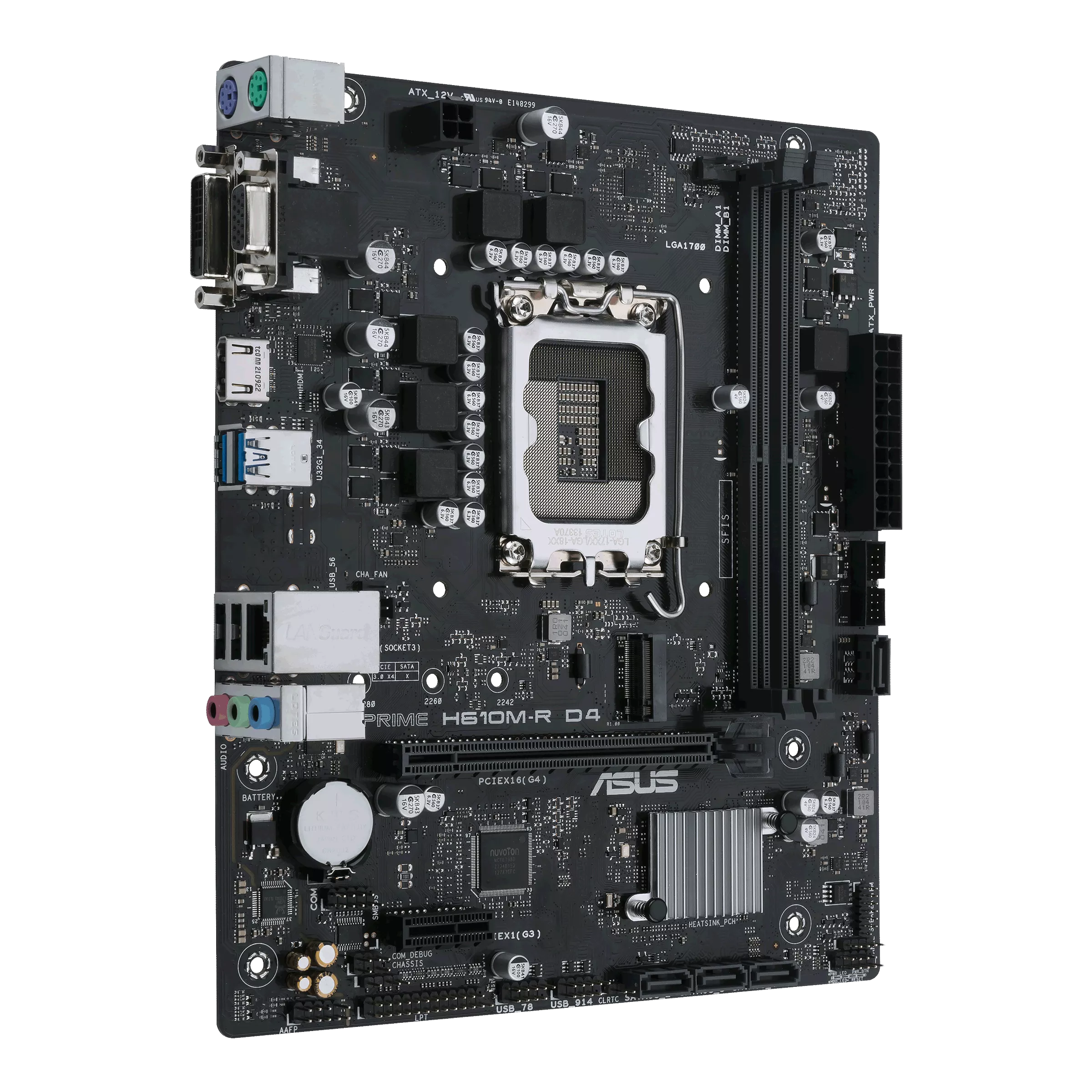

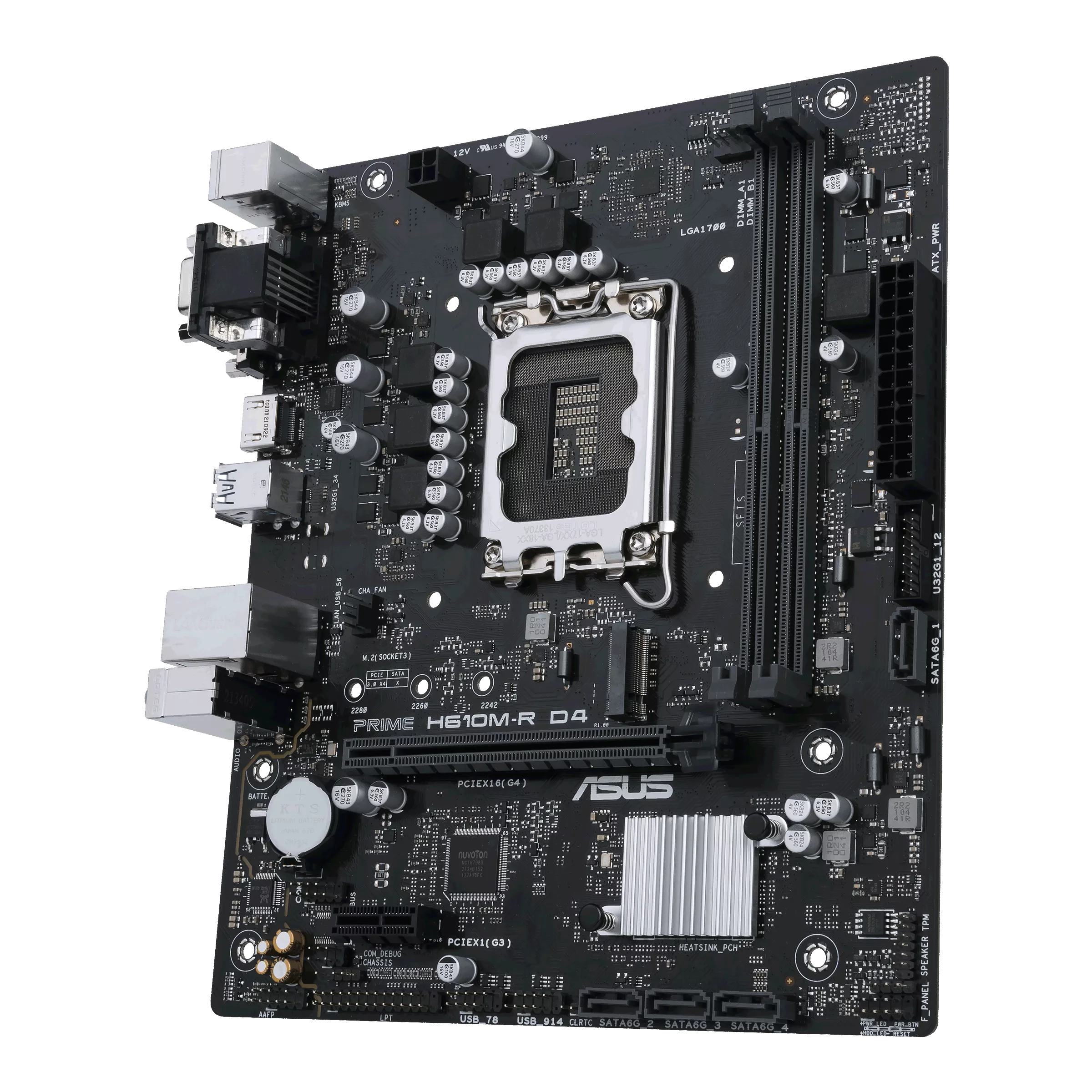

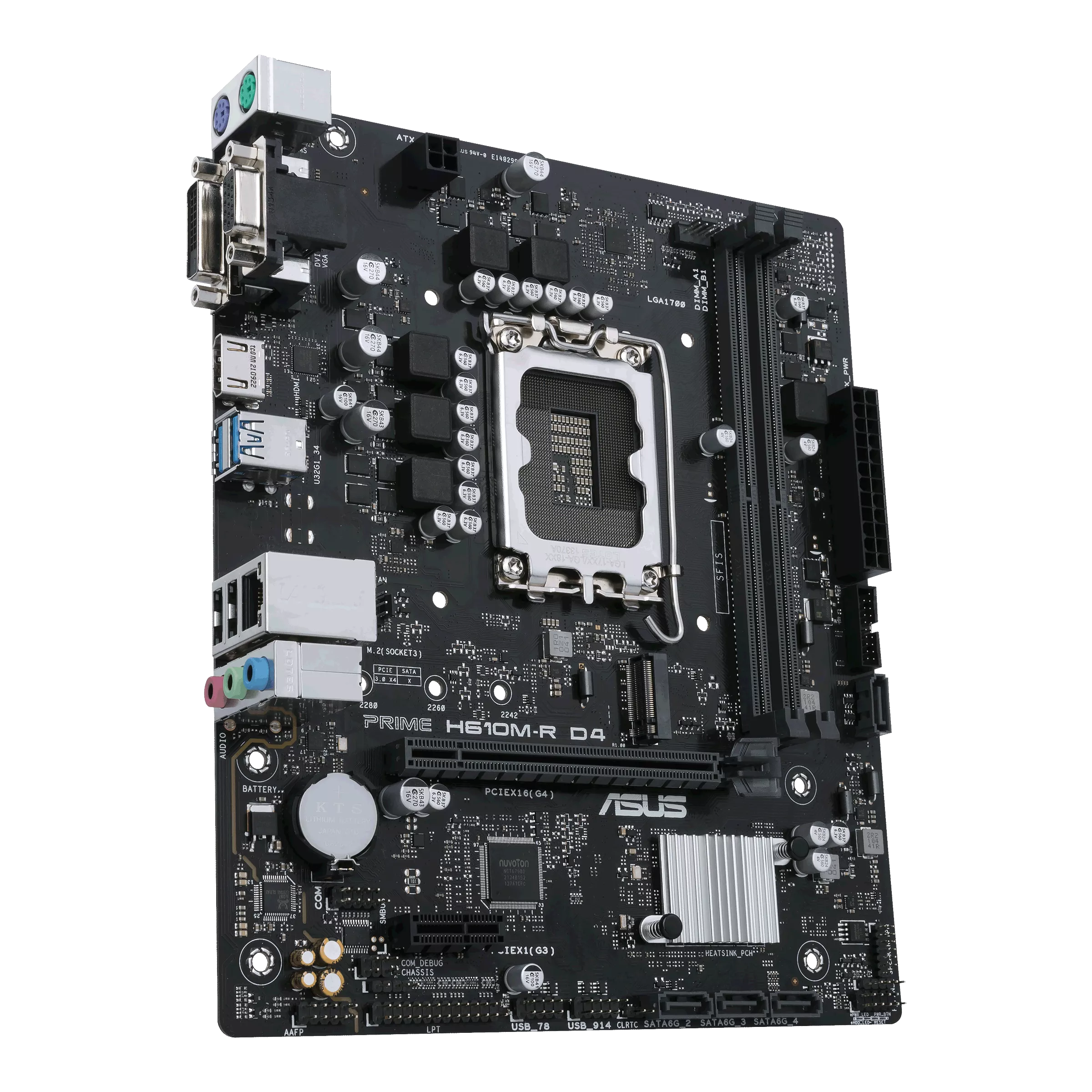

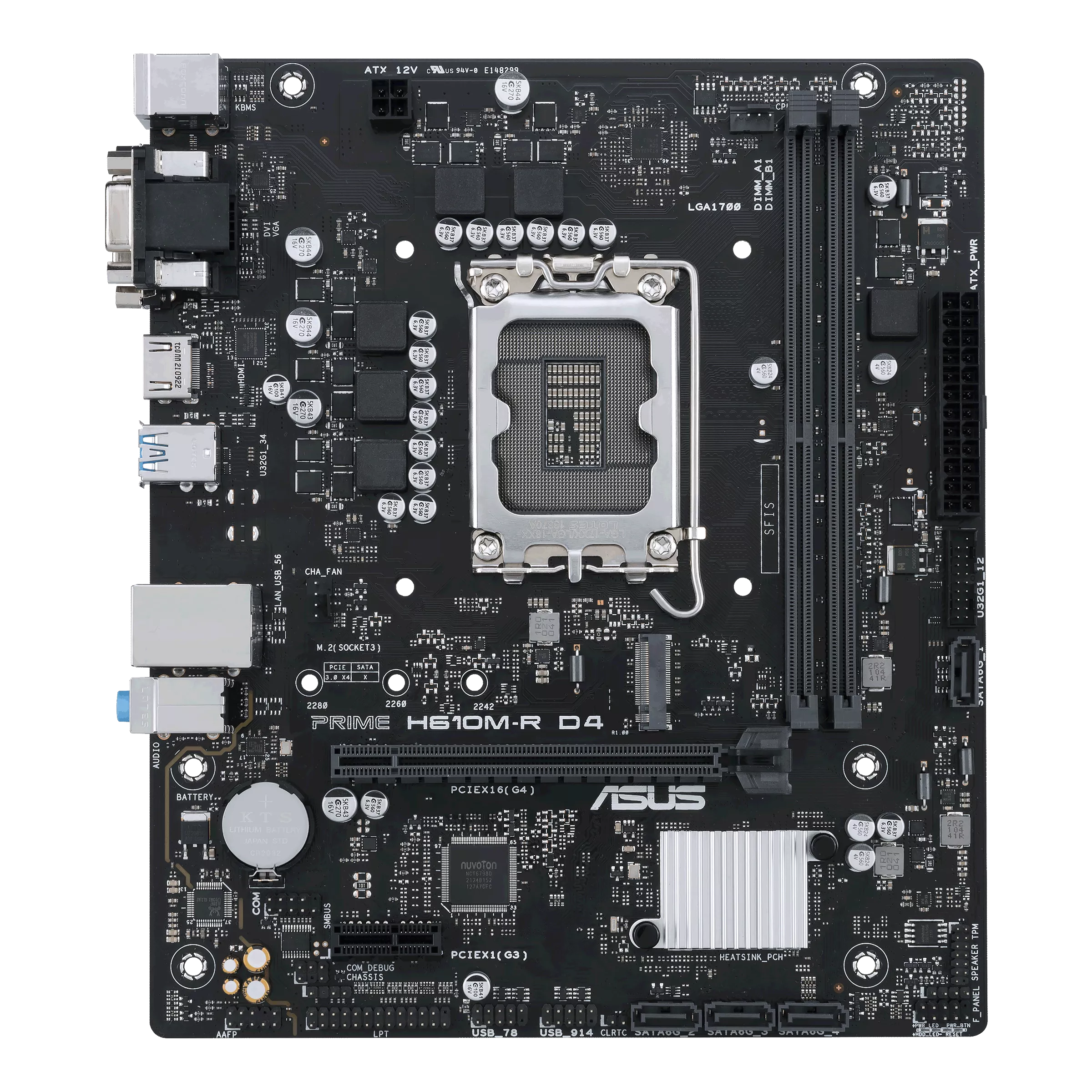

The ASUS PRIME H610M-R D4-SI is part of the ASUS Prime motherboard range and is built as a practical micro-ATX solution for Intel LGA 1700 systems. It supports 12th and 13th Gen Intel Core processors, along with Pentium Gold and Celeron CPUs, and is designed around DDR4 memory for lower-cost system builds. The board includes a PCIe 4.0 x16 slot for a graphics card, one M.2 slot for NVMe SSD storage, and four SATA ports for additional drives. Its compact form factor and straightforward feature set make it a good fit for business desktops, home systems, and budget-focused custom PCs.
Specifications
Chipset: Intel H610
Socket: Intel LGA 1700
CPU support: Intel 12th Gen and 13th Gen Core processors, Pentium Gold, and Celeron processors
CPU power support: Up to 65W CPU support
Form factor: micro-ATX
Memory type: DDR4
Memory support: 2 x DIMM slots
Maximum memory: 64GB
Memory architecture: Dual-channel
Memory speed support: DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
Primary graphics slot: 1 x PCIe 4.0 x16
Additional expansion slot: 1 x PCIe 3.0 x1
Storage: 1 x M.2 slot
M.2 support: PCIe 3.0 x4 NVMe, 2242 / 2260 / 2280
SATA: 4 x SATA 6Gb/s
Ethernet: Realtek 1Gb Ethernet

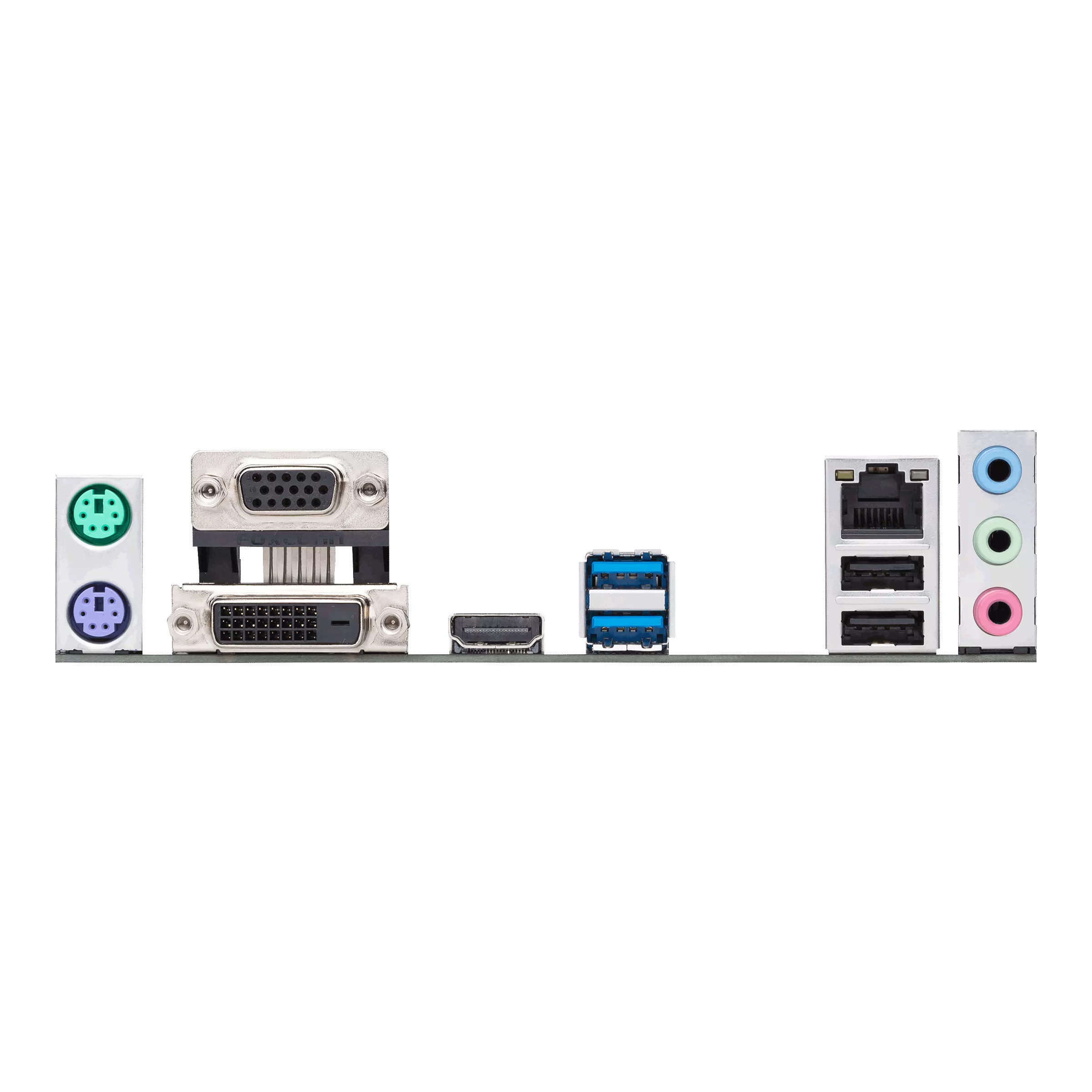

Rear USB: 2 x USB 3.2 Gen 1 Type-A
Rear USB: 2 x USB 2.0 Type-A
Display outputs: 1 x HDMI
Display outputs: 1 x D-Sub
Display outputs: 1 x DVI-D
Audio: 3 x audio jacks
Rear PS/2: 2 x PS/2 ports
Front USB support: 1 x USB 3.2 Gen 1 header
Front USB support: 2 x USB 2.0 headers
Cooling: PCH heatsink
Fan headers: 1 x CPU fan header, 1 x chassis fan header
Power connectors: 1 x 24-pin main power, 1 x 4-pin CPU power
Special features: 5X Protection III, COM header, LPT header, TPM header, Clear CMOS header
