Description

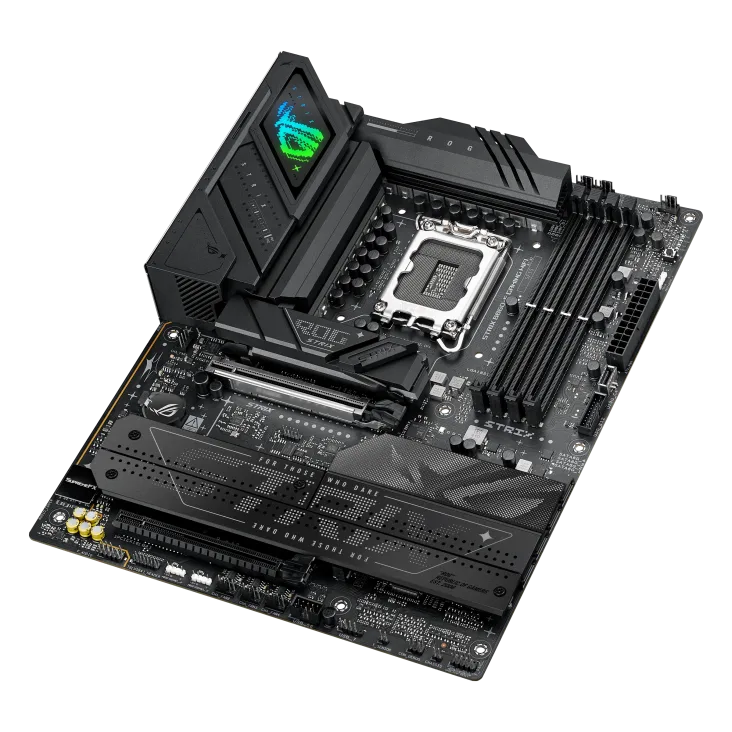

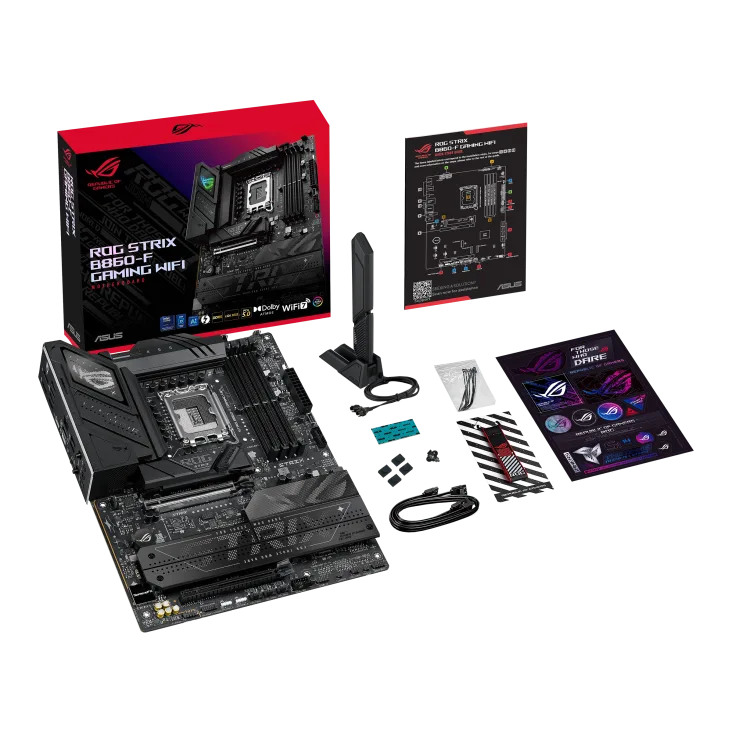

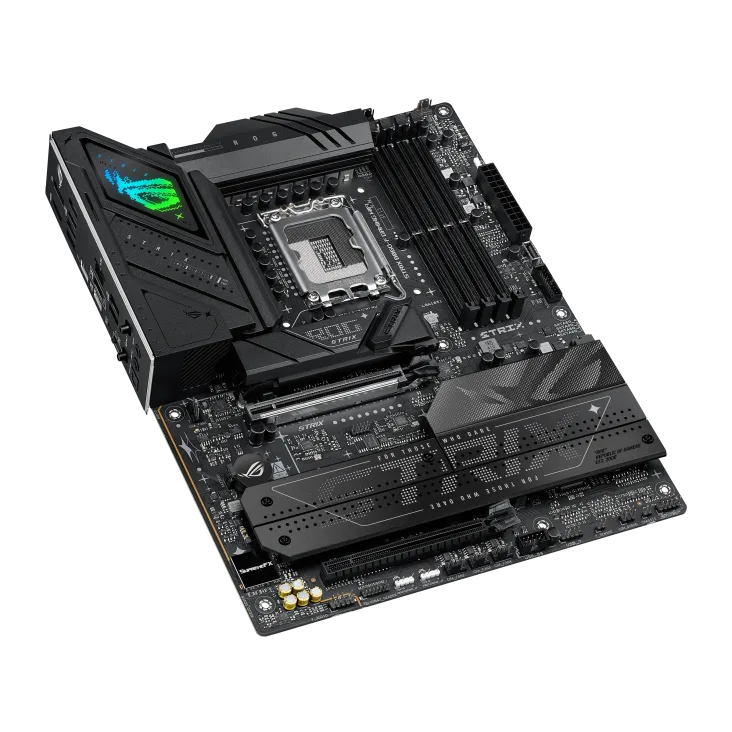

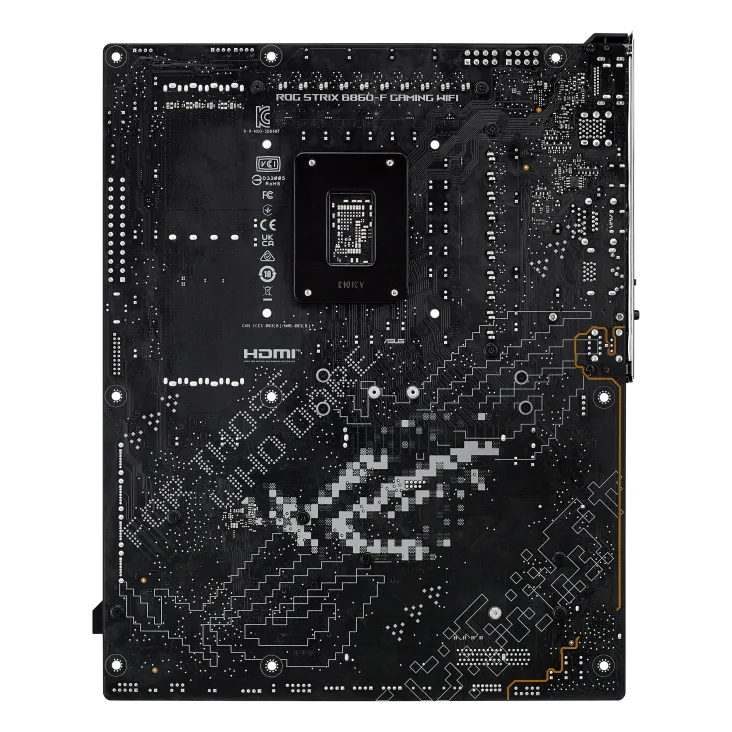

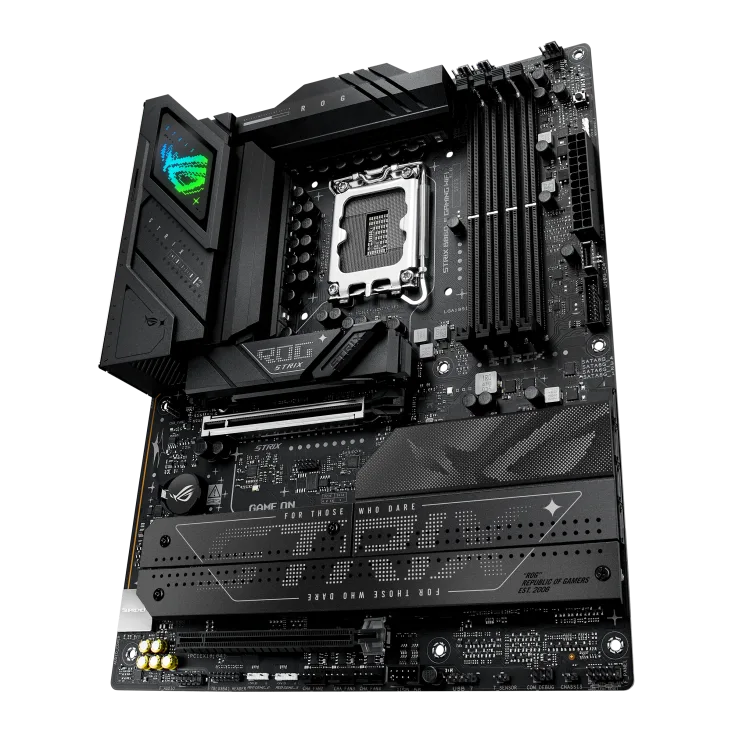

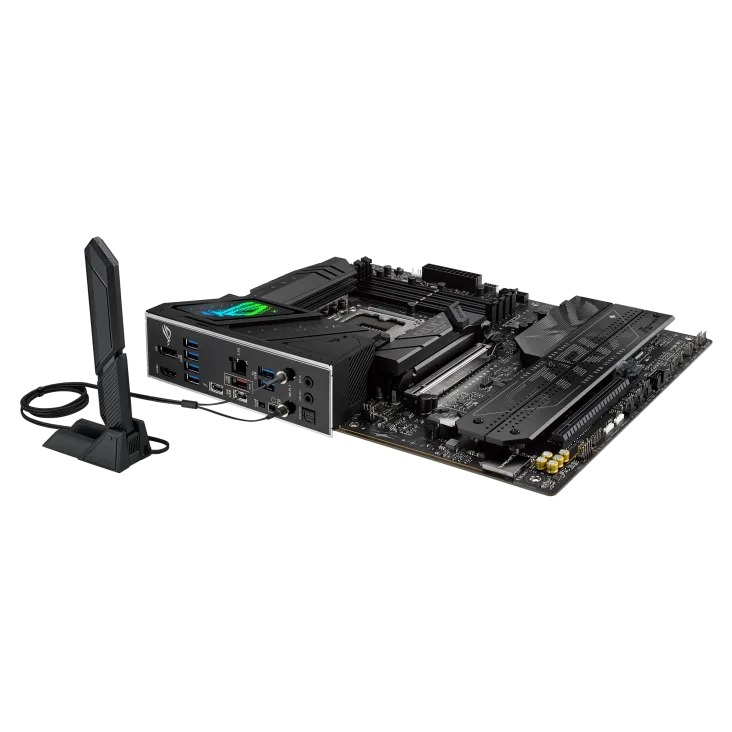

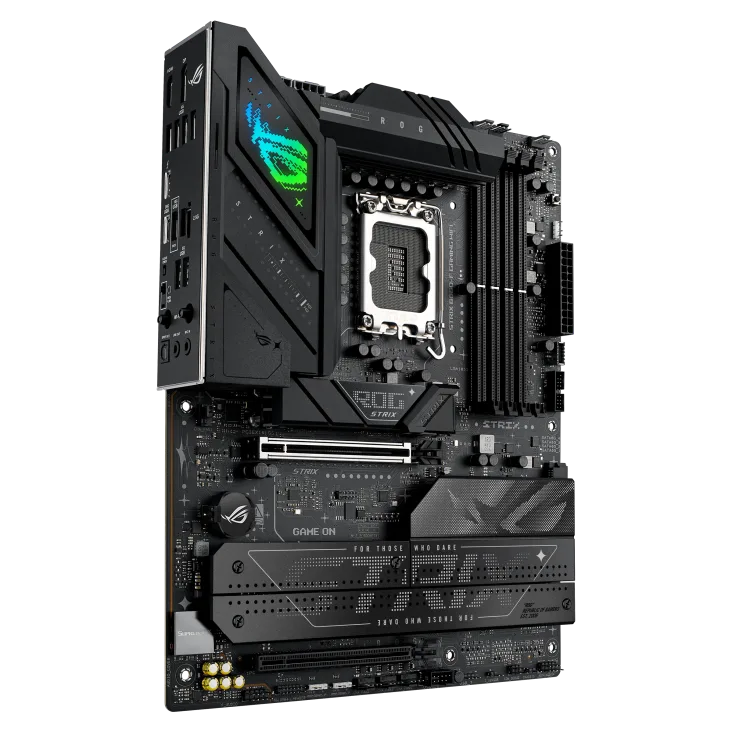

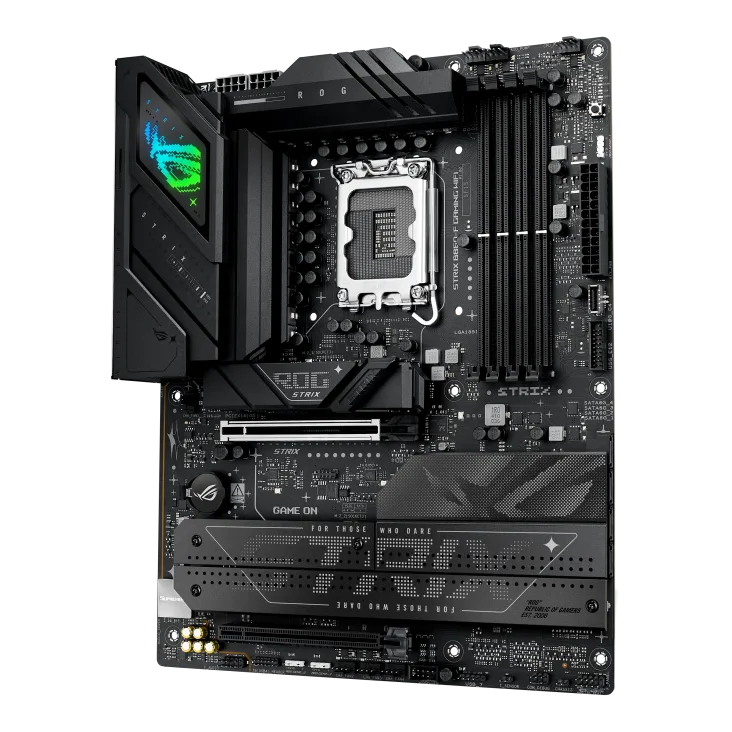

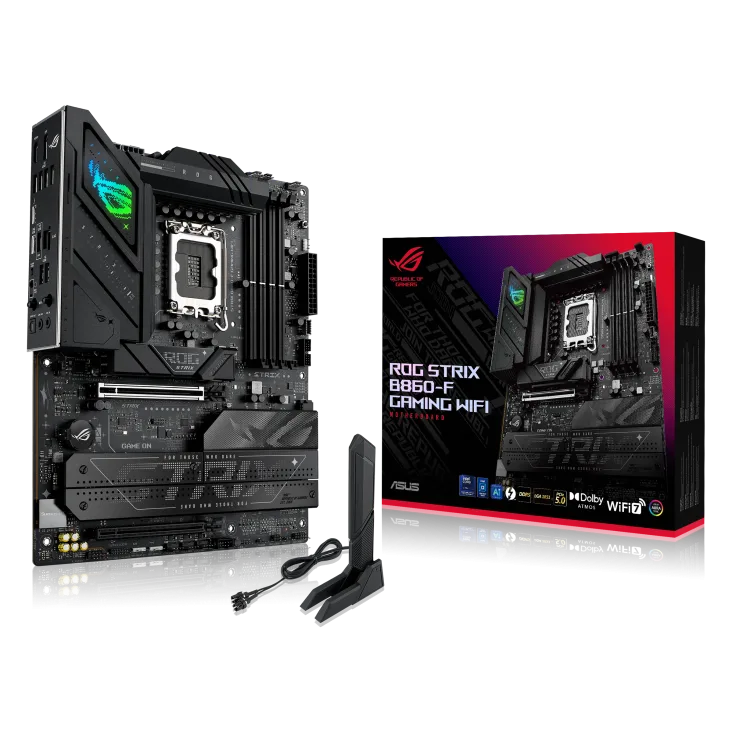

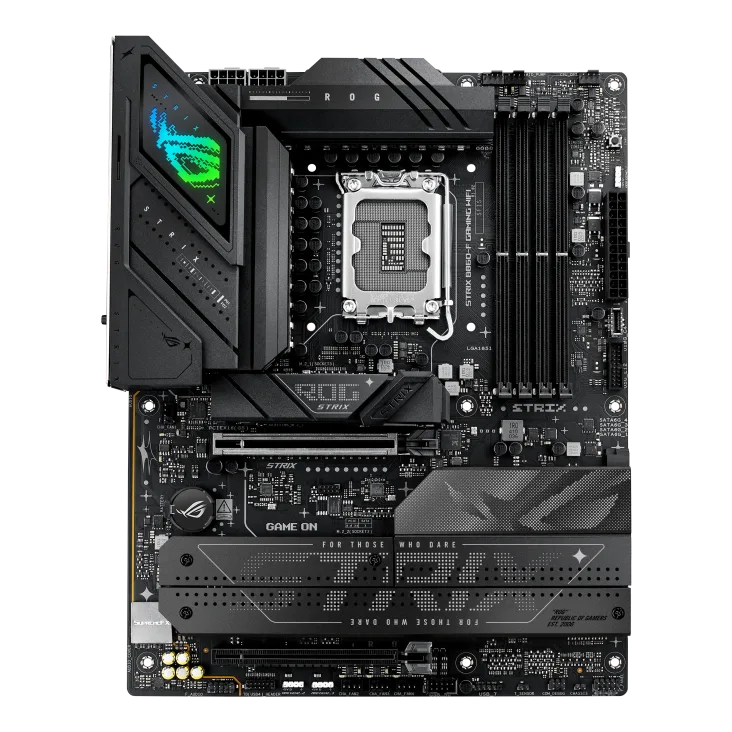

The ASUS ROG STRIX B860-F GAMING WIFI is part of ASUS’s premium ROG Strix motherboard lineup and is built for users who want a well-equipped Intel platform with strong networking, storage, and upgrade headroom. Its ATX layout provides room for multiple expansion devices, four onboard M.2 slots, and broad cooling support, making it suitable for advanced gaming systems, creator PCs, and enthusiast desktop builds. The board supports DDR5 memory, a PCIe 5.0 x16 graphics slot, and next-generation wireless networking, while also including high-speed USB connectivity, premium onboard audio, and ASUS DIY-friendly features for easier installation and tuning.
Specifications
Chipset: Intel B860
Socket: Intel LGA 1851
CPU support: Intel Core Ultra Processors (Series 2)
Form factor: ATX
Power design: 16+1+2+1 power stages
Memory type: DDR5
Memory support: 4 x DIMM slots
Maximum memory: Up to 256GB
Memory architecture: Dual-channel
Memory overclocking support: Up to DDR5-9066 MT/s (OC)
Memory profile support: Intel XMP 3.0
Memory tuning features: DIMM Fit, ASUS AEMP III
Primary graphics slot: 1 x PCIe 5.0 x16 SafeSlot
Additional expansion slot: 1 x PCIe 4.0 x16 operating at x4
Storage: 4 x M.2 slots
Primary M.2 support: 1 x PCIe 5.0 x4 NVMe
Additional M.2 support: PCIe 4.0 x4 NVMe
SATA: 4 x SATA 6Gb/s
Ethernet: Intel 2.5Gb Ethernet
Wireless: WiFi 7
Bluetooth: Bluetooth 5.4

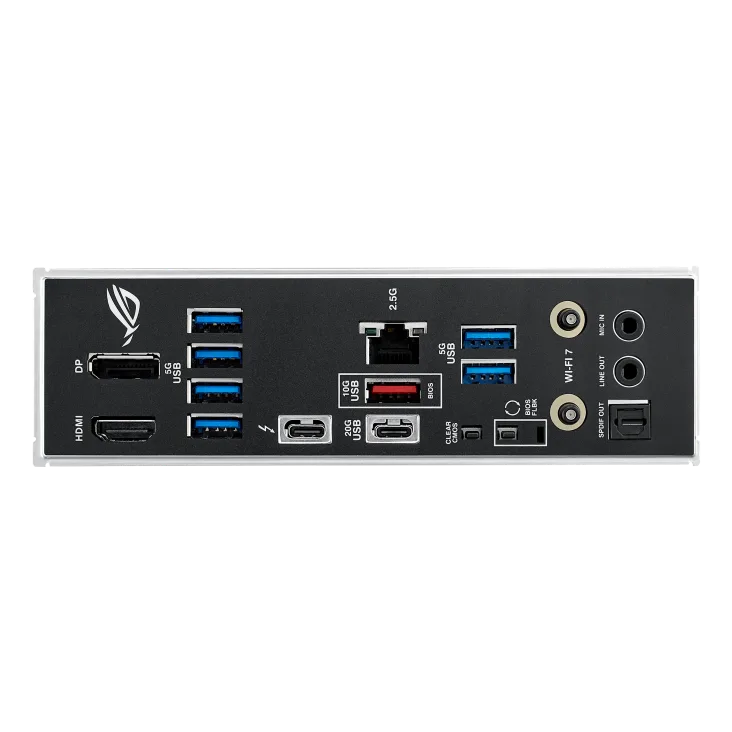

Rear USB: 1 x Thunderbolt 4 / USB Type-C
Rear USB: 1 x USB 20Gbps Type-C
Rear USB: 1 x USB 10Gbps Type-A
Rear USB: 6 x USB 5Gbps Type-A
Display outputs: 1 x DisplayPort
Display outputs: 1 x HDMI
Audio: ROG SupremeFX 7.1 high-definition audio
Rear audio: 2 x audio jacks
Optical audio: 1 x Optical S/PDIF out
Special features: BIOS FlashBack, Clear CMOS, PCIe Slot Q-Release Slim, M.2 Q-Release, ASUS WiFi Q-Antenna, Aura Sync RGB
