Description

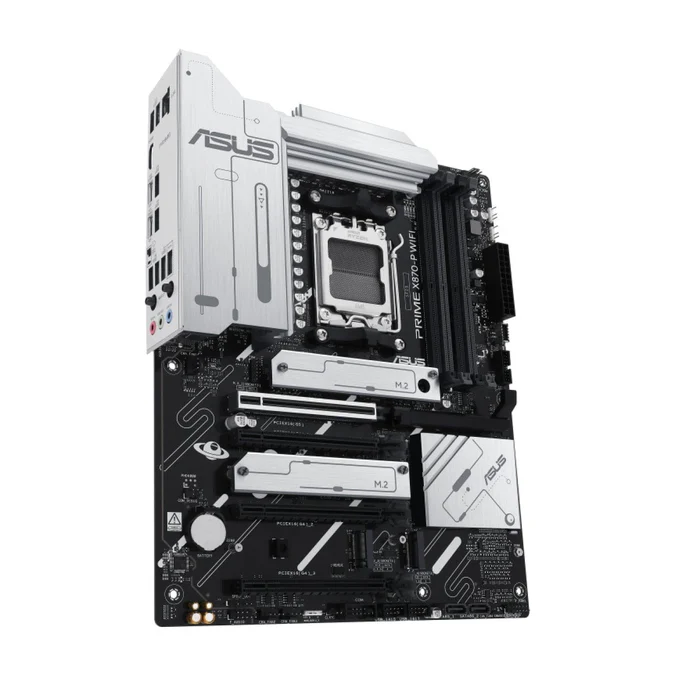

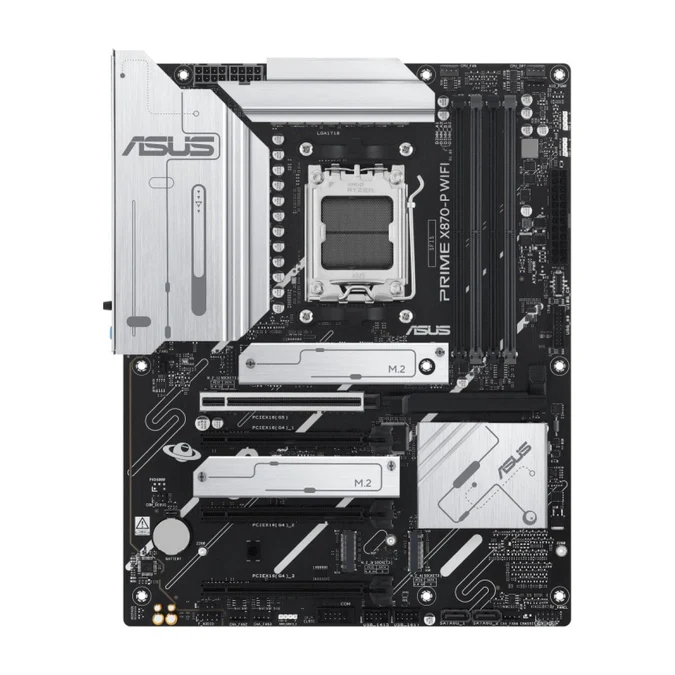

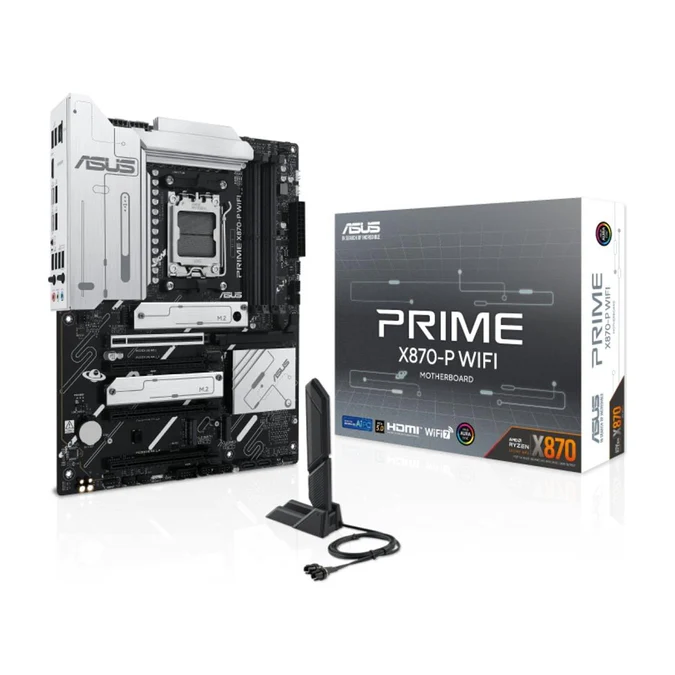

ASUS Motherboard/ATX/AM5/4The ASUS PRIME X870-P WIFI is part of the ASUS Prime motherboard lineup and is built to provide a stable, feature-rich foundation for AMD AM5 desktop systems. It supports DDR5 memory, PCIe 5.0 for graphics and storage, and multiple NVMe drives through four onboard M.2 slots. Its full ATX layout gives it room for expansion cards, storage devices, and improved cooling coverage, making it suitable for gaming systems, creator builds, and upgrade-focused enthusiast PCs. With integrated WiFi 7, 2.5Gb Ethernet, BIOS FlashBack, and ASUS DIY-friendly features, it is designed to balance performance, connectivity, and ease of installation.
Specifications
Chipset: AMD X870
Socket: AMD Socket AM5
CPU support: AMD Ryzen 9000 Series, Ryzen 8000 Series, and Ryzen 7000 Series desktop processors
Form factor: ATX
Power design: 14+2+1 power stages
Memory type: DDR5
Memory support: 4 x DIMM slots
Memory architecture: Dual-channel
Memory tuning support: AEMP
Primary graphics slot: 1 x PCIe 5.0 x16 SafeSlot
Additional expansion slots: PCIe expansion slots for add-in cards
Storage: 4 x M.2 slots
Primary M.2 support: PCIe 5.0 x4
Additional M.2 support: PCIe 4.0 x4 and PCIe 3.0 support depending on slot
SATA: SATA 6Gb/s support
Ethernet: 2.5Gb Ethernet
Wireless: WiFi 7
Rear USB: Dual high-speed USB Type-C ports
Additional USB: USB Type-A rear connectivity and internal front-panel USB headers
Cooling design: Enlarged VRM heatsinks and onboard heatsink coverage
Lighting support: Aura Sync RGB
BIOS feature: BIOS FlashBack
DIY features: Q-Antenna, PCIe Slot Q-Release, M.2 Q-Latch, Q-LED Core
