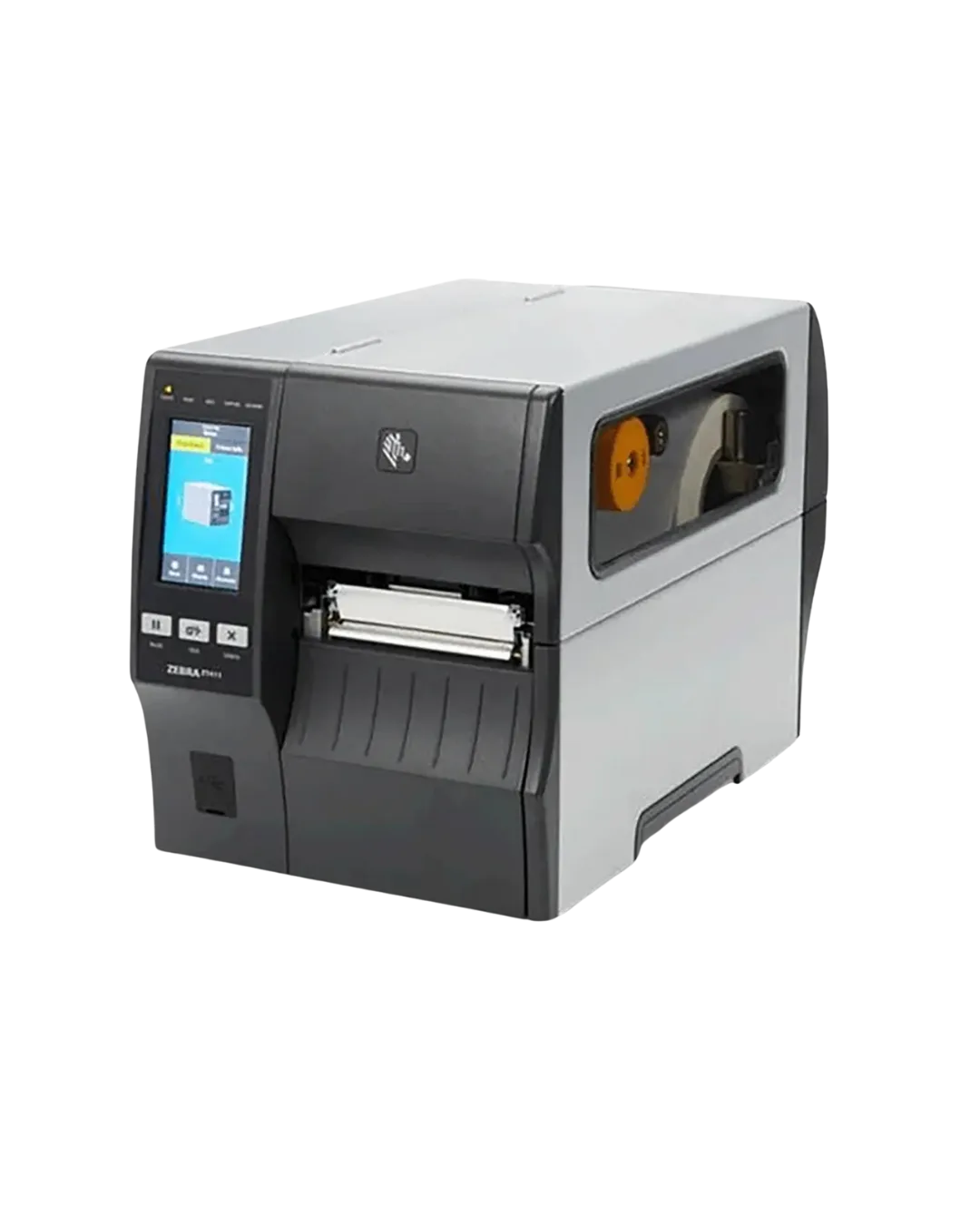

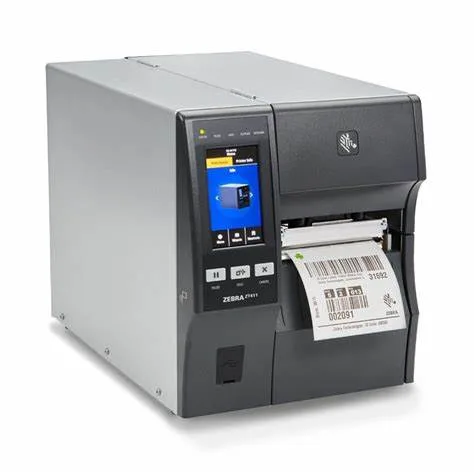

Zebra ZT411 4″ Thermal Transfer Label Printer

Description

⚙️ Technical Specifications

• Print Technology: Thermal Transfer and Direct Thermal

• Print Resolution Options:

  • 203 dpi (8 dots/mm)

  • 300 dpi (12 dots/mm)

  • 600 dpi (24 dots/mm)

• Maximum Print Speed:

  • Up to 14 inches per second (356 mm/s) at 203 dpi

  • Up to 10 inches per second (254 mm/s) at 300 dpi

  • Up to 4 inches per second (102 mm/s) at 600 dpi

• Maximum Print Width: 4.09 inches (104 mm)

• Maximum Print Length:

  • 157 inches (3,988 mm) at 203 dpi

  • 73 inches (1,854 mm) at 300 dpi

  • 39 inches (991 mm) at 600 dpi

• Memory:

  • 256 MB SDRAM (8 MB user-available)

  • 512 MB Flash (64 MB user-available)

• Media Handling:

  • Media Types: Continuous, die-cut, notch, black mark, linerless (optional)

  • Media Width: 1.00 to 4.50 inches (25.4 to 114 mm) for tear/cutter; 1.00 to 4.25 inches (25.4 to 108 mm) for peel/rewind

  • Media Thickness: 0.0023 to 0.010 inches (0.058 to 0.25 mm)

  • Maximum Media Roll Size: 8.0 inches (203 mm) outer diameter on a 3.0-inch (76 mm) inner core

• Ribbon Specifications:

  • Ribbon Width: 2.00 to 4.33 inches (51 to 110 mm)

  • Ribbon Length: Up to 1,476 feet (450 meters)

  • Ribbon Core: 1.0 inch (25.4 mm) inner diameter

• Connectivity Options:

  • Standard: USB 2.0, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.1, Dual USB Host

  • Optional: Wireless dual radio with 802.11ac Wi-Fi and Bluetooth 4.2, Parallel (Bi-directional interface), Applicator interface

• Display: 4.3-inch full-color touch display with intuitive menu for quick operation and settings management

• Operating Environment:

  • Operating Temperature:

    • Thermal Transfer: 5°C to 40°C (40°F to 105°F)

    • Direct Thermal: 0°C to 40°C (32°F to 105°F)

  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)

  • Operating Humidity: 20% to 85% non-condensing

  • Storage Humidity: 5% to 85% non-condensing

• Power Supply: Auto-switching 100–240V AC, 50–60Hz; ENERGY STAR® certified

• Physical Characteristics:

  • Dimensions (H x W x D): 12.8 x 10.8 x 19.7 inches (325 x 274 x 500 mm)

  • Weight: 36 lbs (16 kg)

✅ Key Features

• Durable Construction: All-metal frame and bi-fold door for rugged environments

• Advanced User Interface: Full-color touch display with intuitive navigation

• Flexible Media Handling: Supports a wide range of media types and sizes

• High-Speed Printing: Up to 14 inches per second for increased productivity

• Enhanced Connectivity: Multiple standard and optional connectivity options for seamless integration

• Easy Maintenance: Tool-less printhead and platen roller replacement

• Link-OS® Enabled: Simplifies printer management and integration with enterprise systems

• Print DNA Suite: Includes a suite of software applications for enhanced performance and security

The Zebra ZT411 4″ Thermal Transfer Label Printer delivers exceptional performance, reliability, and versatility, making it a top choice for businesses requiring high-quality, high-volume label printing solutions.
