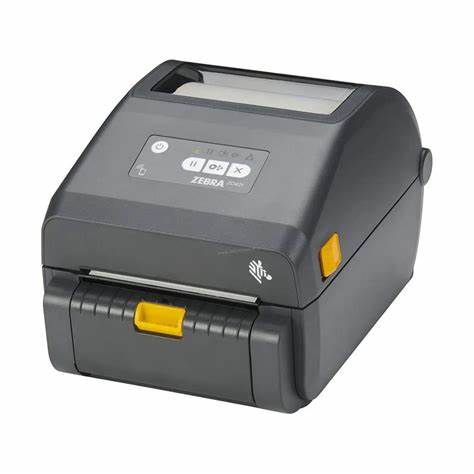

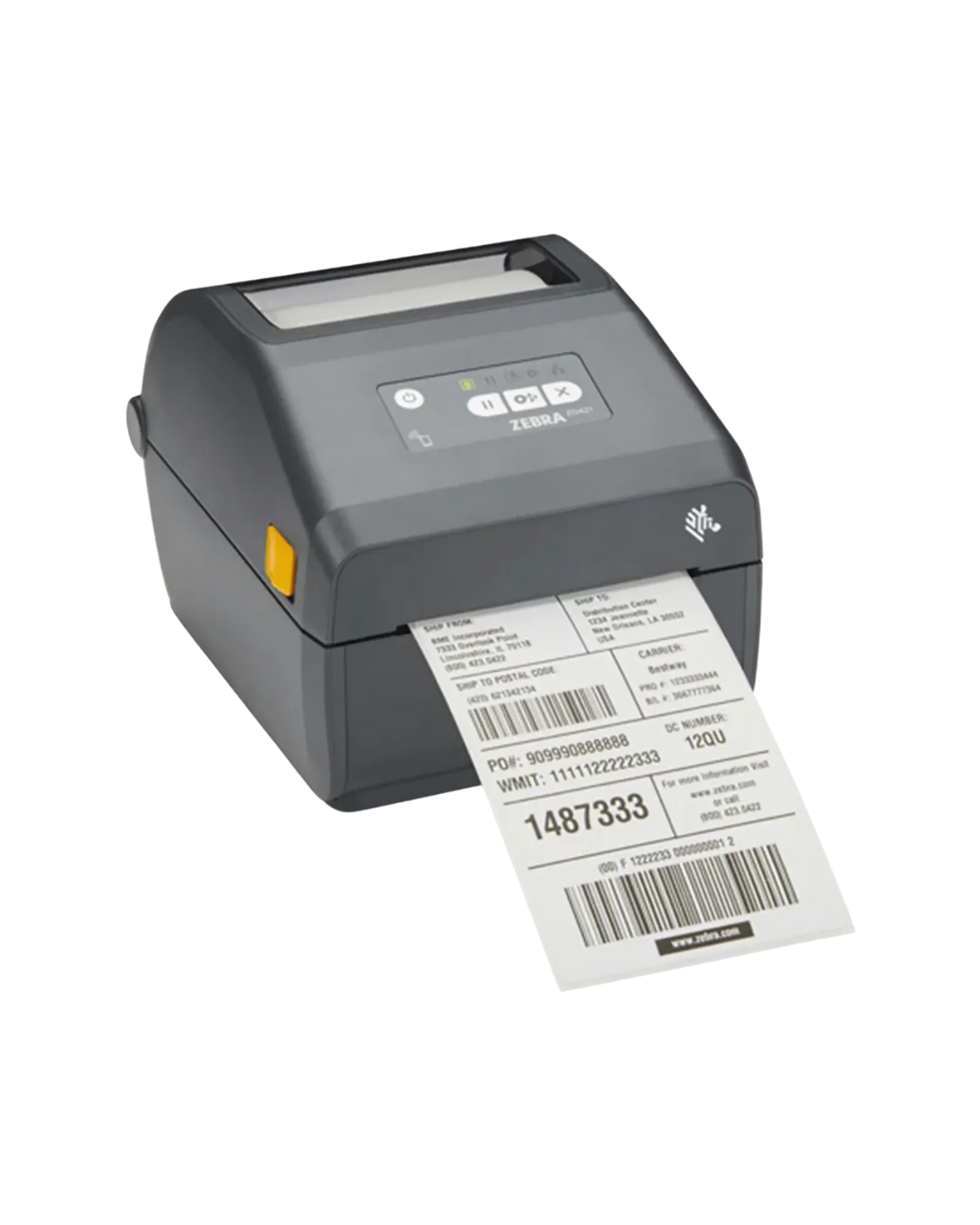

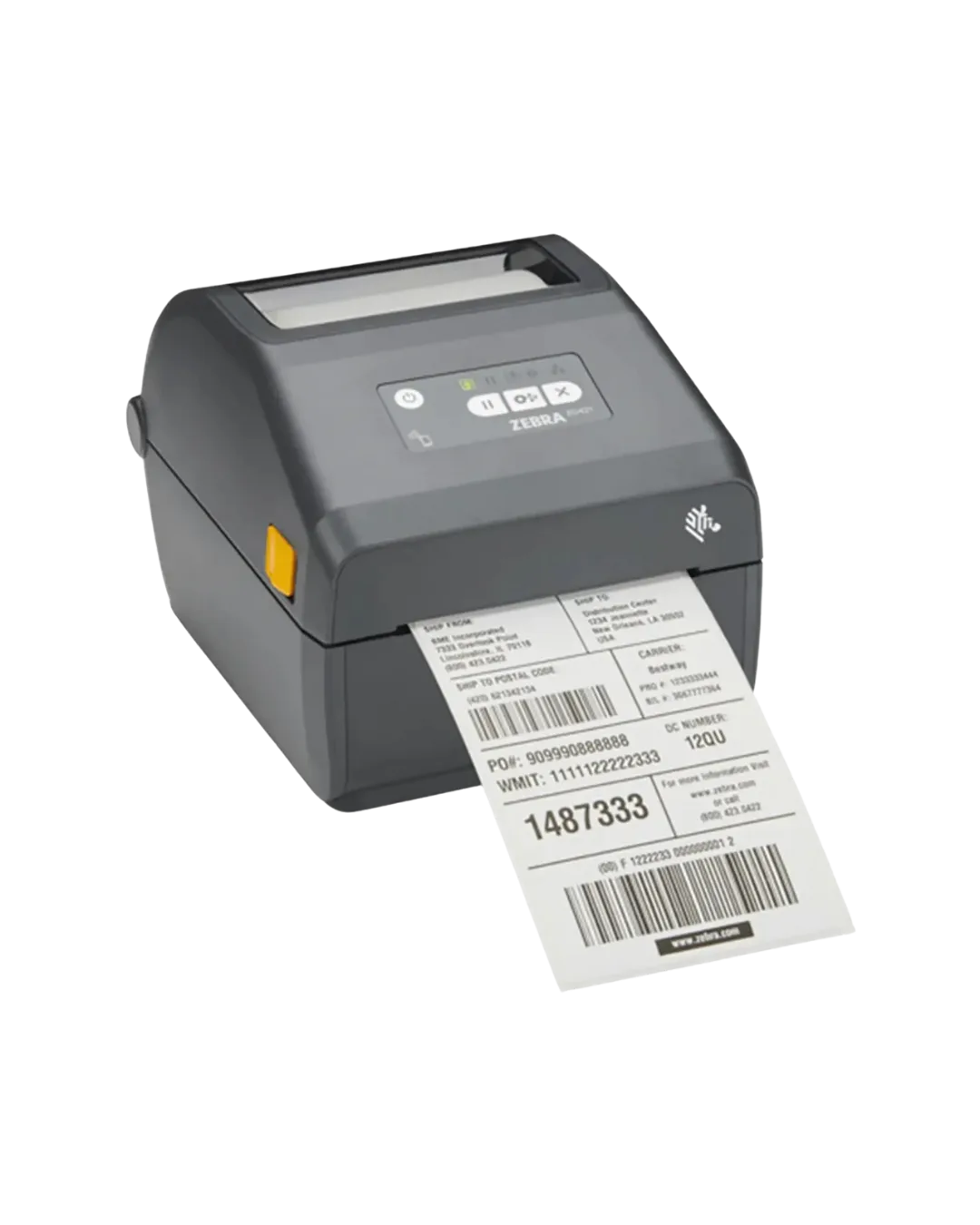

Zebra ZD421 Thermal Transfer Receipt Printer

Description

⚙️ Technical Specifications

• Print Technology: Thermal Transfer

• Print Resolution: 203 dpi (8 dots/mm)

• Maximum Print Speed: 6 inches per second (152 mm/s)

• Maximum Print Width: 4.09 inches (104 mm)

• Memory: 512 MB Flash; 256 MB SDRAM

• Media Width: 0.585 to 4.41 inches (15 to 112 mm)

• Media Types: Roll-fed or fan-fold, die-cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands

• Media Sensors: Full-width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor

• Ribbon Specifications:

  • Ribbon Length: 984 feet (300 m) or 244 feet (74 m)

  • Ribbon Width: 1.33 to 4.3 inches (33.8 to 109.2 mm)

  • Ribbon Core Inner Diameter: 1 inch (25.4 mm) for 300 m; 0.5 inch (12.7 mm) for 74 m

• Connectivity Options:

  • USB 2.0

  • USB Host

  • Optional: Ethernet, Serial, Wi-Fi 802.11ac, Bluetooth 4.1

• Programming Languages: ZPL II, EPL 2, XML, ZBI, PDF Direct

• Operating Environment:

  • Operating Temperature: 40°F to 105°F (4.4°C to 41°C)

  • Storage Temperature: -40°F to 140°F (-40°C to 60°C)

  • Operating Humidity: 10% to 90% non-condensing

  • Storage Humidity: 5% to 95% non-condensing

• Electrical: Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified

• Physical Characteristics:

  • Dimensions (L x W x H): 10.5 x 8.0 x 7.44 inches (267 x 202 x 189 mm)

  • Weight: 4.52 lbs (2.05 kg)

✅ Key Features

• User-Friendly Interface: Features a 3-button user interface with five LED status indicators for easy operation.

• OpenACCESS™ Clamshell Design: Simplifies media loading and maintenance.

• Advanced Security: Includes PrintSecure for secure connections and data protection.

• Flexible Media Handling: Supports a wide range of media types and sizes.

• Upgradeable Design: Field-installable options for connectivity and media handling, including Ethernet, Serial, Wi-Fi, Bluetooth, peeler, and cutter.

• Print DNA Software Suite: Offers a suite of applications and tools for easy setup, management, and maintenance.

The Zebra ZD421 Thermal Transfer Receipt Printer is engineered to meet the evolving needs of businesses requiring reliable and efficient printing solutions. Its advanced features and flexible design make it an ideal choice for various applications, ensuring high-quality printing and seamless integration into existing workflows.
