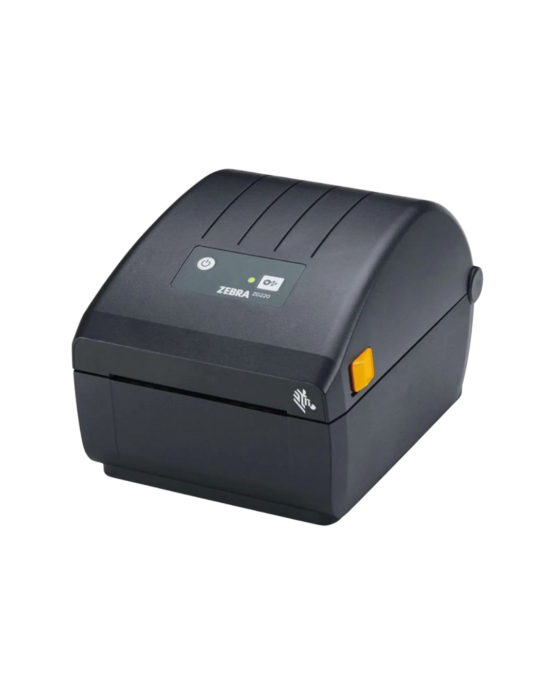

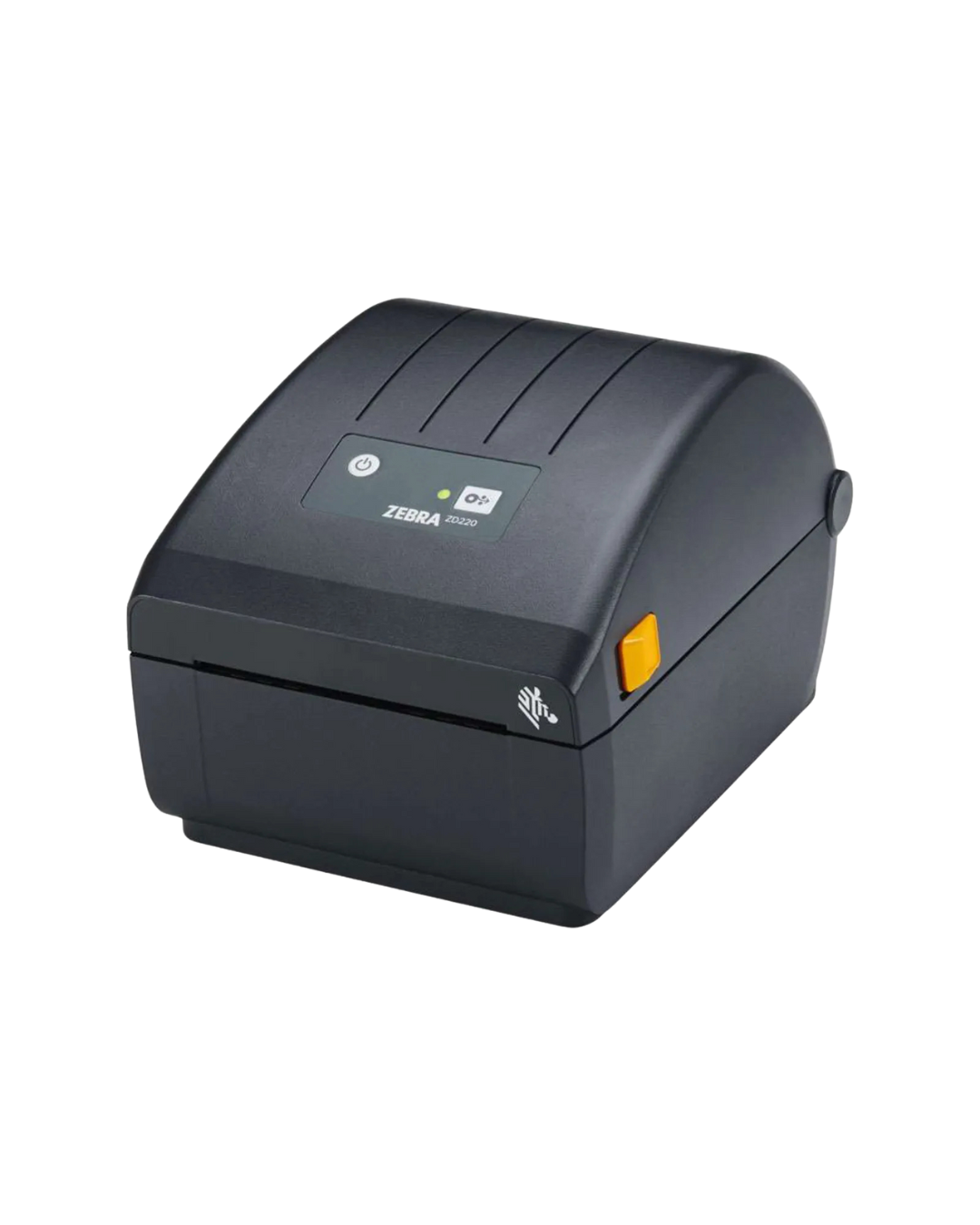

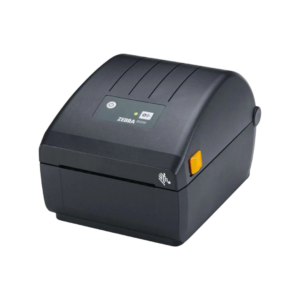

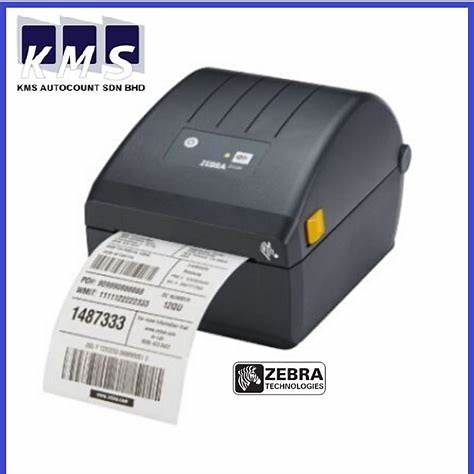

Zebra ZD230 Thermal Transfer Receipt Printer

Description

⚙️ Technical Specifications

• Print Technology: Thermal Transfer

• Print Resolution: 203 dpi (8 dots/mm)

• Max Print Speed: 152 mm/s (6 inches per second)

• Max Print Width: 104 mm (4.09 inches)

• Memory: 128 MB Flash; 128 MB SDRAM

• Media Width: 25.4 mm to 112 mm (1.0 to 4.4 inches)

• Max Label Length: 991 mm (39 inches)

• Media Types: Roll-fed or fan-fold, die-cut or continuous labels, black mark, tag stock, continuous receipt paper, wristbands

• Media Sensors: Movable black mark sensor; fixed gap sensor

• Ribbon Specs:

  • Width: 33.8 mm to 109.2 mm (1.33 to 4.3 inches)

  • Length: 74 m or 300 m options

  • Core Sizes: 12.7 mm (0.5″) or 25.4 mm (1″)

🔌 Connectivity Options

• USB 2.0 (Standard)

• Optional: Ethernet, Bluetooth 4.1, Wi-Fi 802.11ac

🖥️ Software & Compatibility

• Programming Languages: ZPL II, EPL 2, XML

• Driver Support: Windows, Linux, Android SDK

• Label Design: Compatible with ZebraDesigner Essentials

• Firmware: Link-OS Basic

🌡️ Environmental

• Operating Temp: 4.4°C to 41°C (40°F to 105°F)

• Storage Temp: -40°C to 60°C (-40°F to 140°F)

• Operating Humidity: 10% to 90% non-condensing

• Storage Humidity: 5% to 95% non-condensing

🔋 Electrical

• Input: 100–240V AC, 50–60Hz

• Power Supply: ENERGY STAR® certified, auto-sensing

📐 Physical Dimensions

• Size (L × W × H): 267 mm × 197 mm × 191 mm

• Weight: 1.7 kg (3.7 lbs)

✅ Key Features

• OpenACCESS™ clamshell design for fast media loading

• Single button and LED status for simple operation

• Dual-wall frame for enhanced durability

• ENERGY STAR® rated for low power consumption

• Compact footprint suitable for space-constrained workstations

• Optional media handling (factory-installed cutter or peeler)

The Zebra ZD230 Thermal Transfer Printer delivers the perfect balance of performance and affordability for organizations needing dependable desktop printing without unnecessary extras. It’s ideal for barcode labeling, inventory tracking, and receipt printing in fast-paced environments.
