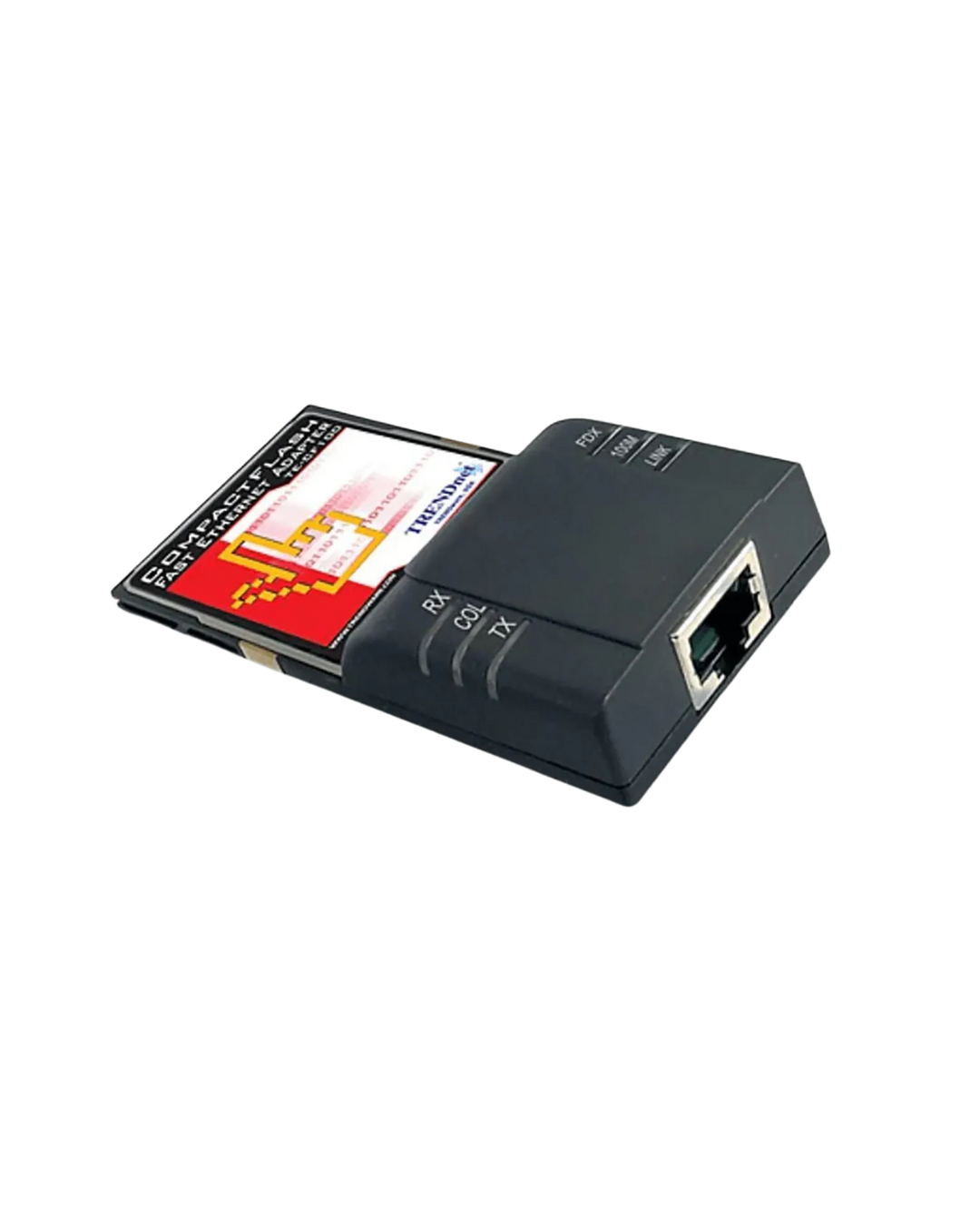

Trendnet Compact Flash 10/100 Copper Fast Ethernet

Description

Technical Specifications:

• Form Factor: CompactFlash Type I (CF Type I)

• Network Interface: 1 × RJ-45 port (10/100 Mbps Auto-Negotiation)

• Standards Compliance:

  • IEEE 802.3 (10Base-T)

  • IEEE 802.3u (100Base-TX)

• LED Indicators:

  • Link

  • Activity

  • Full Duplex

  • Collision

• Data Transfer Rate:

  • 10 Mbps (Half-Duplex)

  • 20 Mbps (Full-Duplex)

  • 100 Mbps (Half-Duplex)

  • 200 Mbps (Full-Duplex)

• Power Supply:

  • Supplied via host device

  • +3.3V at 120 mA (max)

  • +5V at 140 mA (max)

• Operating System Compatibility:

  • Windows CE 2.0 / 3.0 / 4.0

  • Compatible with synchronization on Windows 95 / 98 / ME / NT 4.0 / 2000 / XP

• Physical Dimensions:

  • 88 mm × 42.8 mm × 3.3 mm

  • Weight: Approx. 30 grams

• Environment:

  • Operating Temperature: 0°C to 50°C

  • Storage Temperature: -20°C to 80°C

  • Humidity: 10% to 90% (non-condensing)

Key Features:

• Adds Ethernet connectivity to CF-equipped devices without onboard networking

• Ideal for legacy handheld PCs and embedded systems in industrial or enterprise use

• Compact and lightweight for easy portability

• Plug-and-play support on supported devices

• LED status indicators for simple network troubleshooting

Ideal Applications:

• Industrial control systems requiring Ethernet communication

• Legacy mobile computing devices in need of LAN access

• Secure environments where wired access is preferred over wireless

• Device maintenance or synchronization in field service operations

Note:
The TRENDnet TE-CF100 is a discontinued product and may be used in legacy deployments or specialized environments where CompactFlash-based networking is still required.
