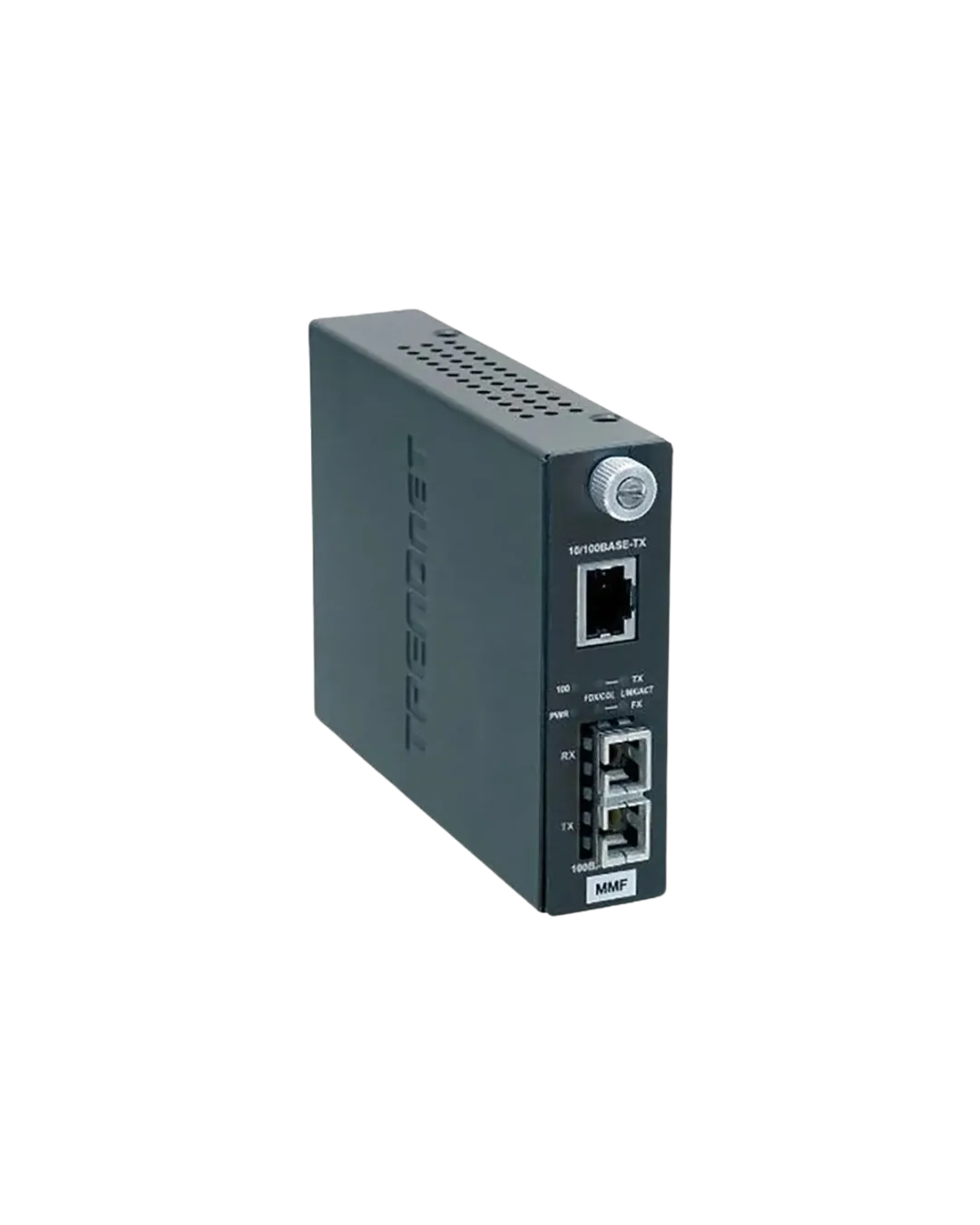

Trendnet 15km 100Base MM to SM 100Base Media Converter

Description

Technical Specifications:

• Model: TFC-15MS100

• Function: 100Base-FX Multi-Mode to Single-Mode SC-Type Fiber Converter

• Ports:

  • 1 × SC-type 100Base-FX Multi-Mode fiber port

  • 1 × SC-type 100Base-FX Single-Mode fiber port

• Fiber Type Compatibility:

  • Multi-Mode: 50/125 µm or 62.5/125 µm (up to 2 km)

  • Single-Mode: 9/125 µm or 10/125 µm (up to 15 km)

• Standards Compliance: IEEE 802.3u 100Base-FX

• Data Transfer Rates:

  • 100 Mbps (Half Duplex)

  • 200 Mbps (Full Duplex)

• Power Adapter: 7.5V DC, 1A external power supply

• LED Indicators: Power, Link/Activity, Full Duplex

• Operating Temperature: 0°C to 40°C

• Humidity Tolerance: 10% to 90% (non-condensing)

• Dimensions: 120 mm × 88 mm × 25 mm

• Weight: Approx. 200 g

• Installation Options:

  • Standalone operation

  • Compatible with TRENDnet TFC-1600 Fiber Chassis System for rack-mounted setups

Key Features:

• Converts between multi-mode and single-mode fiber

• Supports SC-type connectors

• Enables long-distance fiber links up to 15 km

• Compact, mountable metal housing

• Designed for point-to-point fiber deployments

• Ideal for network administrators managing fiber integration across extended buildings or facilities

Package Contents:

• TFC-15MS100 Media Converter Unit

• Power Adapter

• Quick Installation Guide
