TP-Link AX3000 Wi-Fi Router

Description

  The TP-Link AX3000 Wi-Fi Router refers to a category of dual-band Wi-Fi 6 routers offering combined speeds up to 3 Gbps. Notable models in this category include the Archer AX50, Archer AX55, and Archer AX3000 Pro. Below is a detailed overview of their specifications:

---

TP-Link Archer AX50 – AX3000 Dual Band Gigabit Wi-Fi 6 Router

Wireless Specifications:

• Wi-Fi Standard: Wi-Fi 6 (802.11ax)
• Frequency Bands:
  • 2.4 GHz: Up to 574 Mbps
  • 5 GHz: Up to 2402 Mbps
• Channel Width: Supports 160 MHz

Hardware Features:

• Processor: Dual-Core CPU
• Ethernet Ports:
  • 1× Gigabit WAN port
  • 4× Gigabit LAN ports (supports Link Aggregation)
• USB Port: 1× USB 3.0 port
• Antennas: 4× Fixed High-Performance External Antennas
• Buttons: Wi-Fi/WPS, Power On/Off, LED On/Off, Reset
• Power Supply: 12VDC / 2A

Software Features:

• Operating Modes: Router Mode, Access Point Mode
• Security:
  • WPA3, WPA2, WPA/WPA2-Enterprise (802.1x)
  • SPI Firewall, Access Control, IP & MAC Binding
• Guest Network: Supports 2.4 GHz and 5 GHz guest networks
• VPN Support: OpenVPN, PPTP, L2TP (Client & Server)
• Parental Controls: URL Filtering, Time Controls
• Management: TP-Link Tether App (iOS, Android), Web UI

---

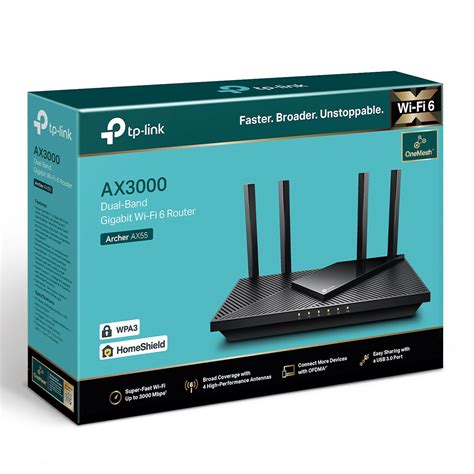

TP-Link Archer AX55 – AX3000 Dual Band Gigabit Wi-Fi 6 Router

Wireless Specifications:

• Wi-Fi Standard: Wi-Fi 6 (802.11ax)
• Frequency Bands:
  • 2.4 GHz: Up to 574 Mbps
  • 5 GHz: Up to 2402 Mbps
• Channel Width: Supports 160 MHz

Hardware Features:

• Processor: Qualcomm CPU
• Ethernet Ports:
  • 1× Gigabit WAN port
  • 4× Gigabit LAN ports
• USB Port: 1× USB 3.0 port
• Antennas: 4× Fixed High-Performance External Antennas
• Buttons: Wi-Fi/WPS, Power On/Off, LED On/Off, Reset
• Power Supply: 12VDC / 2A

Software Features:

• Operating Modes: Router Mode, Access Point Mode
• Security:
  • WPA3, WPA2, WPA/WPA2-Enterprise (802.1x)
  • SPI Firewall, Access Control, IP & MAC Binding
• Guest Network: Supports 2.4 GHz and 5 GHz guest networks
• VPN Support: OpenVPN, PPTP, L2TP (Client & Server)
• Parental Controls: URL Filtering, Time Controls
• Management: TP-Link Tether App (iOS, Android), Web UI

---

TP-Link Archer AX3000 Pro – AX3000 Gigabit Wi-Fi 6 Router

Wireless Specifications:

• Wi-Fi Standard: Wi-Fi 6 (802.11ax)
• Frequency Bands:
  • 2.4 GHz: Up to 574 Mbps
  • 5 GHz: Up to 2402 Mbps
• Channel Width: Supports 160 MHz

Hardware Features:

• Processor: Dual-Core CPU
• Ethernet Ports:
  • 1× 2.5 Gbps WAN/LAN port
  • 1× Gigabit WAN/LAN port
  • 3× Gigabit LAN ports
• USB Port: 1× USB 3.0 port
• Antennas: 4× Fixed High-Performance External Antennas
• Buttons: Wi-Fi/WPS, Power On/Off, LED On/Off, Reset
• Power Supply: 12VDC / 2A

Software Features:

• Operating Modes: Router Mode, Access Point Mode
• Security:
  • WPA3, WPA2, WPA/WPA2-Enterprise (802.1x)
  • SPI Firewall, Access Control, IP & MAC Binding
• Guest Network: Supports 2.4 GHz and 5 GHz guest networks
• VPN Support: OpenVPN, PPTP, L2TP (Client & Server)
• Parental Controls: URL Filtering, Time Controls
• Management: TP-Link Tether App (iOS, Android), Web UI

---

Comparison Summary:

Feature	Archer AX50	Archer AX55	Archer AX3000 Pro
Processor	Dual-Core CPU	Qualcomm CPU	Dual-Core CPU
WAN Port	1× Gigabit	1× Gigabit	1× 2.5 Gbps
LAN Ports	4× Gigabit	4× Gigabit	3× Gigabit + 1× Gigabit
USB Port	1× USB 3.0	1× USB 3.0	1× USB 3.0
Antennas	4× External	4× External	4× External
Channel Width	160 MHz	160 MHz	160 MHz
OneMesh Support	Yes	Yes	Yes
HomeShield Support	No	Yes	Yes
Parental Controls	Yes	Yes	Yes
VPN Support	Yes	Yes	Yes

Each of these routers offers robust Wi-Fi 6 performance suitable for various home networking needs. The Archer AX50 is ideal for users seeking high-speed connectivity with essential features. The Archer AX55 adds TP-Link’s HomeShield for enhanced security and parental controls. The Archer AX3000 Pro caters to power users requiring multi-gigabit wired connections and advanced networking capabilities.
