TP-Link 5 Port Gigabit Unmanaged Desktop Switch

Description

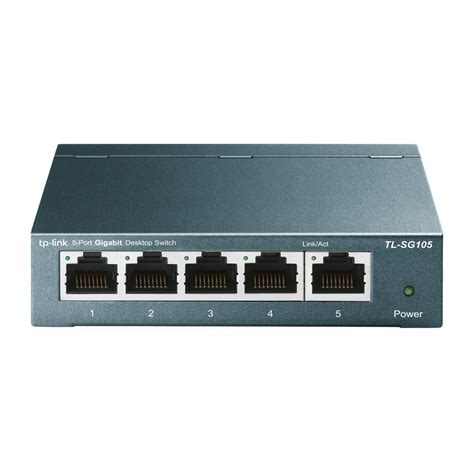

  The TP-Link TL-SG105 is a 5-Port Gigabit Unmanaged Desktop Switch designed to expand your wired network efficiently. Its plug-and-play functionality, durable metal casing, and energy-efficient design make it suitable for home offices, small businesses, and multimedia setups.

---

Key Specifications

Hardware Features:

• Ports: 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Standards and Protocols: IEEE 802.3i/802.3u/802.3ab/802.3x, IEEE 802.1p
• Fan Quantity: Fanless
• External Power Supply: 5 V DC / 0.6 A
• LED Indicators: System Power; Link/Act indicators per port built into each RJ-45 port
• Dimensions (W × D × H): 100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in)
• Max. Power Consumption: 2.3 W (220 V / 50 Hz)
• Max Heat Dissipation: 7.83 BTU/h

Performance:

• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.4 Mpps
• MAC Address Table: 2K
• Packet Buffer Memory: 1 Mb
• Jumbo Frame: 16 KB

Software Features:

• Advanced Features: Green Technology, 802.3x Flow Control, 802.1p/DSCP QoS (for V2 and later versions), IGMP Snooping
• Transmission Method: Store and Forward

Others:

• Certification: CE, FCC, RoHS
• Package Contents: 5-Port 10/100/1000 Mbps Desktop Switch, Power Adapter, Installation Guide
• Environment:
  • Operating Temperature: 0–40 °C (32–104 °F)
  • Storage Temperature: -40–70 °C (-40–158 °F)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing

---

Key Features

• Plug and Play: No configuration required, allowing for quick and easy setup.
• Durable Metal Casing: Ensures reliability and longevity, suitable for desktop or wall-mounting.
• Fanless Design: Provides silent operation, ideal for noise-sensitive environments.
• Energy-Efficient: Incorporates Green Ethernet technology to reduce power consumption.
• Traffic Optimization: Supports 802.1p/DSCP QoS and IGMP Snooping for smooth latency-sensitive traffic such as voice
