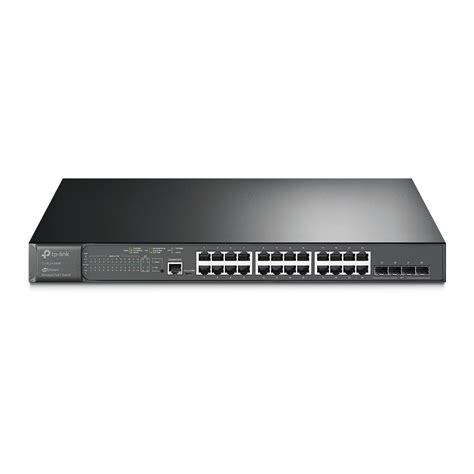

TP-Link 28 Port Gigabit L2 Switch
TP-Link 28 Port Gigabit L2 Switch - Image 2
  1. TP-Link 28 Port Gigabit L2 Switch
  2. TP-Link 28 Port Gigabit L2 Switch - Image 2

TP-Link 28 Port Gigabit L2 Switch

R3,582.00

SKU: SKU-791 Category: Brand:

Description

  TP-Link offers several 28-port Gigabit Layer 2 (L2) managed switches designed to meet various networking needs. Below are two notable models:

1. TP-Link TL-SG3428MP – JetStream™ 28-Port Gigabit L2+ Managed PoE+ Switch

Hardware Specifications:
  • Ports:
    • 24× 10/100/1000 Mbps RJ45 PoE+ Ports (802.3af/at compliant)
    • 4× Gigabit SFP Slots
    • 1× RJ45 Console Port
    • 1× Micro-USB Console Port
  • PoE Power Budget: 384 W total, up to 30 W per port
  • Switching Capacity: 56 Gbps
  • Packet Forwarding Rate: 41.66 Mpps
  • MAC Address Table: 16K entries
  • Fan Quantity: 2
  • Power Supply: 100–240 V AC, 50/60 Hz
  • Dimensions (W × D × H): 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in)
  • Mounting: Rack Mountable
Software Features:
  • Management:
    • Centralized cloud management via Omada SDN platform
    • Standalone management via Web, CLI, SNMP, and RMON
  • Layer 2 and Layer 2+ Features:
    • Static Routing
    • VLAN, ACL, QoS, IGMP Snooping
    • Link Aggregation, Spanning Tree Protocol
    • Loopback Detection, LLDP/LLDP-MED
  • Quality of Service (QoS):
    • 802.1p CoS/DSCP priority
    • 8 priority queues
    • Queue scheduling: SP, WRR
    • Bandwidth Control: Port/Flow-based Rate Limiting
  • Security:
    • IP-MAC-Port Binding
    • Port Security
    • Storm Control
    • DHCP Snooping
    • Access Control Lists (ACL)

2. TP-Link T2600G-28TS – JetStream™ 24-Port Gigabit L2 Managed Switch with 4 SFP Slots

Hardware Specifications:
  • Ports:
    • 24× 10/100/1000 Mbps RJ45 Ports
    • 4× Gigabit SFP Slots
  • Switching Capacity: 56 Gbps
  • Packet Forwarding Rate: 41.7 Mpps
  • MAC Address Table: 8K entries
  • Fan Quantity: Fanless design for silent operation
  • Power Supply: 100–240 V AC, 50/60 Hz
  • Dimensions (W × D × H): 440 × 220 × 44 mm (17.3 × 8.7 × 1.7 in)
  • Mounting: Rack Mountable
Software Features:
  • Management:
    • Web-based GUI, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image
  • Layer 2 and Layer 2+ Features:
    • Static Routing
    • VLAN, ACL, QoS, IGMP Snooping
    • Link Aggregation, Spanning Tree Protocol
    • Loopback Detection, LLDP/LLDP-MED
  • Quality of Service (QoS):
    • 802.1p CoS/DSCP priority
    • 8 priority queues
    • Queue scheduling: SP, WRR
    • Bandwidth Control: Port/Flow-based Rate Limiting
  • Security:
    • IP-MAC-Port Binding
    • Port Security
    • Storm Control
    • DHCP Snooping
    • Access Control Lists (ACL)

Comparison Summary

Feature TL-SG3428MP T2600G-28TS
PoE Support Yes (24× PoE+ Ports, 384 W Budget) No
Total Ports 28 (24× RJ45 + 4× SFP) 28 (24× RJ45 + 4× SFP)
Management Platform Omada SDN, Web, CLI, SNMP, RMON Web, CLI, SNMP, RMON
Fan Quantity 2 Fanless
Switching Capacity 56 Gbps 56 Gbps
Packet Forwarding Rate 41.66 Mpps 41
  TP-Link offers several 28-port Gigabit Layer 2 (L2) managed switches designed to meet various networking needs. Below are two notable models:

1. TP-Link TL-SG3428MP – JetStream™ 28-Port Gigabit L2+ Managed PoE+ Switch

Hardware Specifications:
  • Ports:
    • 24× 10/100/1000 Mbps RJ45 PoE+ Ports (802.3af/at compliant)
    • 4× Gigabit SFP Slots
    • 1× RJ45 Console Port
    • 1× Micro-USB Console Port
  • PoE Power Budget: 384 W total, up to 30 W per port
  • Switching Capacity: 56 Gbps
  • Packet Forwarding Rate: 41.66 Mpps
  • MAC Address Table: 16K entries
  • Fan Quantity: 2
  • Power Supply: 100–240 V AC, 50/60 Hz
  • Dimensions (W × D × H): 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in)
  • Mounting: Rack Mountable
Software Features:
  • Management:
    • Centralized cloud management via Omada SDN platform
    • Standalone management via Web, CLI, SNMP, and RMON
  • Layer 2 and Layer 2+ Features:
    • Static Routing
    • VLAN, ACL, QoS, IGMP Snooping
    • Link Aggregation, Spanning Tree Protocol
    • Loopback Detection, LLDP/LLDP-MED
  • Quality of Service (QoS):
    • 802.1p CoS/DSCP priority
    • 8 priority queues
    • Queue scheduling: SP, WRR
    • Bandwidth Control: Port/Flow-based Rate Limiting
  • Security:
    • IP-MAC-Port Binding
    • Port Security
    • Storm Control
    • DHCP Snooping
    • Access Control Lists (ACL)

2. TP-Link T2600G-28TS – JetStream™ 24-Port Gigabit L2 Managed Switch with 4 SFP Slots

Hardware Specifications:
  • Ports:
    • 24× 10/100/1000 Mbps RJ45 Ports
    • 4× Gigabit SFP Slots
  • Switching Capacity: 56 Gbps
  • Packet Forwarding Rate: 41.7 Mpps
  • MAC Address Table: 8K entries
  • Fan Quantity: Fanless design for silent operation
  • Power Supply: 100–240 V AC, 50/60 Hz
  • Dimensions (W × D × H): 440 × 220 × 44 mm (17.3 × 8.7 × 1.7 in)
  • Mounting: Rack Mountable
Software Features:
  • Management:
    • Web-based GUI, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image
  • Layer 2 and Layer 2+ Features:
    • Static Routing
    • VLAN, ACL, QoS, IGMP Snooping
    • Link Aggregation, Spanning Tree Protocol
    • Loopback Detection, LLDP/LLDP-MED
  • Quality of Service (QoS):
    • 802.1p CoS/DSCP priority
    • 8 priority queues
    • Queue scheduling: SP, WRR
    • Bandwidth Control: Port/Flow-based Rate Limiting
  • Security:
    • IP-MAC-Port Binding
    • Port Security
    • Storm Control
    • DHCP Snooping
    • Access Control Lists (ACL)(

Comparison Summary

Feature TL-SG3428MP T2600G-28TS
PoE Support Yes (24× PoE+ Ports, 384 W Budget) No
Total Ports 28 (24× RJ45 + 4× SFP) 28 (24× RJ45 + 4× SFP)
Management Platform Omada SDN, Web, CLI, SNMP, RMON Web, CLI, SNMP, RMON
Fan Quantity 2 Fanless
Switching Capacity 56 Gbps 56 Gbps
Packet Forwarding Rate 41.66 Mpps 41.7 Mpps
MAC Address Table 16K entries 8K entries
Dimensions (W×D×H) 440×330×44 mm 440×220×44 mm

Recommendation

  • TL-SG3428MP: Ideal for enterprise environments requiring advanced network management features, higher PoE power budget, and integration with TP-Link’s Omada SDN platform. Suitable for businesses that need centralized control over their network infrastructure.
  • T2600G-28TS: Suitable for medium-sized businesses needing robust features without PoE requirements. Its fanless design ensures silent operation, making it ideal for office environments.
