TP-Link 16 Port Gigabit Unmanaged Desktop Switch
TP-Link 16 Port Gigabit Unmanaged Desktop Switch - Image 2
  1. TP-Link 16 Port Gigabit Unmanaged Desktop Switch
  2. TP-Link 16 Port Gigabit Unmanaged Desktop Switch - Image 2

TP-Link 16 Port Gigabit Unmanaged Desktop Switch

R1,006.00

SKU: SKU-799 Categories: , Brand:

Description

  The TP-Link 16-Port Gigabit Unmanaged Desktop Switch is available in two primary models: the TL-SG1016D and the TL-SG116. Both models offer reliable, high-speed networking solutions suitable for small to medium-sized offices or home networks. Below is a detailed comparison to assist in selecting the appropriate model for your needs.

TP-Link TL-SG1016D – 16-Port Gigabit Desktop/Rackmount Switch

Key Features:
  • Ports: 16× 10/100/1000 Mbps RJ45 ports with auto-negotiation and Auto MDI/MDIX.
  • Switching Capacity: 32 Gbps.
  • Packet Forwarding Rate: 23.8 Mpps.
  • MAC Address Table: 8K entries.
  • Jumbo Frame Support: 10 KB.
  • Energy Efficiency: Innovative energy-efficient technology reduces power consumption.
  • Design: Fanless for silent operation; suitable for desktop or rackmount installation.
  • Dimensions: 294 × 180 × 44 mm (11.6 × 7.1 × 1.7 in).
  • Power Consumption: Maximum 9.95W.
  • Certifications: FCC, CE, RoHS.
Additional Features:
  • Supports MAC address self-learning and auto-aging.
  • Store-and-forward switching architecture.
  • Plug and play setup with no configuration required.

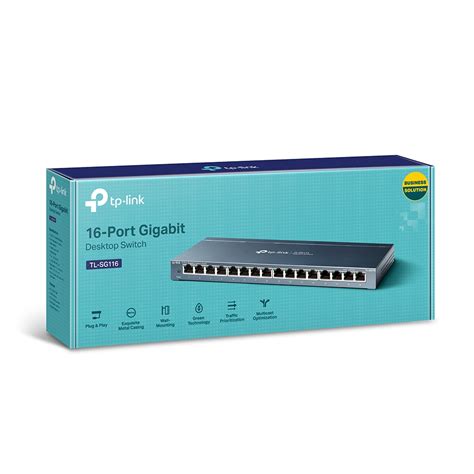

TP-Link TL-SG116 – 16-Port Gigabit Desktop Switch

Key Features:
  • Ports: 16× 10/100/1000 Mbps RJ45 ports with auto-negotiation and Auto MDI/MDIX.
  • Switching Capacity: 32 Gbps.
  • Packet Forwarding Rate: 23.8 Mpps.
  • MAC Address Table: 8K entries.
  • Jumbo Frame Support: 10 KB.
  • Energy Efficiency: Green Ethernet technology saves power consumption.
  • Design: Fanless for silent operation; compact steel housing suitable for desktop or wall-mounting.
  • Dimensions: 286 × 112 × 25 mm (11.3 × 4.4 × 1.0 in).
  • Power Consumption: Maximum 10W.
  • Certifications: FCC, RoHS.
Additional Features:
  • Supports IEEE 802.3x flow control for reliable data transfer.
  • Supports 802.1p/DSCP QoS and IGMP Snooping for optimized traffic.
  • Plug and play setup with no configuration required.

Comparison Summary

Feature TL-SG1016D TL-SG116
Installation Options Desktop/Rackmount Desktop/Wall-mount
Housing Material Steel Steel
Dimensions (W×D×H) 294×180×44 mm 286×112×25 mm
Power Consumption Max 9.95W Max 10W
QoS Support Not specified 802.1p/DSCP QoS
IGMP Snooping Not specified Supported
Energy Efficiency Innovative energy-efficient tech Green Ethernet technology

Recommendation

  • TL-SG1016D: Ideal for environments requiring rackmount installation and a slightly larger form factor.
  • TL-SG116: Suitable for desktop or wall-mounted setups where space is a consideration, and where QoS and IGMP Snooping are beneficial.
