TP-Link 16 Port Gigabit Smart Managed Switch
TP-Link 16 Port Gigabit Smart Managed Switch - Image 2
  1. TP-Link 16 Port Gigabit Smart Managed Switch
  2. TP-Link 16 Port Gigabit Smart Managed Switch - Image 2

TP-Link 16 Port Gigabit Smart Managed Switch

R1,378.00

SKU: SKU-794 Categories: , , Brand:

Description

  TP-Link offers several 16-Port Gigabit Smart Managed Switches tailored to various networking needs. Below is a detailed overview of some notable models to assist you in selecting the most suitable option:

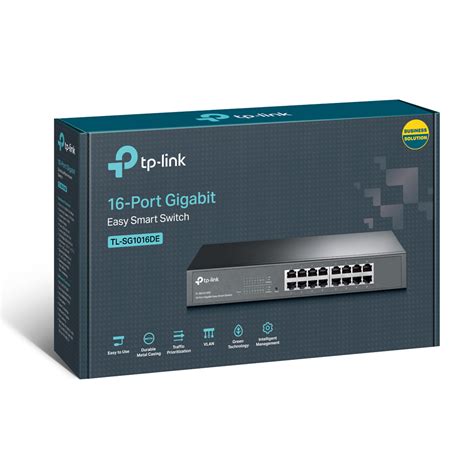

1. TP-Link TL-SG1016DE – 16-Port Gigabit Easy Smart Switch

Key Features:
  • Ports: 16× 10/100/1000 Mbps RJ45 ports with auto-negotiation and Auto MDI/MDIX.
  • Switching Capacity: 32 Gbps.
  • Packet Forwarding Rate: 23.8 Mpps.
  • MAC Address Table: 8K entries.
  • Jumbo Frame Support: 10 KB.
  • Energy Efficiency: Innovative energy-efficient technology reduces power consumption.
  • Design: Fanless for silent operation; suitable for desktop or rackmount installation.
  • Dimensions: 294 × 180 × 44 mm (11.6 × 7.1 × 1.7 in).
  • Power Consumption: Maximum 19.15W.
  • Certifications: CE, FCC, RoHS.
Additional Features:
  • Supports MAC address self-learning and auto-aging.
  • Store-and-forward switching architecture.
  • Plug and play setup with no configuration required.

2. TP-Link TL-SG116E – 16-Port Gigabit Easy Smart Switch

Key Features:
  • Ports: 16× 10/100/1000 Mbps RJ45 ports with auto-negotiation and Auto MDI/MDIX.
  • Switching Capacity: 32 Gbps.
  • Packet Forwarding Rate: 23.81 Mpps.
  • MAC Address Table: 8K entries.
  • Jumbo Frame Support: 9 KB.
  • Energy Efficiency: Green technology reduces power consumption.
  • Design: Fanless for silent operation; durable metal casing.
  • Dimensions: 286 × 111.7 × 25.4 mm (11.3 × 4.4 × 1.0 in).
  • Power Consumption: Maximum 9.19W.
  • Certifications: CE, FCC, RoHS.
Additional Features:
  • Supports IEEE 802.3x flow control for reliable data transfer.
  • Supports 802.1p/DSCP QoS and IGMP Snooping for optimized traffic.
  • Plug and play setup with no configuration required.

3. TP-Link TL-SG2216 – 16-Port Gigabit Smart Switch with 2 Combo SFP Slots

Key Features:
  • Ports:
    • 16× 10/100/1000 Mbps RJ45 ports.
    • 2× Combo Gigabit SFP slots.
  • Switching Capacity: 32 Gbps.
  • Packet Forwarding Rate: 23.8 Mpps.
  • MAC Address Table: 8K entries.
  • Jumbo Frame Support: 10 KB.
  • Energy Efficiency: Innovative energy-efficient technology reduces power consumption.
  • Design: Fanless for silent operation; suitable for rackmount installation.
  • Dimensions: 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in).
  • Power Consumption: Maximum 12.3W.
  • Certifications: CE, FCC, RoHS.
Additional Features:
  • Supports advanced QoS features for traffic prioritization.
  • Provides network monitoring, traffic prioritization, and VLAN features.
  • Simple network setup on top of plug-and-play connectivity.

Comparison Summary

Feature TL-SG1016DE TL-SG116E TL-SG2216
SFP Slots None None 2× Combo SFP Slots
Switching Capacity 32 Gbps 32 Gbps 32 Gbps
Packet Forwarding Rate 23.8 Mpps 23.81 Mpps 23.8 Mpps
Jumbo Frame Support 10 KB 9 KB 10 KB
Power Consumption Max 19.15W Max 9.19W Max 12.3W
Design Fanless, Rackmount/Desktop Fanless, Desktop Fanless, Rackmount
Management Features Web-based GUI, VLAN, QoS Web-based GUI, VLAN, QoS Web-based GUI, VLAN, QoS

Recommendation

  • TL-SG1016DE: Ideal for small to medium-sized businesses requiring basic smart management features like VLAN and QoS, with the flexibility of rackmount or desktop installation.
  • TL-SG116E: Suitable for environments where a compact, desktop form factor is preferred, offering essential smart features with energy-efficient operation.
  • TL-SG2216: Best suited for networks that require additional fiber connectivity through SFP slots, providing enhanced flexibility and scalability.
