Smart BX3 Bronze 550W ATX PSU

Description

Key Features:

• 80 PLUS Bronze Certification: Ensures up to 85% efficiency, reducing energy consumption and heat output.
• ATX 3.1 Compliance: Supports up to 200% power excursion, ensuring compatibility with modern hardware.
• Ultra-Quiet 120mm Fluid Dynamic Bearing (FDB) Fan: Provides efficient cooling with minimal noise.
• Smart Zero Fan Mode: Keeps the fan off at low loads (<20%) for silent operation.
• High-Quality 105°C Main Capacitor: Ensures stability, durability, and reliable power output.
• High Amperage Single +12V Rail & DC-to-DC Design: Provides consistent and reliable power to key components.
• Industrial-Grade Protection: Includes:
  • Over Current Protection (OCP)
  • Over Voltage Protection (OVP)
  • Under Voltage Protection (UVP)
  • Over Power Protection (OPP)
  • Short Circuit Protection (SCP)
  • Over Temperature Protection (OTP)

Specifications:

• Maximum Output Capacity: 550W
• Color: Black
• Dimensions: 150mm (W) x 86mm (H) x 140mm (D)
• Power Factor Correction (PFC): Active PFC
• Power Good Signal: 100-150 milliseconds
• Hold-Up Time: >17 milliseconds at 80% load
• Input Voltage: 100-240V~
• Input Frequency Range: 50Hz/60Hz
• Input Current: 12A-5A
• Operating Temperature: 5°C to +45°C
• Operating Humidity: 20% to 85%, non-condensing
• Storage Temperature: -40°C to +55°C
• Storage Humidity: 10% to 95%, non-condensing
• Cooling System: 120mm Fluid Dynamic Bearing (FDB) Fan
• Efficiency: Meets 80 PLUS Bronze standards at 115V input
• MTBF (Mean Time Between Failures): 100,000 hours minimum
• Safety Certifications: CE, UKCA, LVD, FCC, ICES, TUV, CB, cTUVus, BSMI, CCC

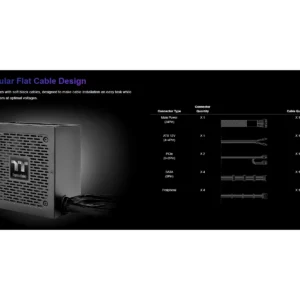

Connectors:

• Main Power (24Pin): 1
• CPU Power (4+4Pin): 1
• PCIe (6+2Pin for GPU): 2
• SATA Power: 5
• Peripheral (4Pin Molex): 3

Best Use Cases:

• Office and home desktop builds
• Entry-level gaming PCs
• Budget-friendly system upgrades

This 550W PSU is an affordable, reliable, and efficient power solution, making it ideal for mainstream PCs that do not require extreme power demands.
