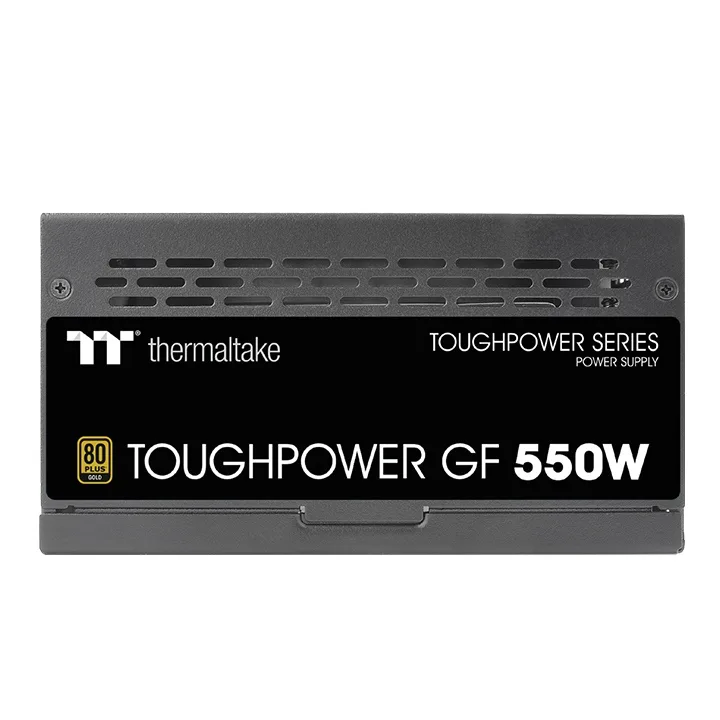

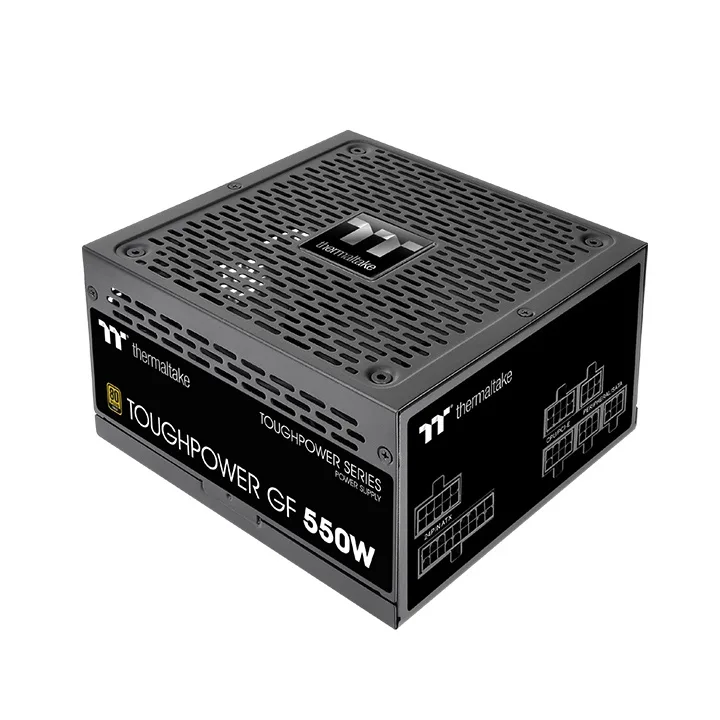

TT Toughpower GF 550W 80 Plus Gold Certified Desktop Power Supply

Description

Key Features:

• 80 PLUS Gold Certification: Ensures up to 90% efficiency, reducing power wastage and heat generation.
• Fully Modular Design: Allows users to connect only the necessary cables, improving airflow and reducing clutter.

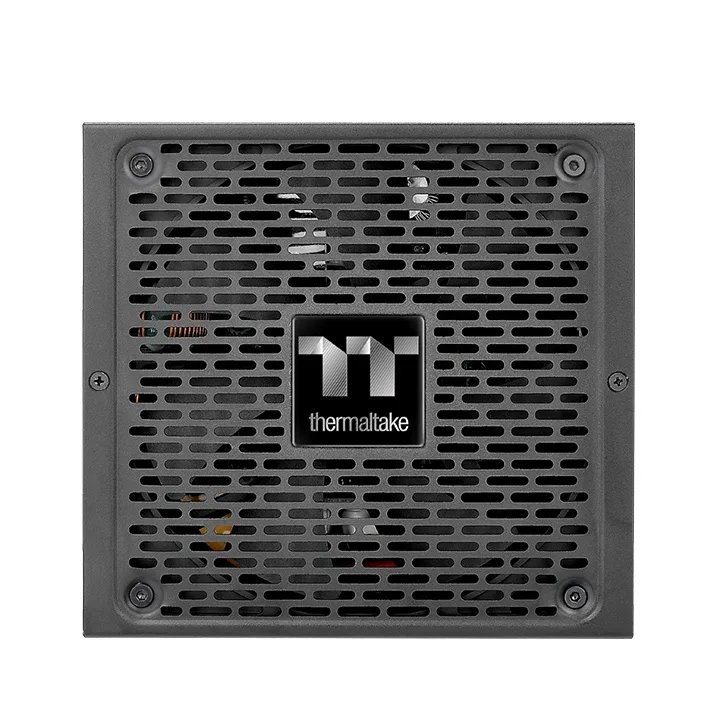

• Ultra-Quiet 140mm Fluid Dynamic Bearing Fan: Provides efficient cooling with minimal noise.
• Japanese Main Capacitors: High-quality components ensure long-term durability and stable power delivery.
• Single +12V Rail: Provides consistent and stable power for demanding components like GPUs and CPUs.
• Comprehensive Protection Features: Includes Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP).

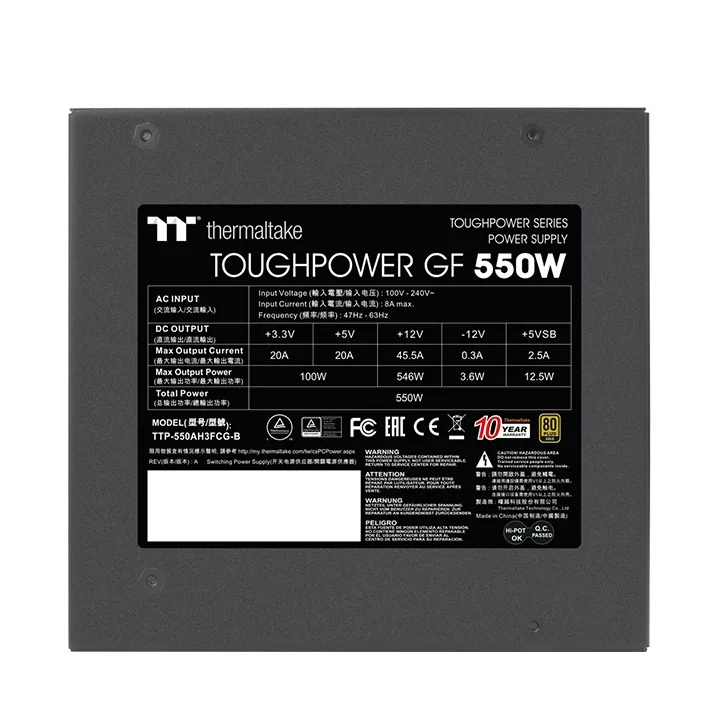

Specifications:

• Maximum Output Capacity: 550W
• Peak Output Capacity: 660W
• Dimensions: 150mm (W) x 86mm (H) x 160mm (D)
• Power Factor Correction (PFC): Active PFC
• Power Good Signal: 100-500 milliseconds
• Hold-Up Time: >12 milliseconds at 80% full load (230V input)
• Input Voltage: 100V – 240V~
• Input Frequency Range: 47Hz – 63Hz
• Input Current: 8A max.
• Operating Temperature: 0°C to +40°C
• Operating Humidity: 20% to 90%, non-condensing
• Storage Temperature: -20°C to +70°C
• Storage Humidity: 5% to 95%, non-condensing
• Cooling System: 140mm hydraulic bearing fan
• Efficiency: Meets 80 PLUS Gold efficiency standards at 115V input
• Mean Time Between Failures (MTBF): 100,000 hours minimum
• Safety Approvals: CE, cTUVus, TÜV, FCC, EAC

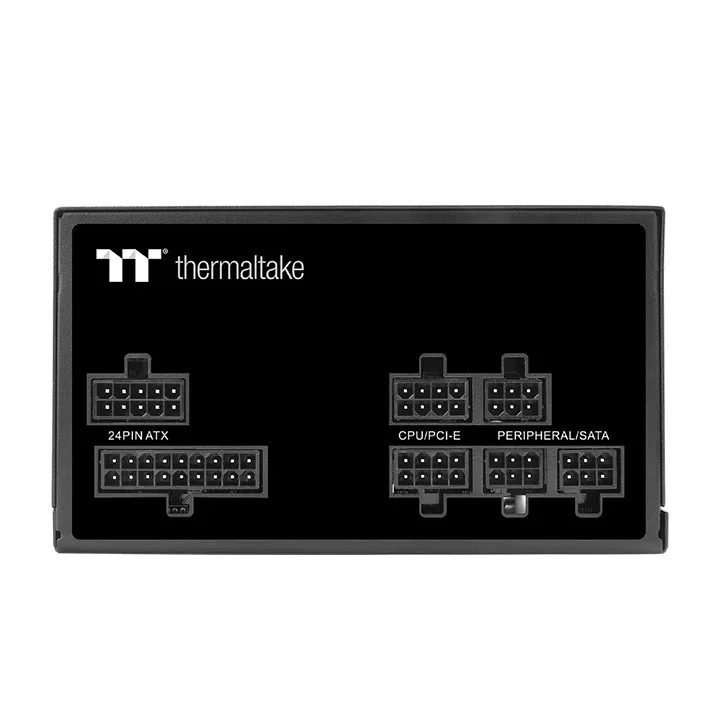

• Connectors:
  • PCI-E 6+2 pin: 2
  • SATA Power: Multiple ports for storage devices

This power supply is a great choice for gaming PCs and workstations, offering high efficiency, quiet operation, and strong power delivery, making it ideal for mid-range to high-performance builds.
