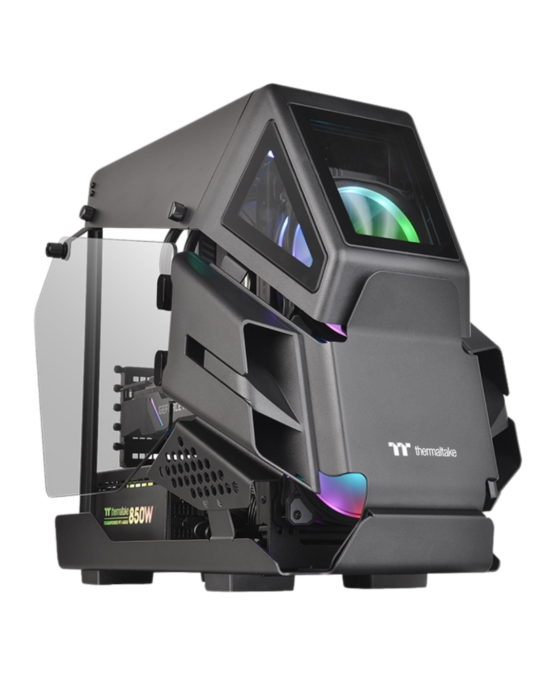

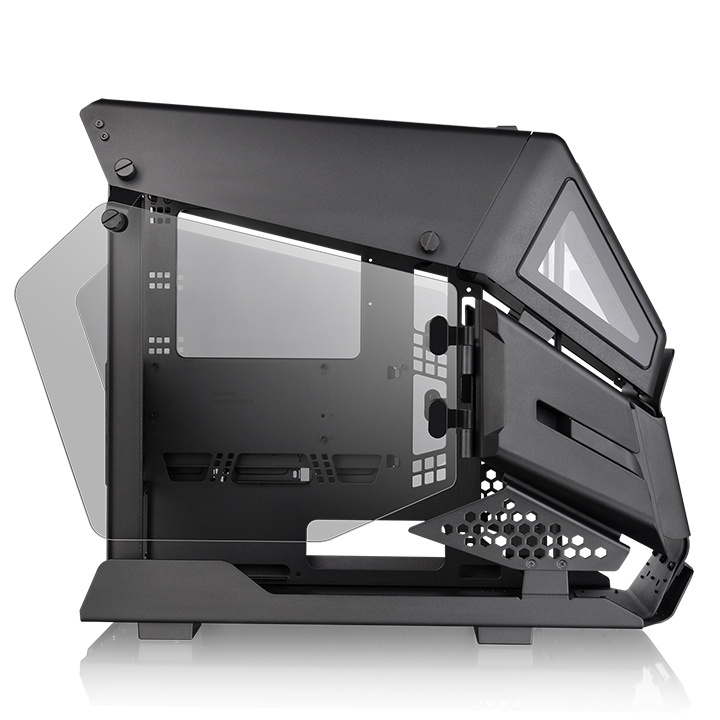

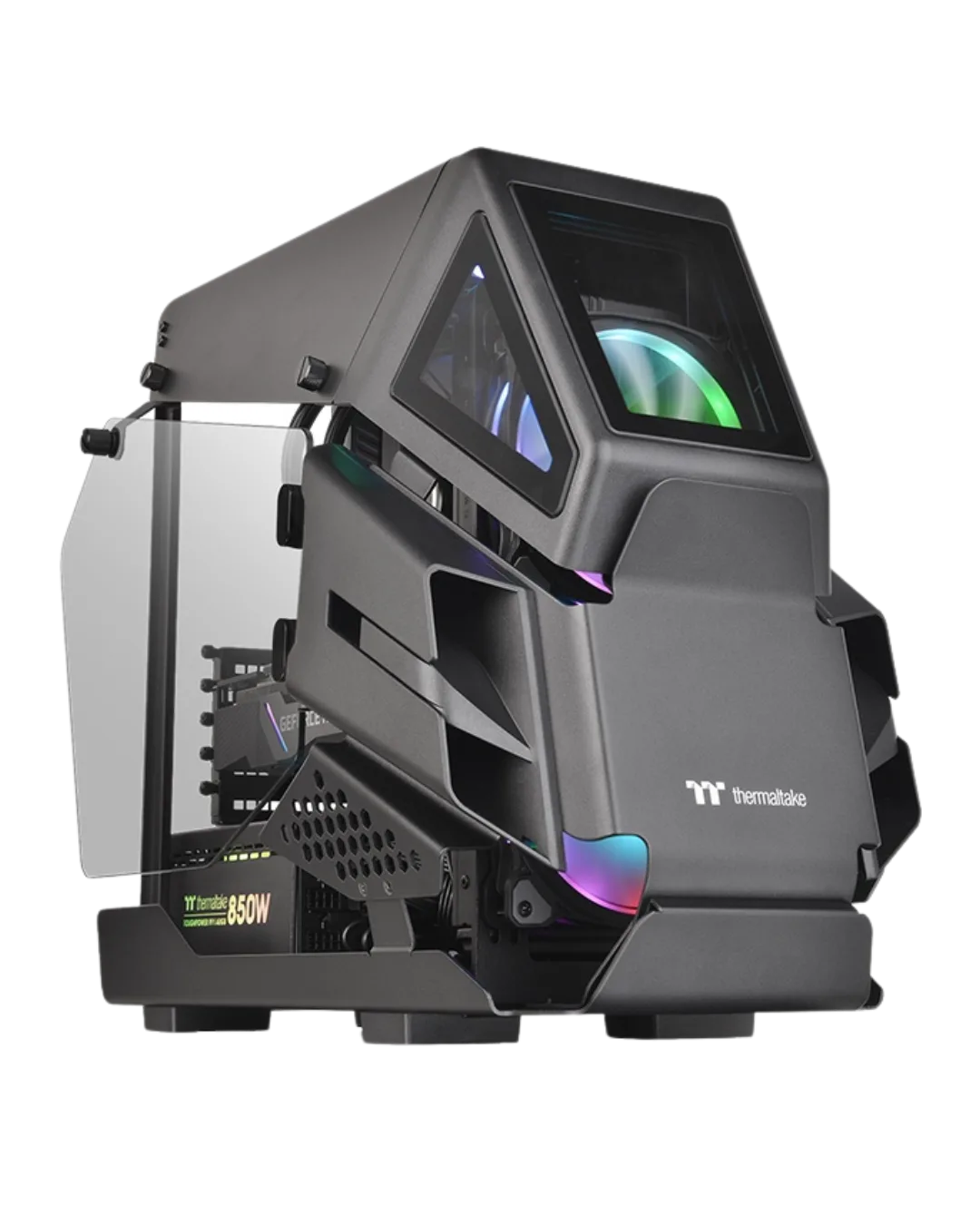

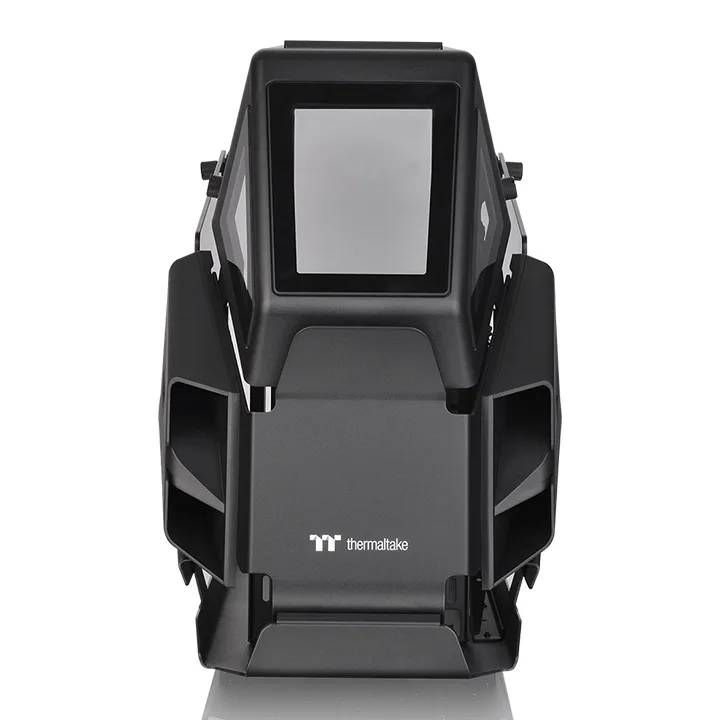

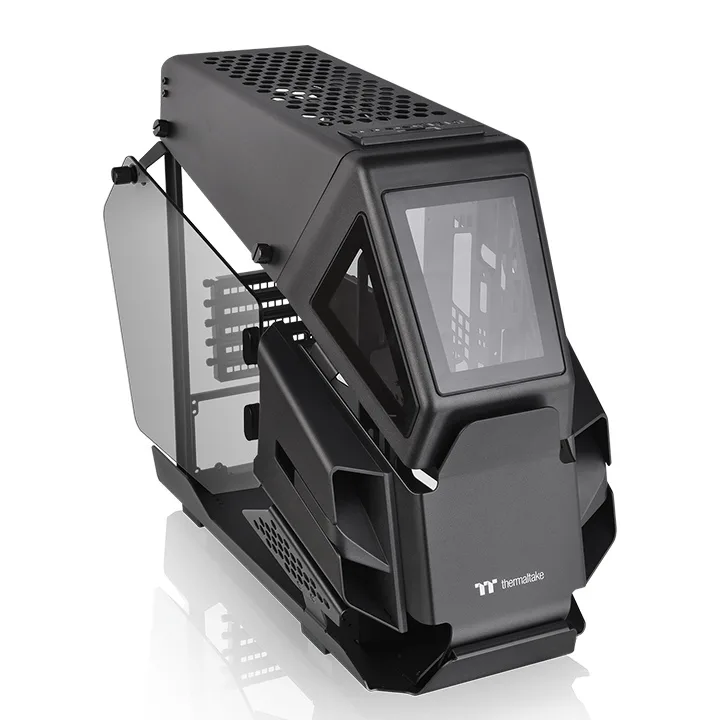

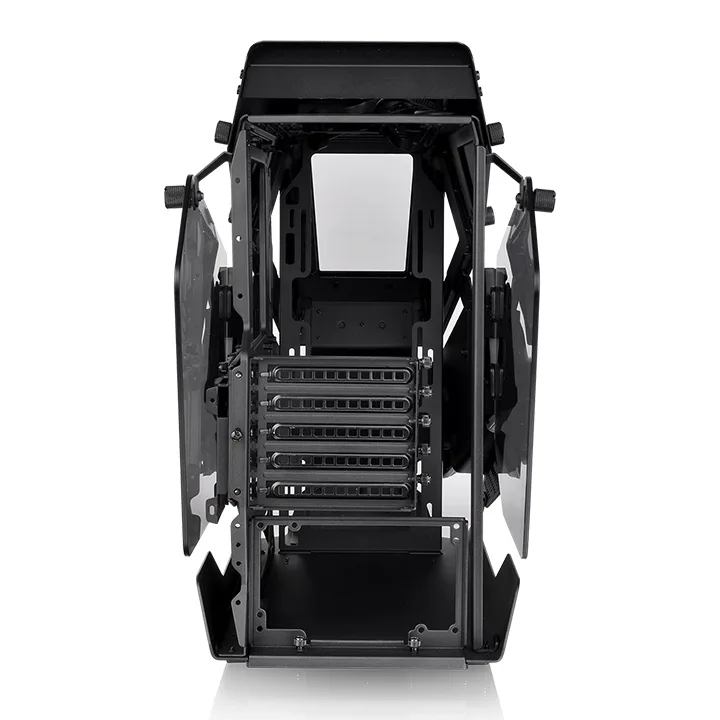

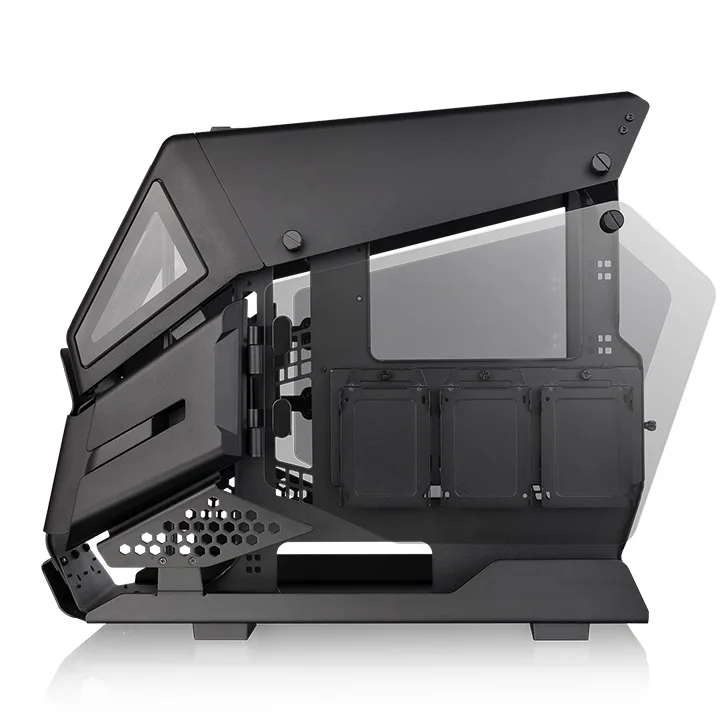

Thermaltake AH T200 chassis

Description

Specifications:

• Case Type: Micro Chassis
• Dimensions (H x W x D): 444.2 x 282 x 551.5 mm
• Weight: 10.8 kg
• Material: Steel (SPCC)
• Side Panels:
  • Two 4mm tempered glass panels (left and right)
  • Three 3mm tempered glass windows (front)
• Motherboard Support: Micro ATX, Mini ITX
• Expansion Slots: 5
• Drive Bays:
  • 2 x 3.5” HDDs or 3 x 2.5” SSDs
  • 3.5” HDD thickness limit: 22mm
• I/O Ports:
  • 1 x USB 3.1 (Gen 2) Type-C
  • 2 x USB 3.0
  • 1 x HD Audio
• Power Supply Support: Standard ATX PSU (PS2 Type), up to 180mm length

---

Cooling & Fan Support:

• Front:
  • 2 x 120mm or 2 x 140mm fans
  • Supports 240mm or 280mm radiators
• Top:
  • 2 x 120mm or 2 x 140mm fans
• Rear:
  • Pre-installed 120mm fan
• Dust Filters: Yes (magnetic filters included)

---

Clearance & Compatibility:

• CPU Cooler Max Height: 150mm
• Graphics Card Max Length: 320mm
• Power Supply Max Length: 180mm

The Thermaltake AH T200 is an eye-catching, airflow-optimized case with a compact yet spacious design, making it an excellent choice for gamers, modders, and enthusiasts looking for a unique and well-ventilated chassis.
