Description

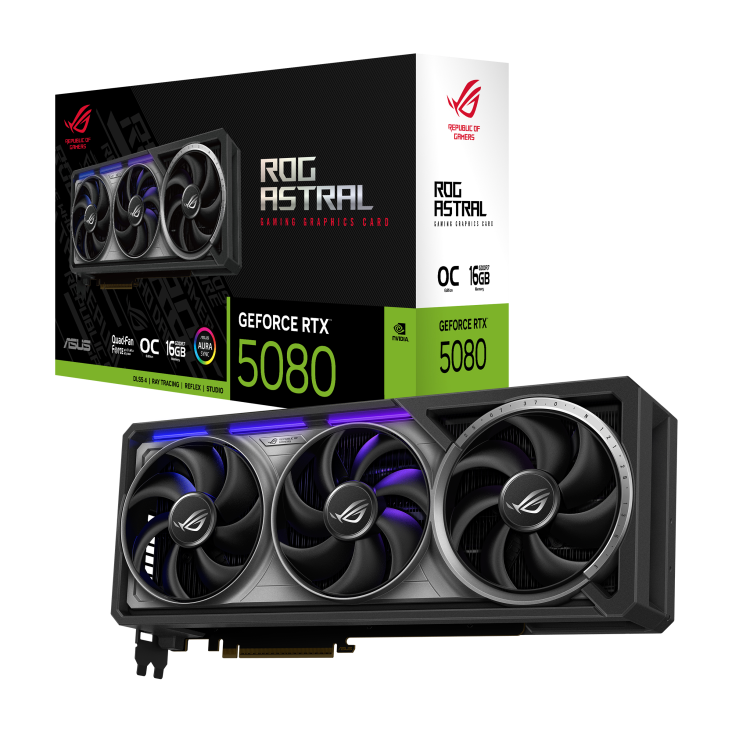

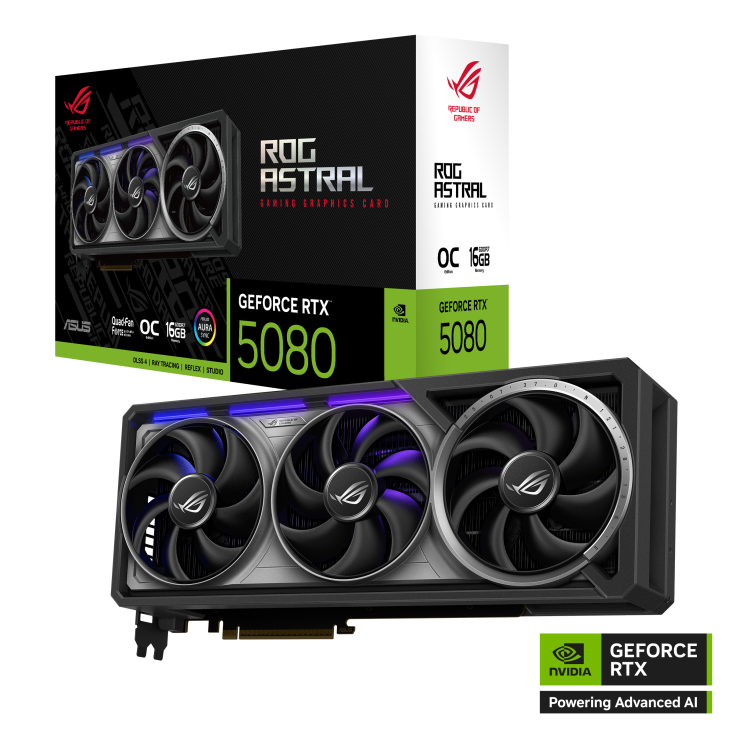

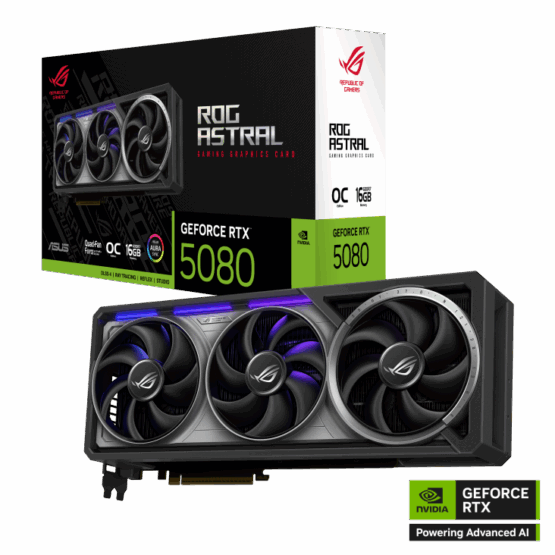

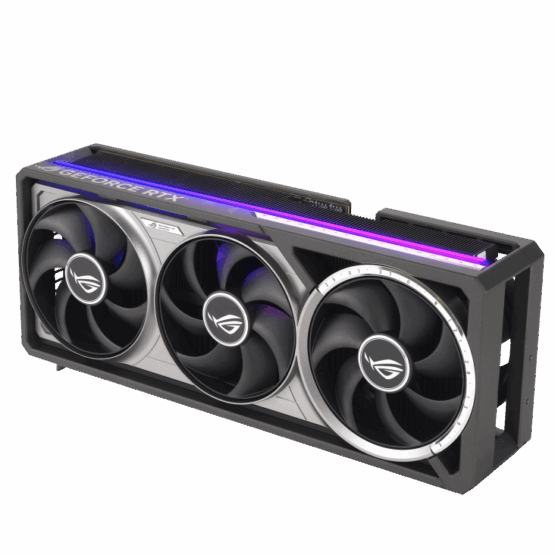

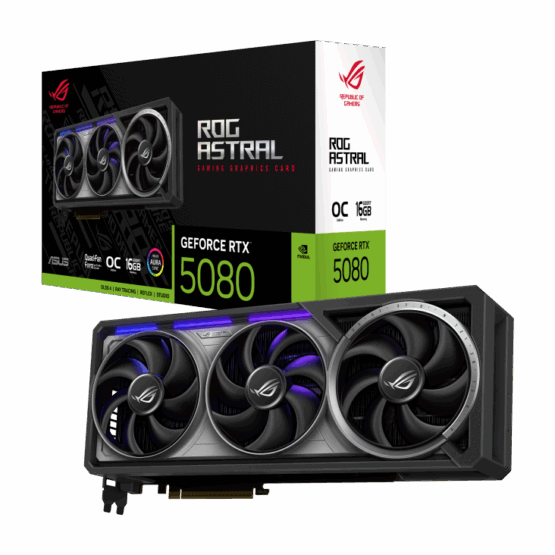

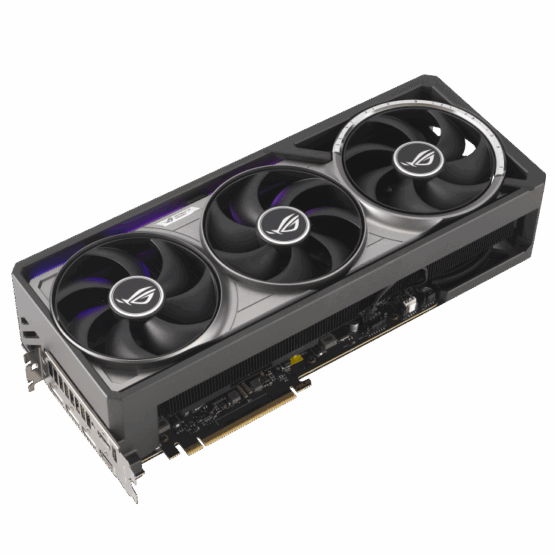

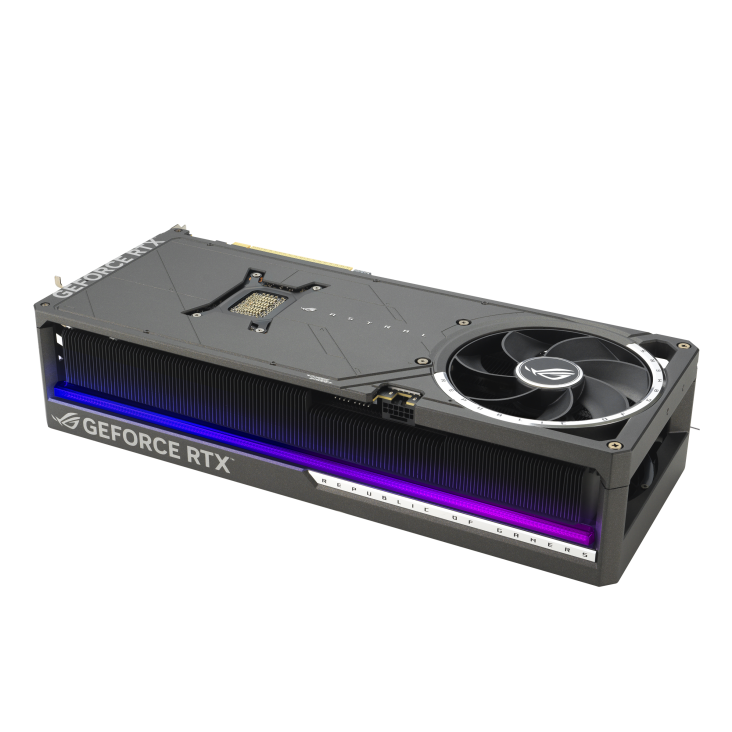

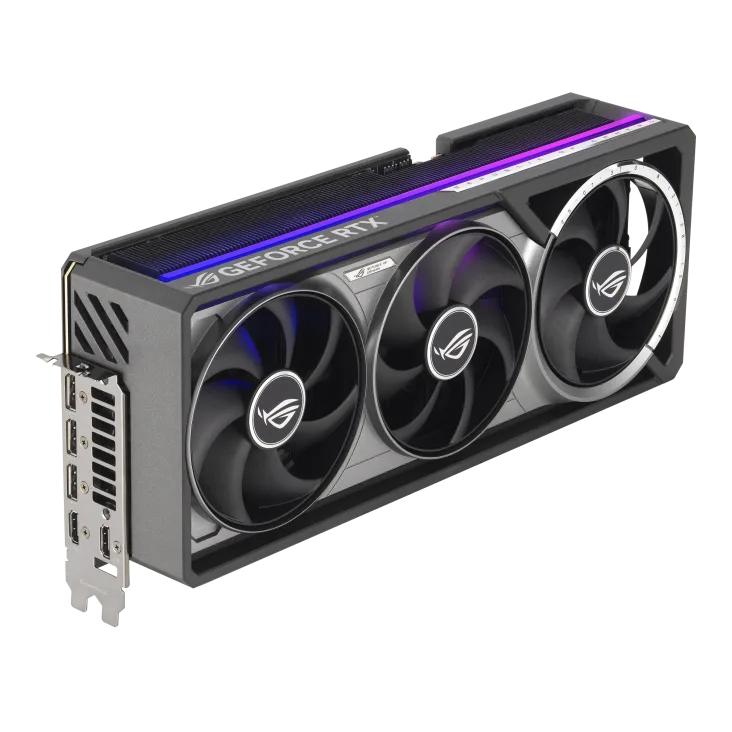

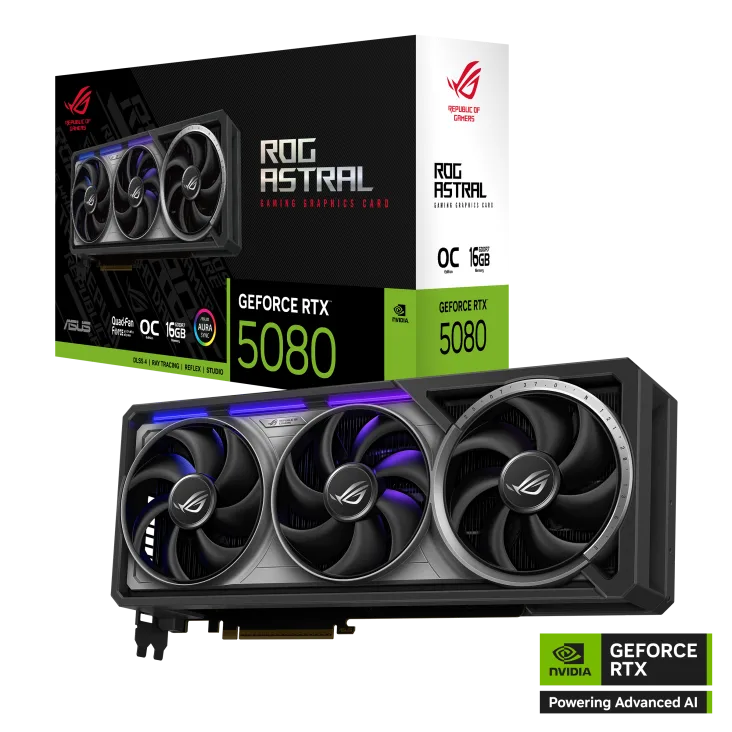

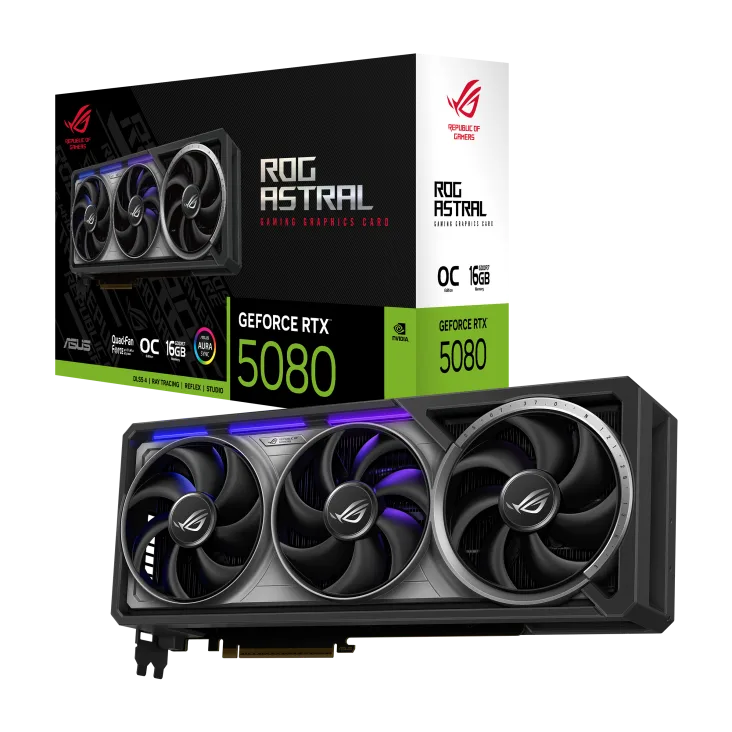

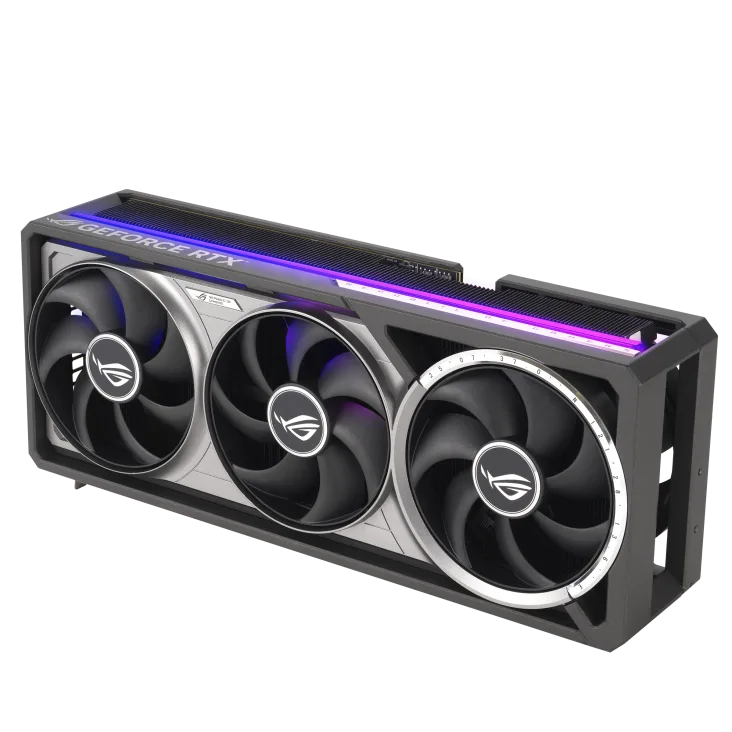

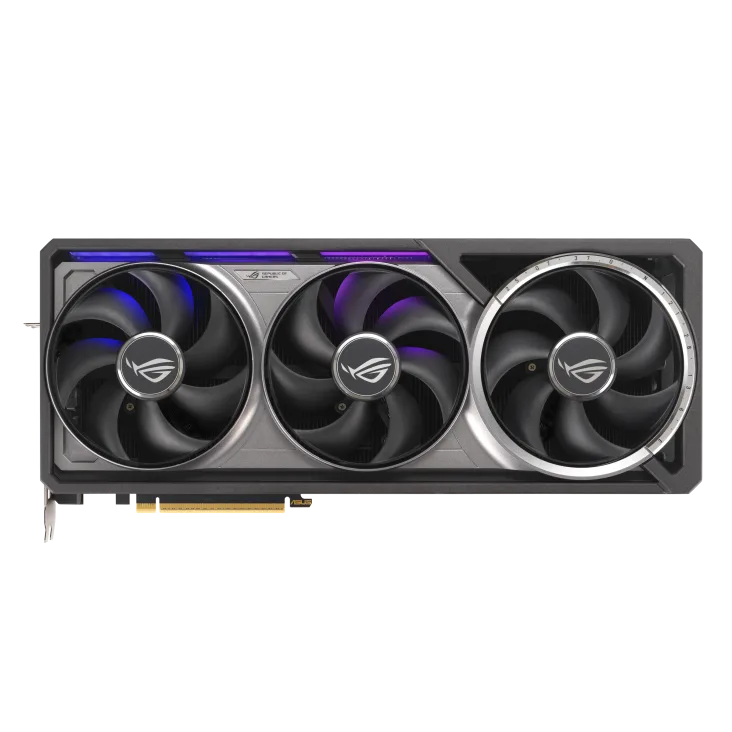

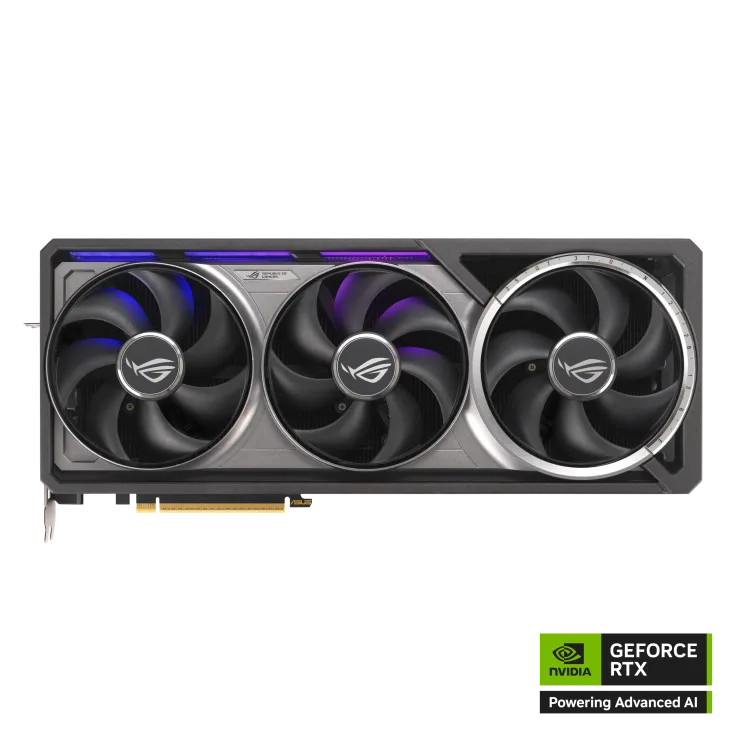

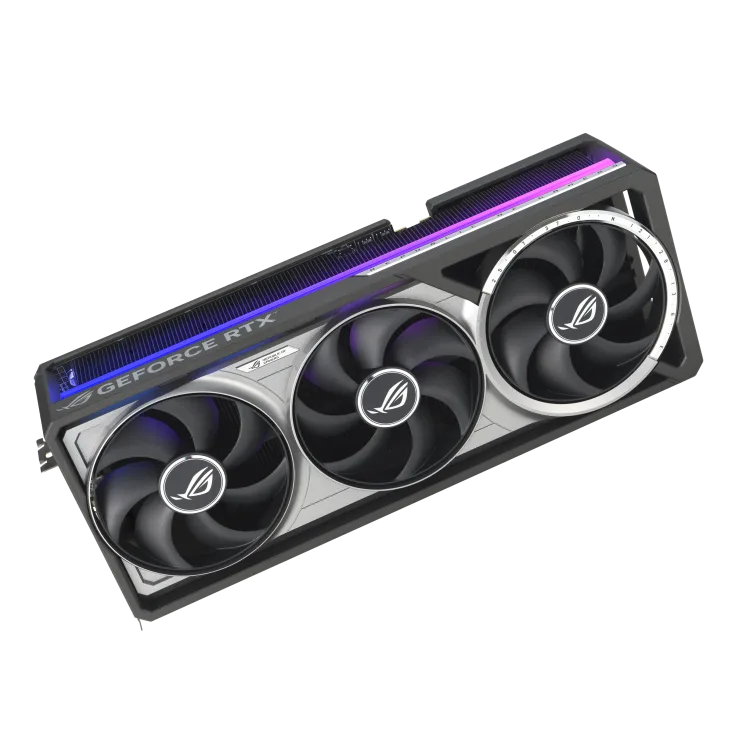

A top-tier GPU built on NVIDIA’s Blackwell architecture, the ROG Astral RTX 5080 delivers elite gaming and AI acceleration performance with a premium design, advanced thermal engineering, and robust power delivery. Tailored for 4K+ gaming, creative workloads, and heavy AI tasks.
🔧 GPU Specifications
-
GPU Architecture: NVIDIA Blackwell (GB203)
-
CUDA Cores: 10,752
-
Boost Clock: 2,790 MHz (OC Mode)
-
Base Clock: 2,430 MHz
-
Tensor Cores: 5th Generation
-
RT Cores: 4th Generation
-
AI Compute Performance: Up to 1,899 TOPs
-
Bus Interface: PCI Express 5.0 x16
🧠 Memory
-
Video Memory: 16 GB GDDR7
-
Memory Speed: 30 Gbps
-
Memory Interface: 256-bit
-
Effective Bandwidth: 960 GB/s

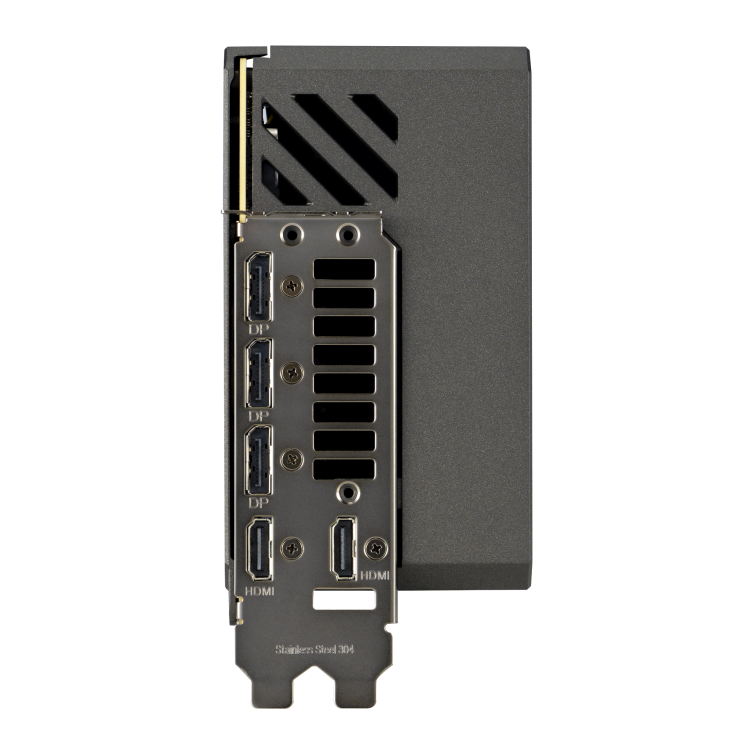

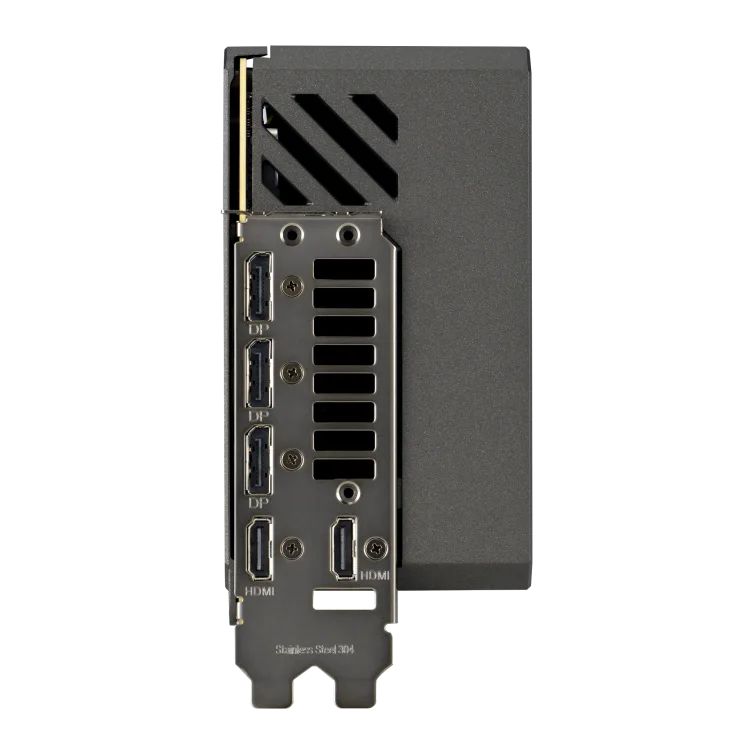

📺 Display Outputs
-

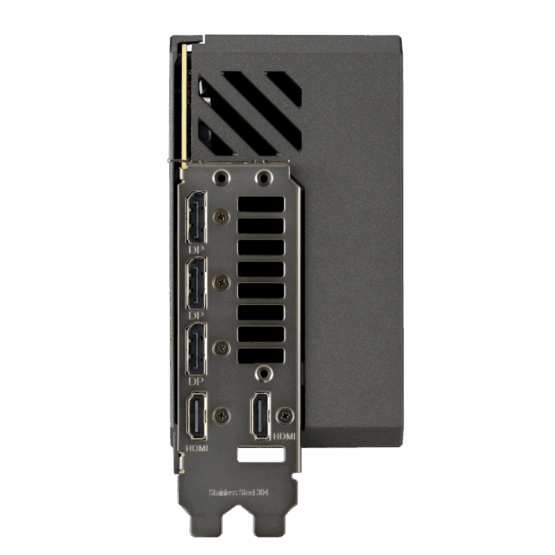

Outputs:
-
2 x HDMI 2.1
-
3 x DisplayPort 2.1
-
-
Maximum Digital Resolution: 7680 x 4320 (8K)
-
Multi-Display Support: Up to 4 monitors
-
HDCP Version: 2.3

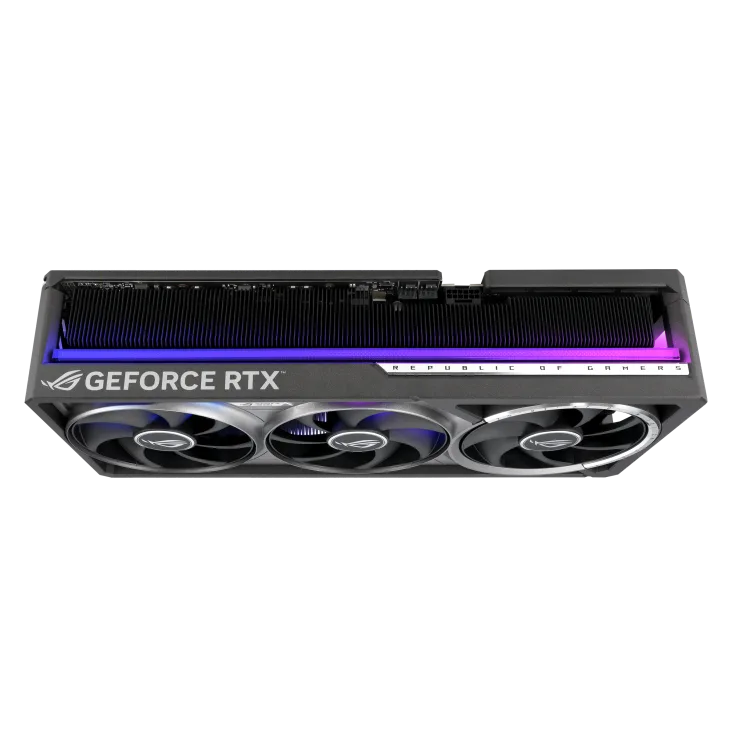

❄️ Cooling & Build
-

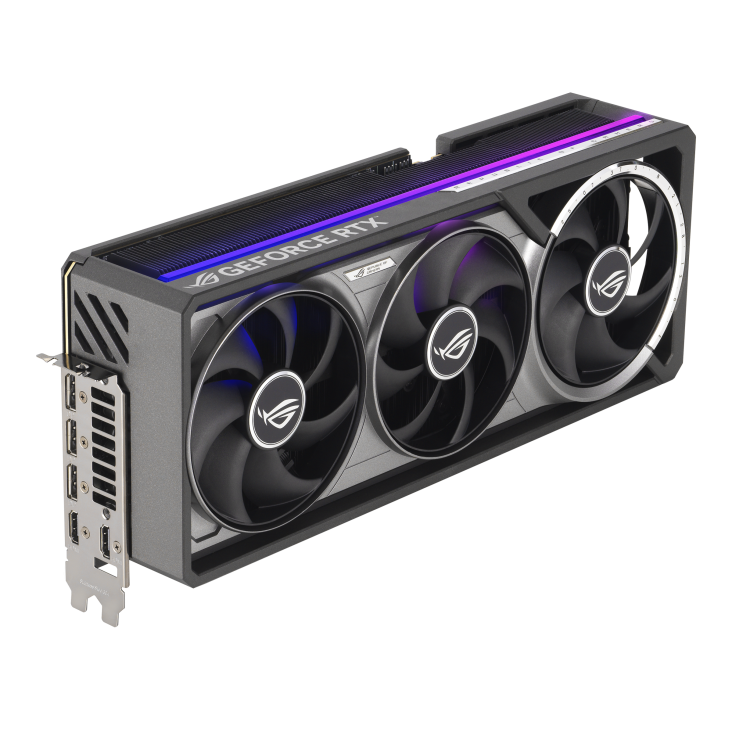

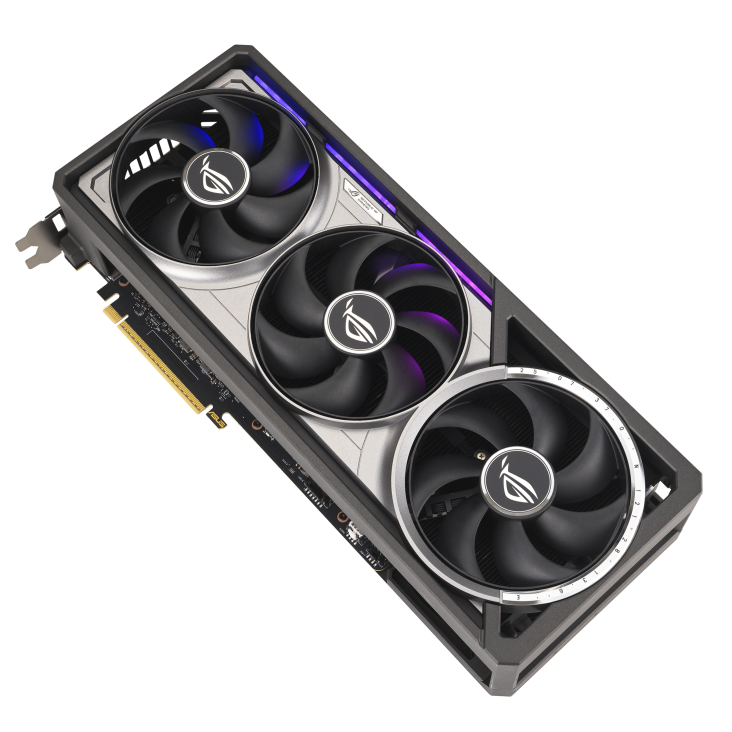

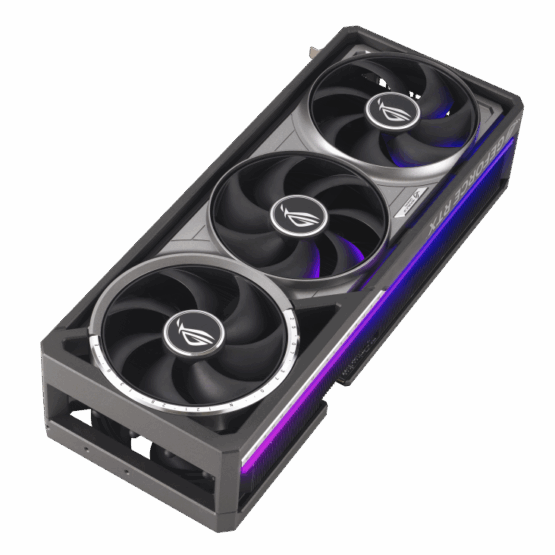

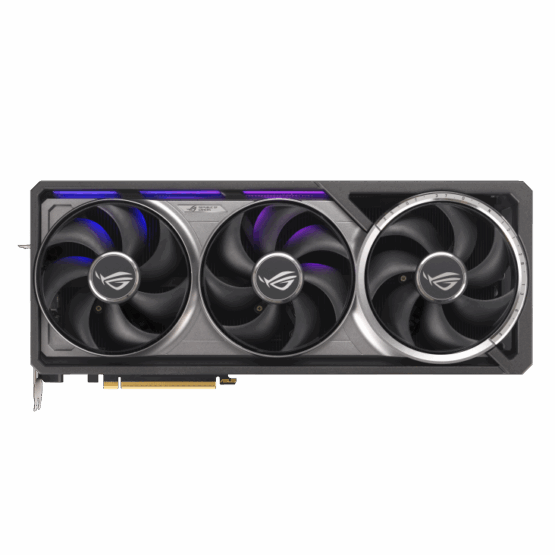

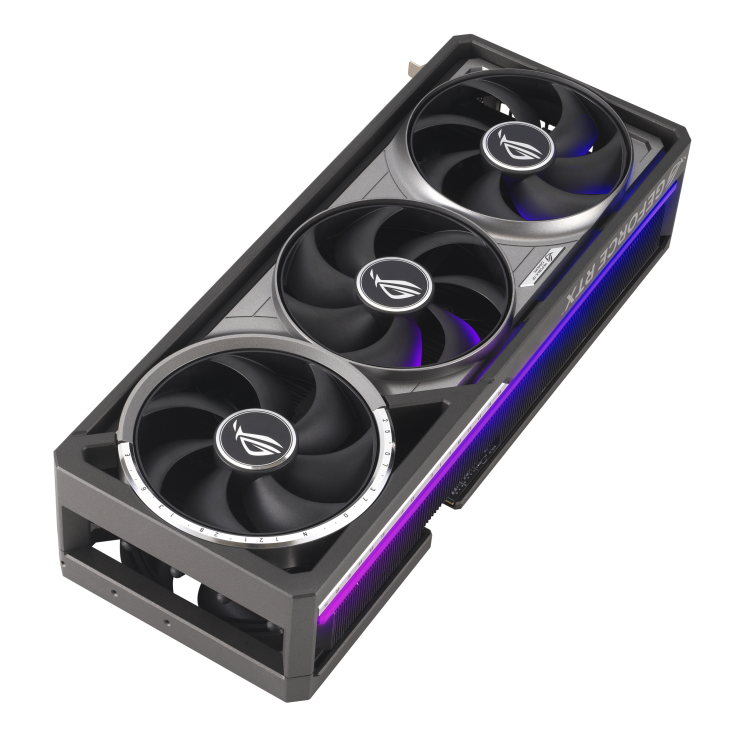

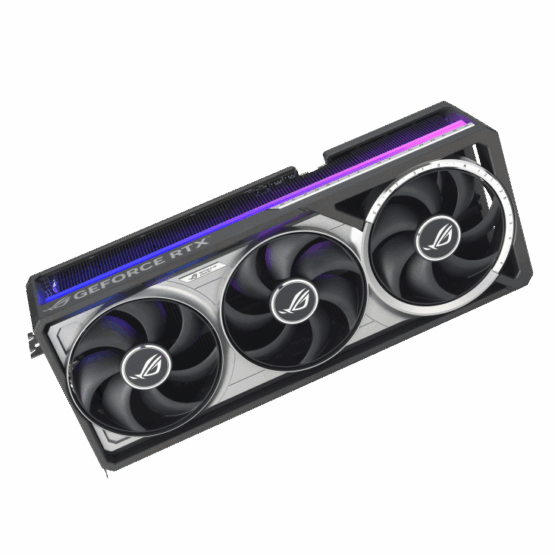

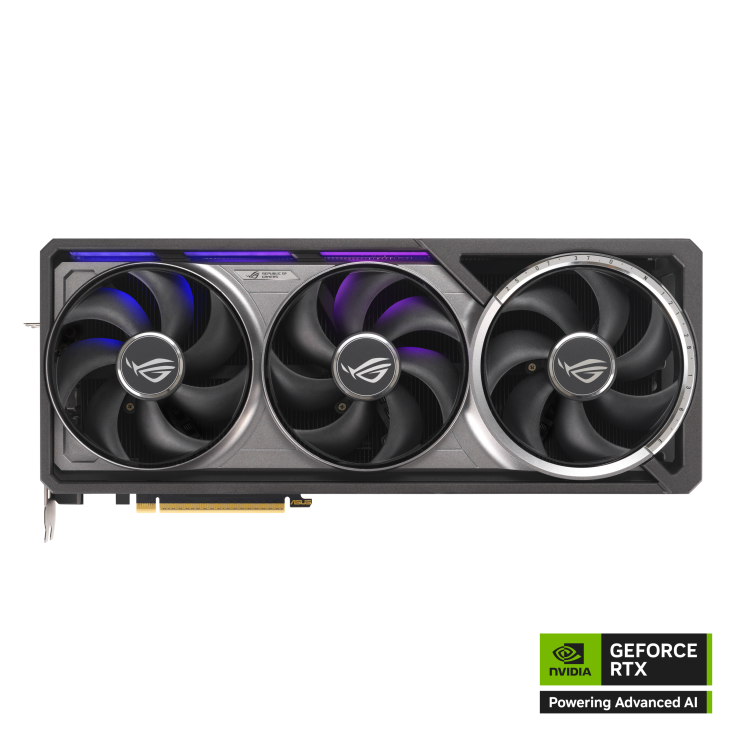

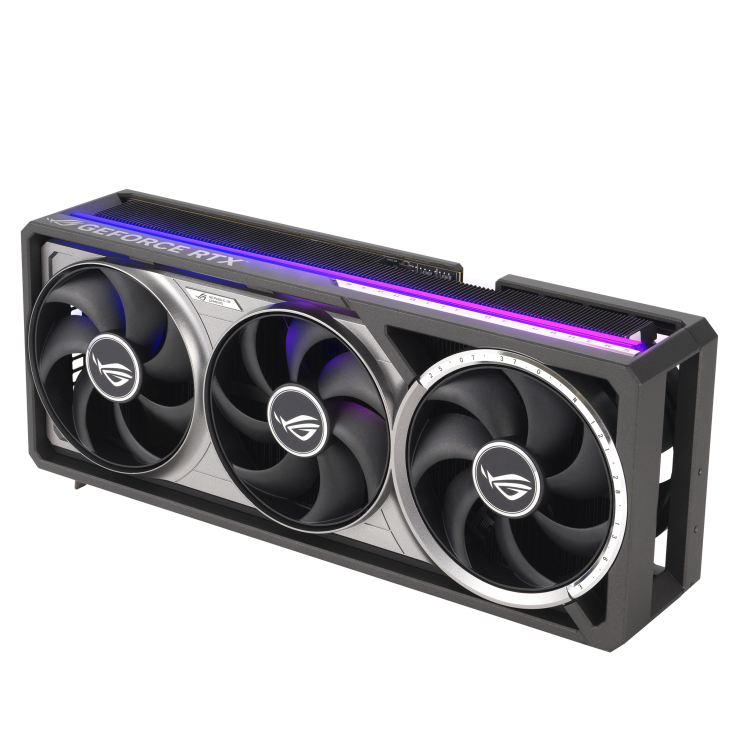

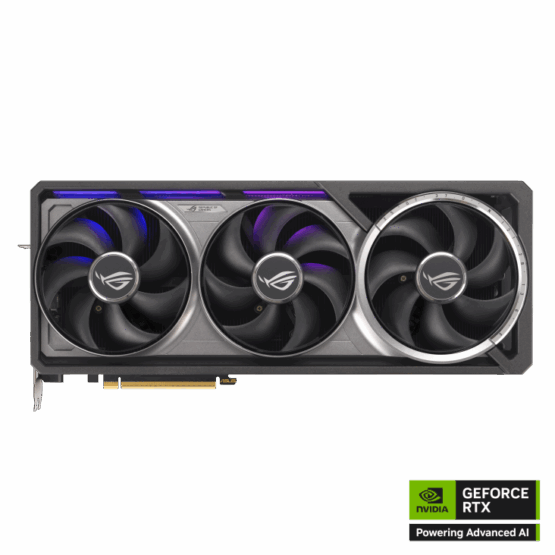

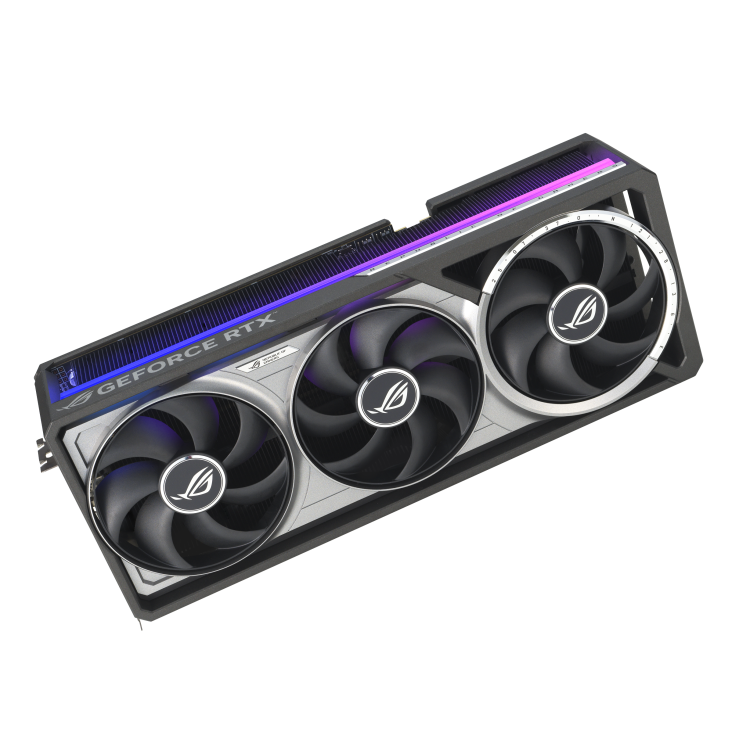

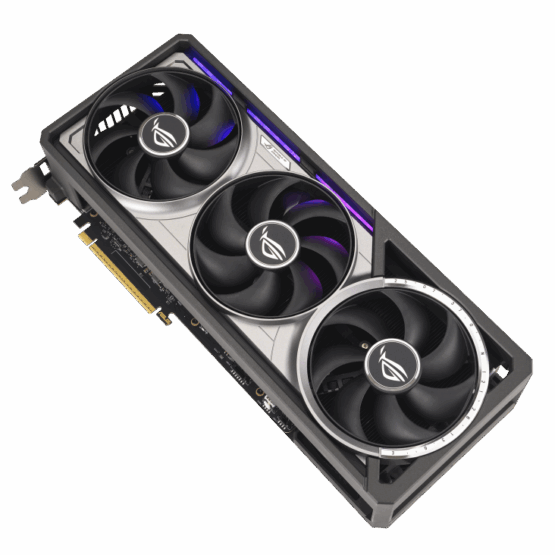

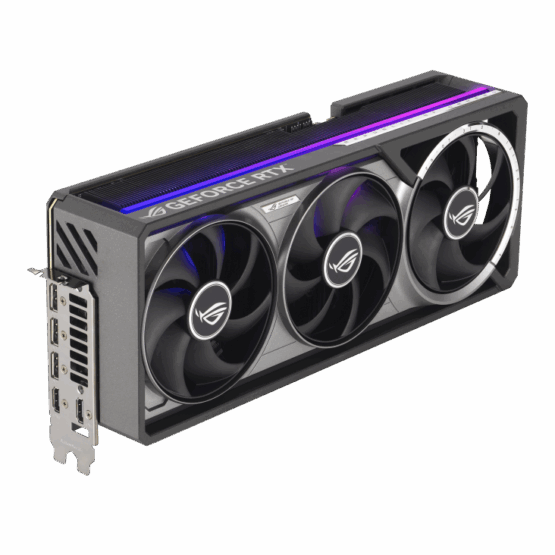

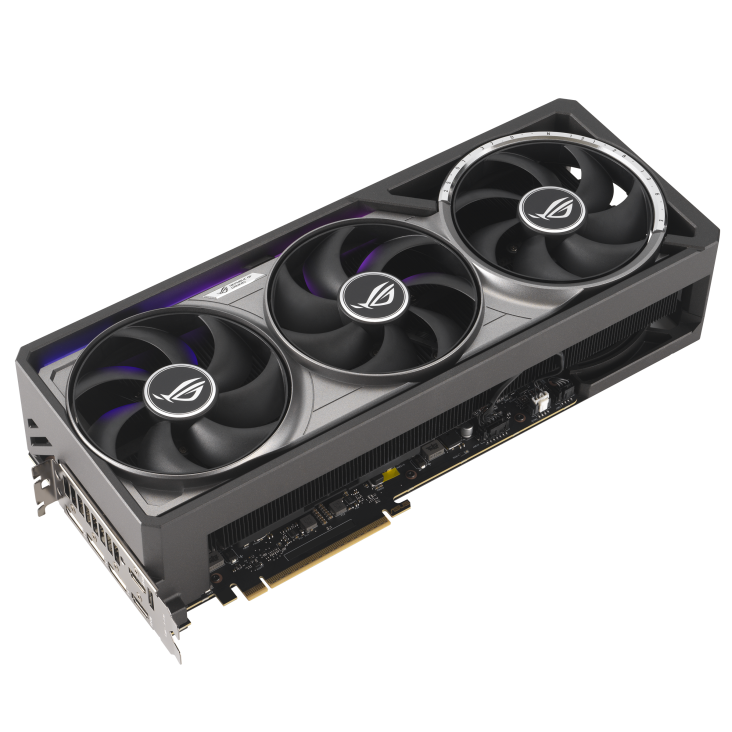

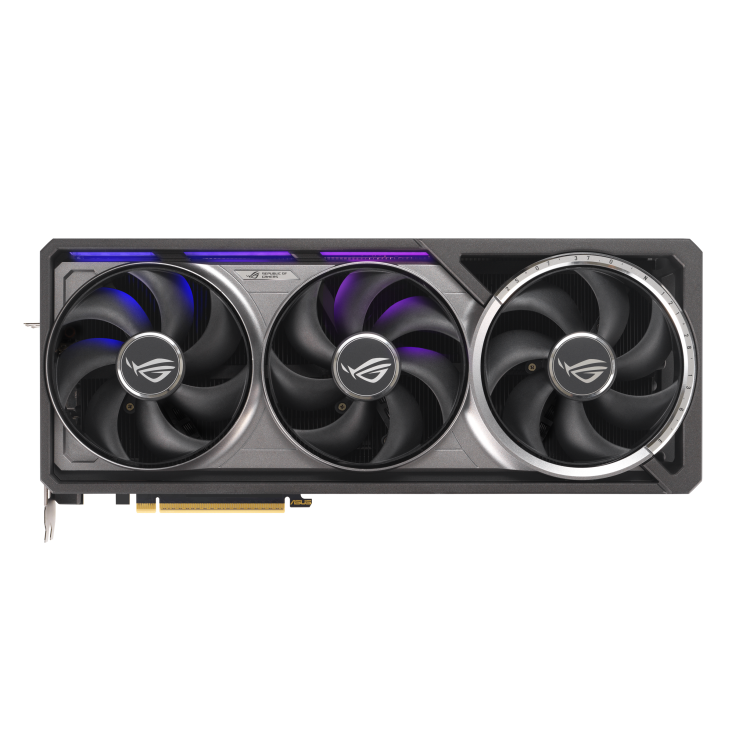

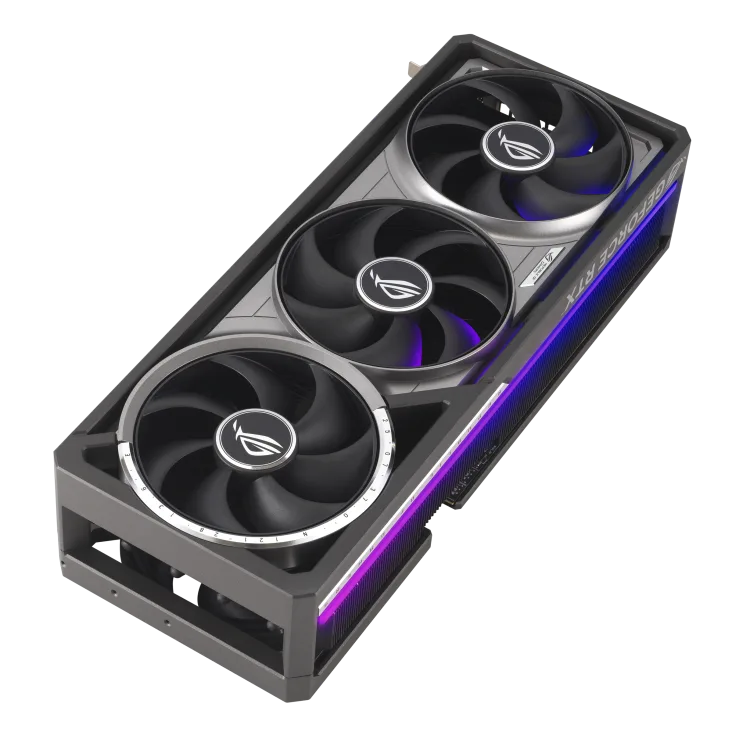

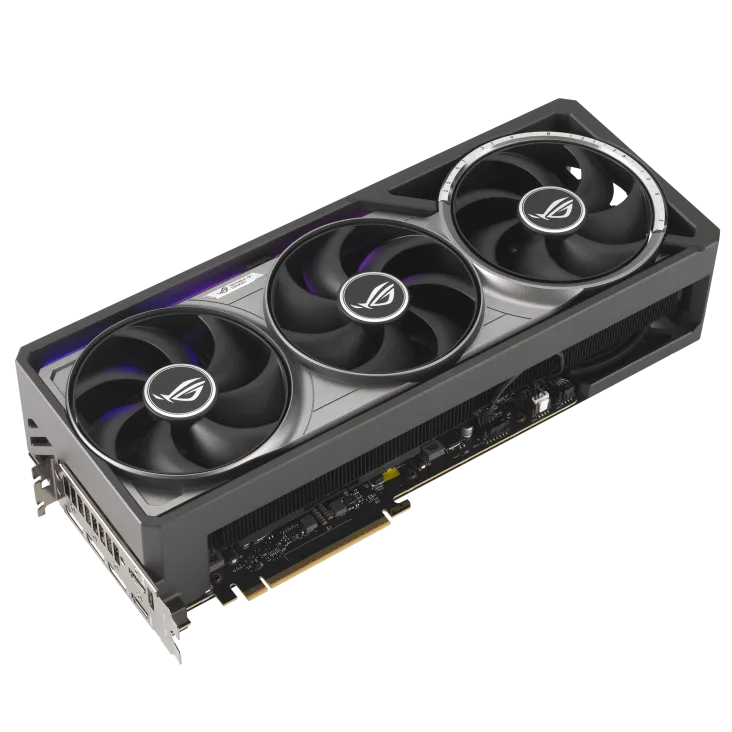

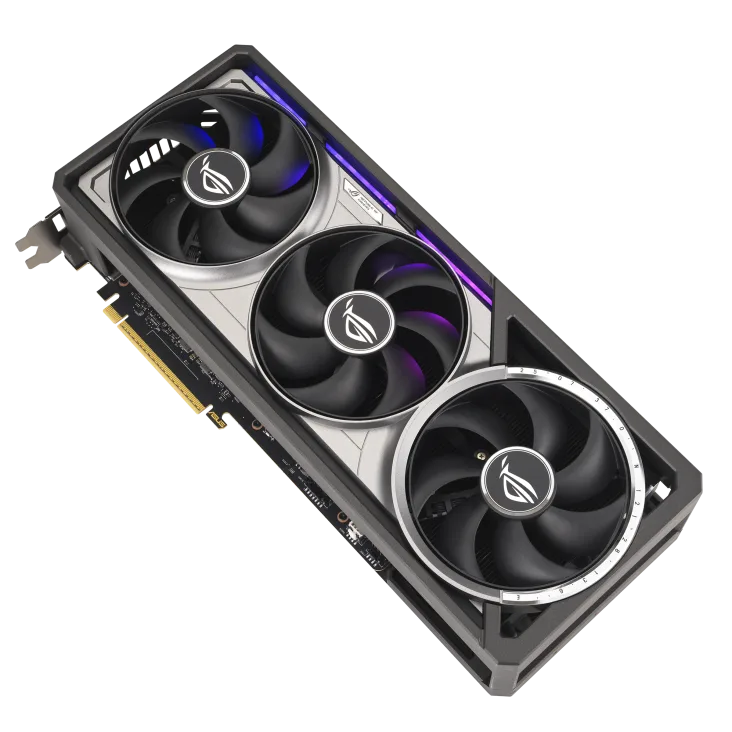

Cooler Type: ROG Axial-Tech Quad-Fan Design
-
Heatsink: Patented vapor chamber with expanded fin density
-
Phase Change Thermal Pad: Yes
-
Form Factor: 3.8-slot
-
Frame: Die-cast aluminum with integrated metal GPU bracket
-

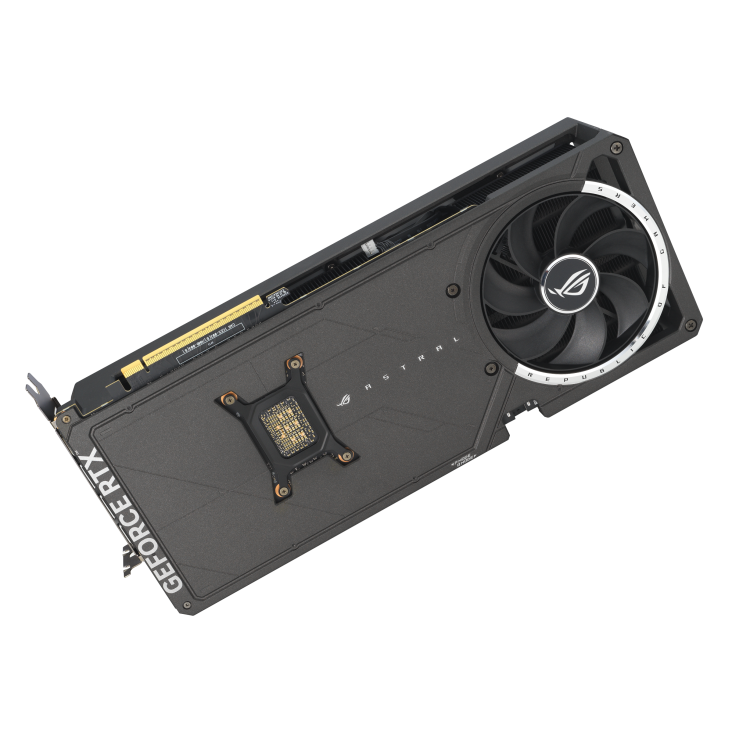

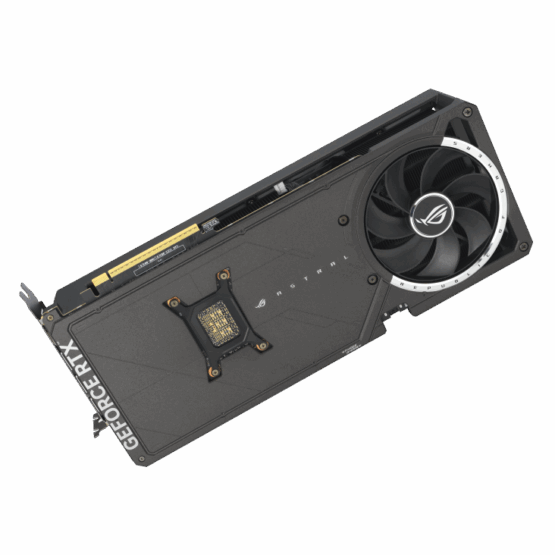

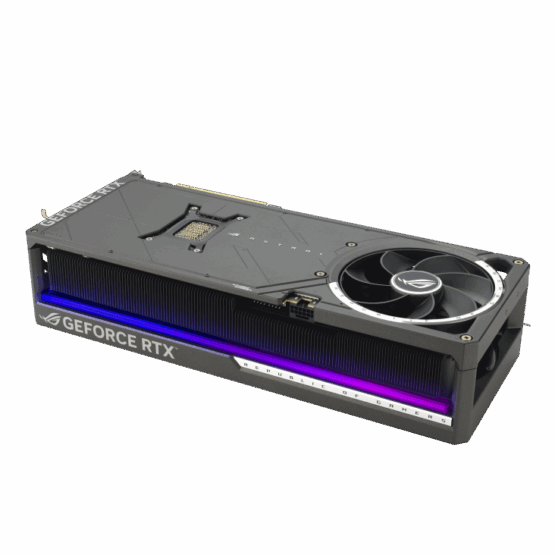

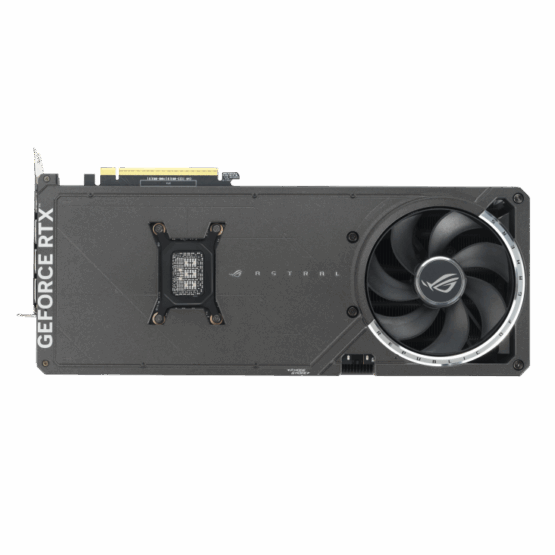

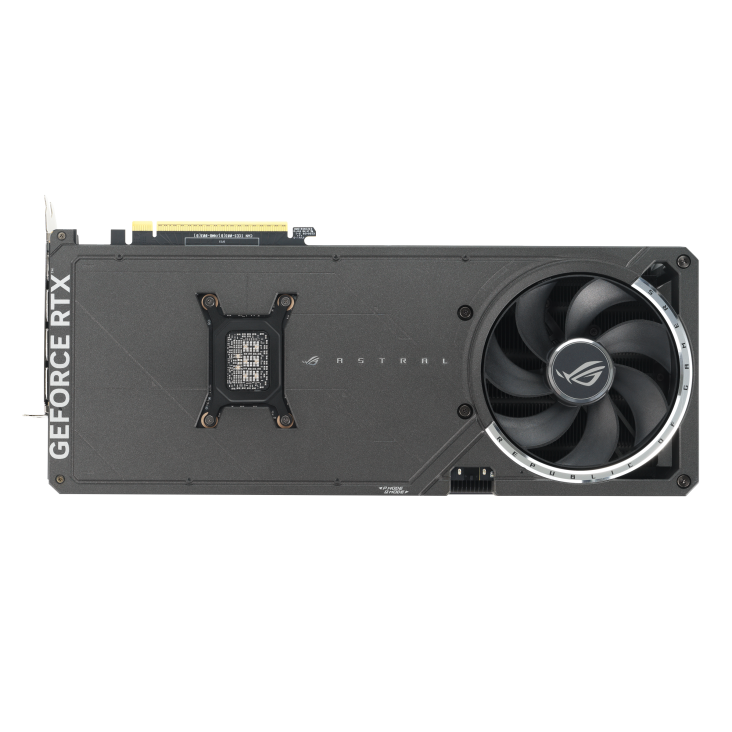

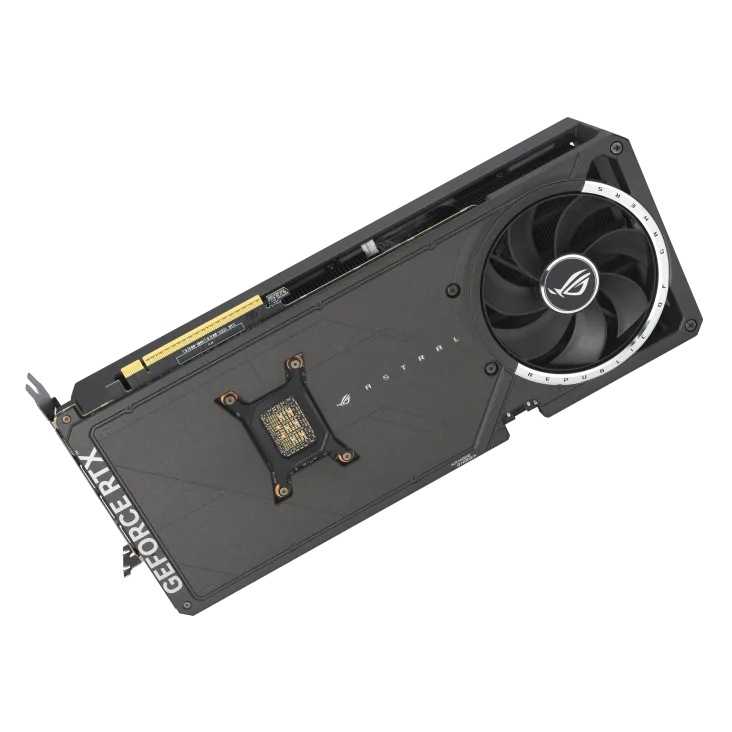

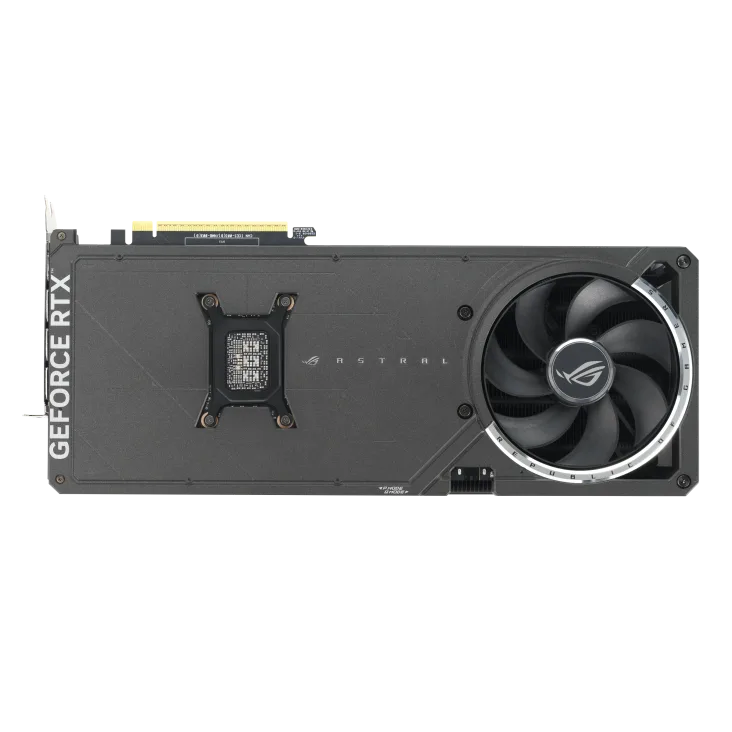

Backplate: Reinforced with airflow vents
🔌 Power Requirements
-
Power Connector: 1 x 16-pin (12V-2×6)
-
Recommended PSU: 1200W or greater
-
TDP: ~450W (subject to BIOS revision and power tuning)
🧩 Technologies & Software
-
DLSS 4 with Frame Generation
-
Real-Time Ray Tracing
-
NVIDIA Reflex Low Latency
-
NVIDIA Broadcast AI enhancements
-
NVIDIA Studio Ready
-
AV1 Dual Encode and Decode
-
OpenGL 4.6 and Vulkan 1.4 support
-
GPU Tweak III for overclocking and thermal monitoring
🕹️ Ideal Use Case
Perfect for:
-
4K/8K Ultra gaming
-
AI-assisted rendering and modeling
-
Content creation and real-time encoding
-
Enthusiast-class PC builds
