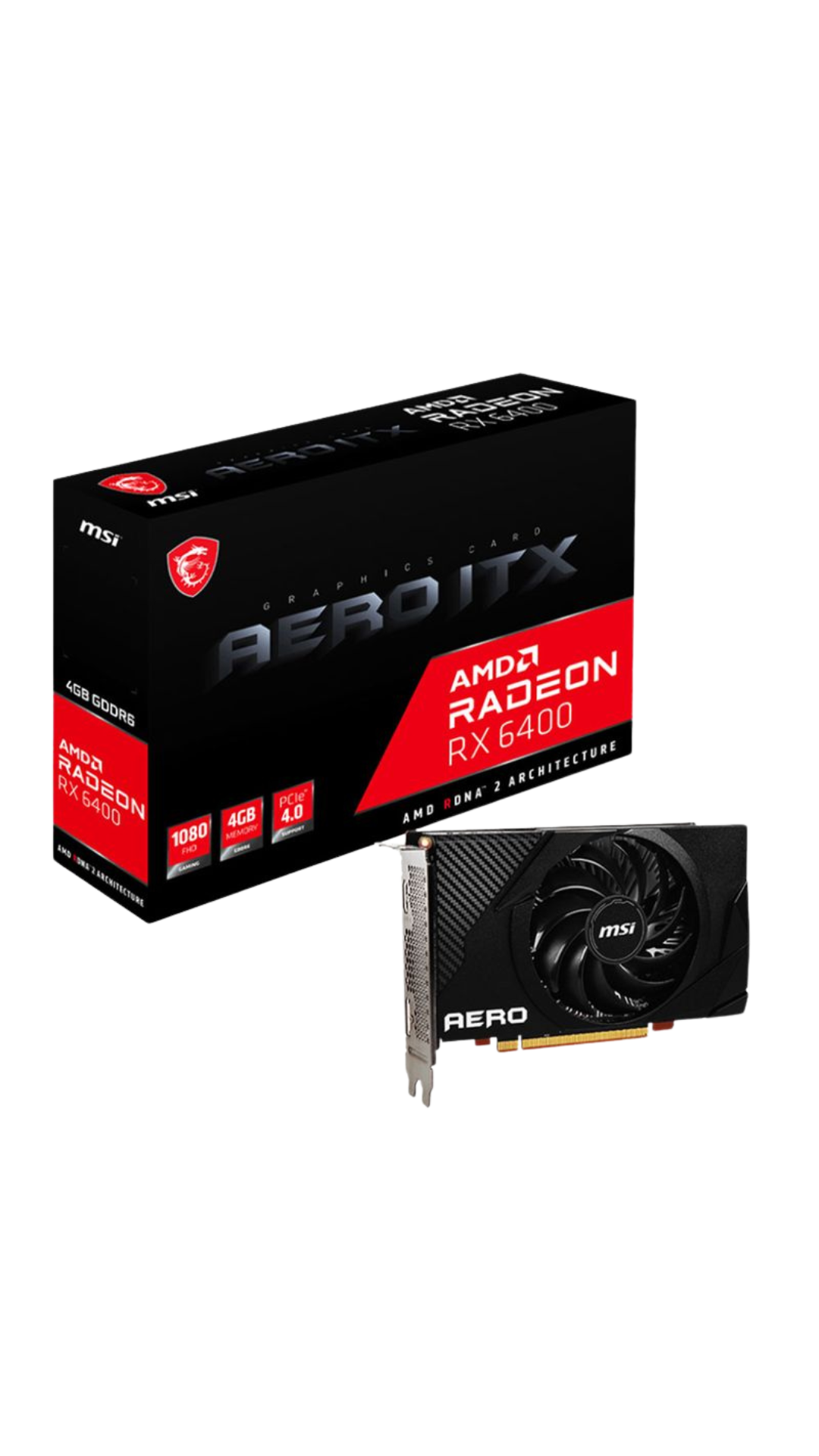

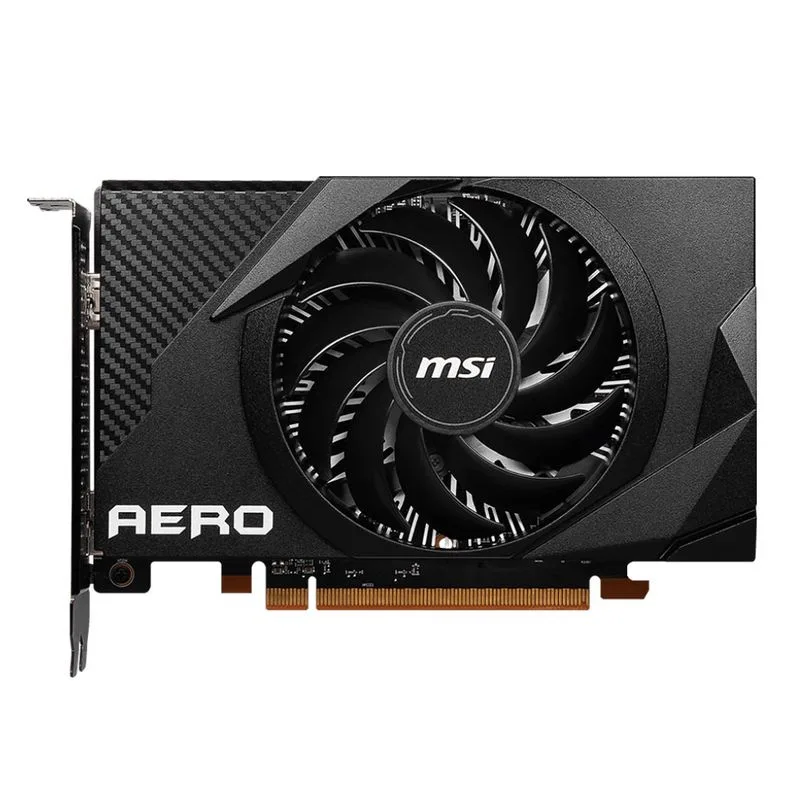

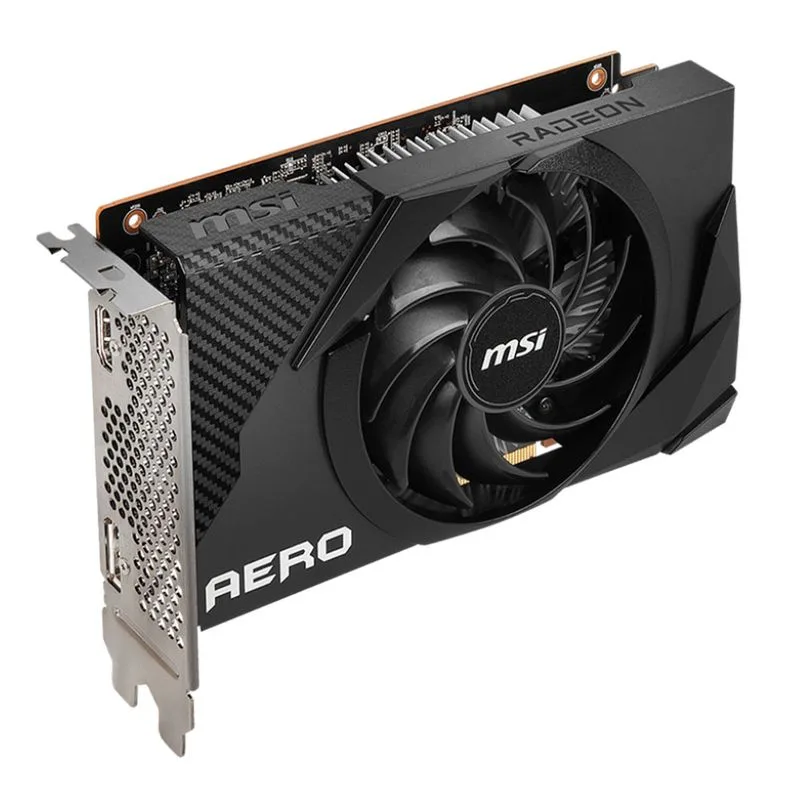

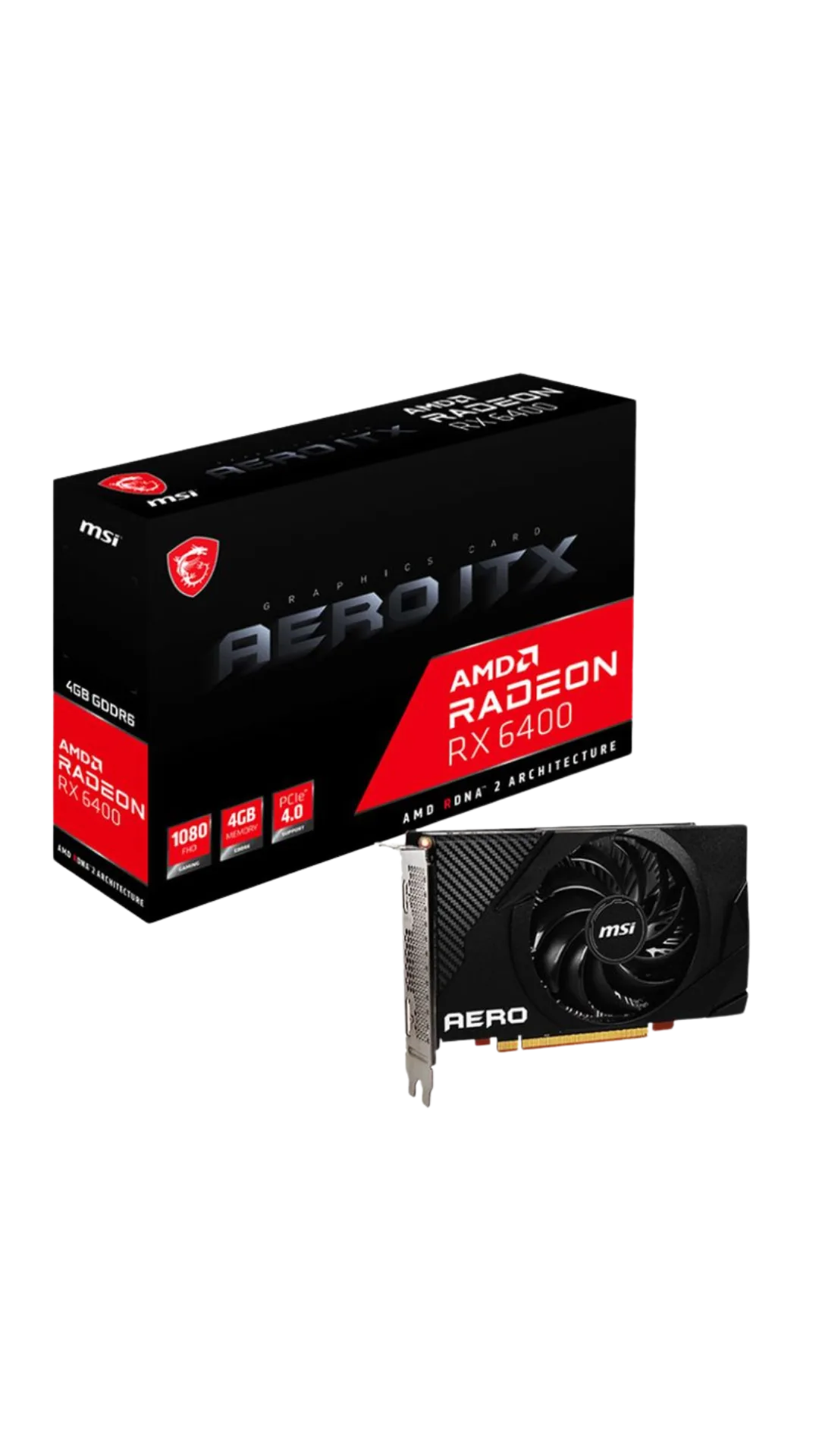

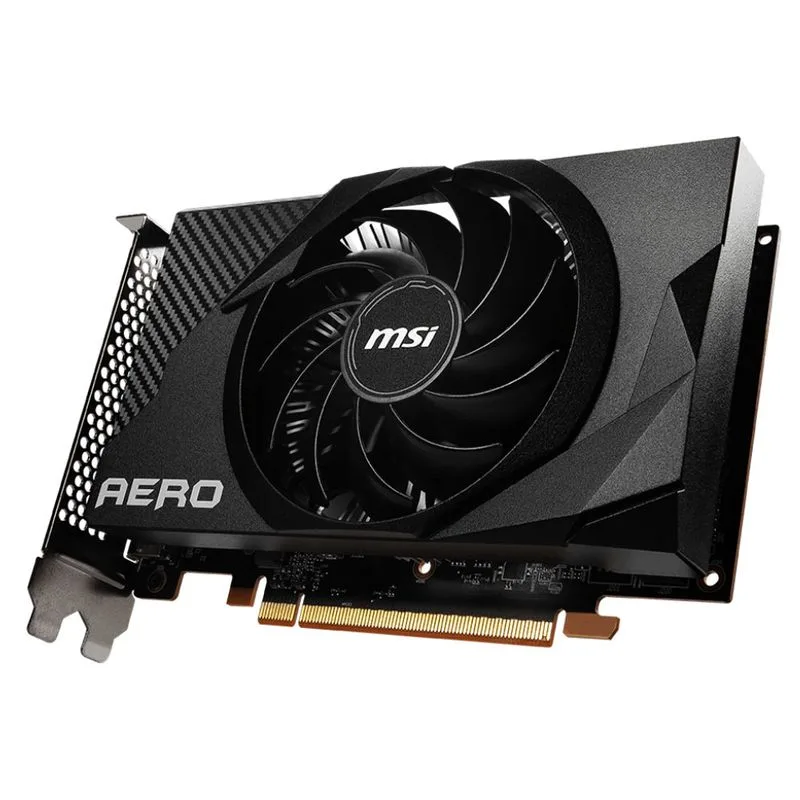

Radeon RX 6400 AERO ITX

Core Specifications

• GPU: AMD Radeon RX 6500 XT

• Architecture: RDNA 2

• Stream Processors (Cores): 1024

• Base Clock: 2310 MHz

• Game Clock: 2610 MHz

• Boost Clock: Up to 2820 MHz

---

Memory

• Capacity: 4 GB GDDR6

• Memory Speed: 18 Gbps

• Memory Interface: 64-bit

• Memory Bandwidth: 144 GB/s

---

Cooling

• Cooler: MECH 2X dual-fan design

• Fans: TORX Fan 3.0

• Backplate: Brushed metal backplate for added rigidity and passive cooling

• Form Factor: Dual-slot

---

Power Requirements

• TDP: ~107W

• Power Connector: 1 x 6-pin PCIe

• Recommended PSU: 400W

---

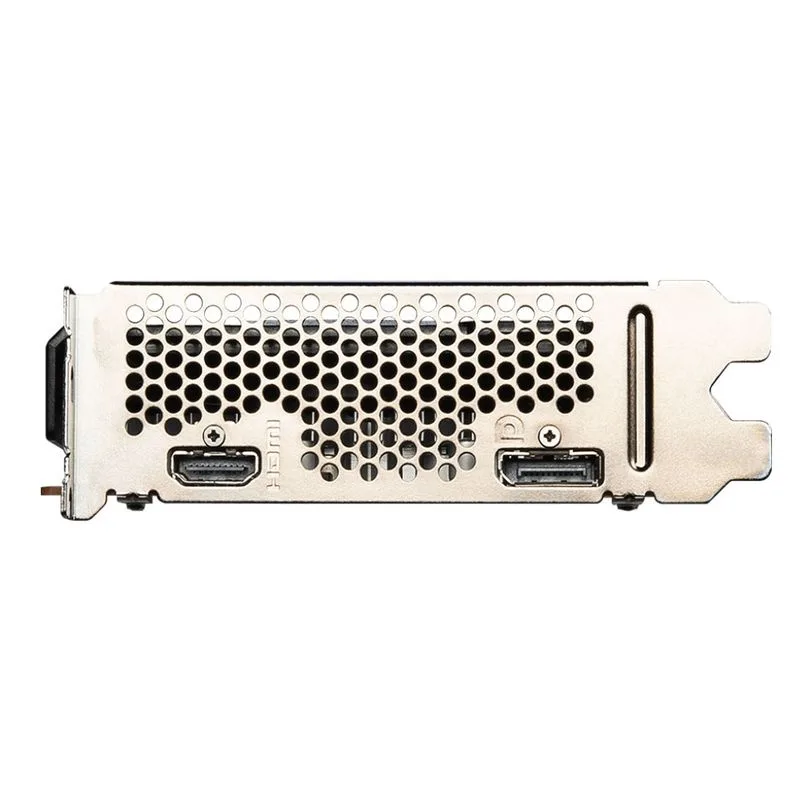

Display Outputs

• 1 x HDMI 2.1

• 1 x DisplayPort 1.4a

---

Features

• DirectX Support: 12 Ultimate

• Ray Tracing: Supported (basic tier, with 16 ray accelerators)

• FSR (FidelityFX Super Resolution): Supported

• OpenGL: 4.6

• Maximum Digital Resolution: 7680 x 4320

• Display Support: Up to 2 monitors

---

This card is best suited for eSports titles and light AAA gaming at 1080p, though its 4GB VRAM and 64-bit bus limit performance in newer, more demanding titles. Great option for budget-conscious builds with a focus on performance-per-watt.
