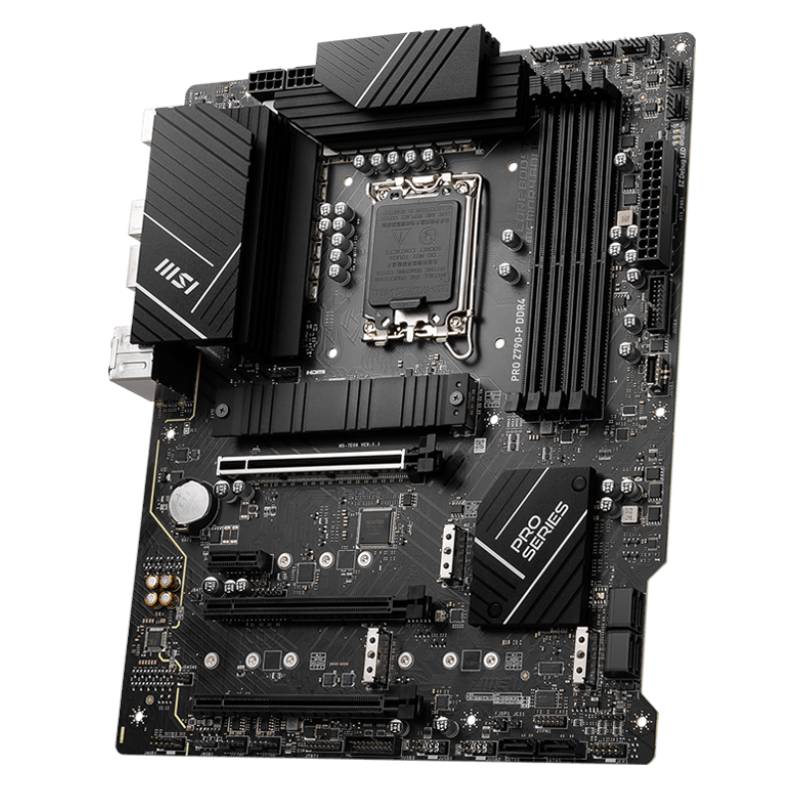

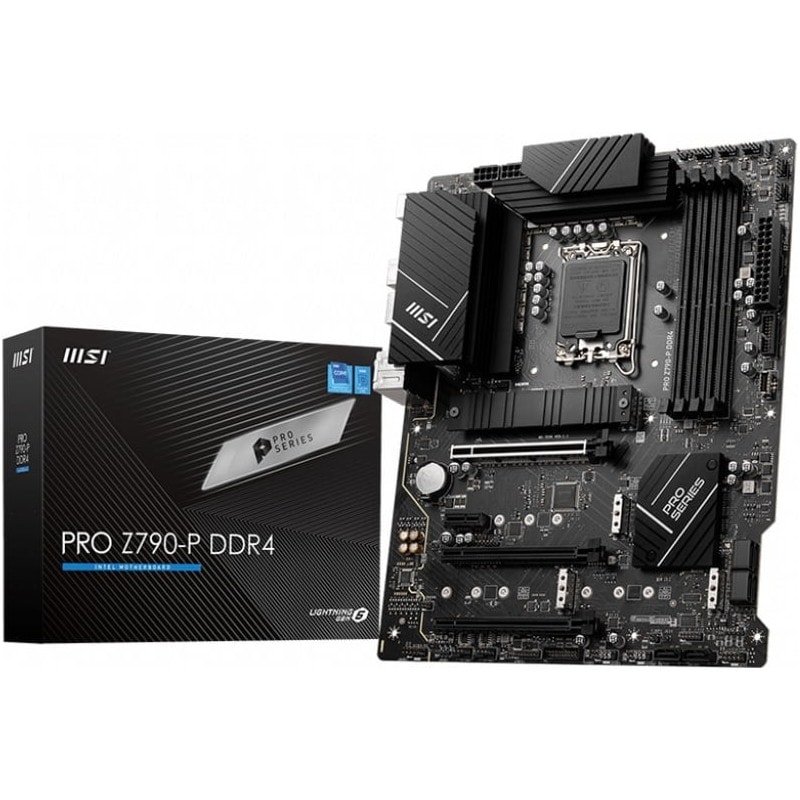

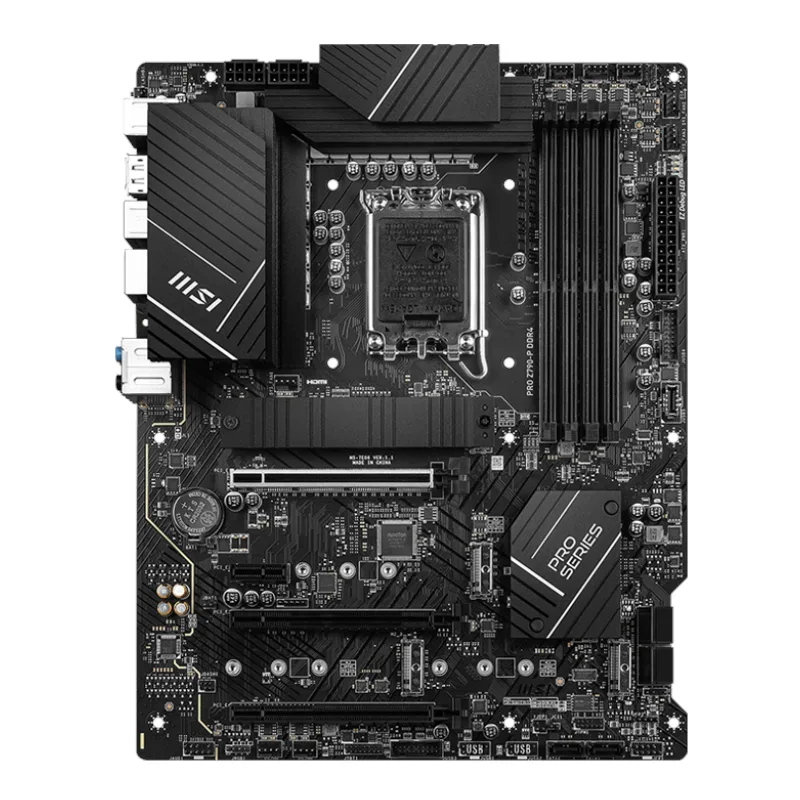

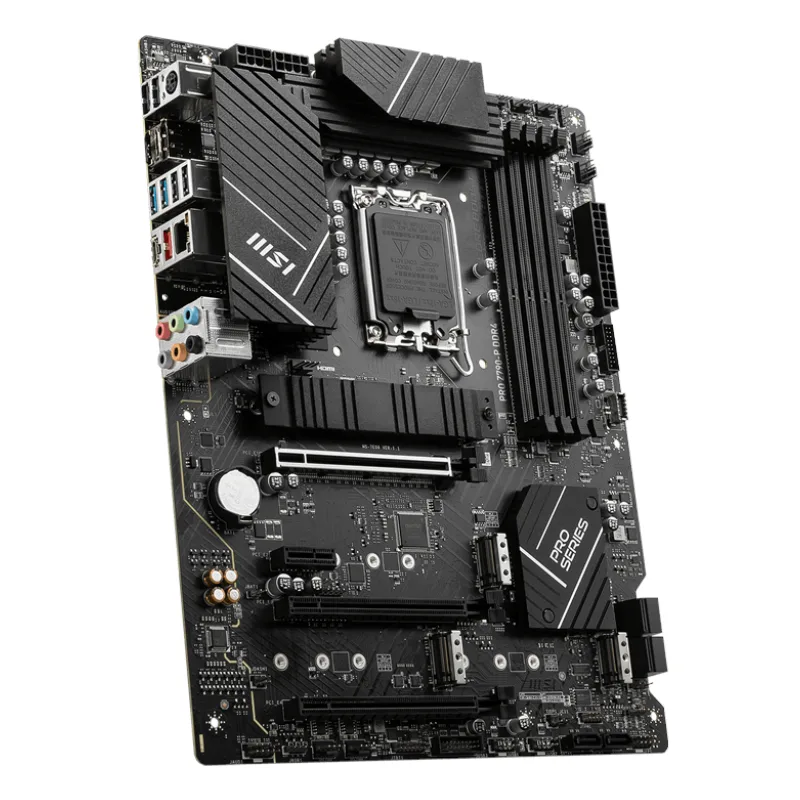

PRO Z790-P DDR4

Description

Specifications:

CPU Support:

• Intel Core 14th / 13th / 12th Gen

• LGA 1700 Socket

• 14+1+1 Duet Rail Power System

• Extended heatsinks for VRM and M.2

Memory:

• 4× DDR4 DIMM slots

• Supports up to 128GB

• OC speeds up to 5333+ MHz

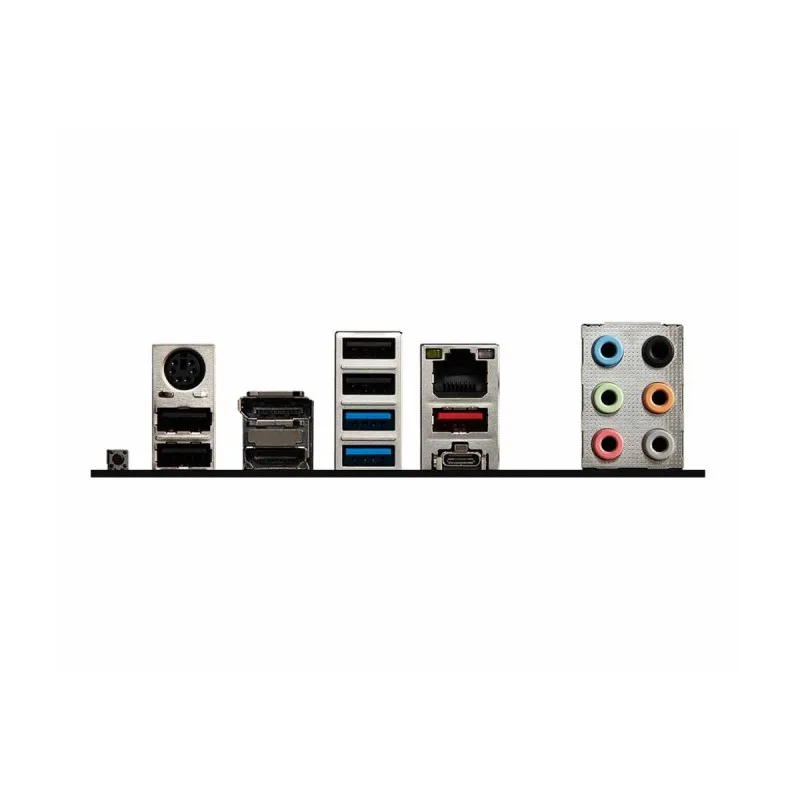

Graphics Output:

• 1× HDMI 2.1

• 1× DisplayPort 1.4

• Supports integrated graphics (CPU dependent)

Expansion Slots:

• 1× PCIe 5.0 x16

• 1× PCIe 3.0 x16 (x4 mode)

• 2× PCIe 3.0 x1

Storage:

• 4× M.2 Slots (3× PCIe 4.0 x4, 1× PCIe 3.0 x4)

• 6× SATA 6Gb/s Ports

• RAID 0/1/5/10 support

Networking:

• Realtek 2.5G LAN

Audio:

• Realtek ALC897

• 7.1 Channel HD Audio

Other Features:

• USB 3.2 Gen 2×2 Type-C (rear)

• USB 3.2 Gen 1 & Gen 2, USB 2.0

• RGB and ARGB headers

• Flash BIOS Button

• Debug LED

---

Ideal For:

• Productivity and business desktops

• Users upgrading to Z790 without switching to DDR5

• Mid-range gaming and editing systems
