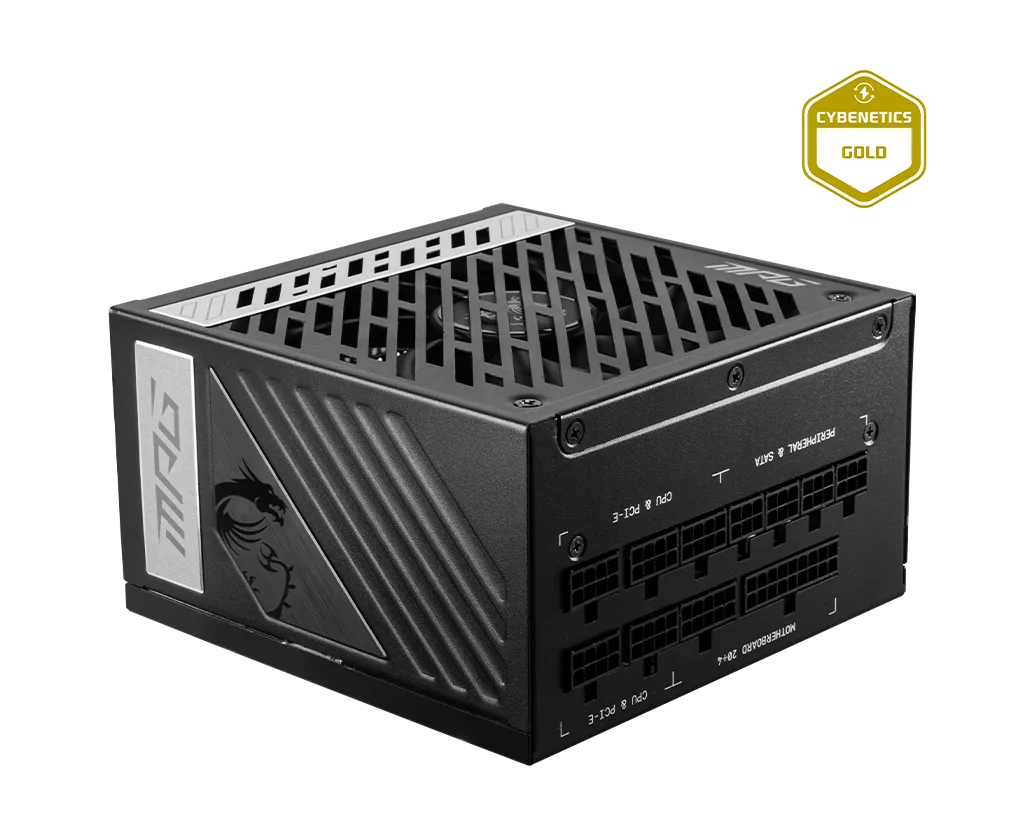

MSI MPG A1000G
Specifications
General Features
- Form Factor: ATX
- Power Wattage: 1000W
- Efficiency Certification: 80 PLUS Gold (up to 90% efficiency)
- Modularity: Fully Modular
- Dimensions (D x W x H): 150 x 150 x 86 mm
Electrical Specifications
- Input Voltage Range: 100-240 VAC
- Input Frequency Range: 50-60 Hz
- PFC Type: Active PFC
Output Specifications
- +3.3V: 22A
- +5V: 22A
- +12V: 83.3A
- -12V: 0.3A
- +5Vsb: 3.0A
- Total Power: 1000W

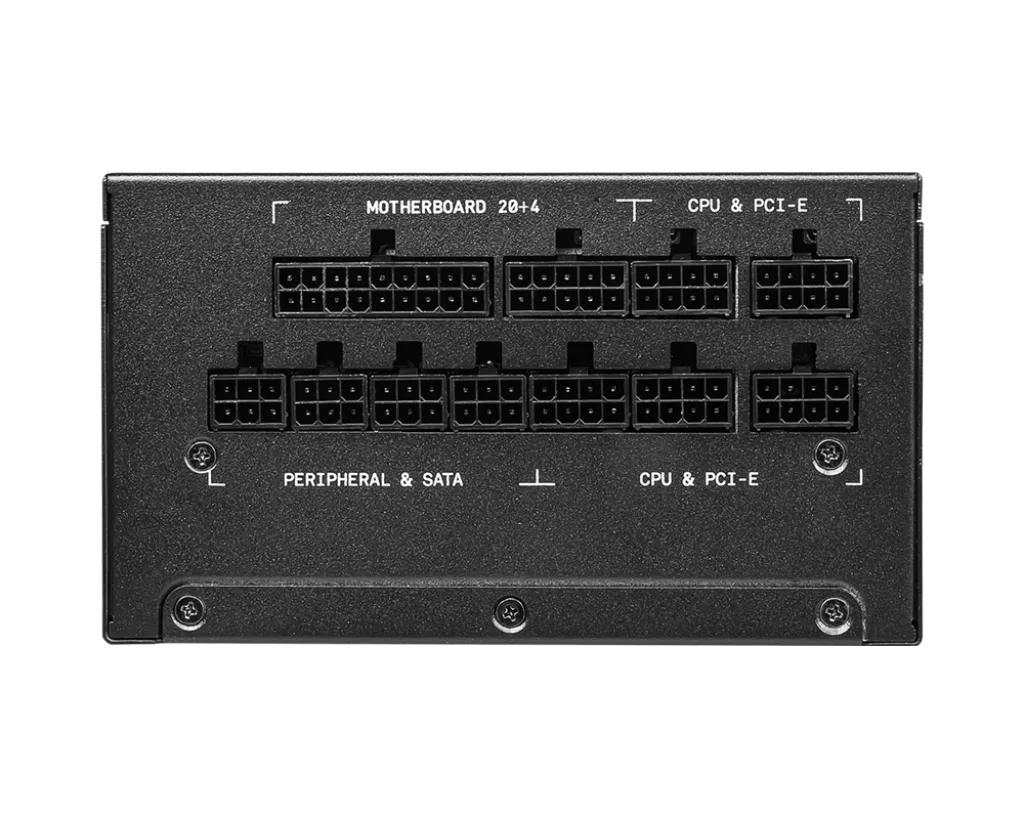

Connectors
- ATX (24-pin): 1
- EPS (4+4 pin): 2
- PCI-E (6+2 pin): 6
- SATA: 12
- Molex (Peripheral): 4
- FDD: 1

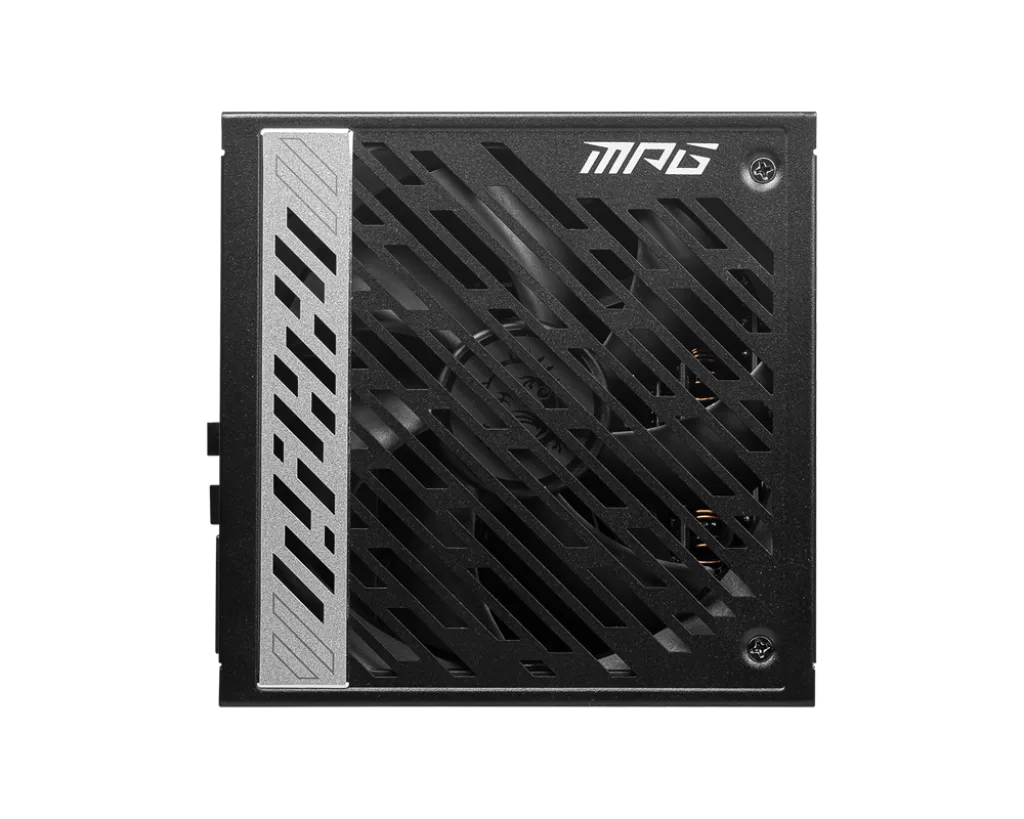

Cooling
- Fan Size: 135 mm
- Fan Bearing: Fluid Dynamic Bearing (FDB)
- Zero RPM Mode: Yes, fan stops operation when TDP is below 40%
Protection Features
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Over Power Protection (OPP)
- Over Temperature Protection (OTP)
- Short Circuit Protection (SCP)
- Under Voltage Protection (UVP)
Additional Features
- Capacitors: 100% Japanese 105°C capacitors
- Compliance: ATX 3.0 and PCIe 5.0 ready
- Warranty: 10-Year Limited Warranty
