Description
Synergize the MAG PANO M100R PZ series with a compatible MSI motherboard through bridging with a USB 3.2 Gen 2×2 Type-C port for high-speed data transmission.FEATURES:
- Micro-ATX Back-connect PROJECT ZERO motherboard supported
- Supports up to 360 mm AIO liquid cooler on the top
- 270-degree panoramic tempered glass
- Supports up to 10 x 120 mm system fans
- Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects
- The Magnetic Dust Filter at the bottom being easily removed for cleaning
- DIY Friendly cables make your DIY process easier and create more possibilities to your system
SPECIFICATIONS:
- Form Factor: Micro-ATX Mid Tower
- Motherboard Form Factor Support: Micro-ATX(Back-connect supported)/Mini-ITX
- I/O Ports: 1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2×2 Type-C, 1 x Audio-Out / Mic-in, 1 x LED Switch Button, 1 x Power Button
- Drive Mount Support: 1 x 2.5”, 1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”)
- Expansion Slots: 5
- Maximum GPU Length: 390 mm
- Maximum CPU Cooler Height: 175 mm
- Power Supply Support: ATX
- Maximum PSU Length: 200mm
- Fan Size Support:
- Top: 3 x 120 mm / 2 x 140 mm
- Front: NA
- Rear: 1 x 120 mm / 1 x 140 mm
- Side: 3 x 120 mm
- Bottom: 1 x 120 mm
- PSU Shroud: 2 x 120 mm
- Pre-Installed Fan Size:
- Front: 3 x 120 mm
- Rear: 1 x 120 mm
- Pre-Installed Fan Type:
- Front: 3 x ARGB Fan (Reverse-blade)
- Rear: 1 x ARGB Fan
- Radiator Size Support:
- Top: 120 / 240 / 360 mm
- Front: NA
- Rear: 120 / 140 mm
- Side: NA
- Bottom: NA
- Colour: Black
- Product Dimensions: 48.8 x 23.5 x 45.3 cm
- Product Weight: 8660g
WHAT’S IN THE BOX:

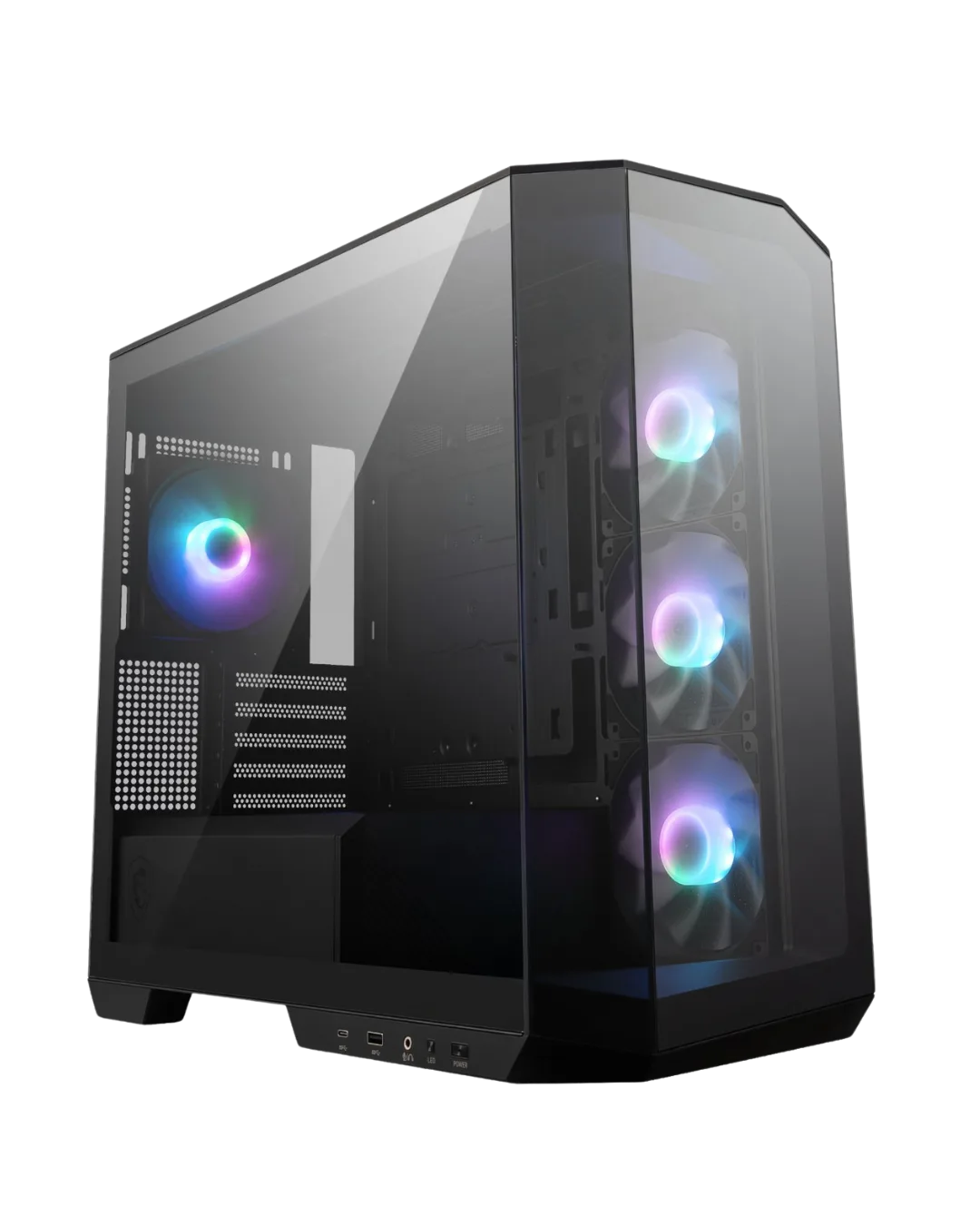

- MSI MAG PANO M100R PZ M-ATX ARGB Gaming Chassis – Black x1
