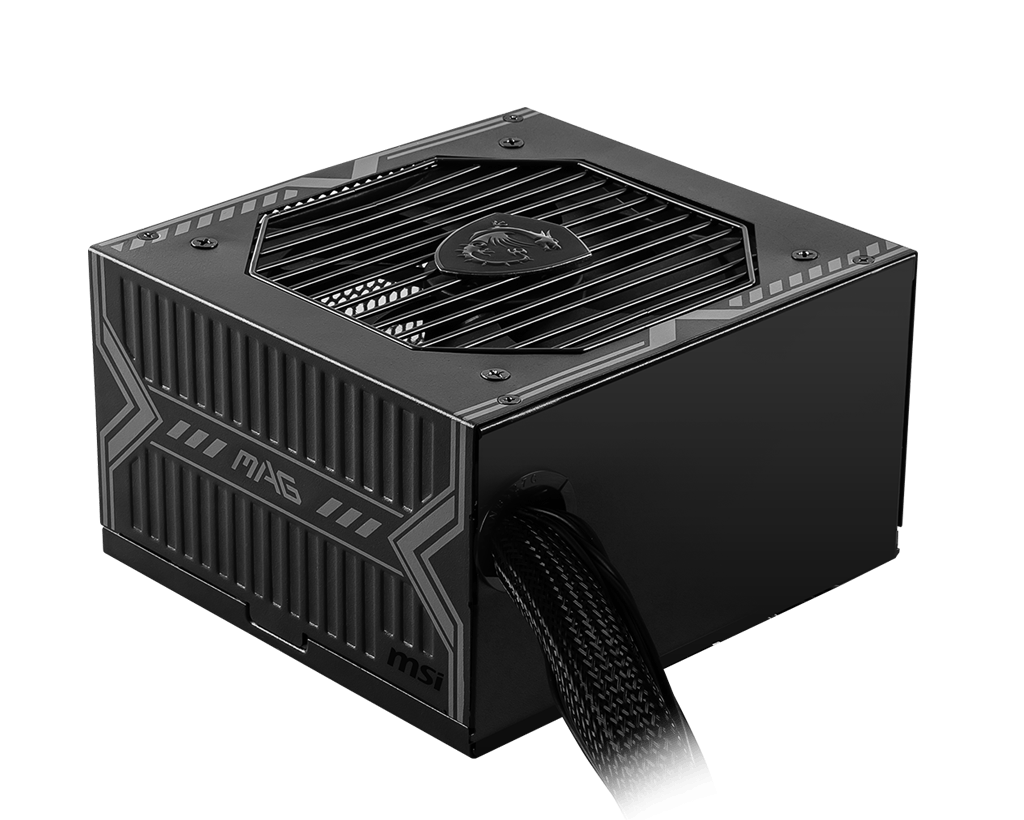

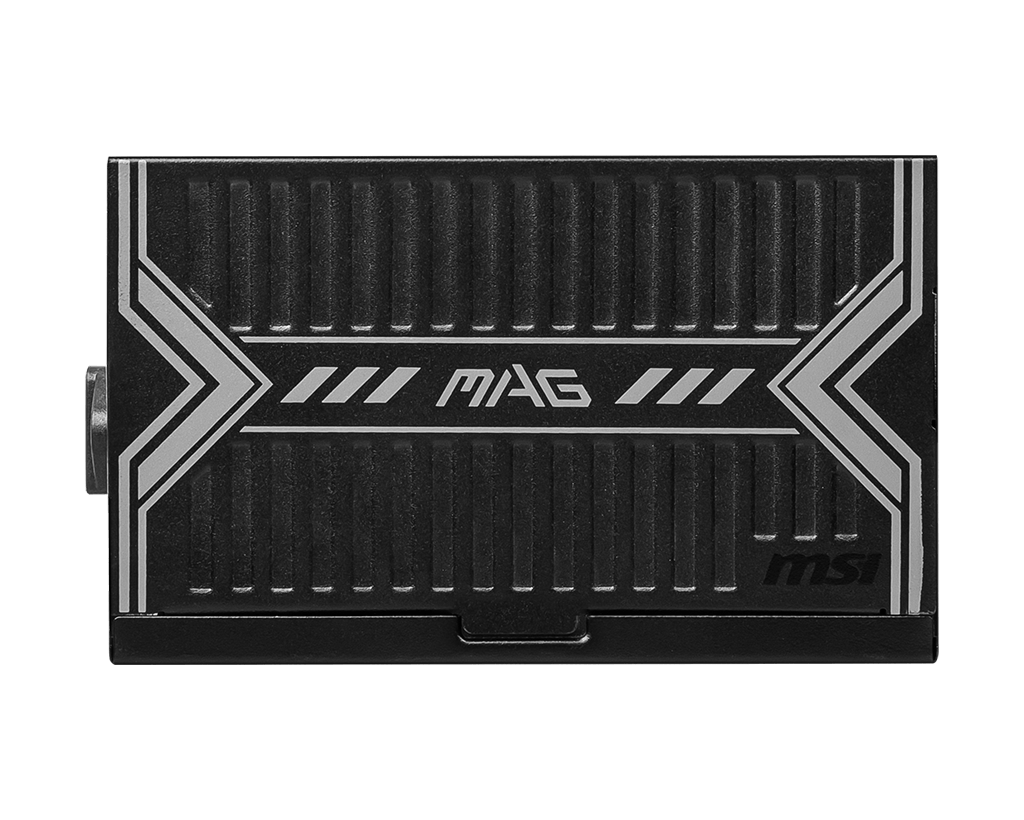

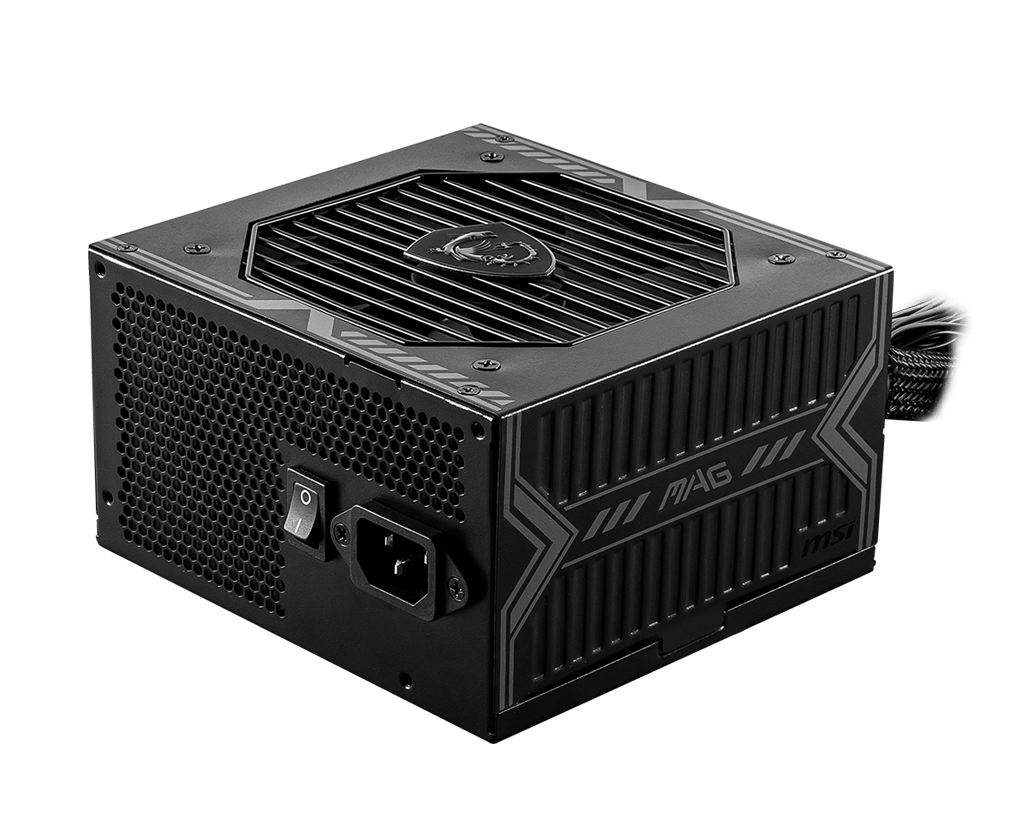

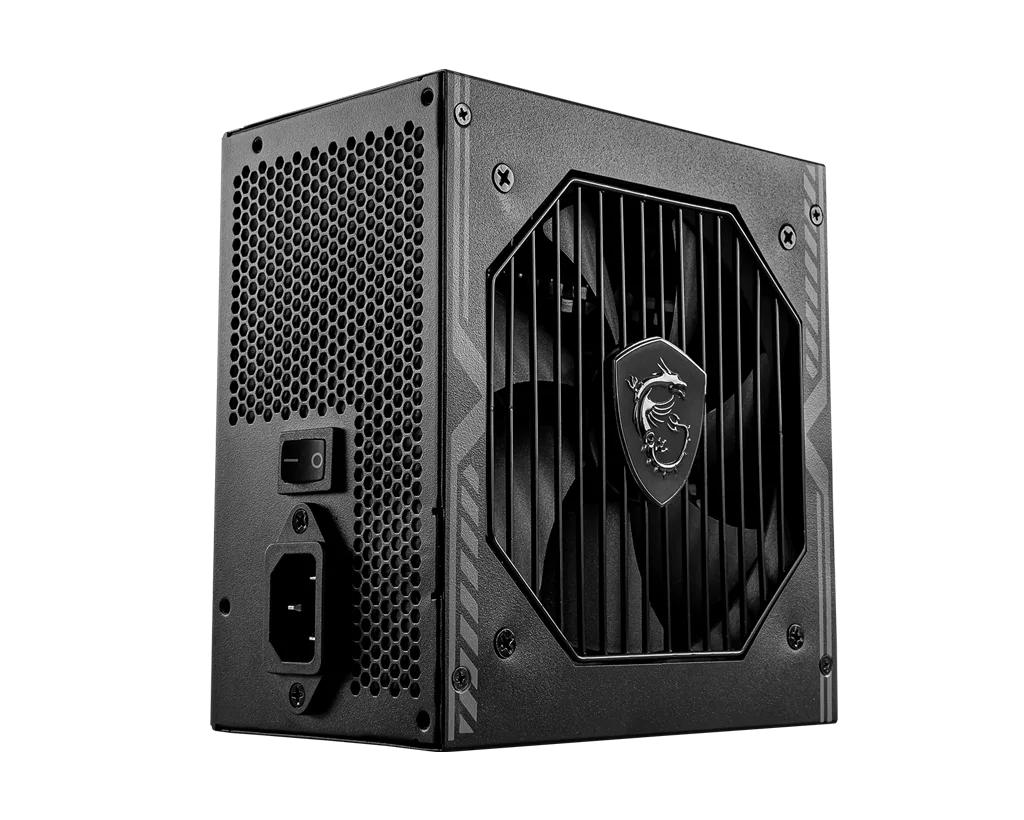

MSI MAG A550BN

Description

General Features

• Form Factor: ATX
• Rated Wattage: 550W
• Efficiency Certification: 80 PLUS Bronze (up to 85% efficiency)
• Modularity: Non-Modular
• Cooling: 120mm Low Noise Fan with Sleeve Bearing
• Dimensions (D x W x H): 150 x 140 x 86 mm

Electrical Specifications

• Input Voltage Range: 100-240 VAC
• Input Frequency Range: 50-60 Hz
• Input Current: 8.0A max. at 115V; 4.0A max. at 230V
• Power Factor Correction (PFC): Active PFC

Protection Features

• Over Current Protection (OCP)
• Over Voltage Protection (OVP)
• Over Power Protection (OPP)
• Over Temperature Protection (OTP)
• Short Circuit Protection (SCP)

Connectors

• ATX (20+4 pin): 1
• EPS (4+4 pin): 1
• PCI-E (6+2 pin): 2
• SATA: 5
• Molex (Peripheral): 2
• FDD: 1

Output Specifications

• +3.3V: 20.0A (110W combined)
• +5V: 20.0A (110W combined)
• +12V: 45.5A (546W)
• -12V: 0.3A (3.6W)
• +5Vsb: 2.5A (12.5W)

Additional Features

• DC to DC Circuit Design for improved power stability
• 5-Year Limited Warranty
