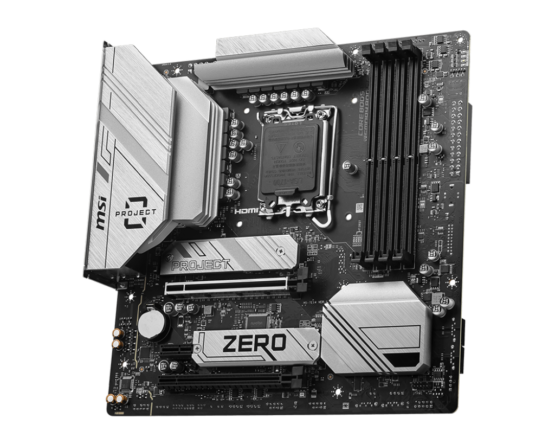

MSI B760M PROJECT ZERO

Description

The MSI B760M PROJECT ZERO is a micro-ATX motherboard designed for Intel’s 12th, 13th, and 14th Gen processors, including Intel® Core™, Pentium® Gold, and Celeron® processors, utilizing the LGA 1700 socket.

Key Features:

• Back-Connect Design: This innovative design relocates power connectors, fan headers, and other pin headers to the back of the motherboard, providing a cleaner front view and simplifying cable management.

Memory Support:

• Four DDR5 DIMM slots
• Supports memory speeds up to 7800+(OC) MHz
• Maximum capacity of 192 GB
• Dual-channel configuration
• Supports non-ECC, un-buffered memory
• Compatible with Intel® Extreme Memory Profile (XMP)

Expansion Slots:

• One PCIe 5.0 x16 slot (from CPU)
• One PCIe 4.0 x16 slot (supports up to x4 mode, from chipset)
• One PCIe 3.0 x1 slot (from chipset)

Storage Options:

• Two M.2 slots:
  • M.2_1: Supports PCIe 4.0 x4 (from CPU), compatible with 2280/2260/2242 devices
  • M.2_2: Supports PCIe 4.0 x4/SATA mode (from chipset), compatible with 2280/2260/2242 devices
• Four SATA 6Gb/s ports
• Supports RAID 0, 1, 5, and 10 for SATA storage devices

Networking:

• Realtek® 2.5Gbps LAN
• Intel® Wi-Fi 6E module (supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz up to 2.4Gbps)
• Bluetooth® 5.3

USB Connectivity:

• Rear Panel:
  • Four USB 2.0 Type-A ports
  • Three USB 3.2 Gen 2 10Gbps Type-A ports
  • One USB 3.2 Gen 2×2 20Gbps Type-C port
• Internal Headers:
  • Two USB 2.0 headers (supporting up to four ports)
  • One USB 3.2 Gen 1 header (supporting up to two ports)
  • One USB 3.2 Gen 2 Type-C header

Audio:

• Realtek® ALC897 Codec
• 7.1-Channel High-Performance Audio
• Supports S/PDIF output

Back Panel Ports:

• Four USB 2.0 ports
• Three USB 3.2 Gen 2 10Gbps Type-A ports
• One USB 3.2 Gen 2×2 20Gbps Type-C port
• One HDMI™ 2.1 port (supports 4K 60Hz)
• One DisplayPort 1.4 (supports 8K 60Hz)
• One 2.5G LAN port
• Wi-Fi / Bluetooth antenna connectors
• Five audio jacks and one optical S/PDIF out

Form Factor:

• Micro-ATX (243.84mm x 243.84mm)
