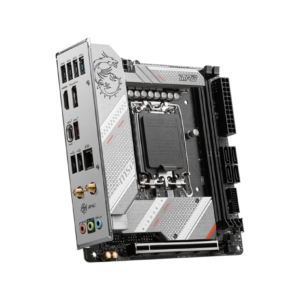

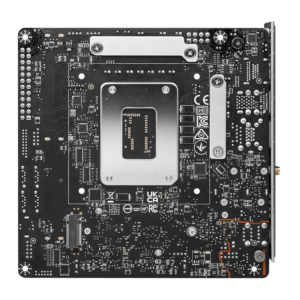

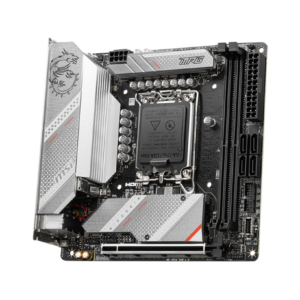

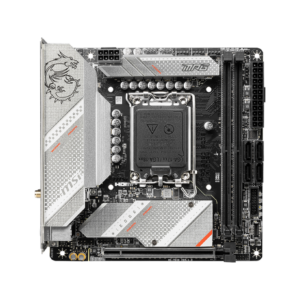

MSI B760I EDGE WIFI DDR4

Description

• Socket: LGA 1700
• Chipset: Intel® B760
• Form Factor: Mini-ITX
• CPU Support: 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors

Memory

• Memory Channels: Dual
• DIMM Slots: 2
• Max Memory (GB): 64
• Supported Speeds: DDR4 5333(OC) / 5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
• Features: Supports Dual-Channel mode, non-ECC un-buffered memory, Intel® Extreme Memory Profile (XMP)

Expansion Slots

• PCI-E x16: 1 (PCIe 5.0 x16 from CPU)

Storage

• SATA III: 4
• M.2 Slots: 2
  • M.2_1: From CPU, supports PCIe 4.0 x4, 2280 devices
  • M.2_2: From Chipset, supports PCIe 4.0 x4 / SATA mode, 2280 devices
• RAID: Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices

USB Ports

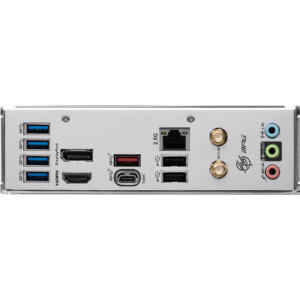

• Rear Panel:
  • 1 × USB 3.2 Gen 2 10Gbps (Type-A)
  • 1 × USB 3.2 Gen 2 10Gbps (Type-C)
  • 4 × USB 3.2 Gen 1 5Gbps (Type-A)
  • 2 × USB 2.0
• Internal Headers:
  • 2 × USB 3.2 Gen 1 5Gbps (supports additional 2 × Type-A)
  • 1 × USB 3.2 Gen 2 10Gbps (supports additional 1 × Type-C)
  • 2 × USB 2.0 (supports additional 2 × Type-A)

Networking

• LAN: Realtek® RTL8125BG 2.5Gbps
• Wireless: Intel® Wi-Fi 6E, supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
• Bluetooth: 5.3

Audio

• Codec: Realtek® ALC897
• Channels: 7.1-Channel High Performance Audio

Video Output

• HDMI: 1 (Supports HDMI™ 2.1 with HDR, max resolution 4K @ 60Hz)
• DisplayPort: 1 (Supports DP 1.4, max resolution 8K @ 60Hz)

Other Features

• LED Feature: 4 × EZ Debug LED
• Internal I/O:
  • 1 × 24-pin ATX main power connector
  • 1 × 8-pin ATX 12V power connector
  • 1 × CPU fan connector
  • 1 × Pump fan connector
  • 1 × System fan connector
  • 2 × Front panel connectors
  • 1 × Chassis intrusion connector
  • 1 × Front audio connector
  • 1 × Addressable V2 RGB LED connector
  • 1 × RGB LED connector
  • 1 × TPM pin header (Supports TPM 2.0)
