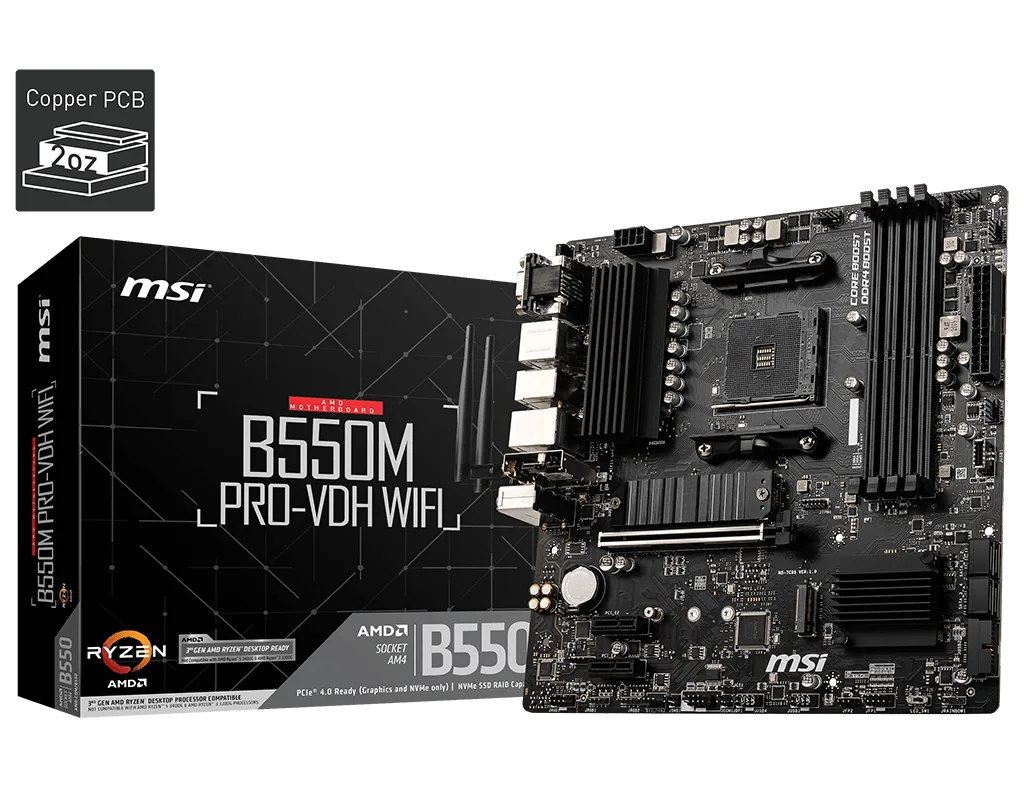

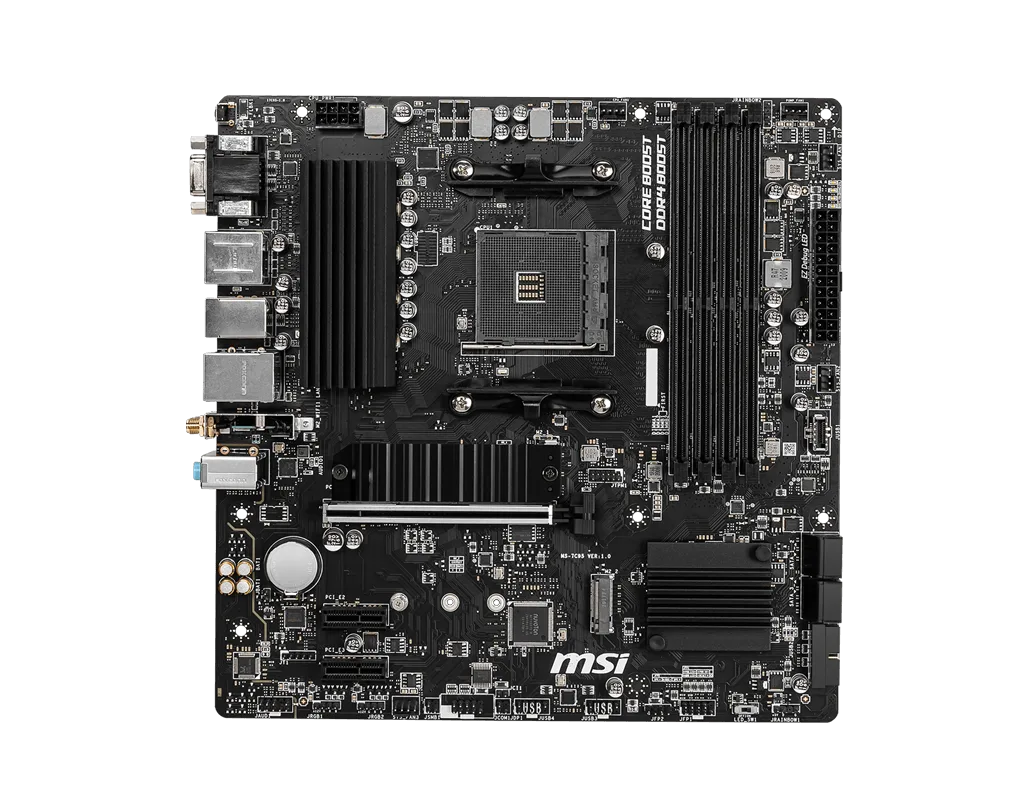

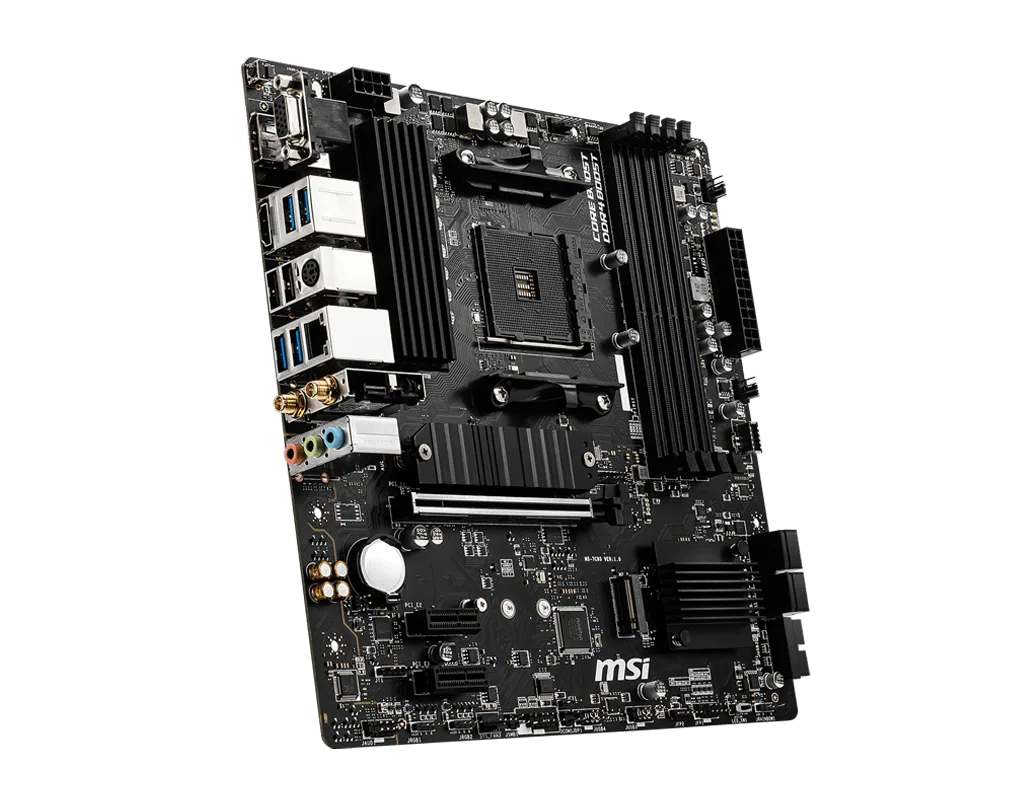

MSI B550M PRO-VDH WIFI

Description

Specifications:

CPU Support:

• AMD Ryzen 5000, 4000G, and 3000 Series (excluding Ryzen 5 3400G & Ryzen 3 3200G)

• AM4 Socket

• 4+2+1 Power Phase Design with extended heatsinks

Memory:

• 4× DDR4 DIMM slots

• Supports up to 128GB

• Up to 4400+ MHz (OC)

Graphics Output:

• 1× HDMI 2.1

• 1× DisplayPort

• 1× VGA

• Supports integrated graphics on compatible APUs

Expansion Slots:

• 1× PCIe 4.0 x16

• 2× PCIe 3.0 x1

Storage:

• 2× M.2 Slots

  • 1× PCIe 4.0 x4 (with M.2 Shield Frozr)

  • 1× PCIe 3.0 x4/SATA

• 4× SATA 6Gb/s Ports

• RAID 0/1/10 support

Networking:

• Realtek 8111HN Gigabit LAN

• Intel Dual Band Wireless-AC 3168 (Wi-Fi 5)

• Bluetooth 4.2

Audio:

• Realtek ALC892/ALC897

• 7.1 Channel High Definition Audio

Internal Features:

• USB 3.2 Gen 1, USB 2.0 headers

• ARGB & RGB headers

• TPM Header

• EZ Debug LED

• M.2 Shield Frozr for enhanced SSD cooling

---

Ideal For:

• Professional workstations

• Compact gaming builds

• Users seeking integrated Wi-Fi and PCIe 4.0 support
