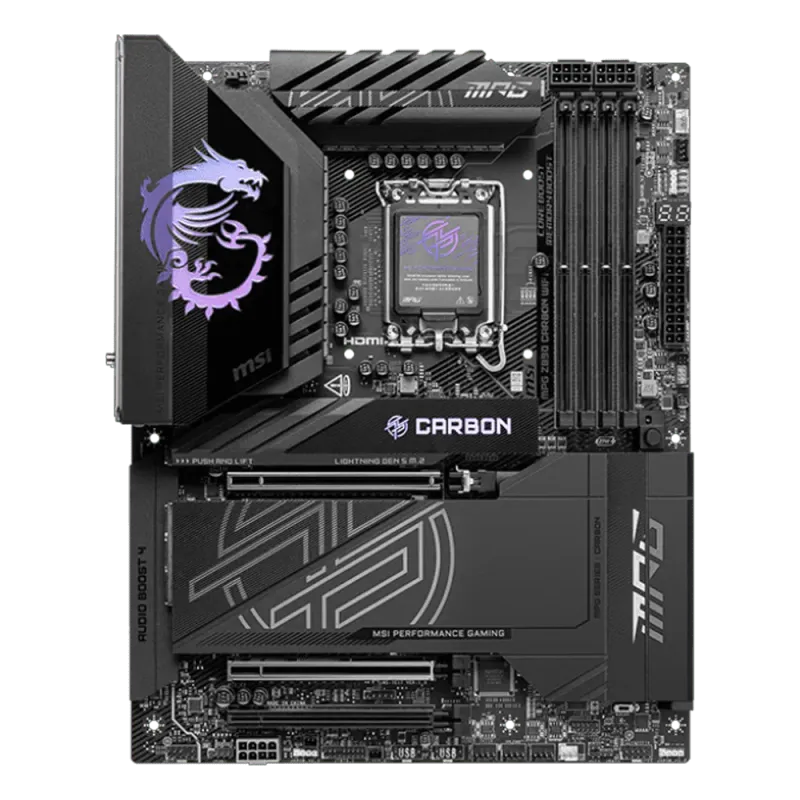

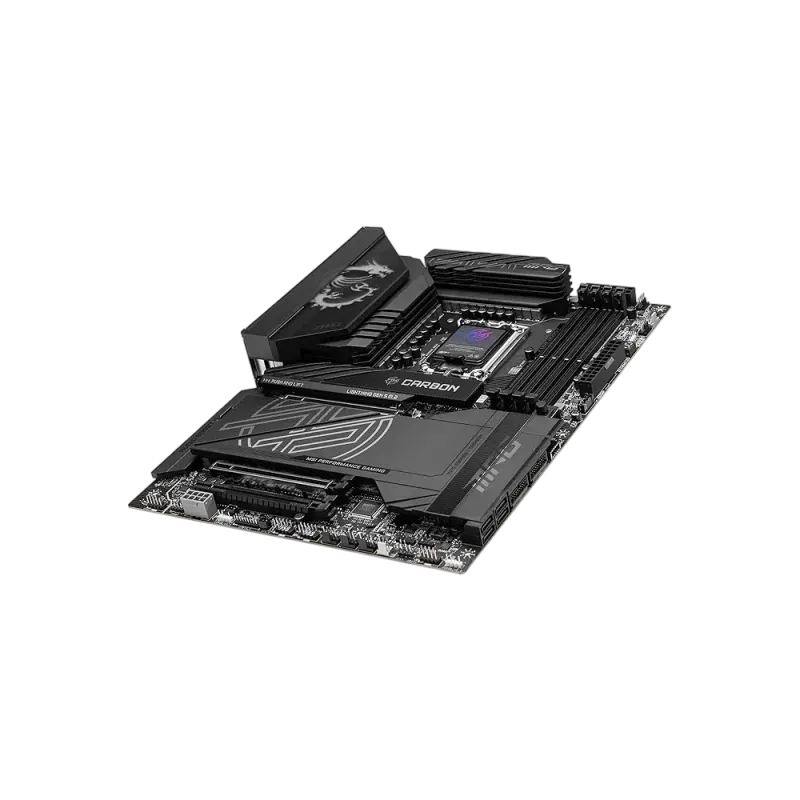

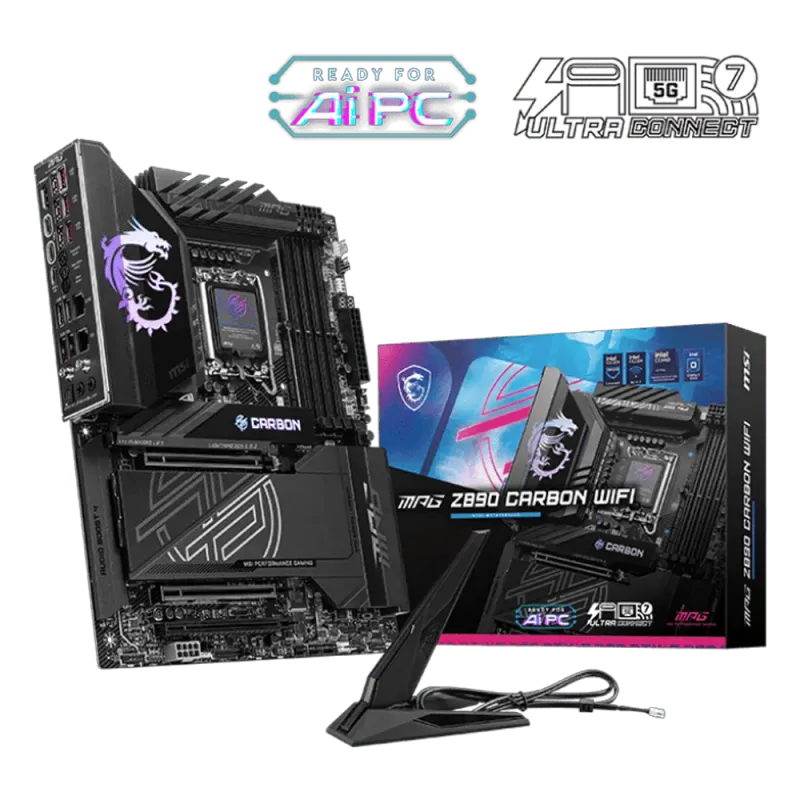

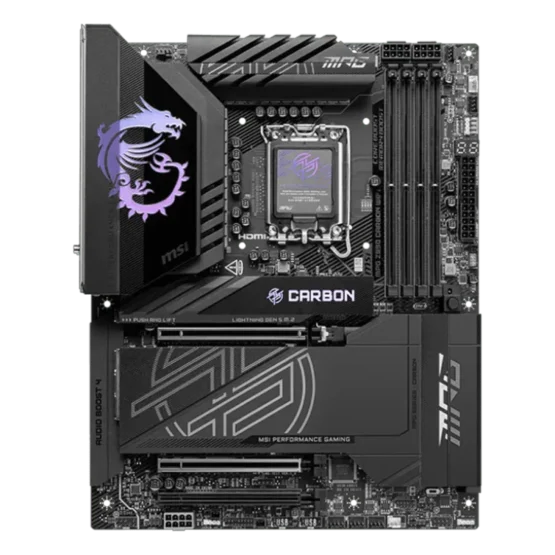

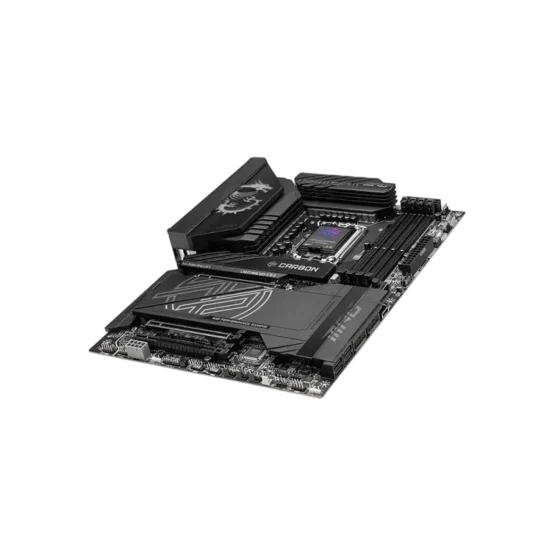

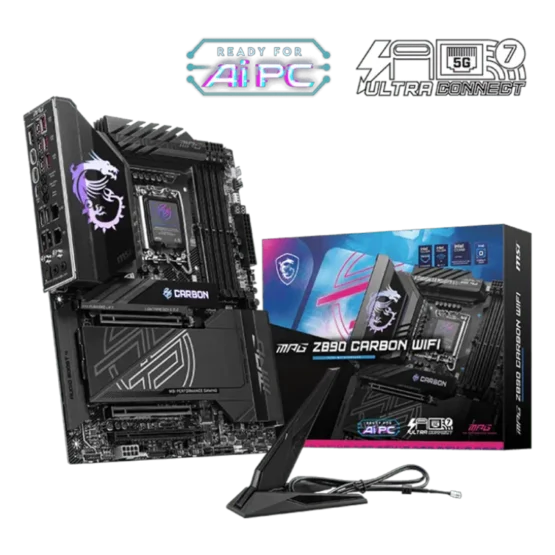

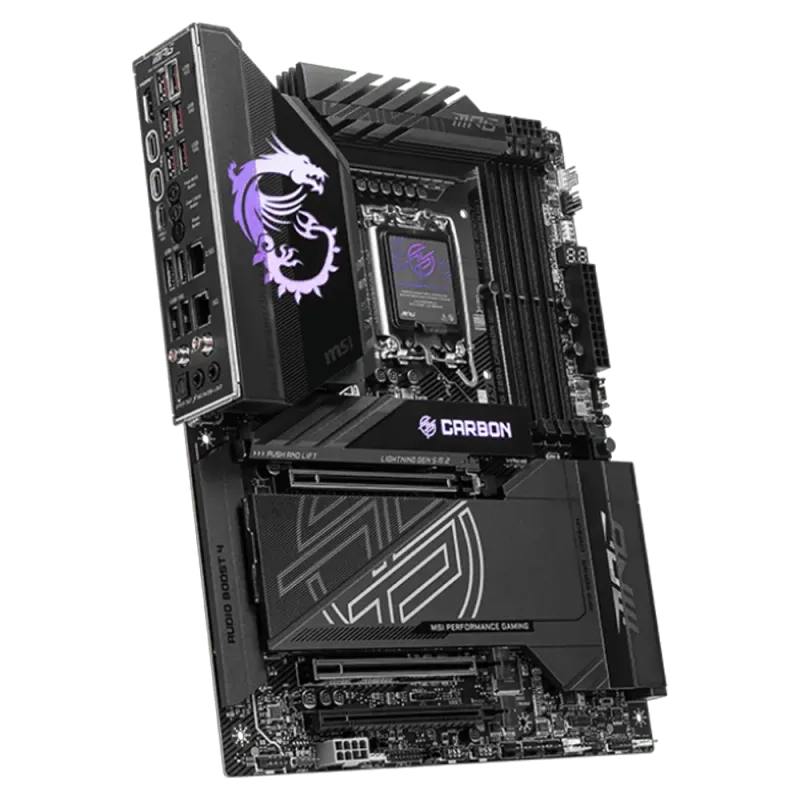

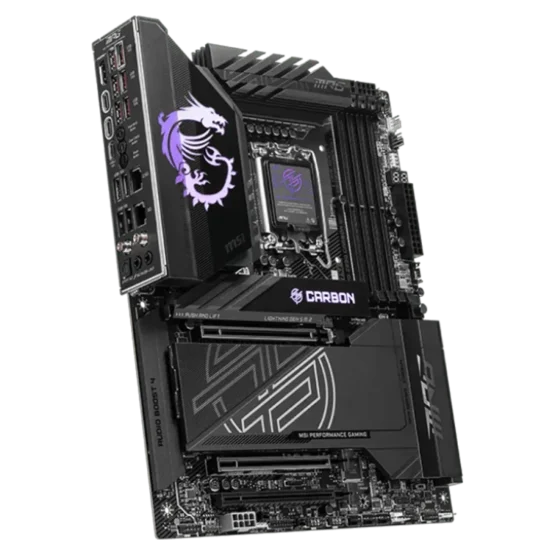

MSI MPG Z890 CARBON WIFI – Specifications
Form Factor: ATX
Chipset: Intel Z890
CPU Socket: LGA 1851 (Supports 14th Gen Intel Core and future generations)
Memory Support:
-
4 x DDR5 DIMM slots
-
Up to 192GB total capacity
-
Supports XMP 3.0
Expansion Slots:
-
2 x PCIe 5.0 x16 slots (with Steel Armor)
-
1 x PCIe 4.0 x1 slot
Storage:
-
5 x M.2 slots (with M.2 Shield Frozr heatsinks, PCIe Gen5/Gen4 support depending on slot)
-
6 x SATA 6Gb/s ports
USB Ports:
-

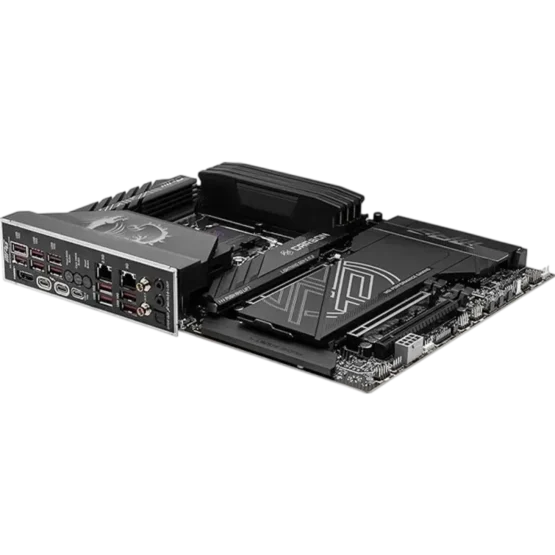

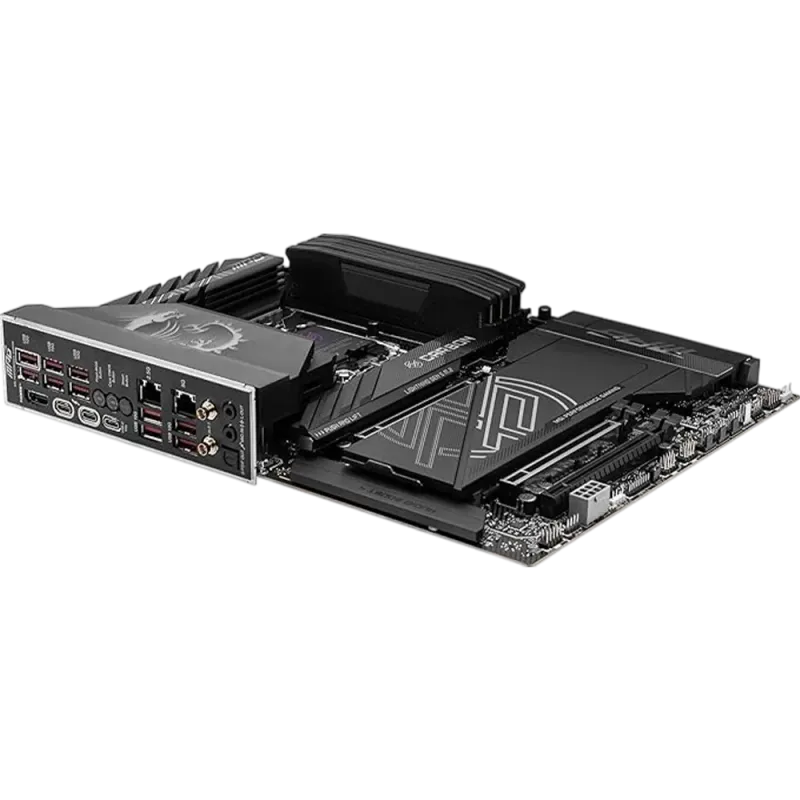

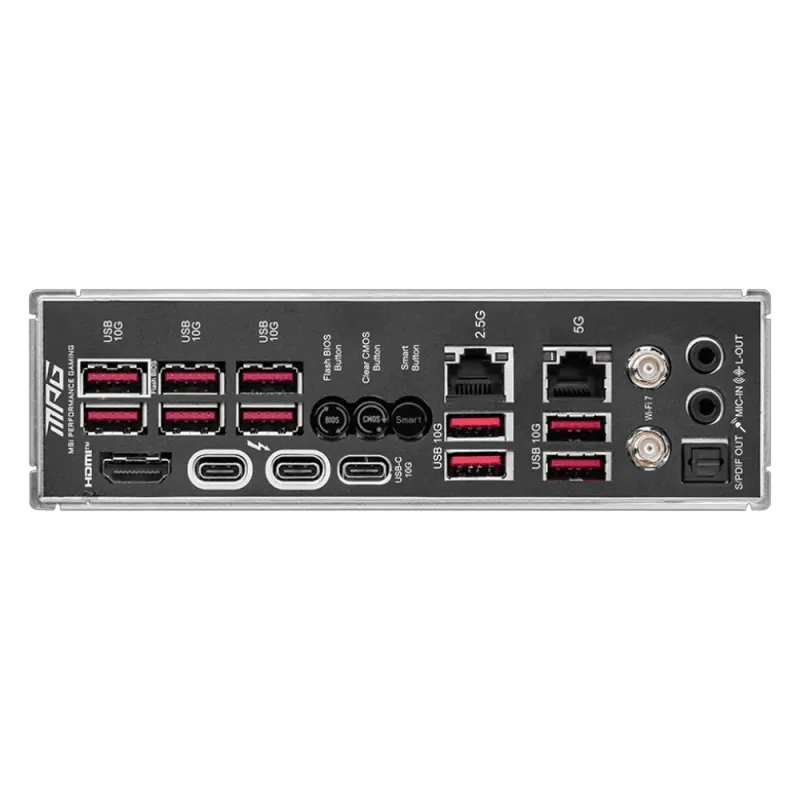

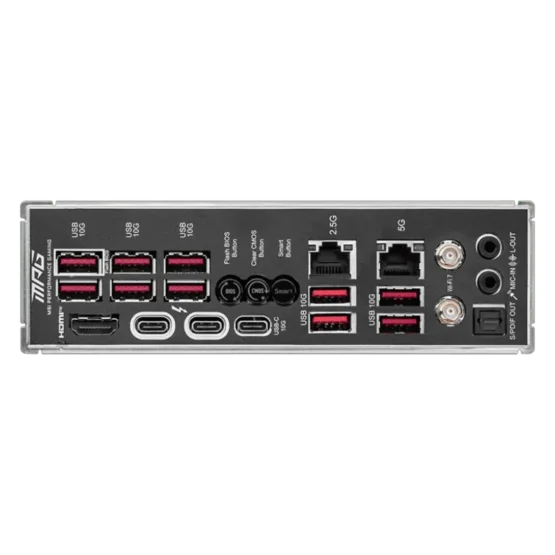

Rear I/O:
-
1 x USB 3.2 Gen 2×2 Type-C
-
3 x USB 3.2 Gen 2 Type-A
-
4 x USB 3.2 Gen 1 Type-A
-
2 x USB 2.0
-
-
Internal Headers:
-
USB 3.2 Gen 2×2 front panel Type-C
-
USB 3.2 Gen 1 and USB 2.0 headers
-
Networking:
-
Intel 2.5G LAN
-
Intel Wi-Fi 7 + Bluetooth 5.4
Audio:
-
Realtek ALC4080 or similar (7.1-Channel HD Audio)
-
Audio Boost 5
Power Delivery:
-
19+2+1 Duet Rail VRM with 105A SPS
-
8-layer PCB with server-grade material
Cooling Features:
-
Extended heatsink design
-
Dual 8-pin CPU power connectors
-
Multiple fan headers with PWM/DC control
-
Pump fan support for AIO coolers
Other Features:
-
Mystic Light RGB (with 2 x RGB and 2 x ARGB headers)
-
Debug LED & EZ Debug LEDs
-
Pre-installed I/O shield
-
Steel-reinforced PCIe and DDR slots
-
BIOS Flashback and Clear CMOS button
