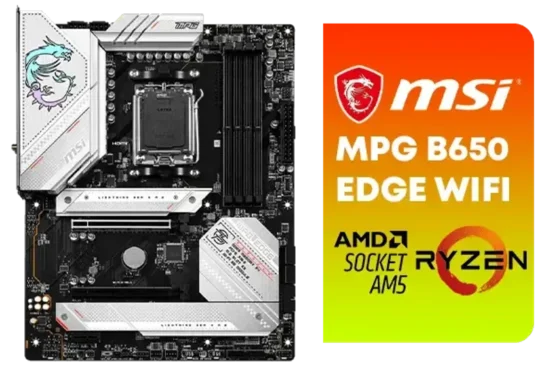

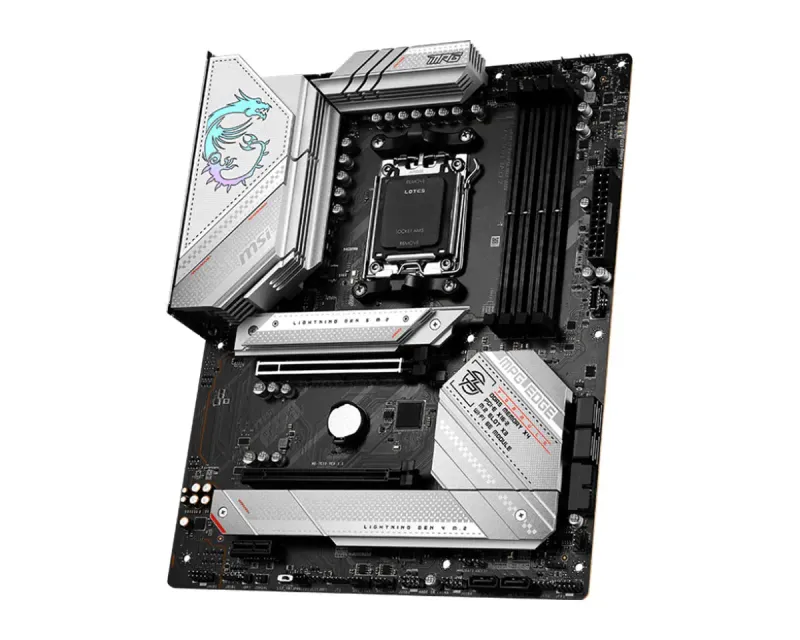

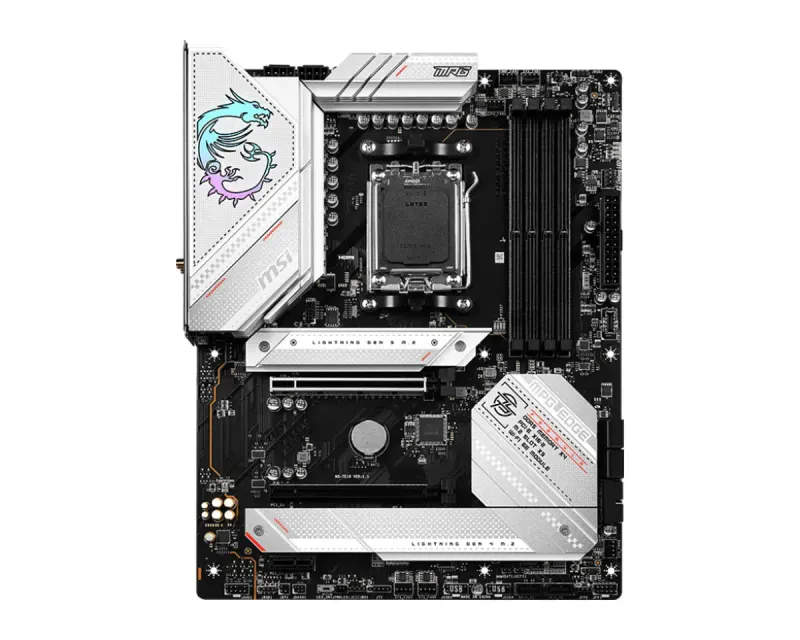

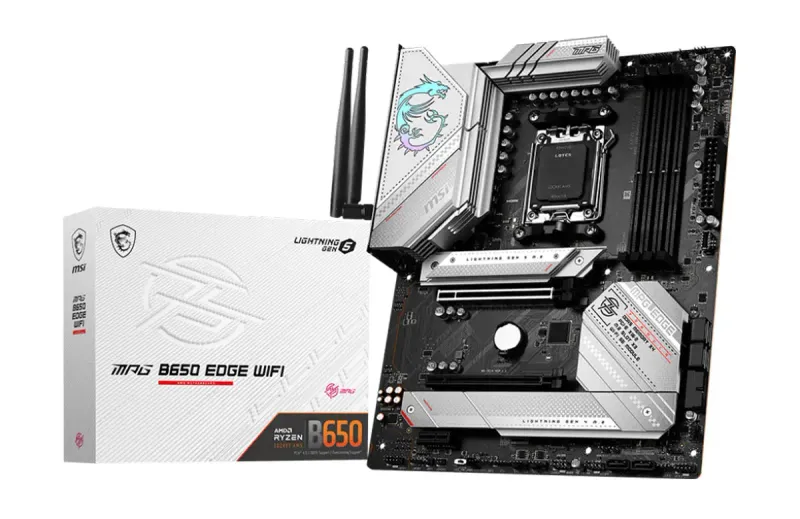

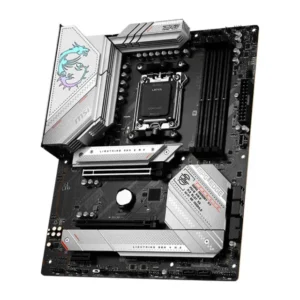

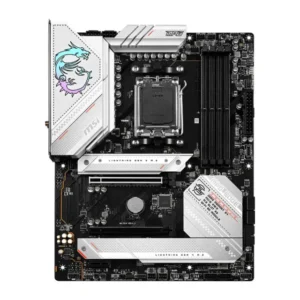

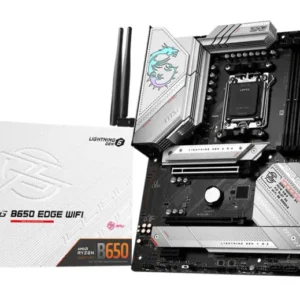

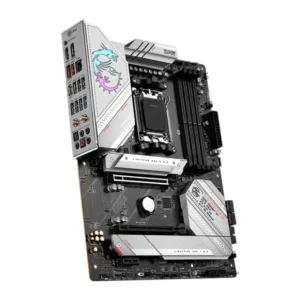

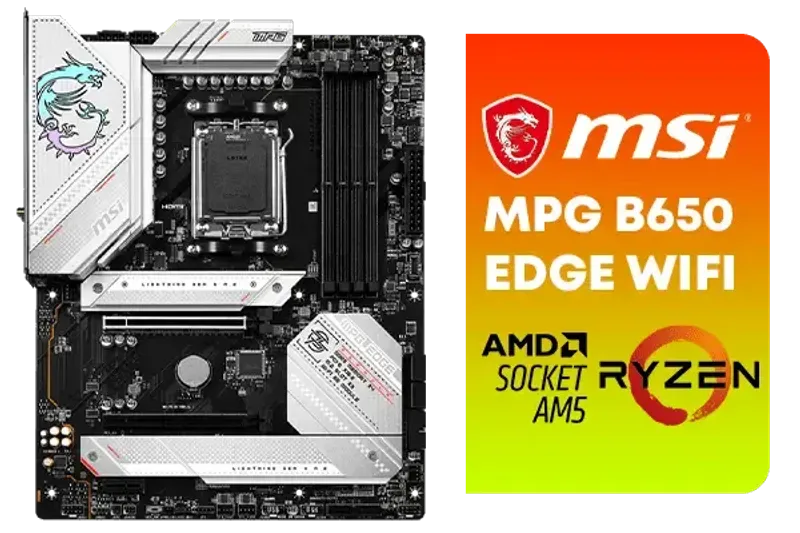

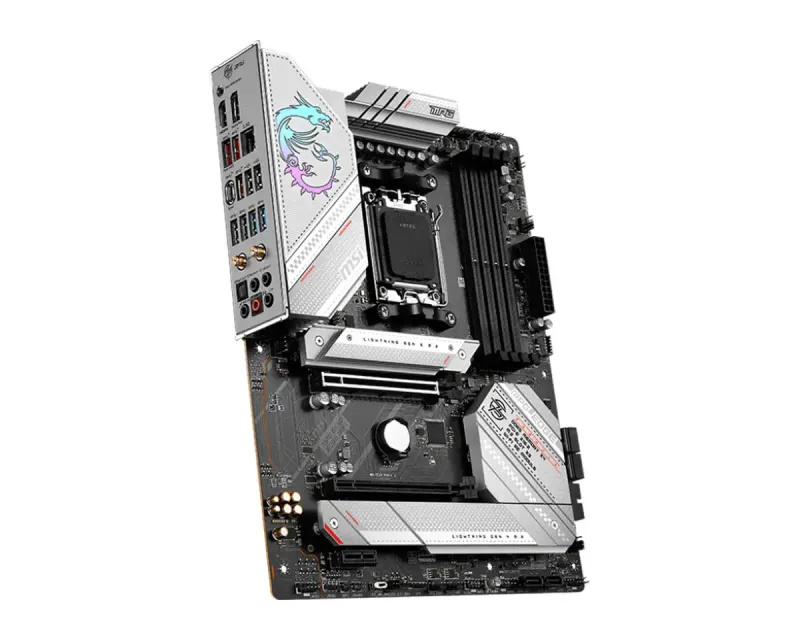

MPG B650 EDGE WIFI

Description

Specifications:

CPU Support:

• AMD Ryzen 8000 / 7000 Series

• AM5 Socket

• 14+2+1 Power Phase Design

• Extended heatsinks with high-quality thermal pads

Memory:

• 4× DDR5 DIMM slots

• Up to 192GB total

• Up to 7800+ MHz (OC)

• Dual-channel support with AMD EXPO

Graphics Output:

• 1× HDMI 2.1

• 1× DisplayPort 1.4

• Supports integrated graphics (G-series CPUs)

Expansion Slots:

• 1× PCIe 5.0 x16

• 1× PCIe 4.0 x16 (x4 mode)

• 2× PCIe 3.0 x1

Storage:

• 3× M.2 Slots

  • 1× PCIe 5.0 x4

  • 2× PCIe 4.0 x4

• 4× SATA 6Gb/s Ports

• RAID 0/1/10 support

• M.2 Shield Frozr cooling

Networking:

• Intel 2.5G LAN

• Wi-Fi 6E

• Bluetooth 5.3

Audio:

• Realtek ALC4080

• 7.1 Channel HD Audio with high-quality capacitors

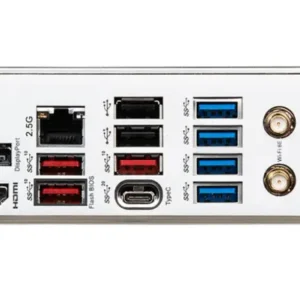

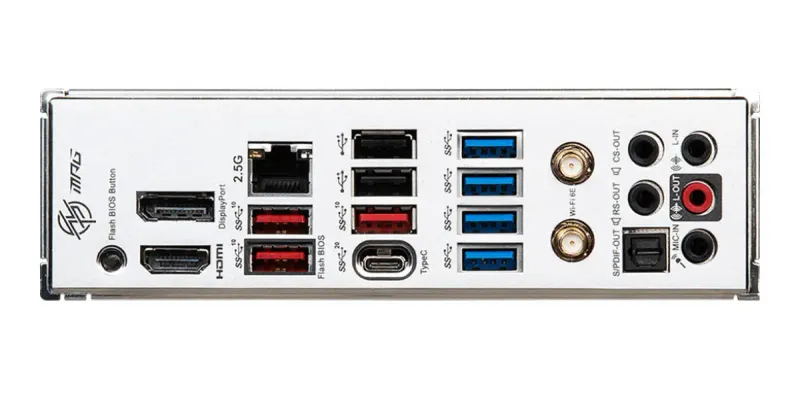

Other Features:

• USB 3.2 Gen 2×2 Type-C

• Front and rear USB Type-C support

• RGB and ARGB headers

• Pre-installed I/O shield

• EZ Debug LED

• Flash BIOS Button

Ideal For:

• High-performance gaming PCs

• Ryzen-based creator or workstation builds

• Enthusiasts who want PCIe 5.0 and future-ready DDR5 support
