Description

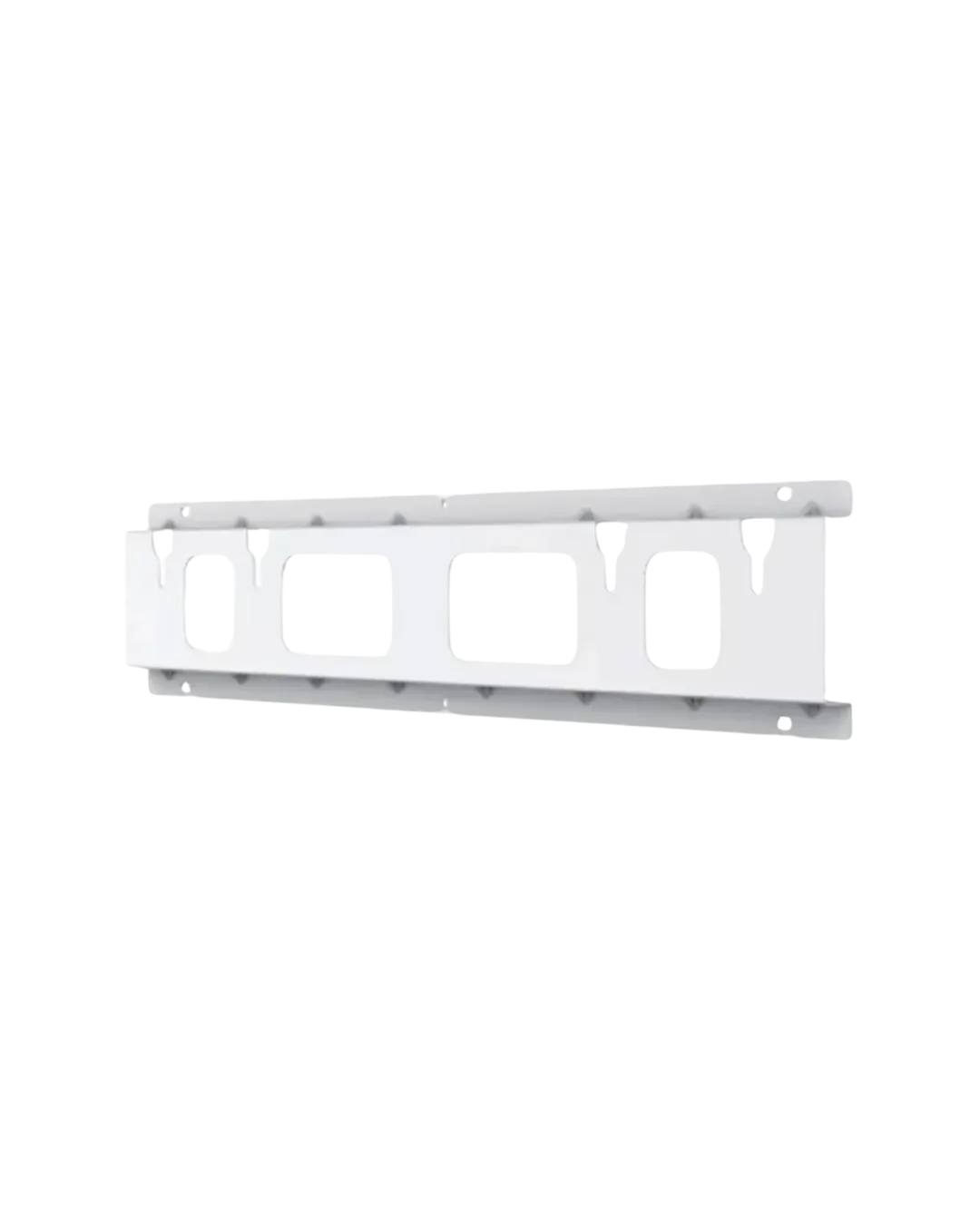

The bracket supports a low-profile design, bringing the device closer to the wall while maintaining necessary airflow and cable clearance. It is constructed from high-grade steel to ensure long-term durability and secure weight support for large-format displays. The mounting pattern adheres to VESA standards, ensuring exact compatibility with Huawei’s 65-inch, 75-inch, and 86-inch IdeaHub models.Technical Specifications:
-
Product Name: Huawei IdeaHub Wall Mount Bracket
-
Compatibility: Huawei IdeaHub 65″, 75″, and 86″ models
-
VESA Compliance: Yes (VESA-standard mounting pattern)
-
Material: Heavy-duty cold-rolled steel
-
Finish: Matte black powder-coated
-
Dimensions: 1100 mm (Length) × 200 mm (Height) × 20 mm (Depth)
-
Weight Capacity: Supports up to 100 kg
-
Included Components:
-
1 × Wall Mount Bracket
-
4 × M8 x 60 mm Expansion Bolts
-
4 × M8 x 20 mm Screws
-
Installation Guide
-
-
Mounting Type: Fixed wall mount
-
Installation Orientation: Landscape
-
Operating Temperature Range: -10°C to 50°C
-
Warranty: 12 Months Manufacturer Warranty
This wall bracket is the ideal choice for enterprises looking to securely install the Huawei IdeaHub while preserving aesthetics and maximizing floor space.
