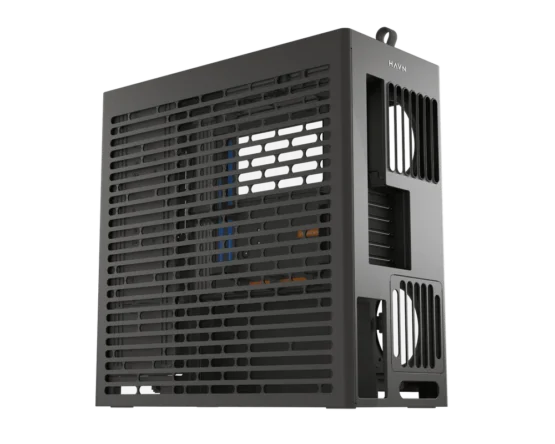

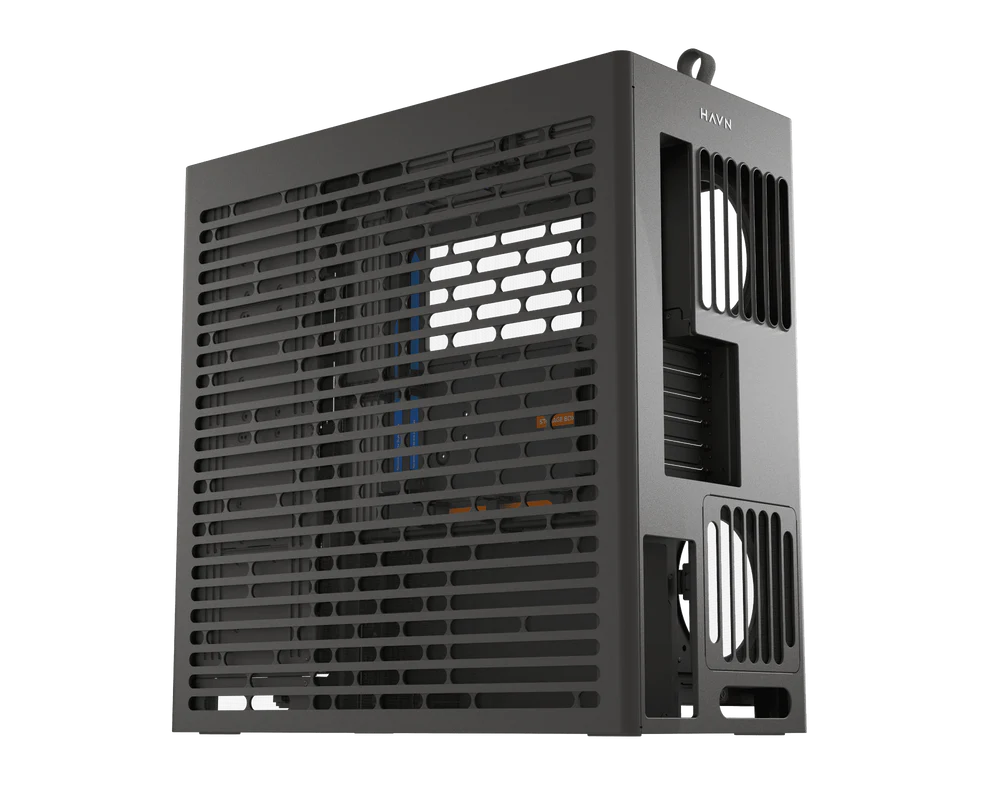

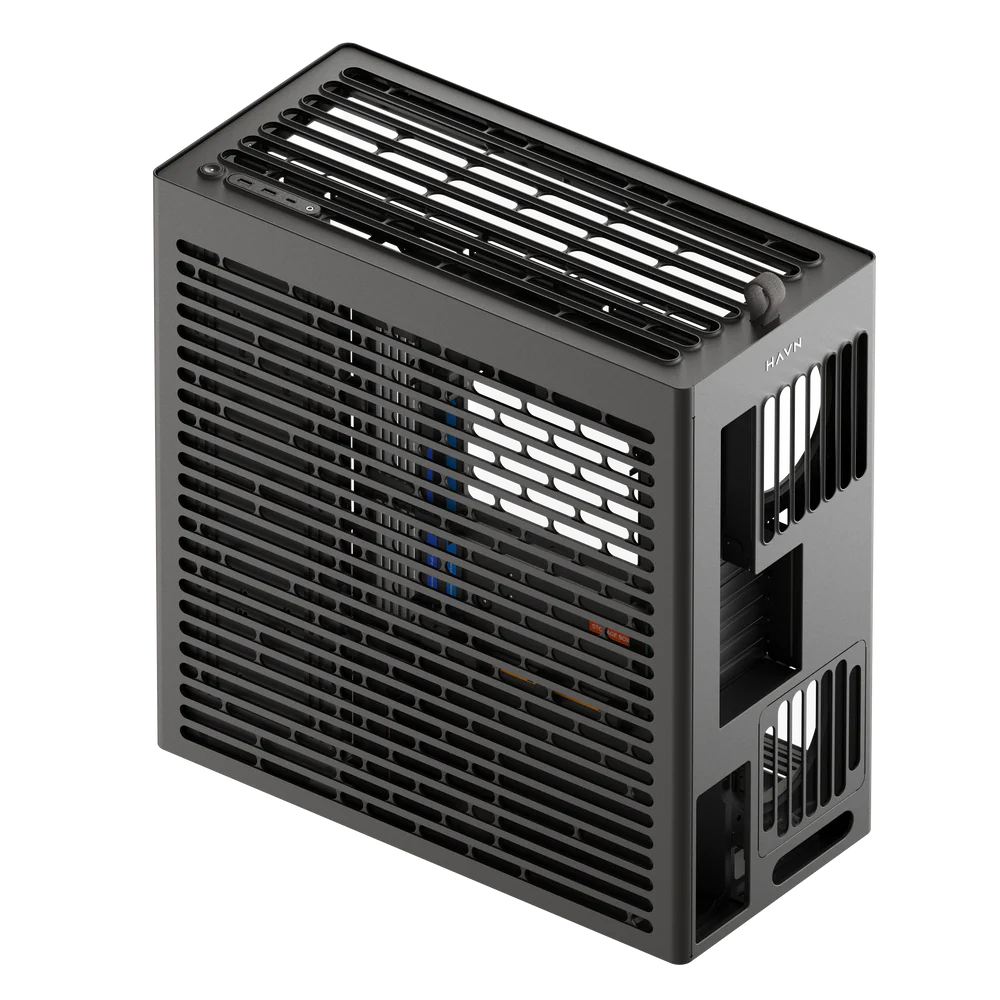

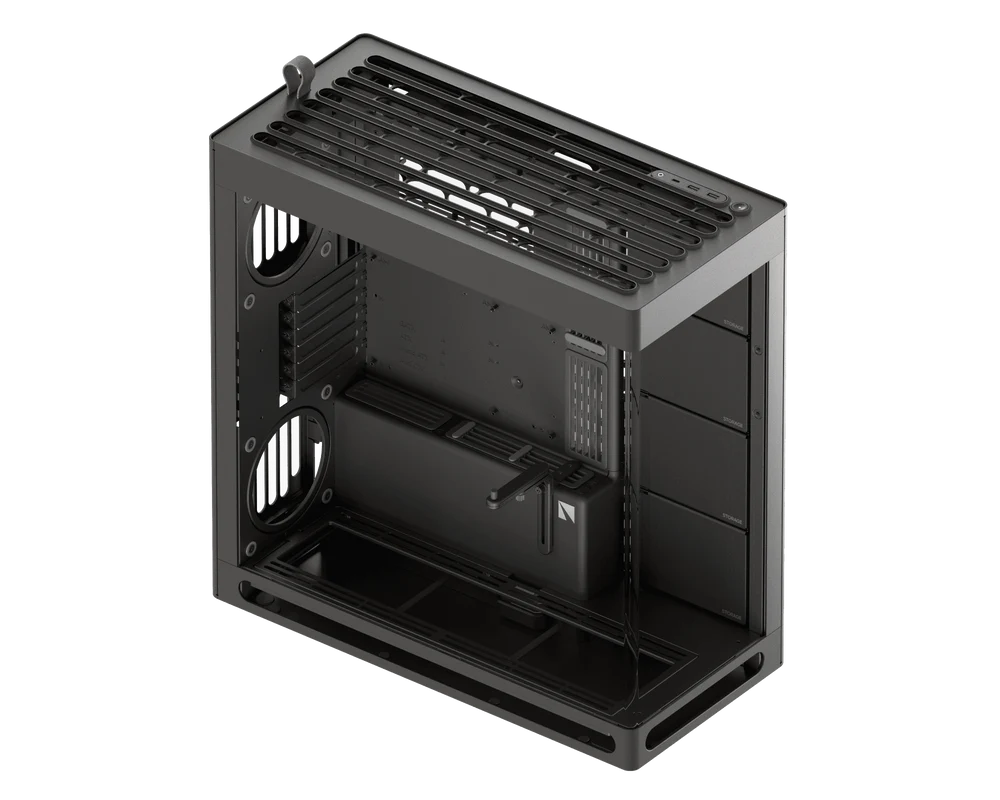

HAVN HS 420 Black (No VGPU Kit)

Description

🧰 Specifications

• Case Type: Mid-Tower

• Dimensions (L × W × H): 541 × 259.5 × 547 mm

• Weight: Approximately 17.84 kg

• Material: SGCC Steel, Tempered Glass, ABS, Nylon, Zinc Alloy, NdFeB Magnets

• Motherboard Support: E-ATX (up to 277 mm wide), ATX, Micro-ATX, Mini-ITX

• Expansion Slots: 6 Horizontal

• GPU Clearance: Up to 470 mm length, 195 mm height, 4-slot thickness

• CPU Cooler Clearance: Up to 185 mm height

• PSU Compatibility: ATX, SFX, SFX-L (up to 220 mm in length)

• Storage Configuration:

  • 4 × 3.5″ drive bays

  • 8 × 2.5″ SSD mounts (side-mounted)

  • 1 × 3.5″ or 2 × 2.5″ drives (cable tray)

• Fan Mounts:

  • Top: 3 × 120/140 mm

  • Side: 3 × 120/140 mm

  • Bottom: 3 × 140 mm

  • Rear: 2 × 120/140 mm

• Radiator Support:

  • Top: Up to 420 mm

  • Side: Up to 420 mm

  • Bottom: Up to 420 mm

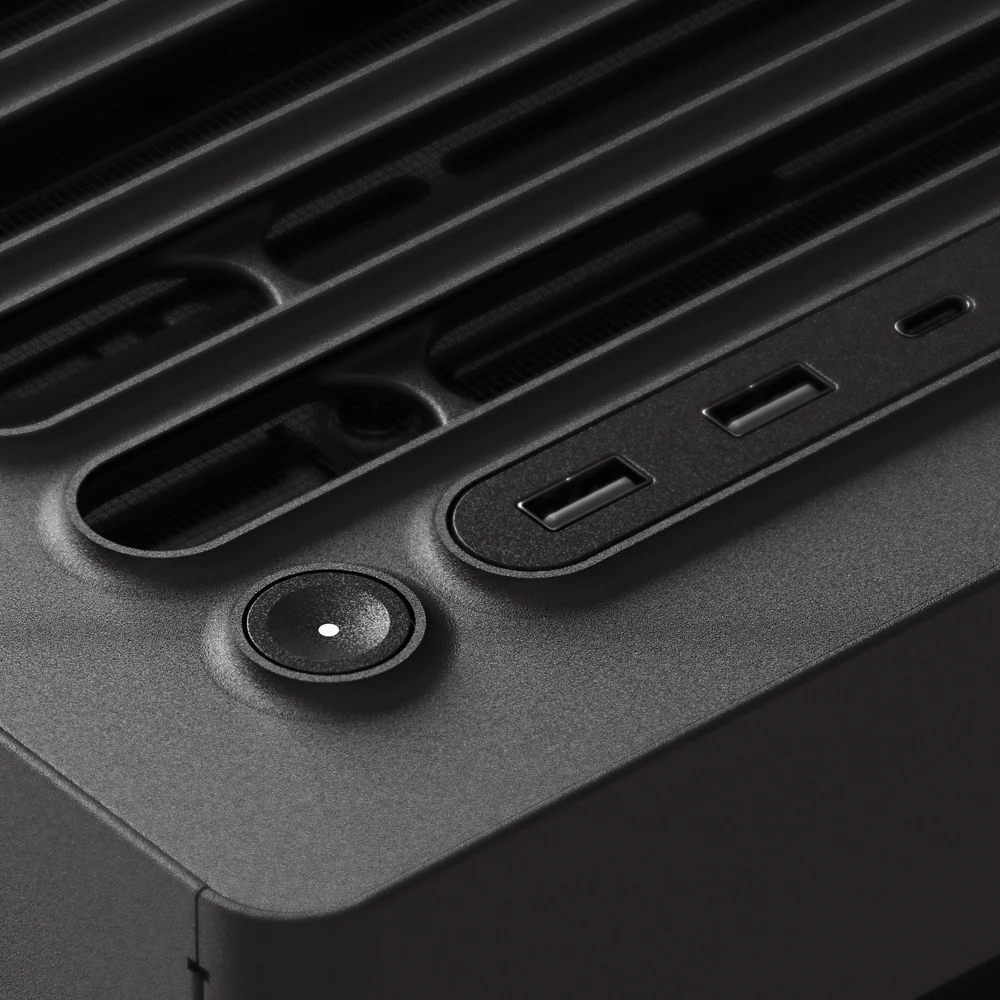

• I/O Ports:

  • 1 × USB 3.2 Gen 2 Type-C

  • 2 × USB 3.2 Gen 1 Type-A

  • 1 × 3.5 mm combo audio jack

  • Power and Reset Buttons

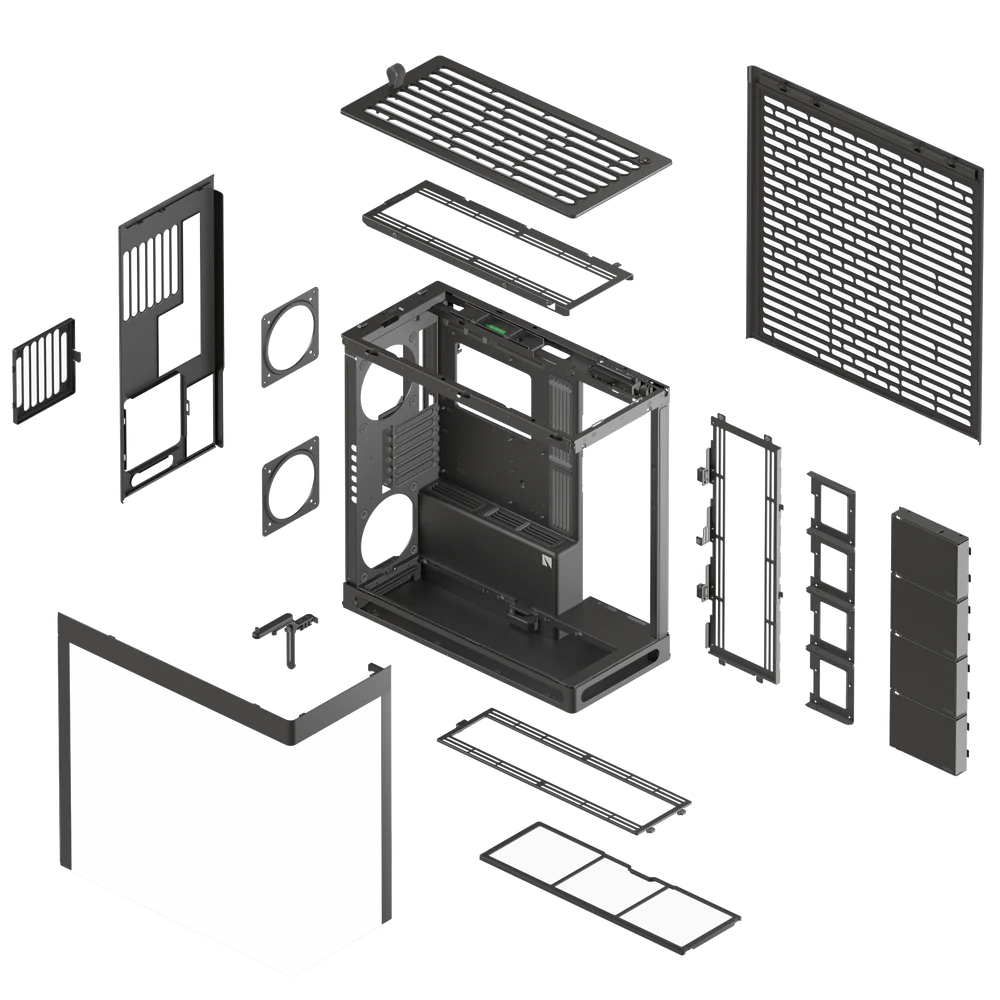

• Dust Filtration: Removable dust filters on top, bottom, side, and rear

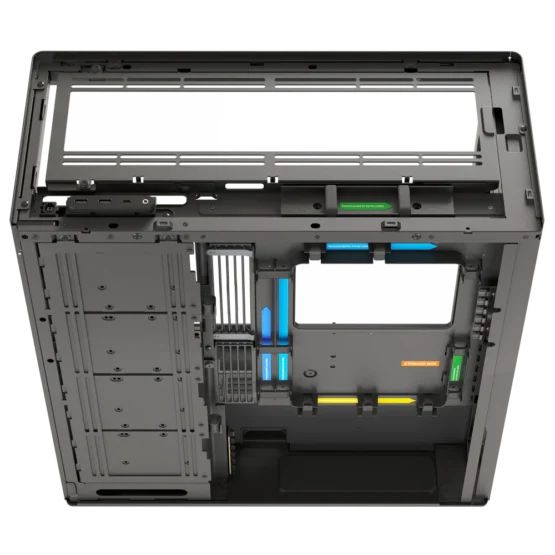

• Cable Management: SimpliCable system with labeled channels and integrated PWM hubs

• Included Fans: None (fan-free chassis for custom airflow planning)

🔧 Key Features

• Seamless Tempered Glass Panel: Single-piece curved UniSheet panel offering full interior visibility

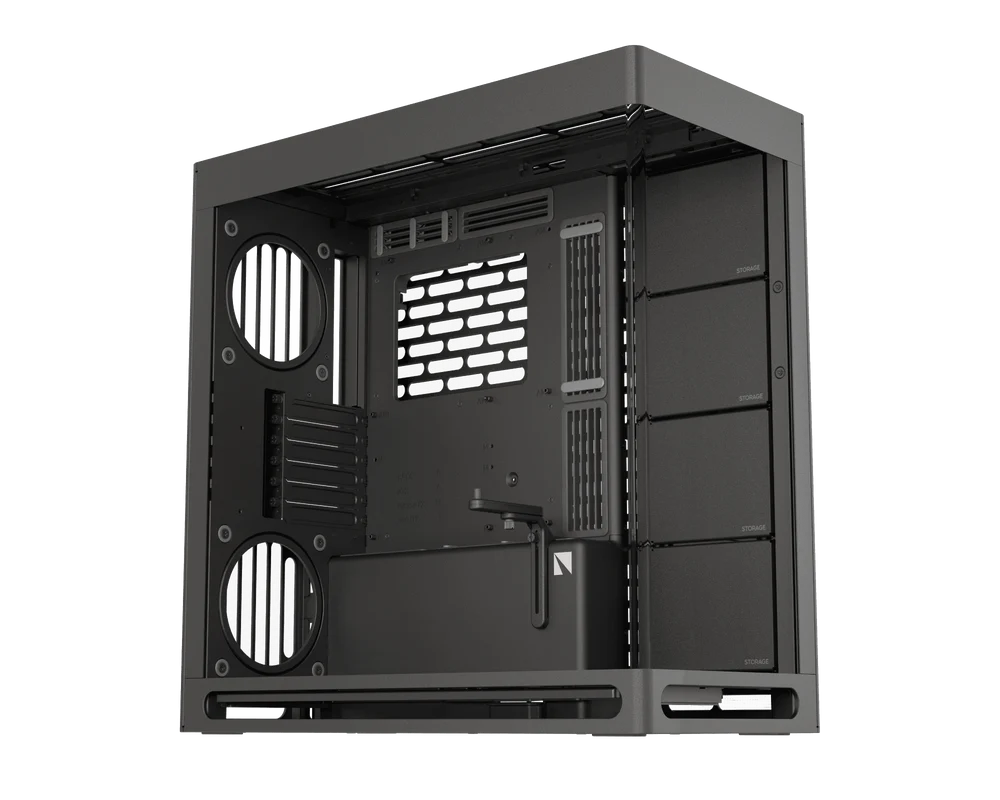

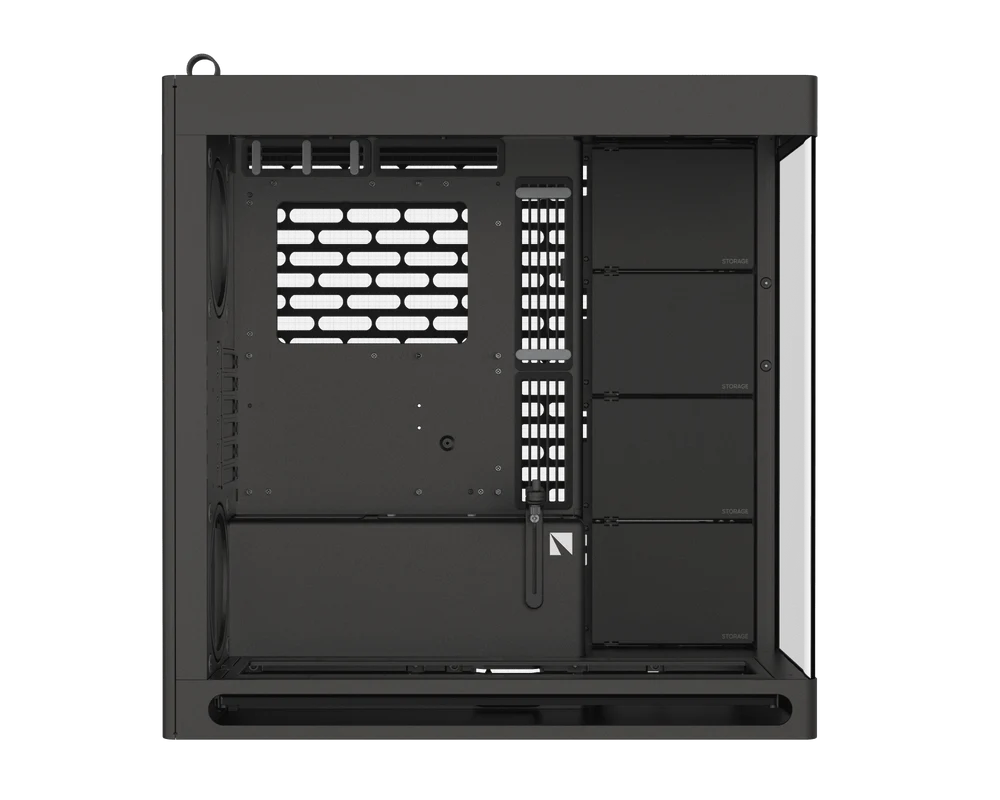

• Dual-Chamber Layout: Isolates power supply and storage for cleaner thermals and easier management

• High Airflow Design: Vertical chimney-style layout maximizes natural airflow from bottom to top

• Premium Cable Management: Organized with fixed channels, reusable straps, and labeled pathways

• Accessory Kit: Includes VESA mount for internal displays or accessories, ESD-safe gloves, and tool kit

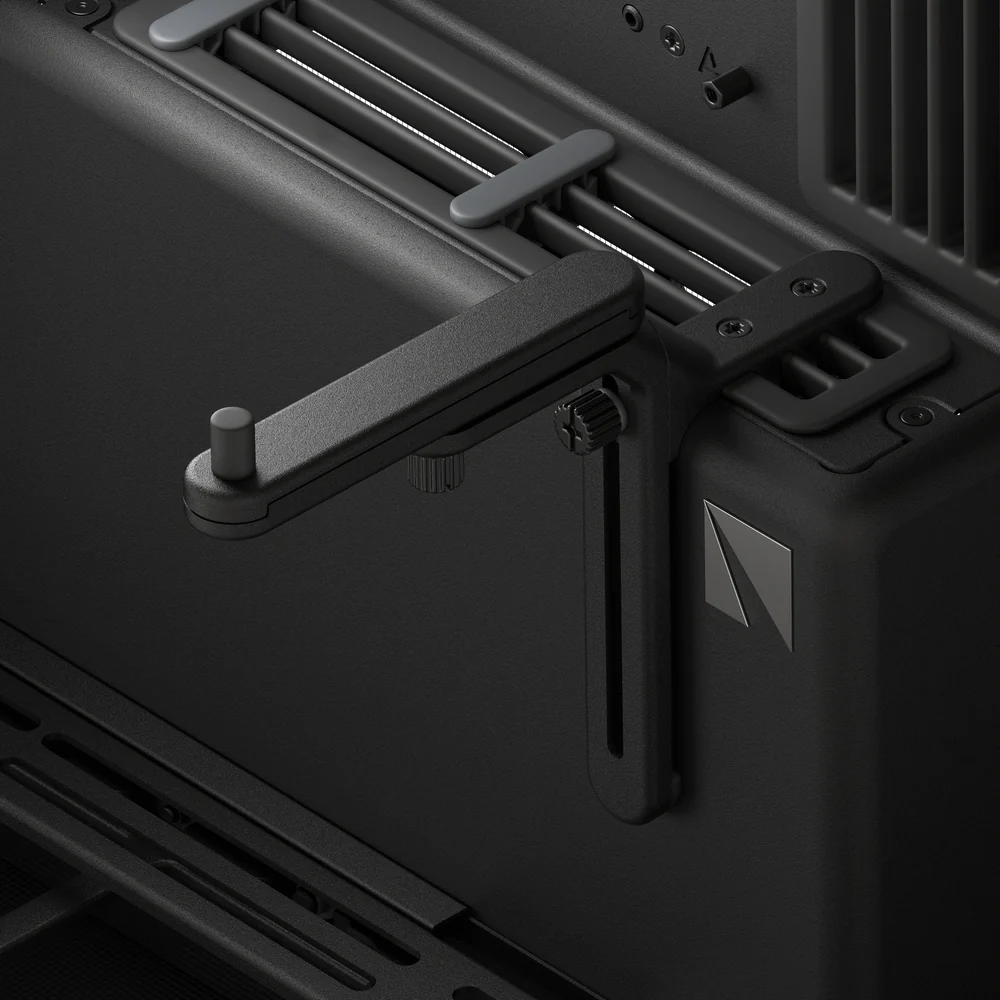

• Horizontal GPU Bracket: Anti-sag support for GPUs up to ~300 mm in length (no riser or vertical kit included)

🆚 Not Included vs. VGPU Edition

The standard black version does not include:

• Vertical GPU mounting kit

• PCIe 4.0/5.0 riser cable

• Angled airflow-directing inner panel

• Bottom airflow redirection bracket

It uses a horizontal mount layout only, ideal for traditional GPU placement.

⚠️ Notes

• No fans included by default – fully customizable fan setup required

• Heavier than average cases – best used in stationary desktop environments

• Designed for custom loop and airflow enthusiasts – flexibility prioritized over out-of-box simplicity
