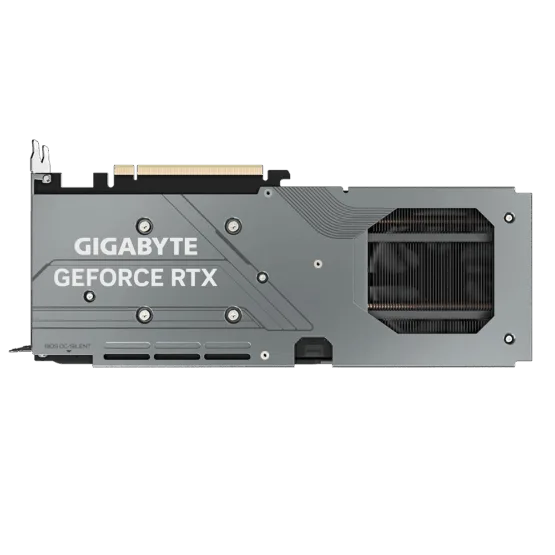

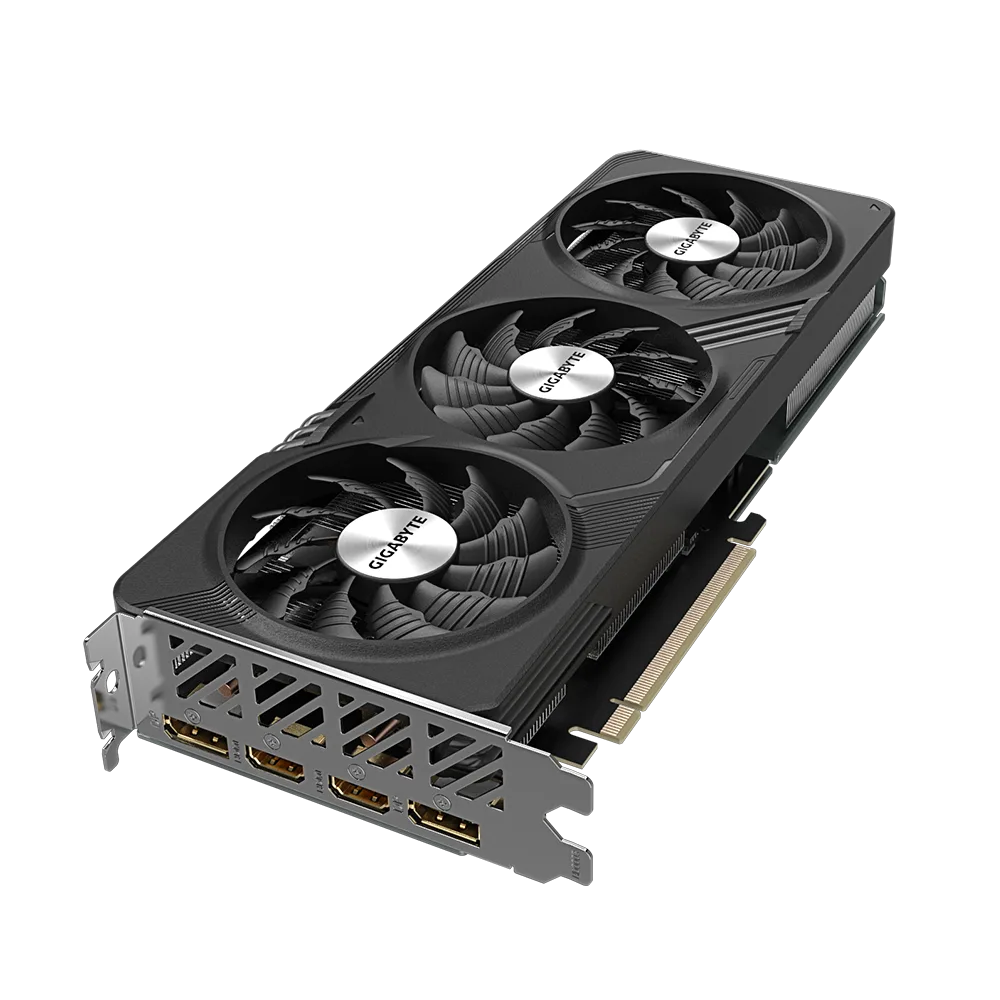

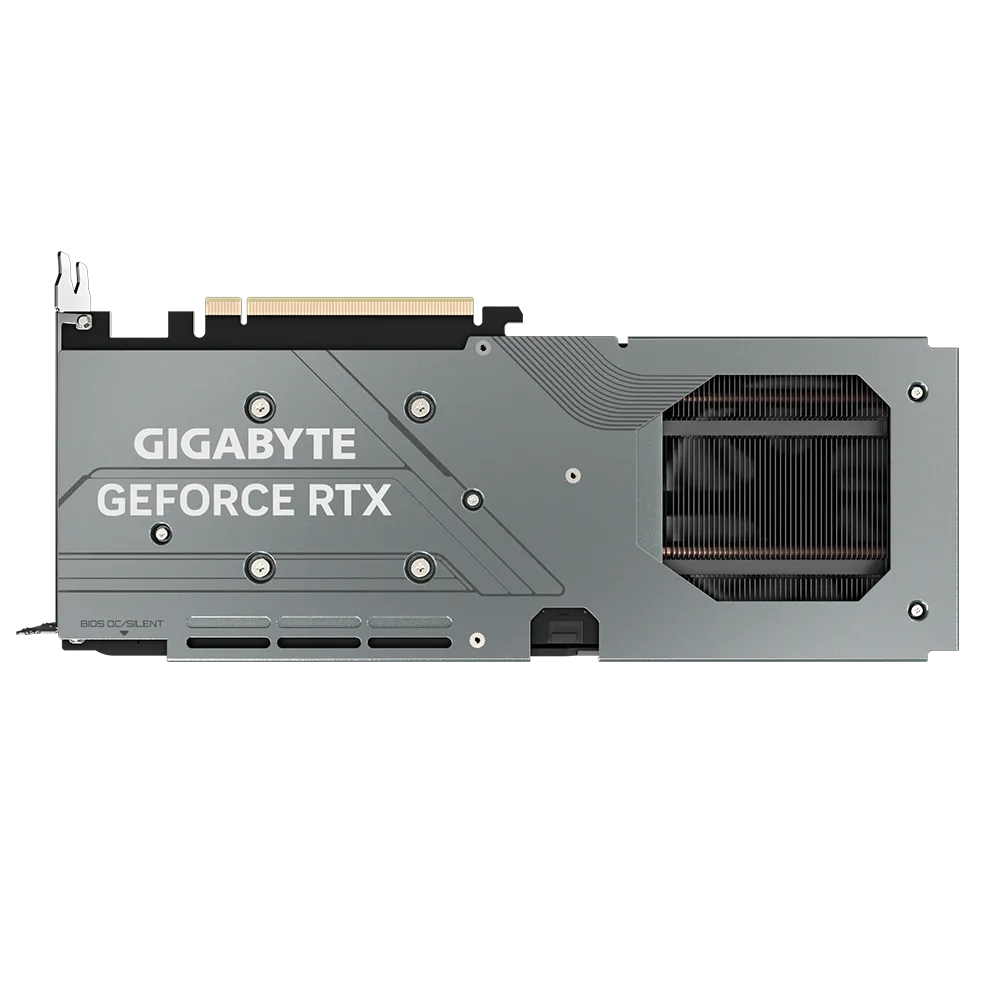

Gigabyte GeForce RTX 4060 GAMING OC 8G GV-N4060GAMING OC-8GD 8GB GDDR6 128-Bit PCIe 4.0 Desktop Graphics Card

Description

🔧 General Specifications

• GPU Model: NVIDIA GeForce RTX 4060

• CUDA Cores: 3072

• Architecture: Ada Lovelace

• Process Node: TSMC 4N

🖥️ Memory

• Memory Size: 8GB GDDR6

• Memory Bus Width: 128-bit

• Memory Clock: 17 Gbps (effective)

• Memory Bandwidth: 272 GB/s

🧊 Cooling & Design

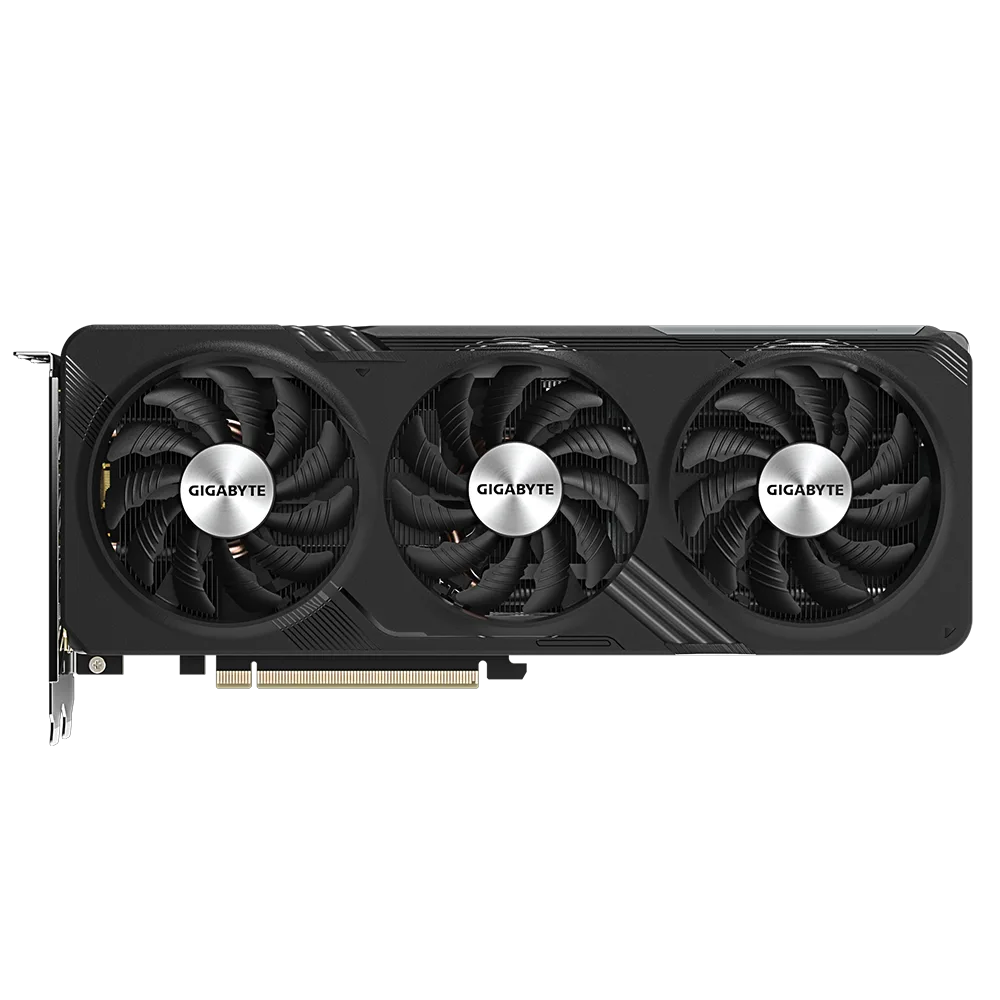

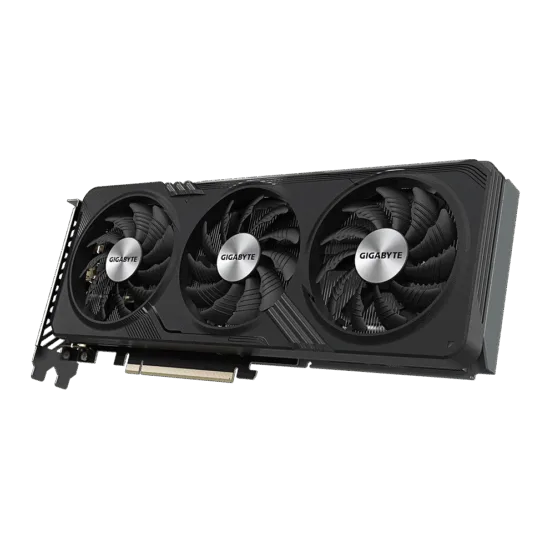

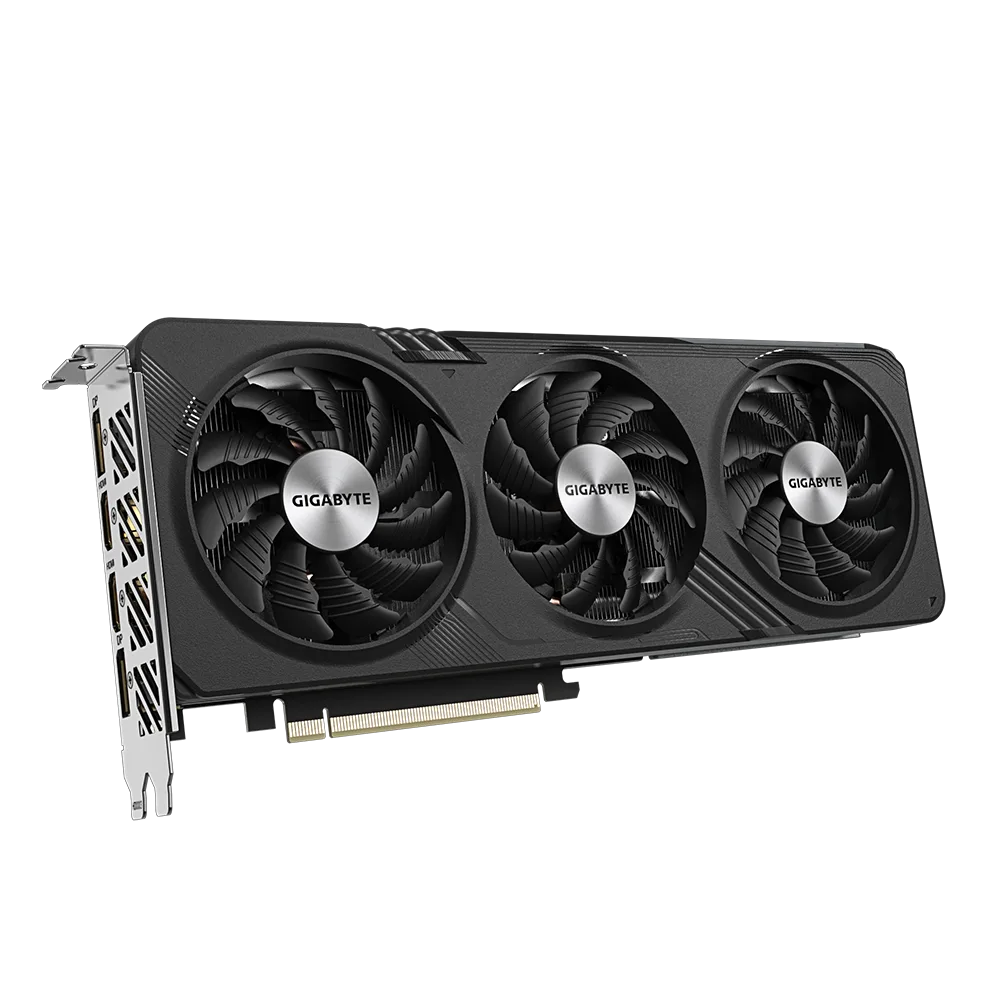

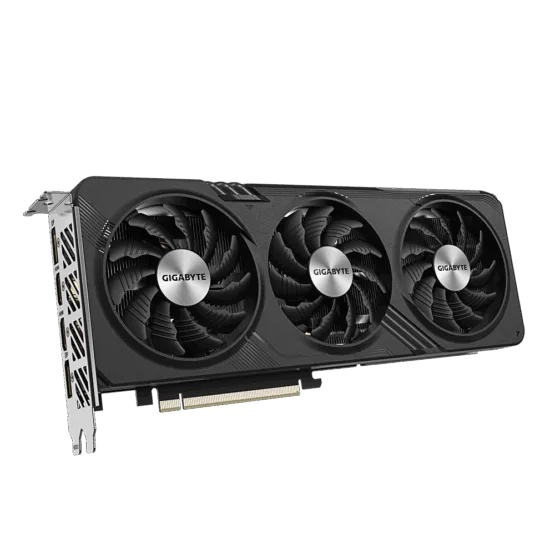

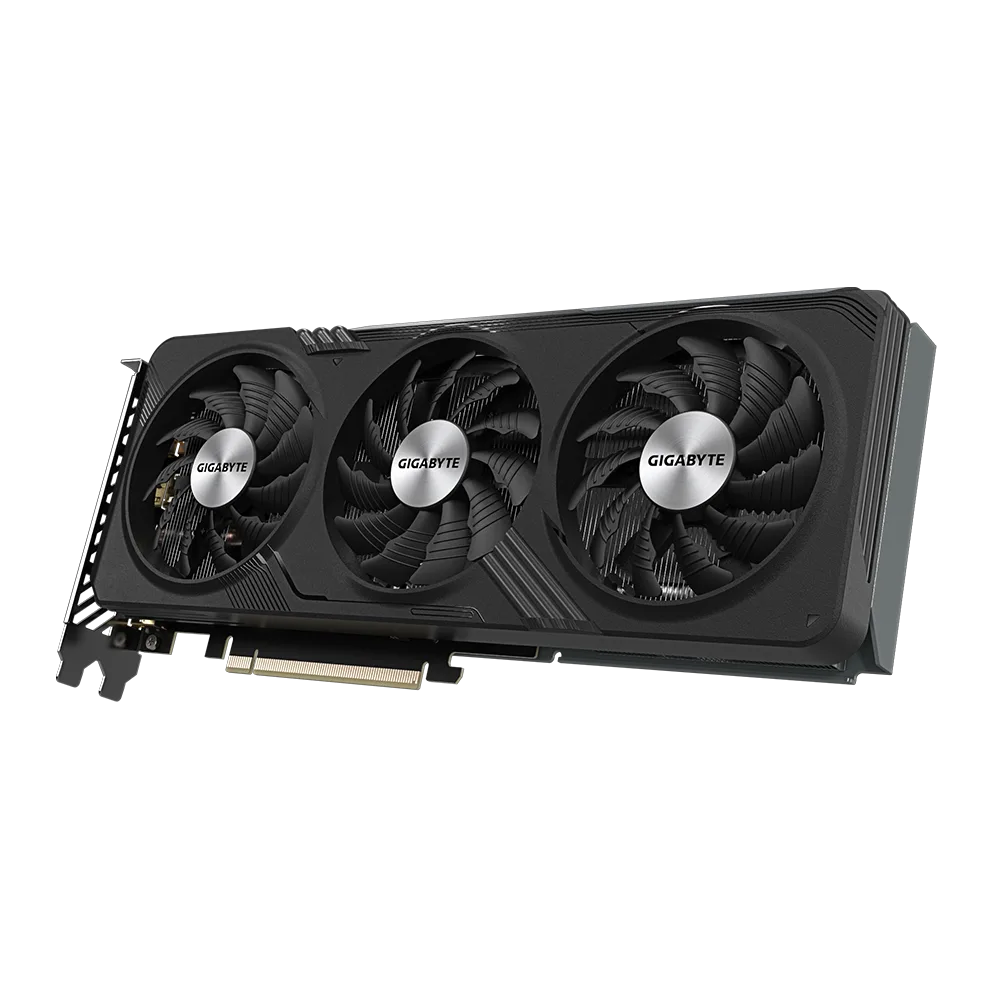

• Cooler Type: WINDFORCE 3X (Triple-Fan)

• Heatsink Design: Composite copper heat pipes with direct touch GPU, extended heatsink

• Fan Features: Alternate spinning, 3D Active Fan, Graphene Nano Lubricant

• RGB Lighting: RGB Fusion (Logo only)

🔌 Connectivity

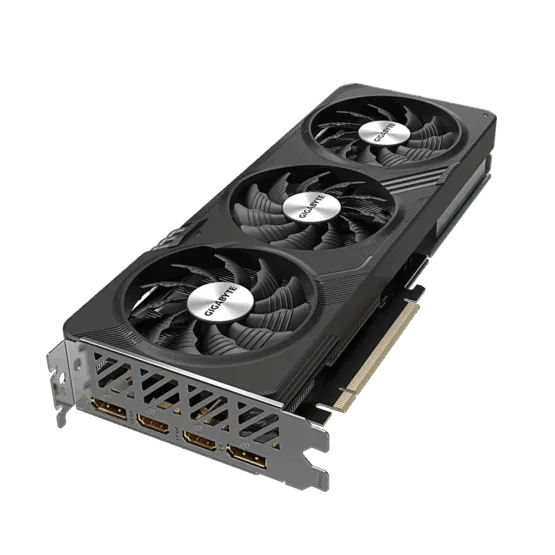

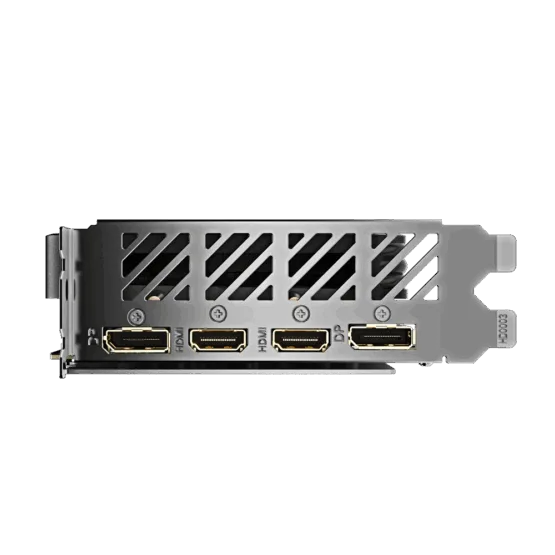

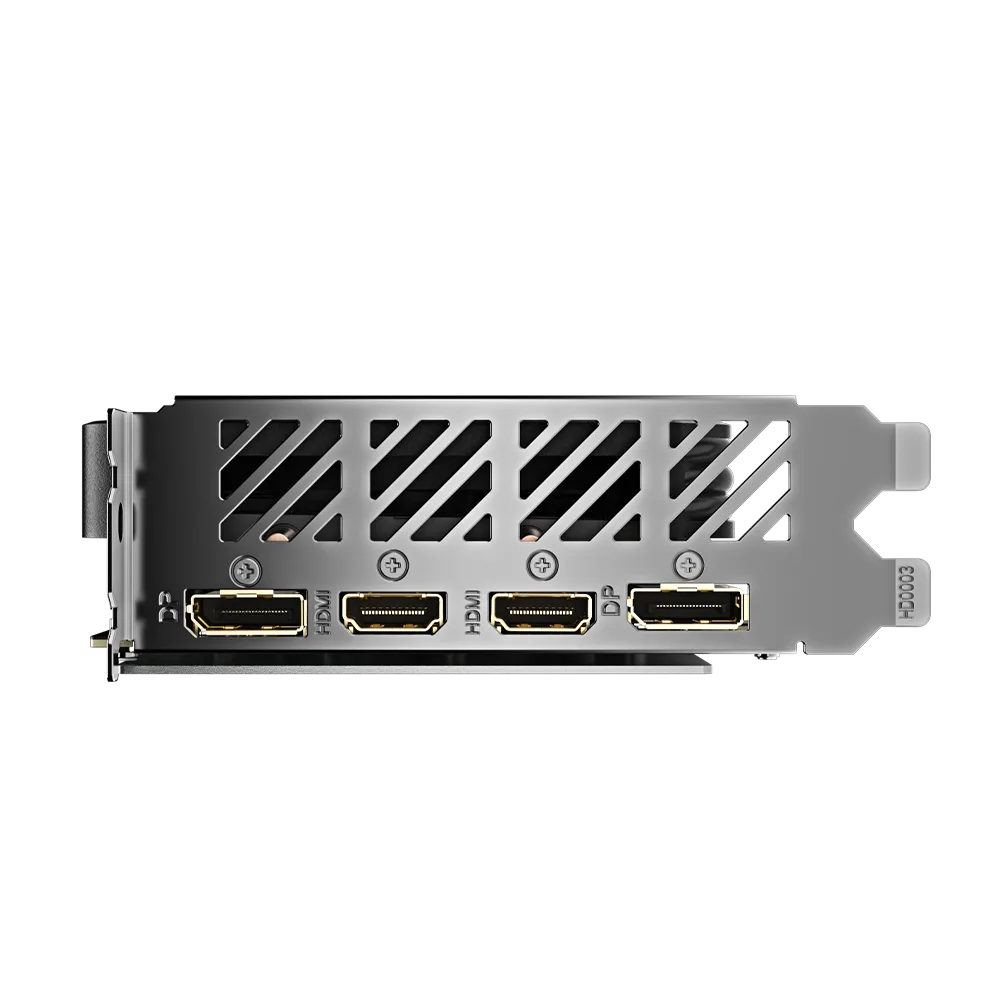

• Display Outputs:

  • 2 × HDMI 2.1a

  • 2 × DisplayPort 1.4a

• Max Digital Resolution: 7680 × 4320 (8K)

• Multi-display Support: Up to 4 displays

⚡ Power & Requirements

• Recommended PSU: 450W

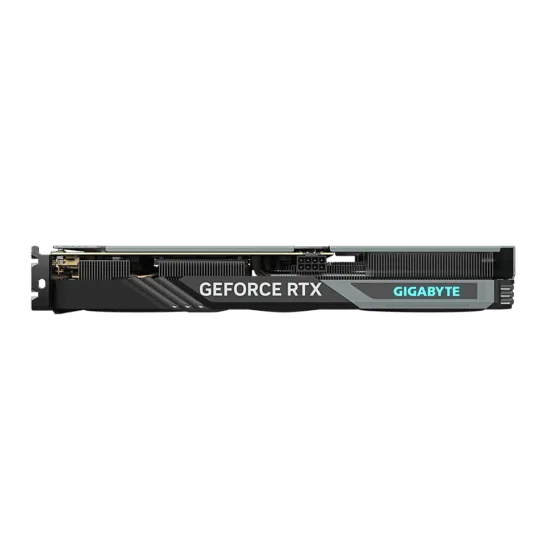

• Power Connectors: 1 × 8-pin PCIe

• Graphics Card Power (TGP): ~115W

📐 Physical Dimensions

• Card Size: 281 × 114 × 41 mm

• Slot Size: 2.1-slot

• Form Factor: ATX

🧠 Features & Technologies

• Ray Tracing Cores: 3rd Generation

• Tensor Cores: 4th Generation

• DLSS: DLSS 3.5 supported

• DirectX Support: DirectX 12 Ultimate

• OpenGL Version: 4.6

• PCI Express: PCIe 4.0 x8 (electrical)

• HDCP Support: Yes (2.3)

• VR Ready: Yes

• NVIDIA Technologies: Reflex, Broadcast, G-SYNC, AV1 Encoder support
