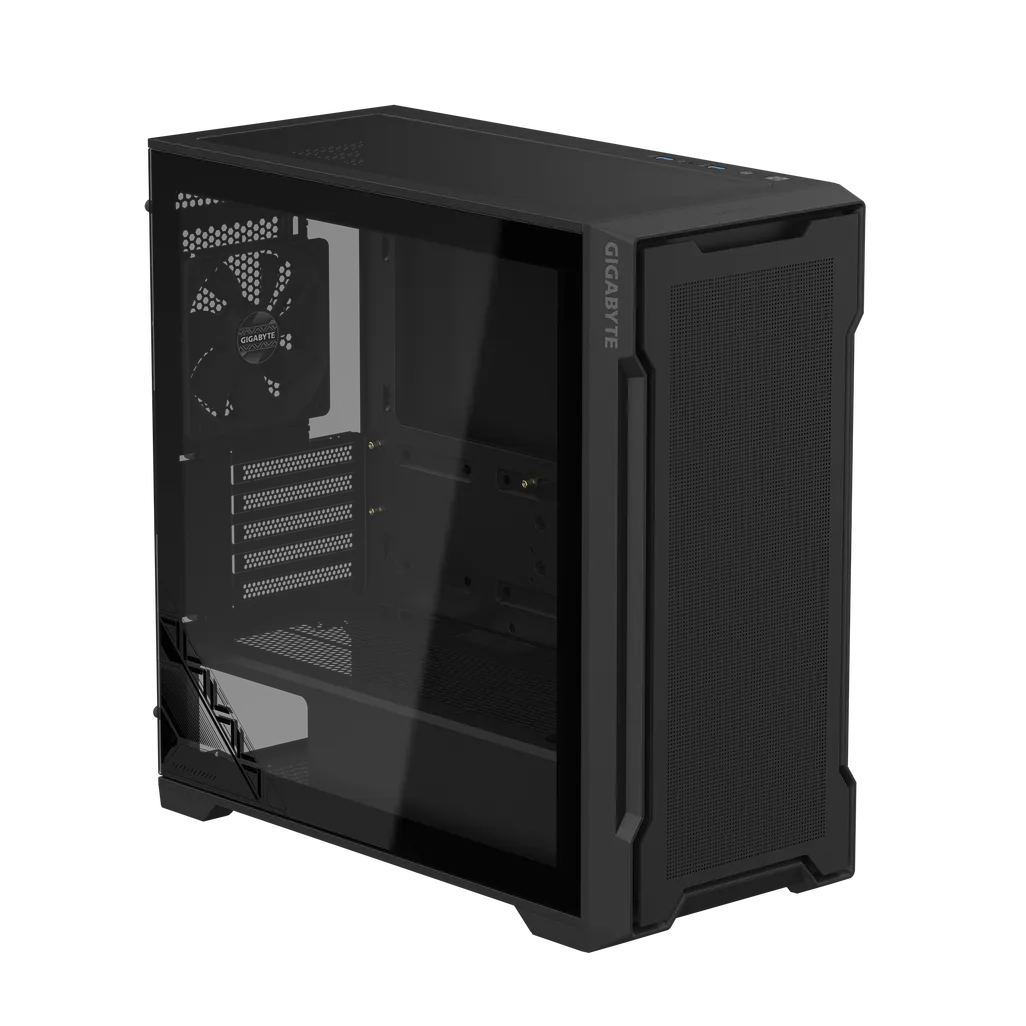

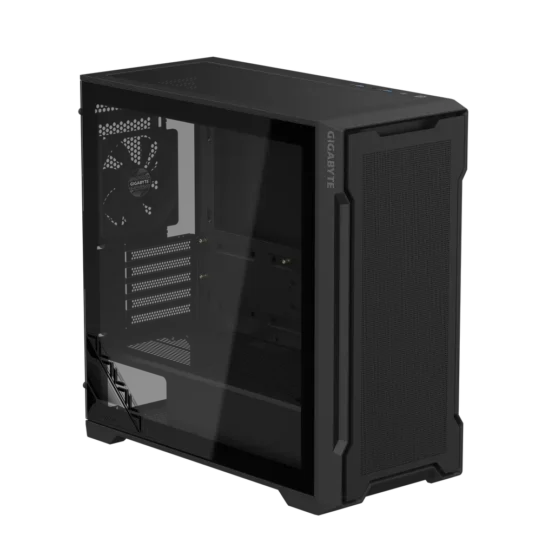

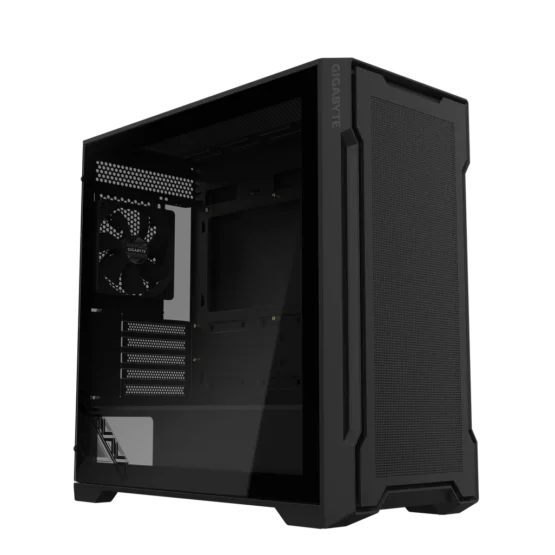

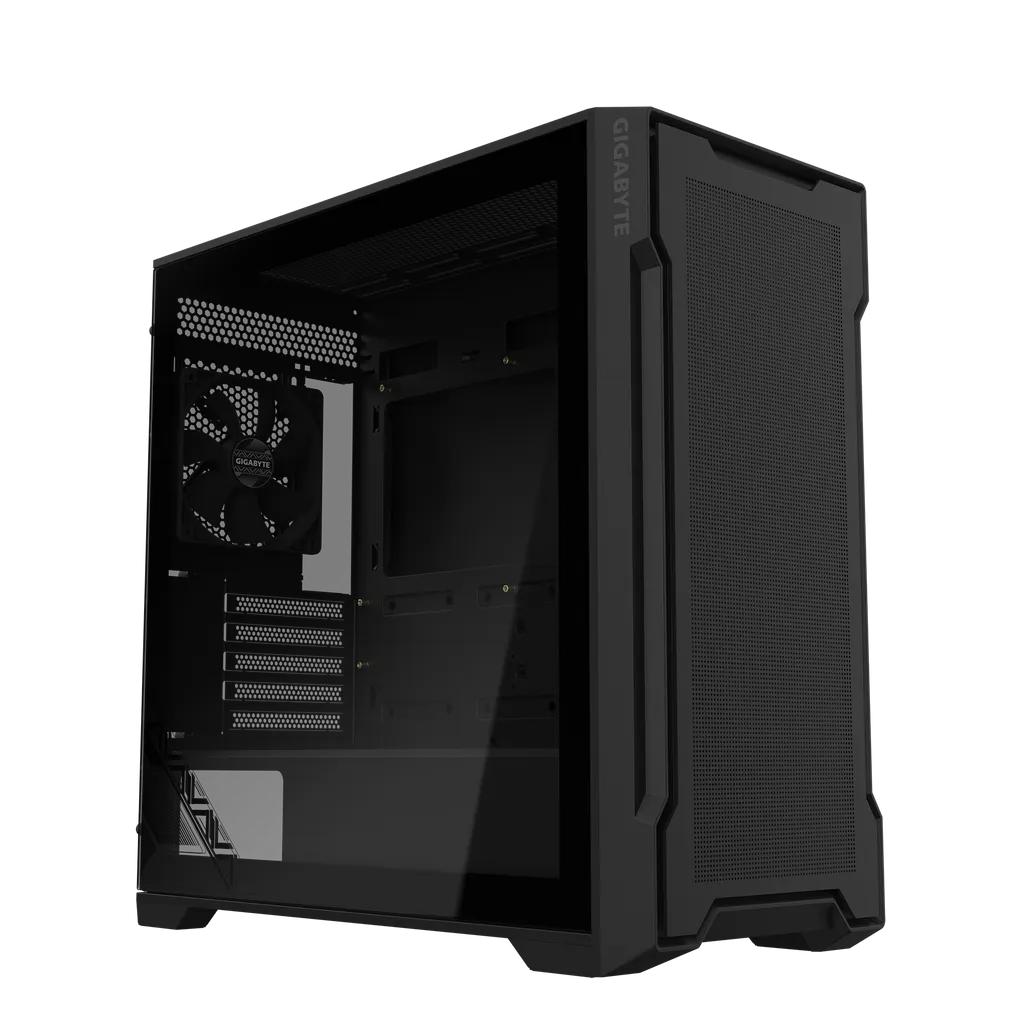

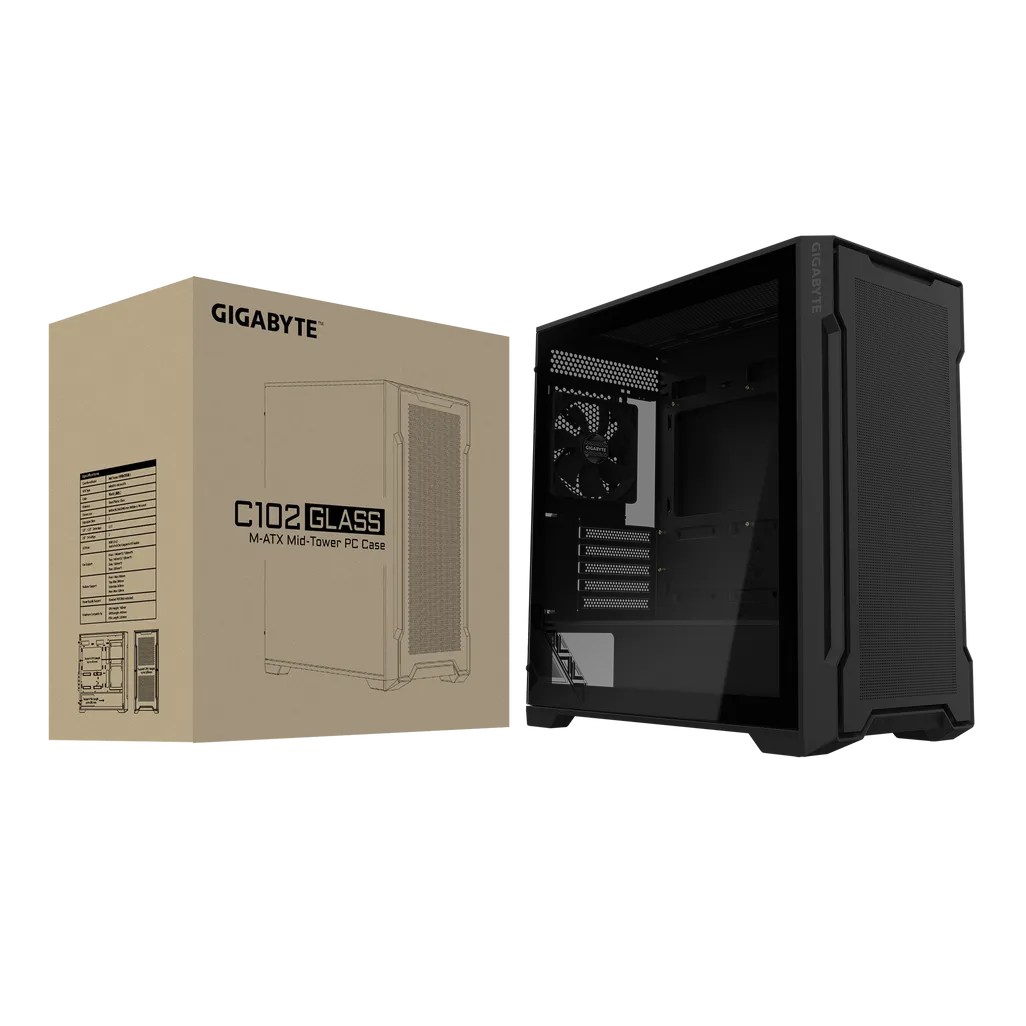

Gigabyte C102 Glass

Description

📦 Specifications

General

• Model Name: GIGABYTE C102 GLASS

• Chassis Type: Mid Tower

• Material: Steel, Plastic, Tempered Glass

• Dimensions: 450 mm (L) × 210 mm (W) × 480 mm (H)

• Net Weight: 5.79 kg

• Gross Weight: 6.97 kg

• Motherboard Support: Micro-ATX, Mini-ITX

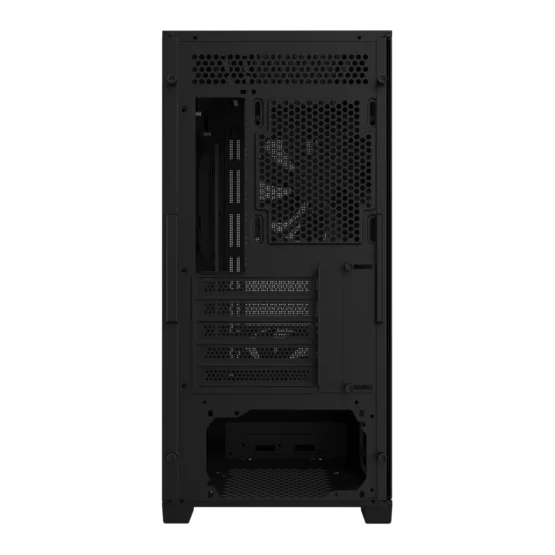

• Expansion Slots: 5

Drive Bays

• 2 × 3.5″ HDD

• 2 × 2.5″ SSD

Power Supply

• Type: ATX PSU (bottom-mounted)

• Max PSU Length: 200 mm

Clearances

• Max GPU Length: 410 mm

• Max CPU Cooler Height: 165 mm

🌬️ Cooling & Airflow

Pre-installed Fans

• Front: 1 × 120 mm

• Rear: 1 × 120 mm

Fan Support

• Front: 3 × 120 mm or 2 × 140 mm

• Top: 3 × 120 mm or 2 × 140 mm

• Side: 2 × 120 mm

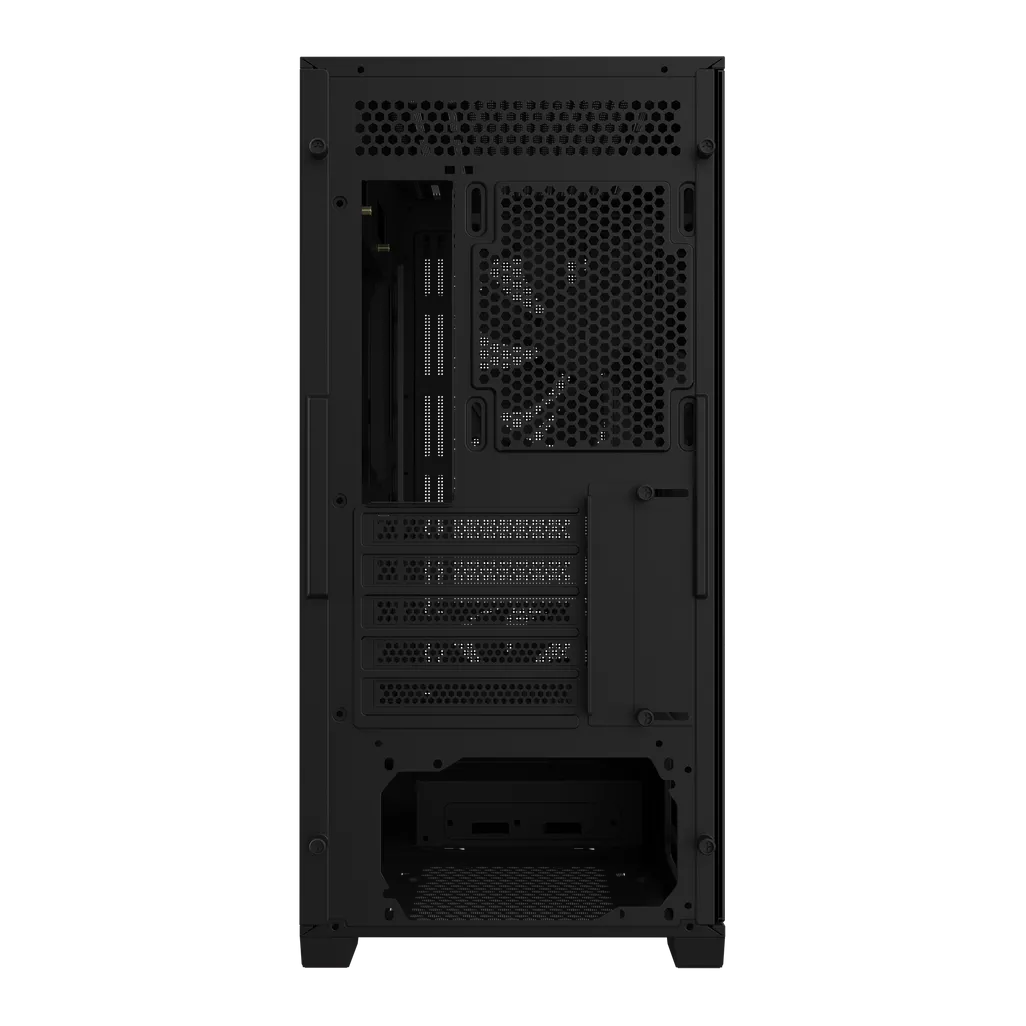

• Rear: 1 × 120 mm

Radiator Support

• Front: Up to 360 mm

• Top: Up to 360 mm

• Side: Up to 240 mm

• Rear: Up to 120 mm

Dust Filters

• Magnetic: Top and side

• Removable: Bottom

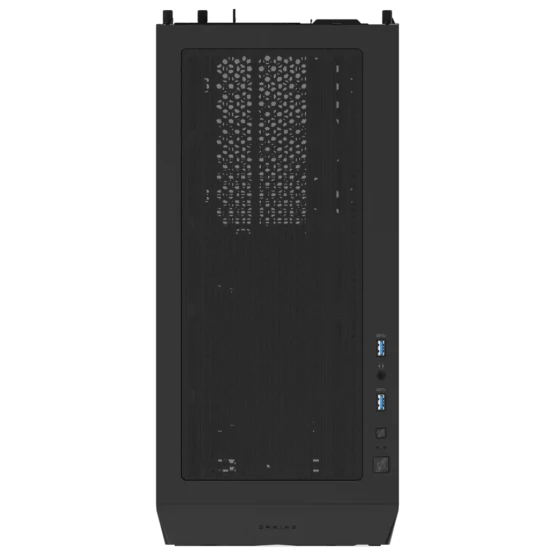

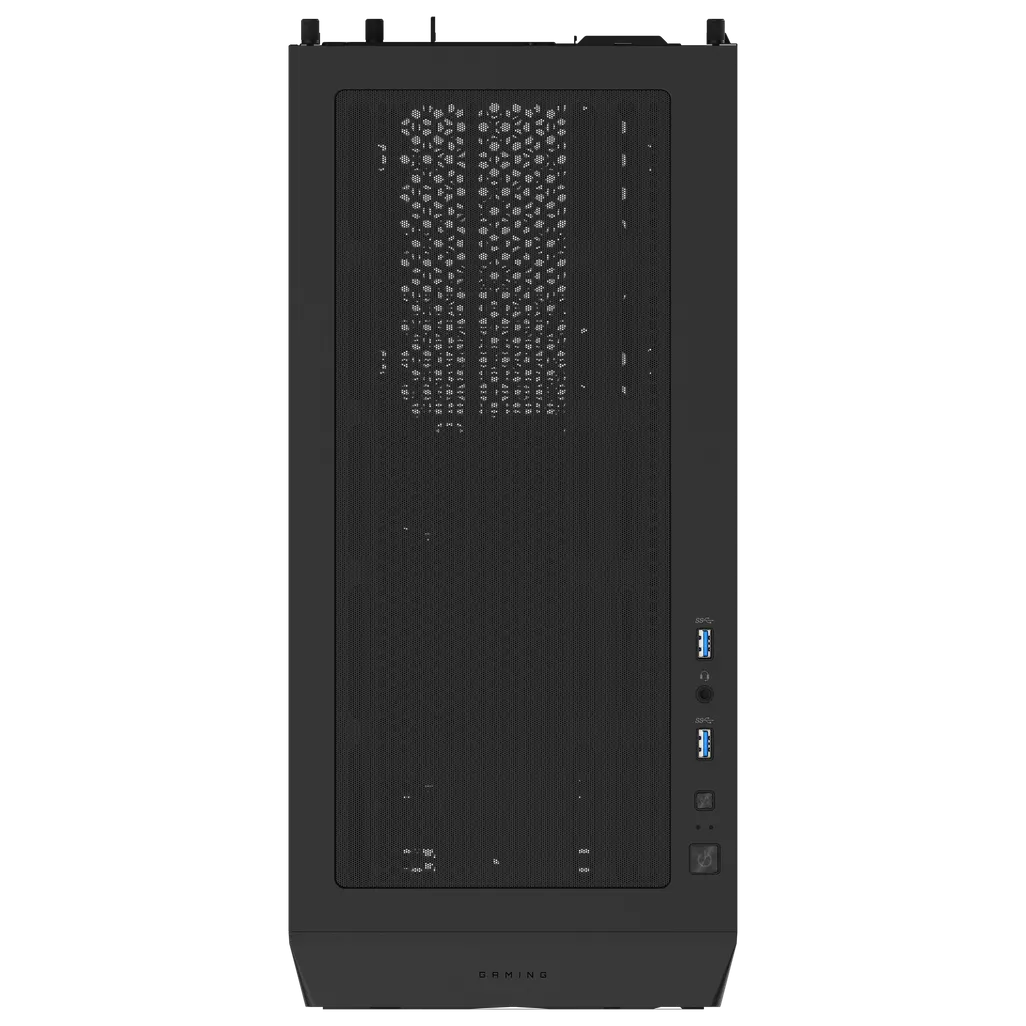

🔌 I/O Panel

• 2 × USB 3.0

• 1 × Audio Out

• 1 × Mic In (HD Audio)

• Power Button

• Reset Button

✨ Design Highlights

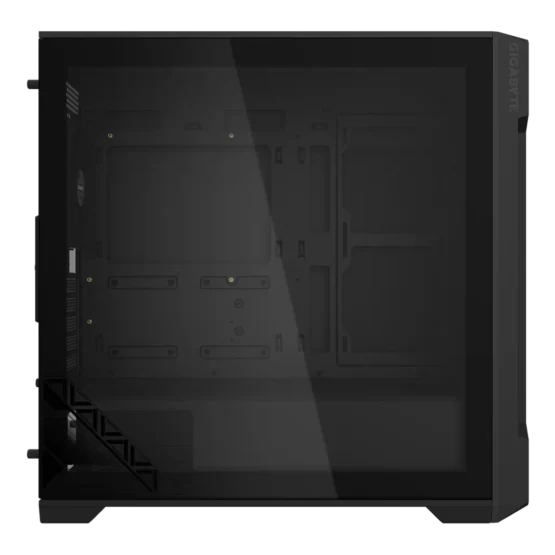

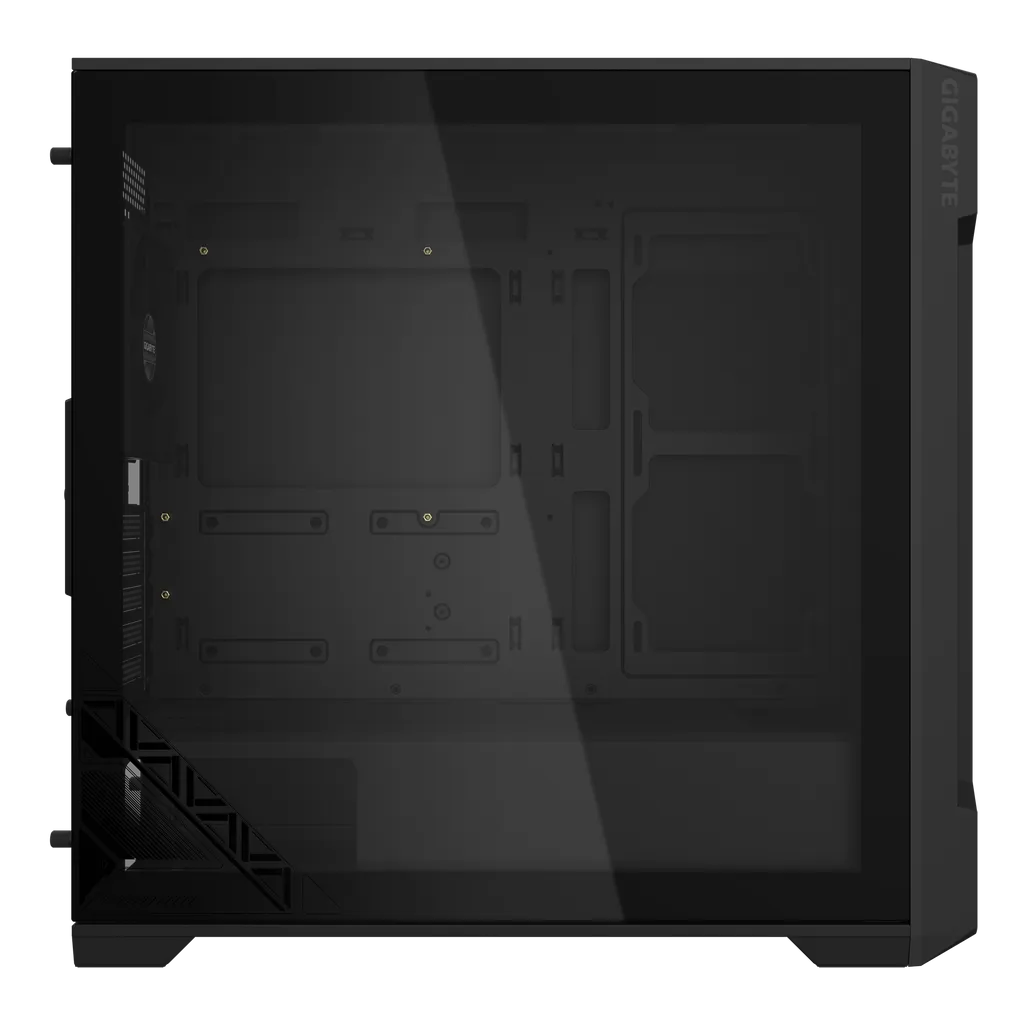

• 4 mm tempered glass side panel (non-drilled mounting for safety)

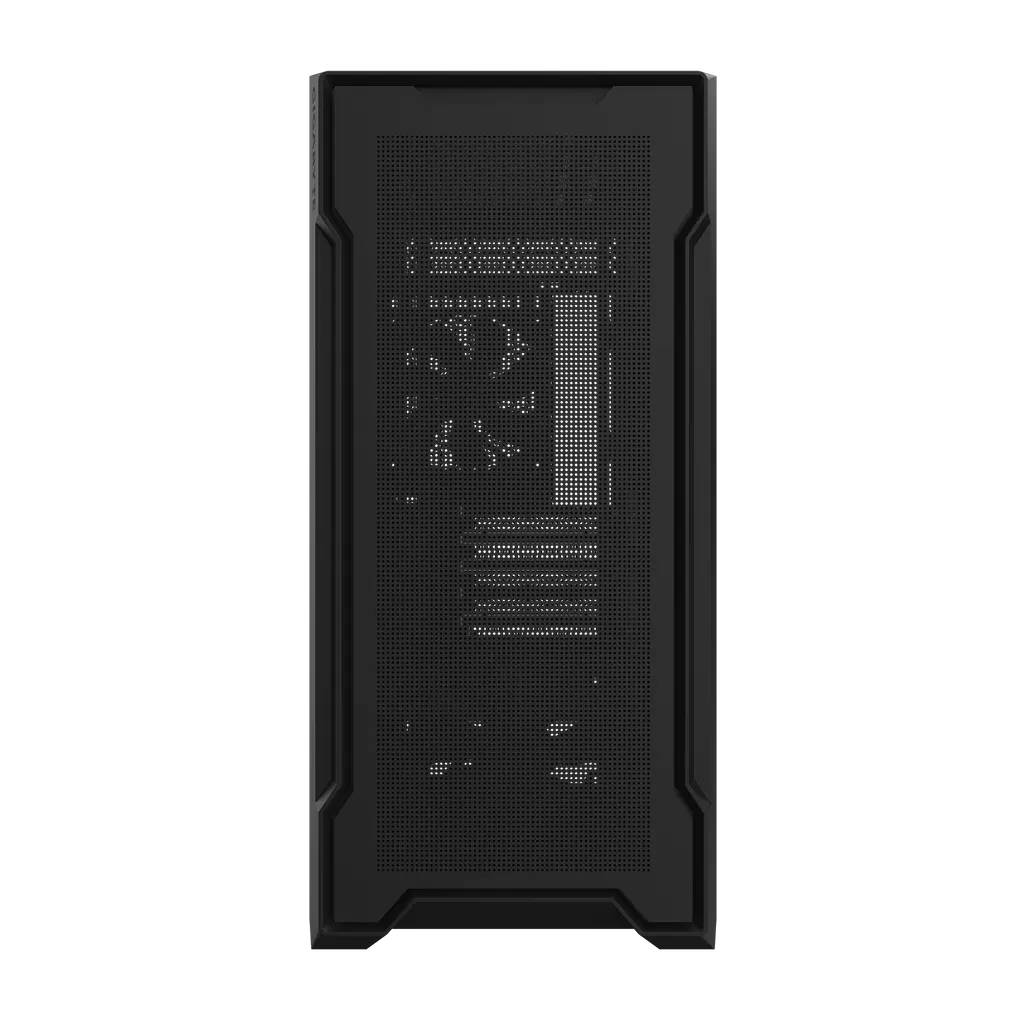

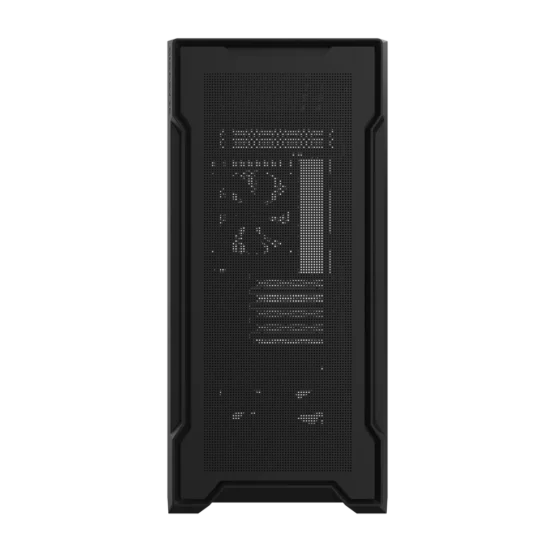

• Magnetic front panel for easy removal

• Full PSU shroud with cutout for PSU display

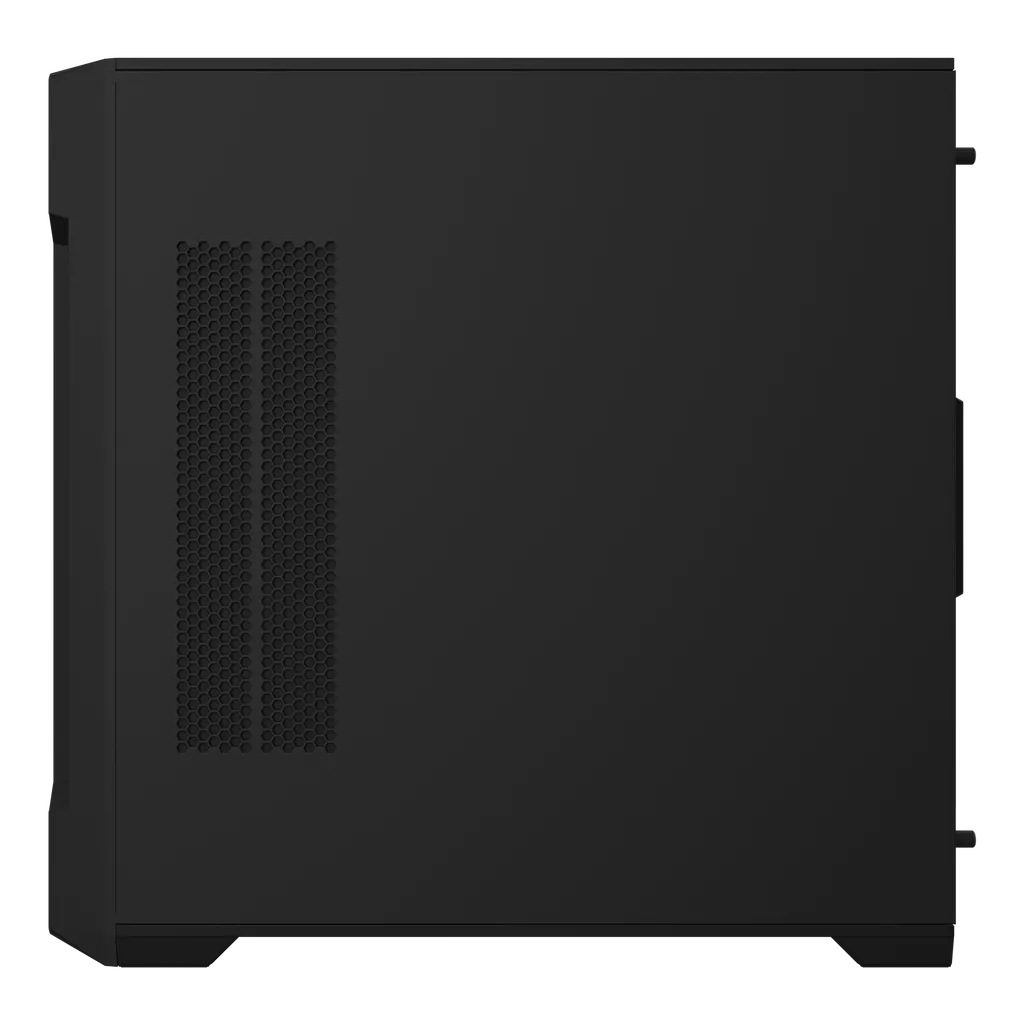

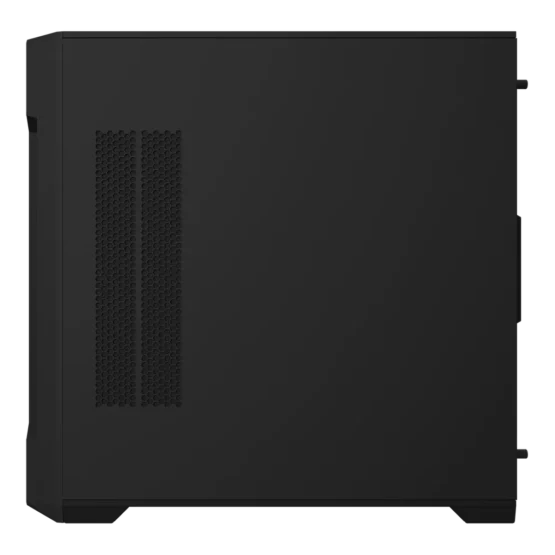

• Vented airflow-focused top, front, and side panel design

• Clean cable management layout
