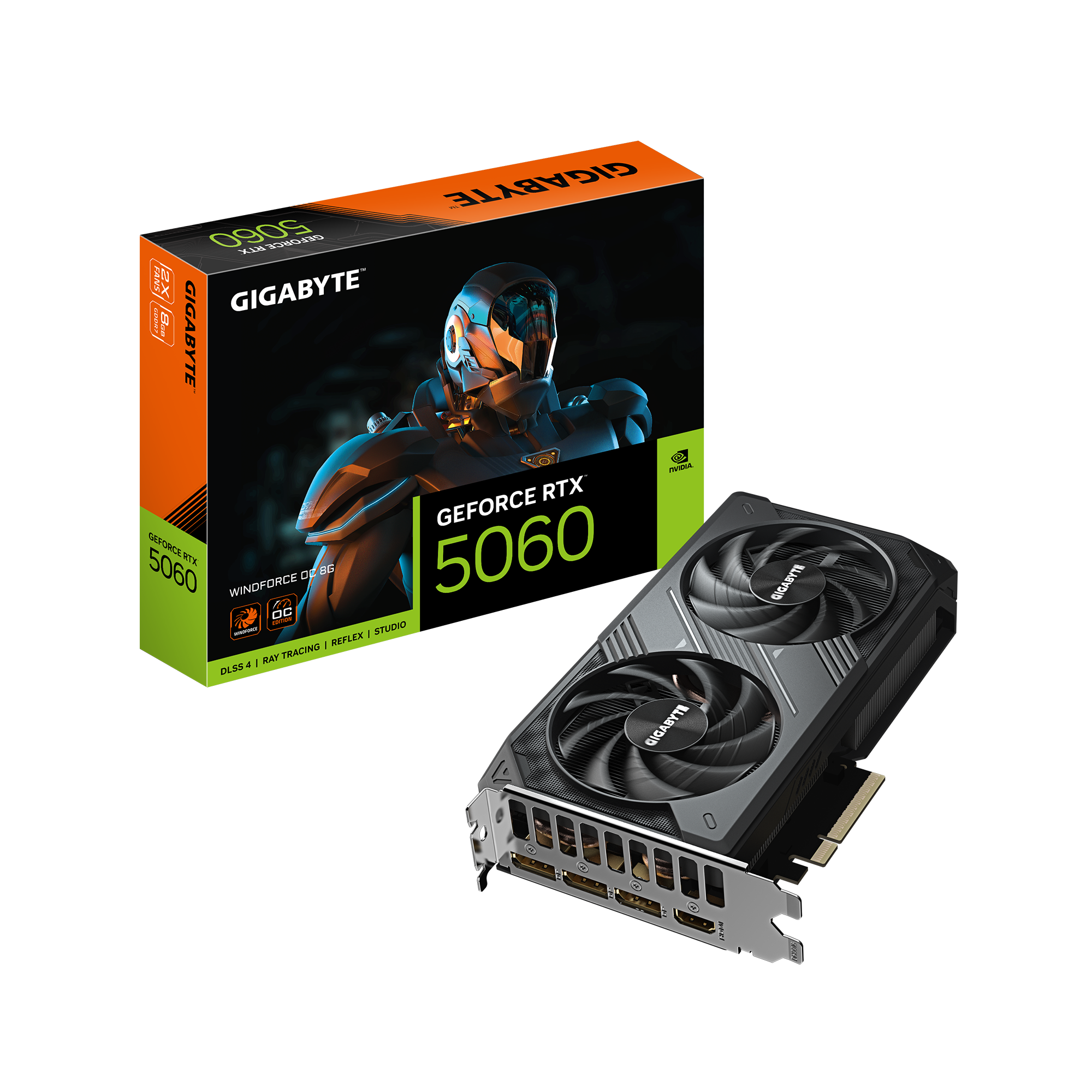

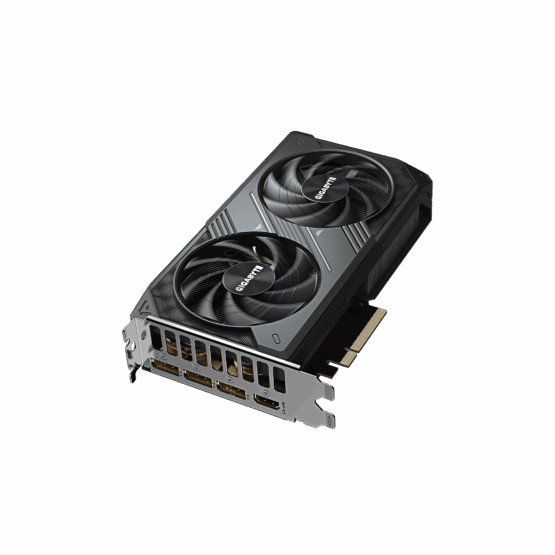

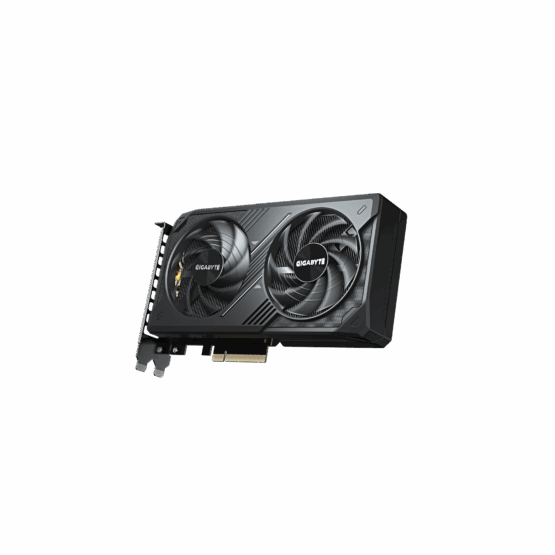

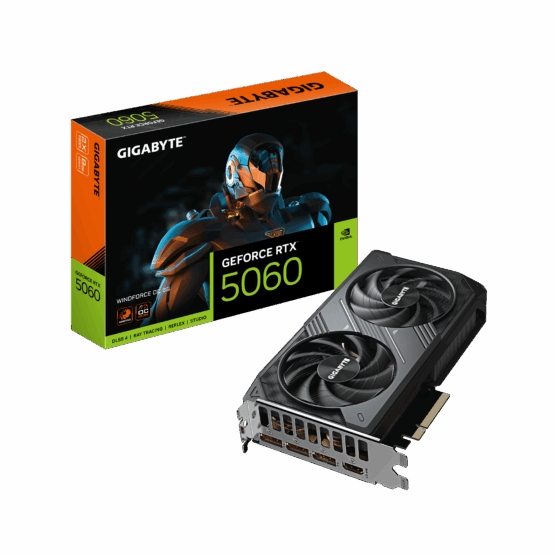

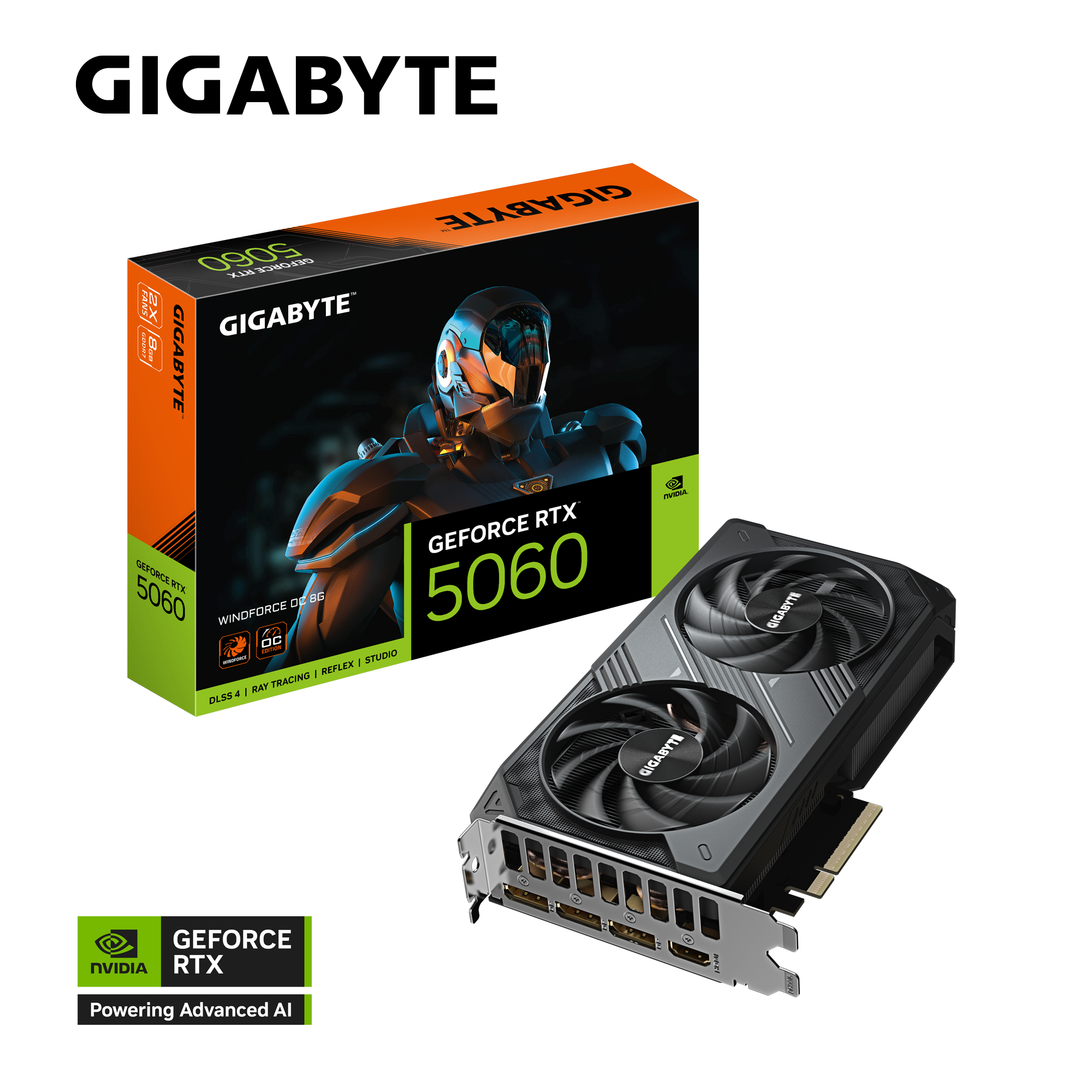

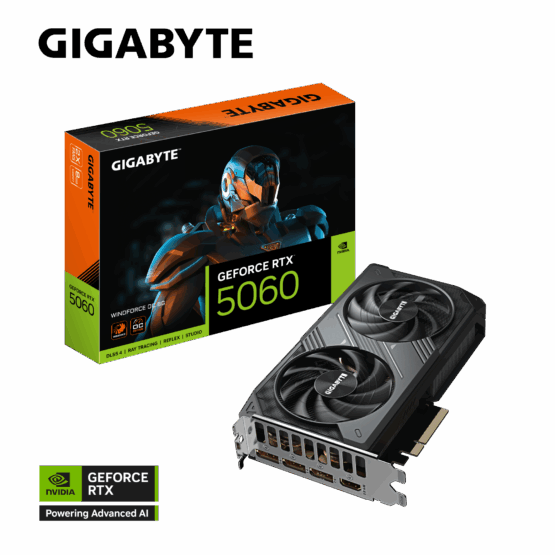

GeForce RTX™ 5060 WINDFORCE OC 8G

Description

🖥️ GPU Specifications

• Graphics Processor: NVIDIA GeForce RTX 5060 (Blackwell Architecture)

• CUDA Cores: 3,840

• Core Clock: 2512 MHz (Boost, OC Mode)

• Architecture Features: DLSS 4 with Frame Generation, Ray Tracing Gen 4, AV1 Dual Encode

🧠 Memory

• Memory Size: 8 GB

• Memory Type: GDDR7

• Memory Bus: 128-bit

• Memory Speed: 28 Gbps

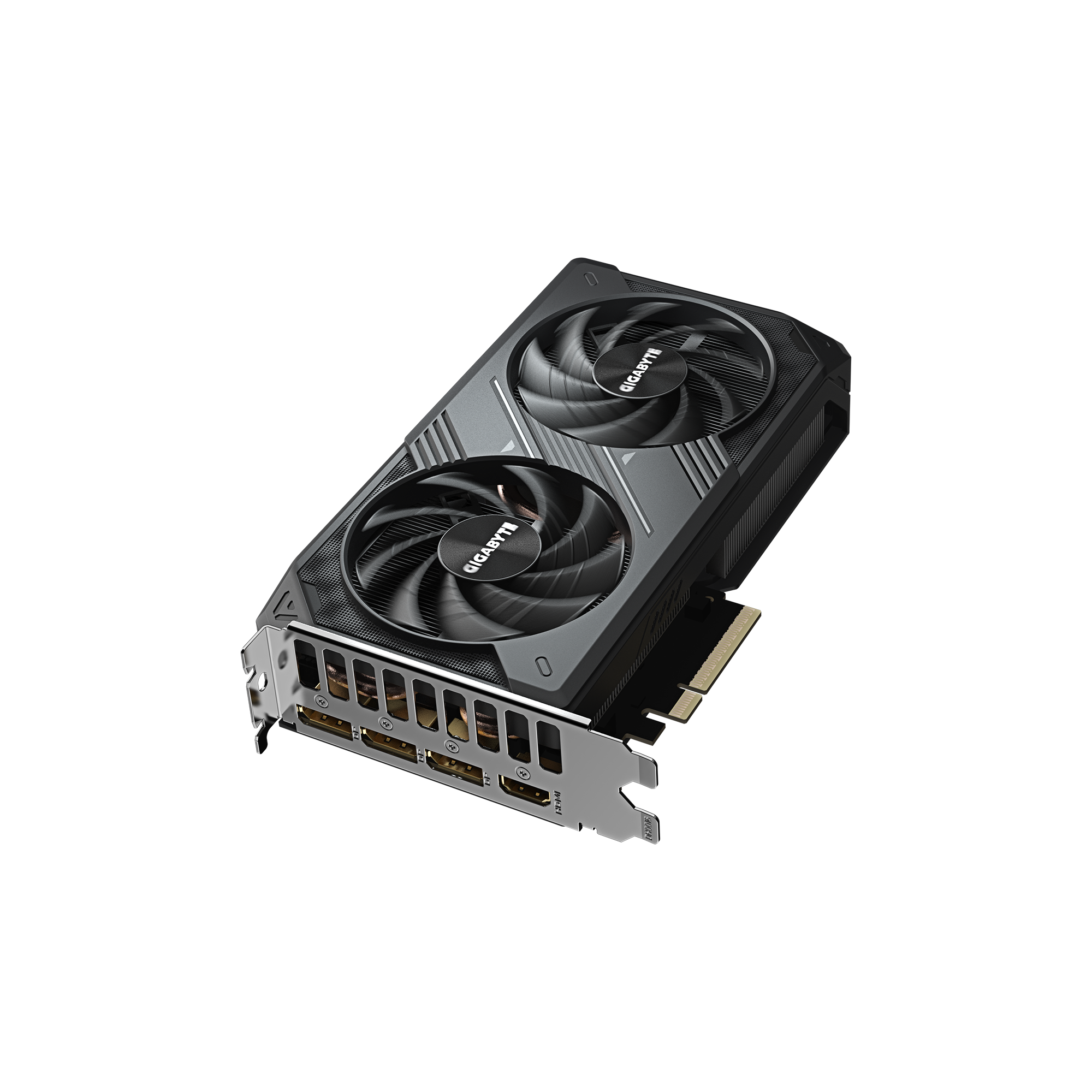

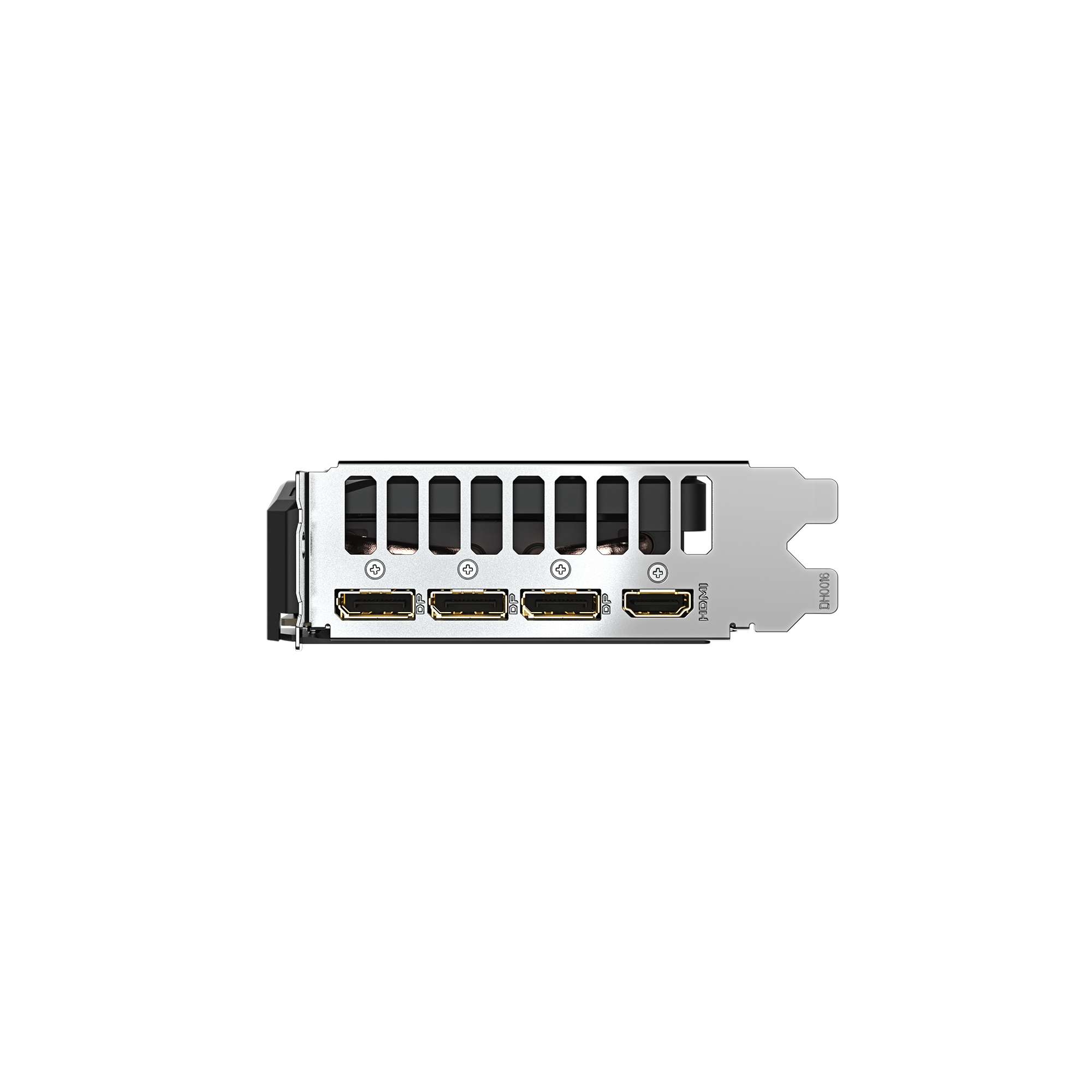

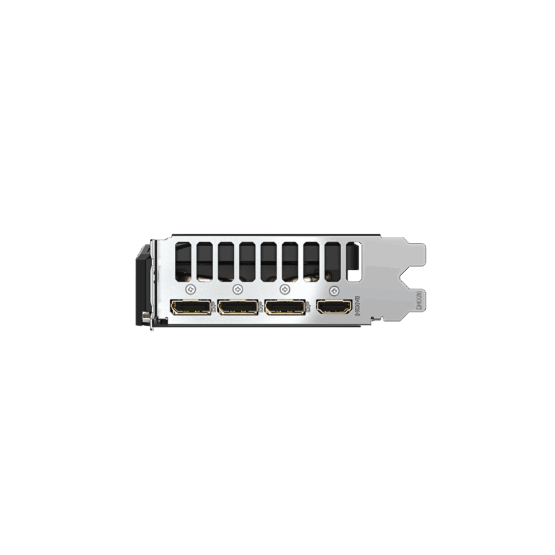

📺 Display Outputs

• Ports:

  • 3 x DisplayPort 2.1

  • 1 x HDMI 2.1

• Maximum Digital Resolution: 7680 x 4320 (8K UHD)

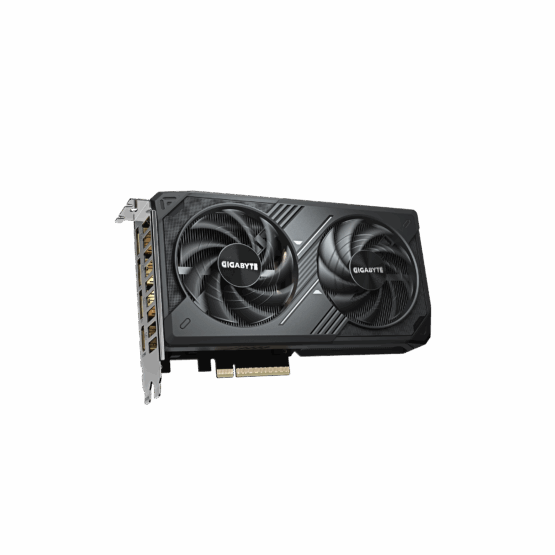

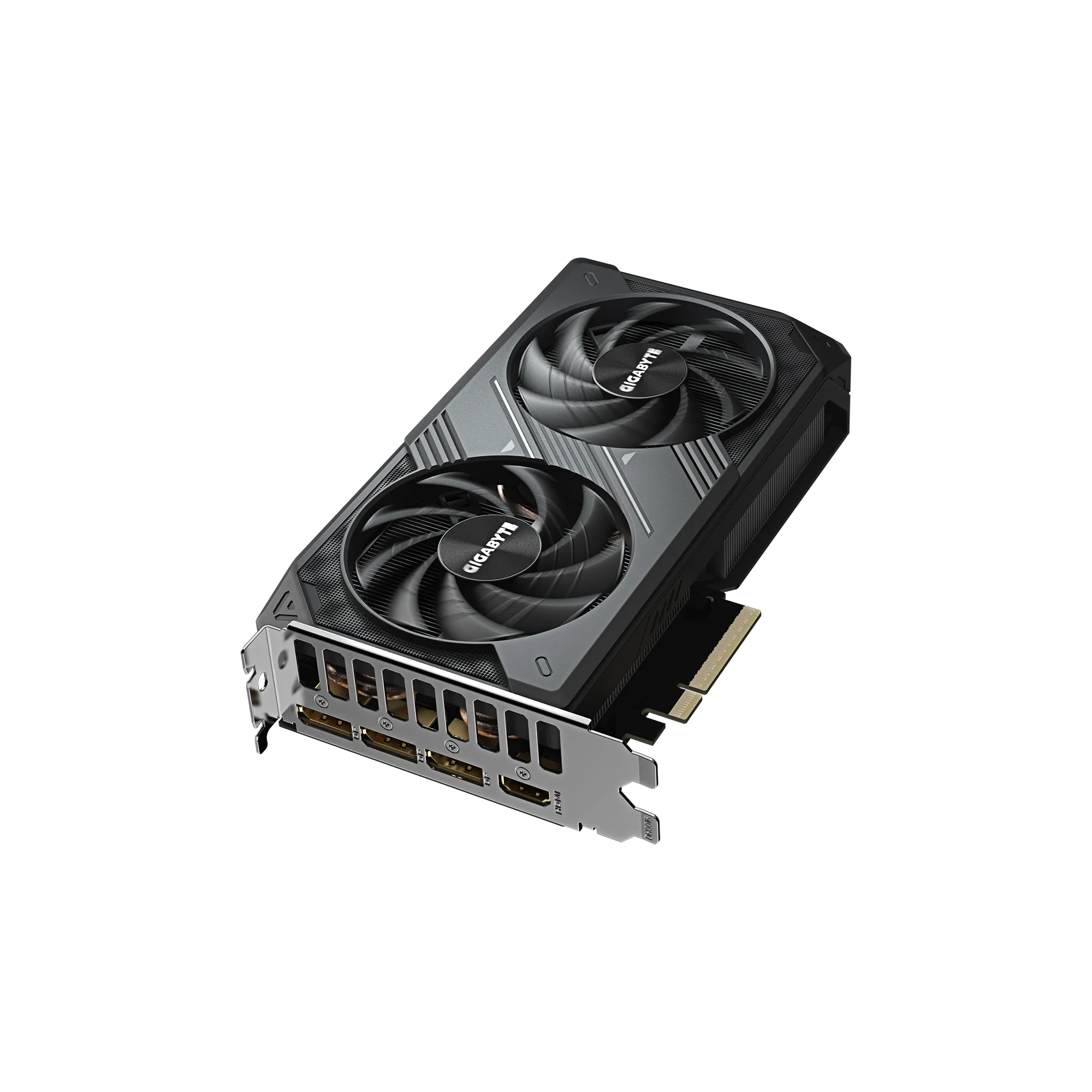

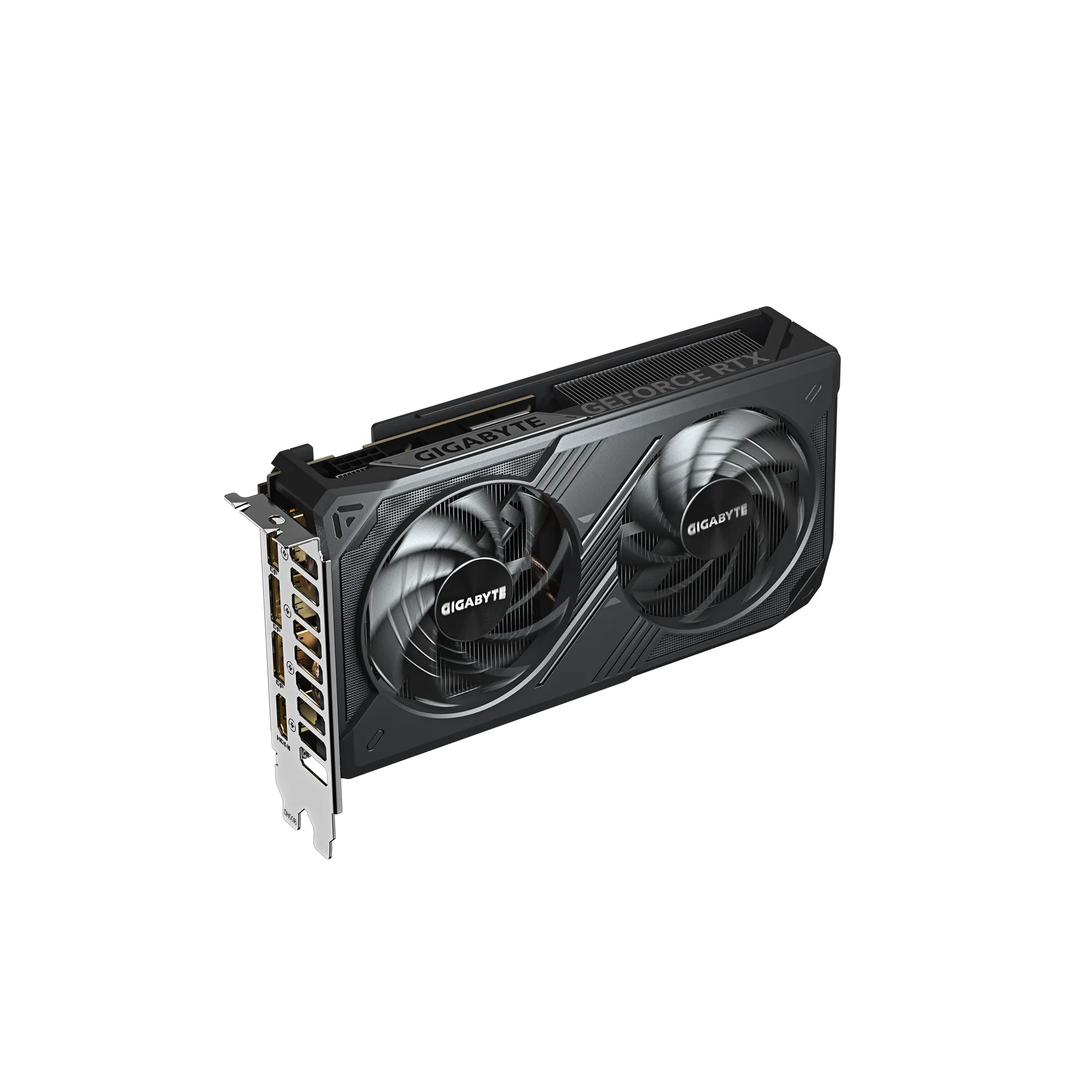

❄️ Cooling & Design

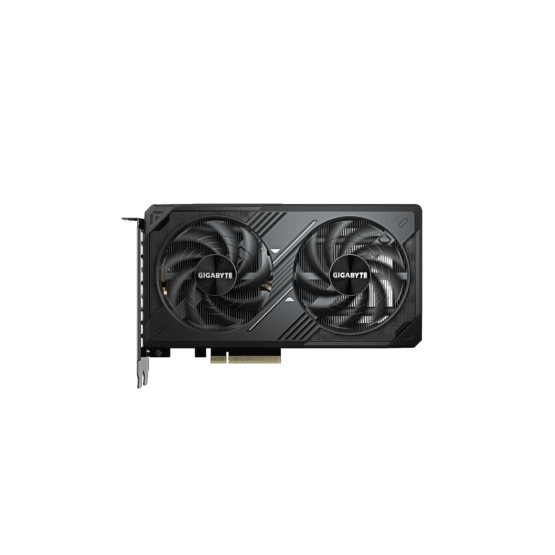

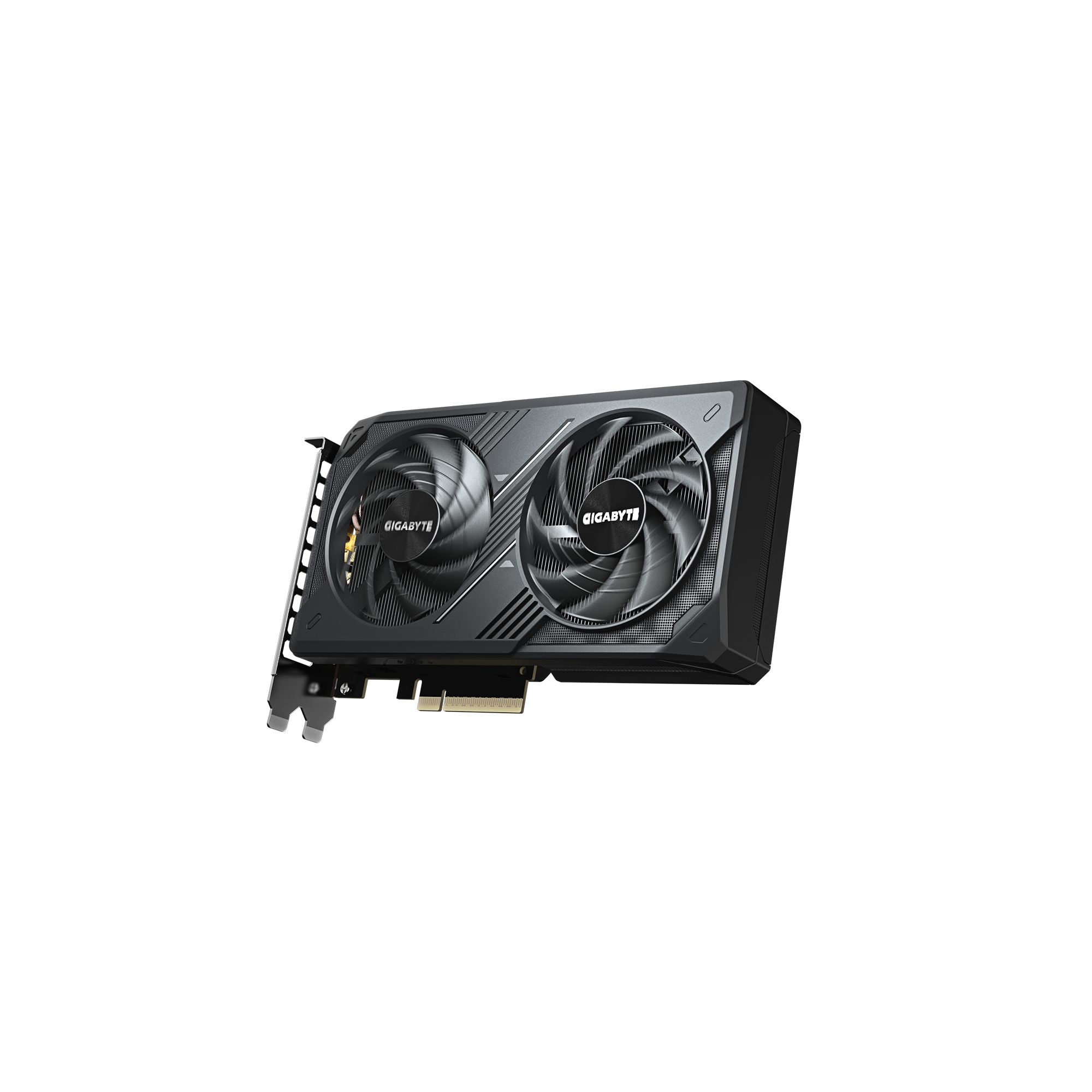

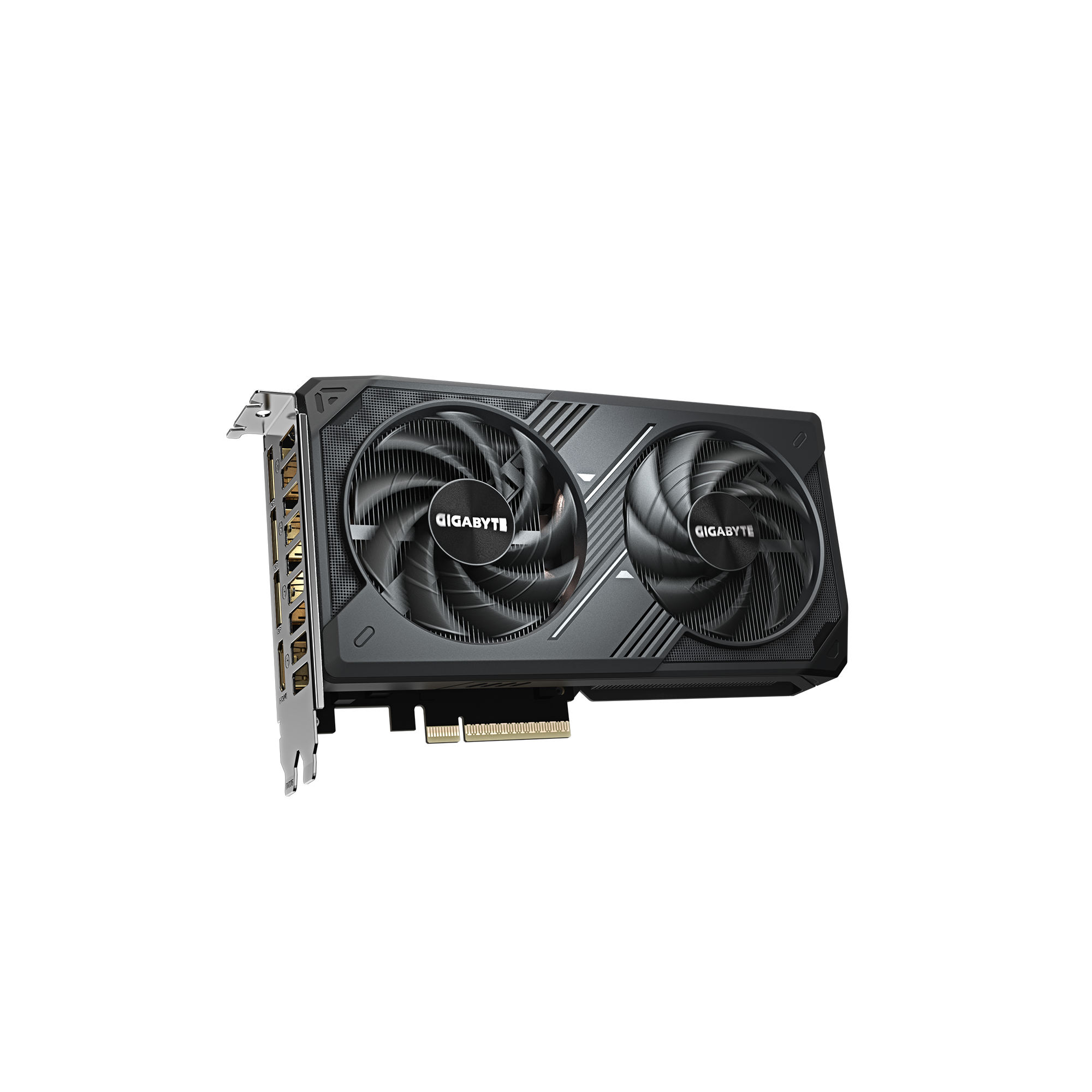

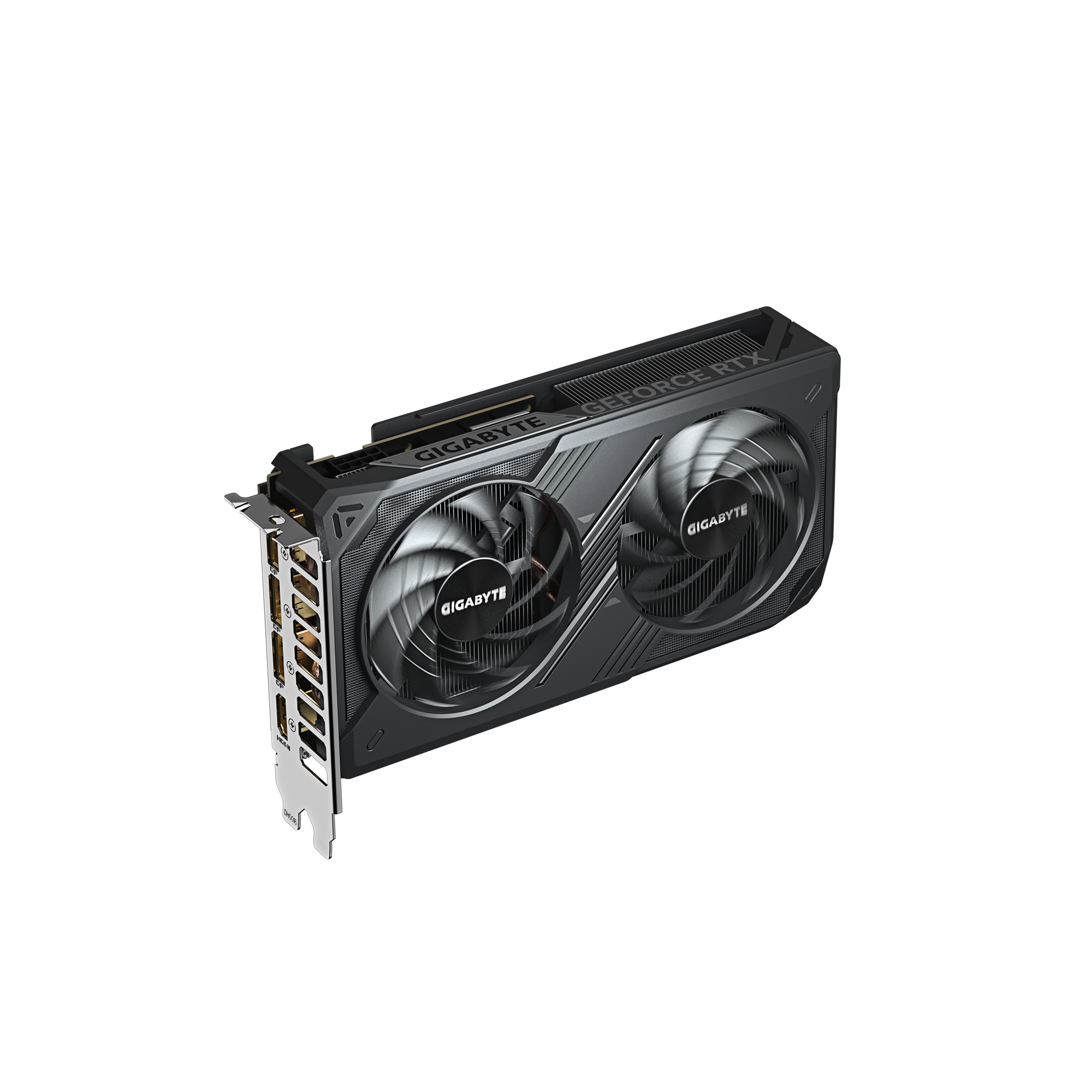

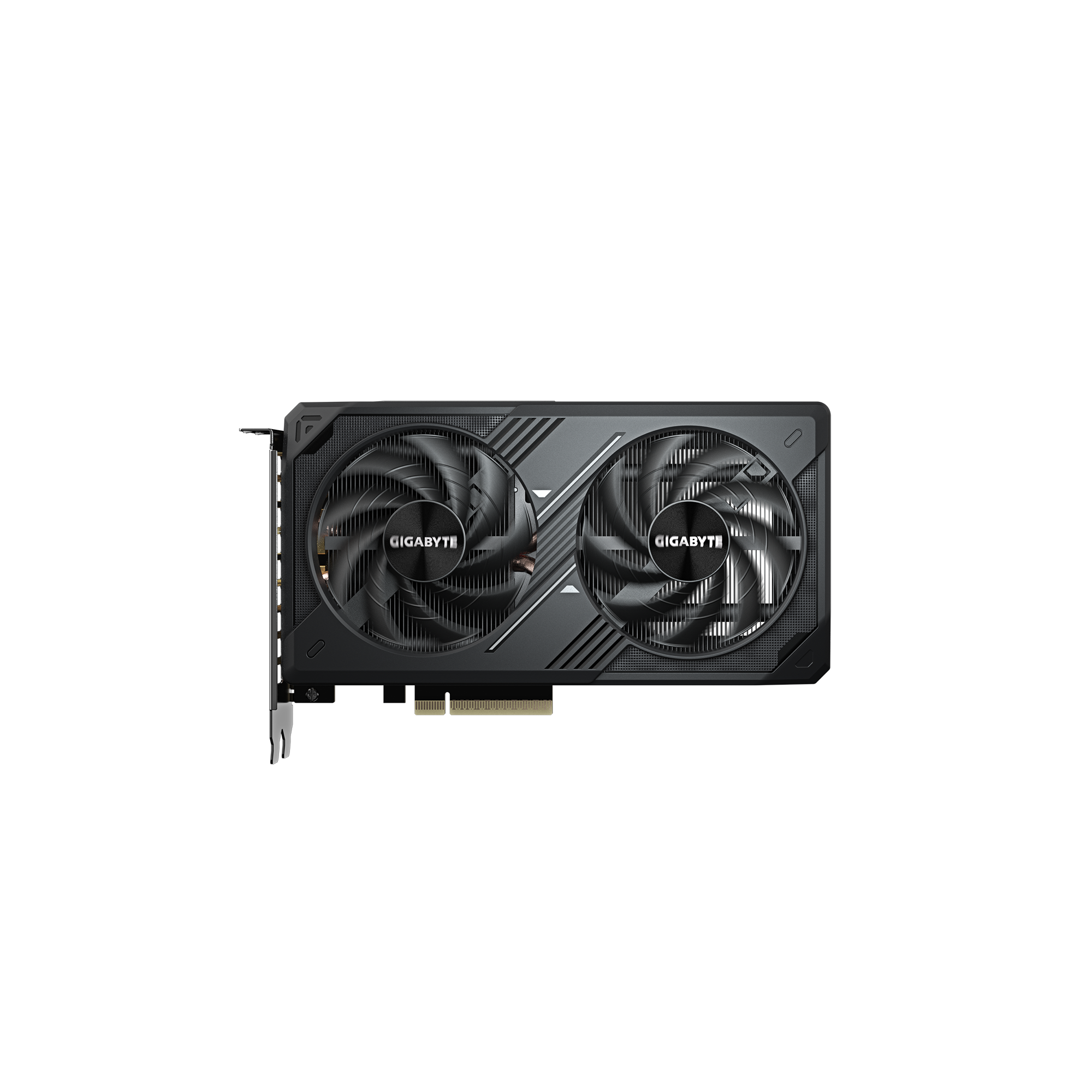

• Cooling System: WINDFORCE dual-fan cooler

  • Alternate spinning fans

  • Pure copper heat pipes

  • Graphene nano lubricant

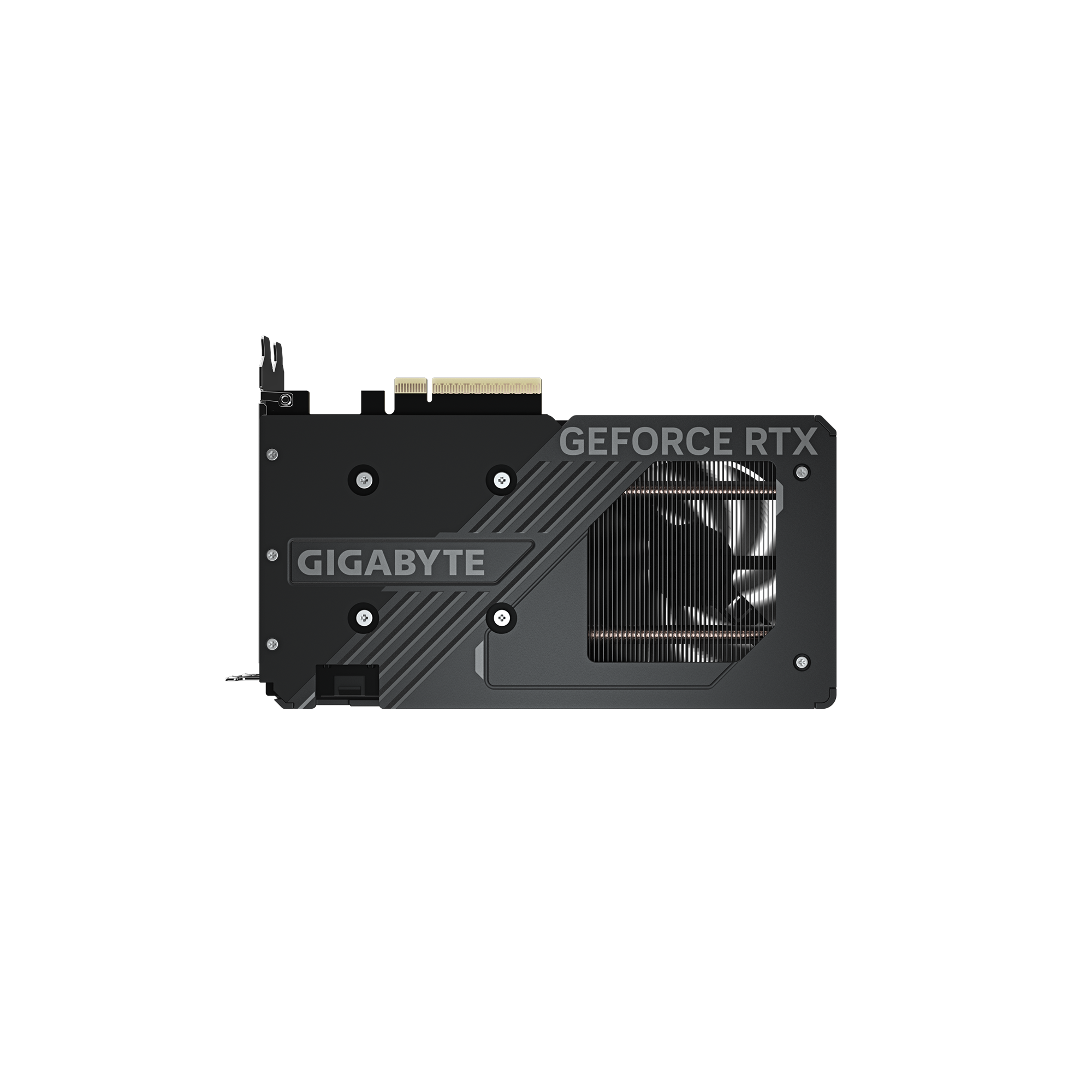

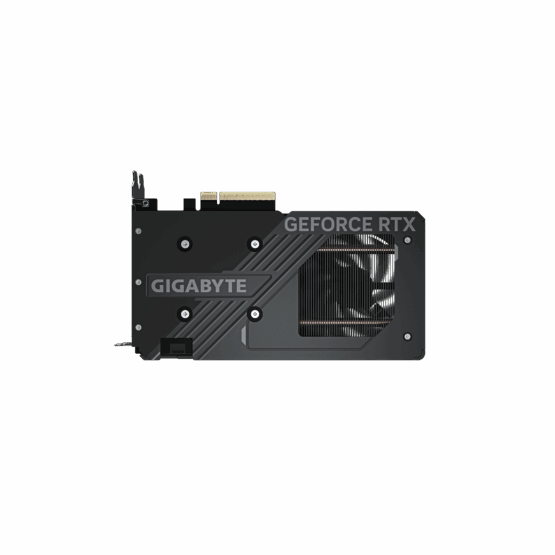

  • Screen cooling backplate

• Fan Size: 2 x 90mm

• Card Dimensions: 199 x 120 x 41 mm

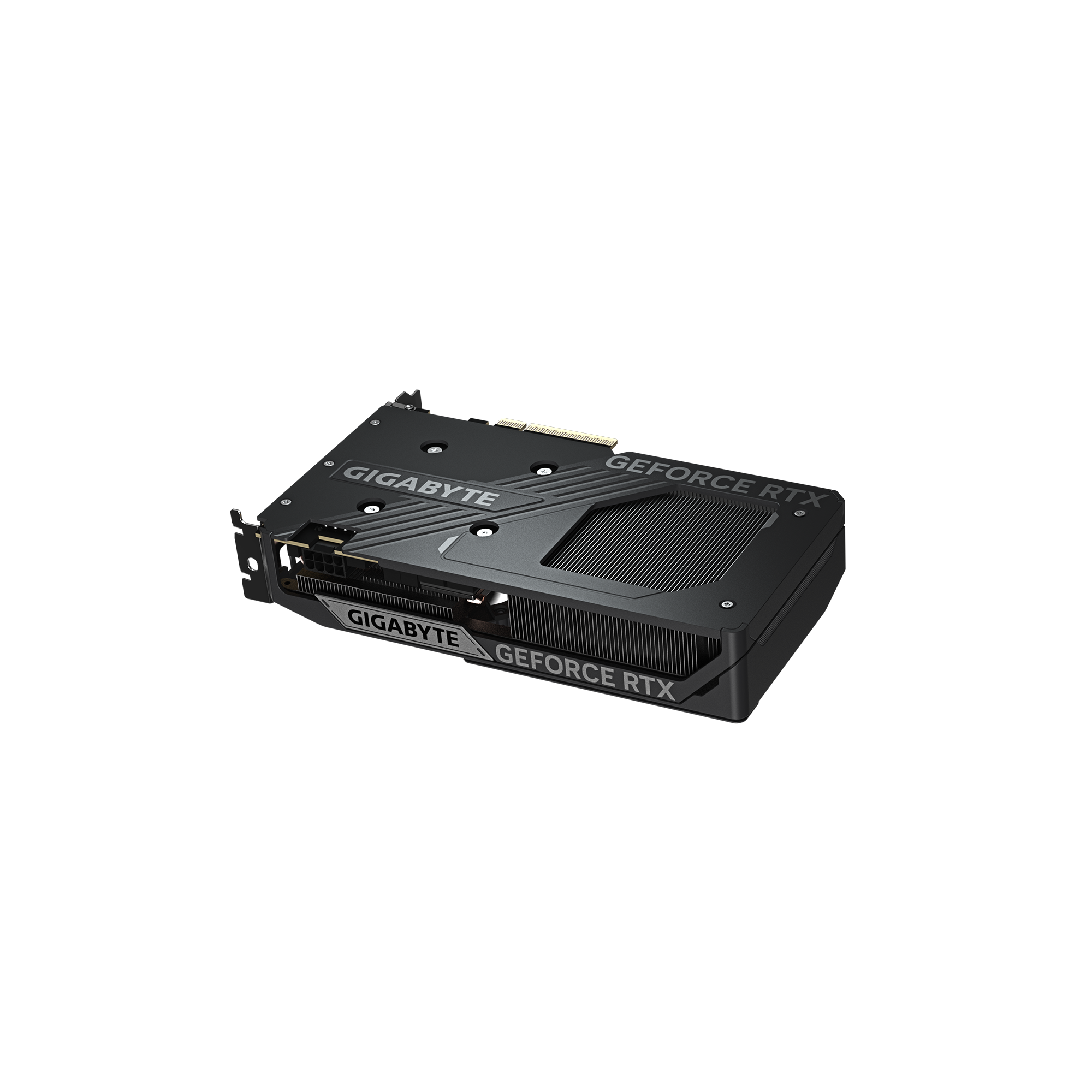

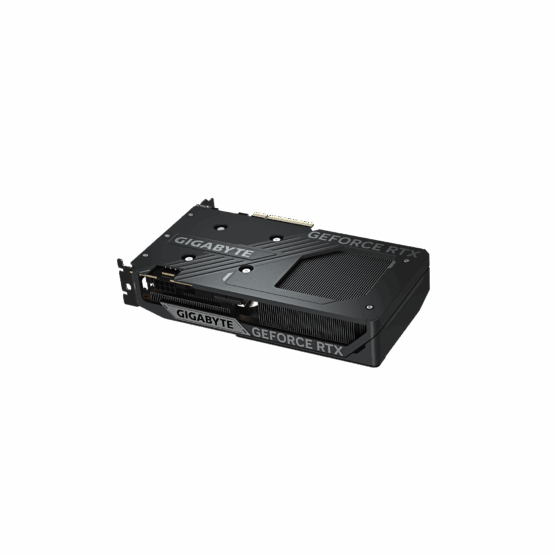

• PCB Design: Compact with anti-sag metal backplate

🔌 Power Requirements

• Recommended PSU: 550W or higher

• Power Connector: 1 x 8-pin

• Power Consumption: ~130W

⚙️ Interface

• Bus Interface: PCI Express 5.0 x16

• DirectX Support: DirectX 12 Ultimate

• OpenGL Support: OpenGL 4.6

🧩 Features & Technologies

• Ray Tracing Cores (4th Gen)

• Tensor Cores (5th Gen)

• DLSS 4 with Multi-Frame Generation

• NVIDIA Reflex and Broadcast

• NVIDIA G-SYNC compatible

• AV1 encode and decode support

• Hardware-accelerated GPU scheduling

🎮 Ideal Use Case

• Gaming Resolution: Best suited for 1080p Ultra and 1440p High settings

• Use Case: Mid-range gaming, streaming, content creation, light 3D rendering

• Competitive Edge: High-efficiency cooling and next-gen memory (GDDR7) at a more affordable price point than the RTX 5070 series
