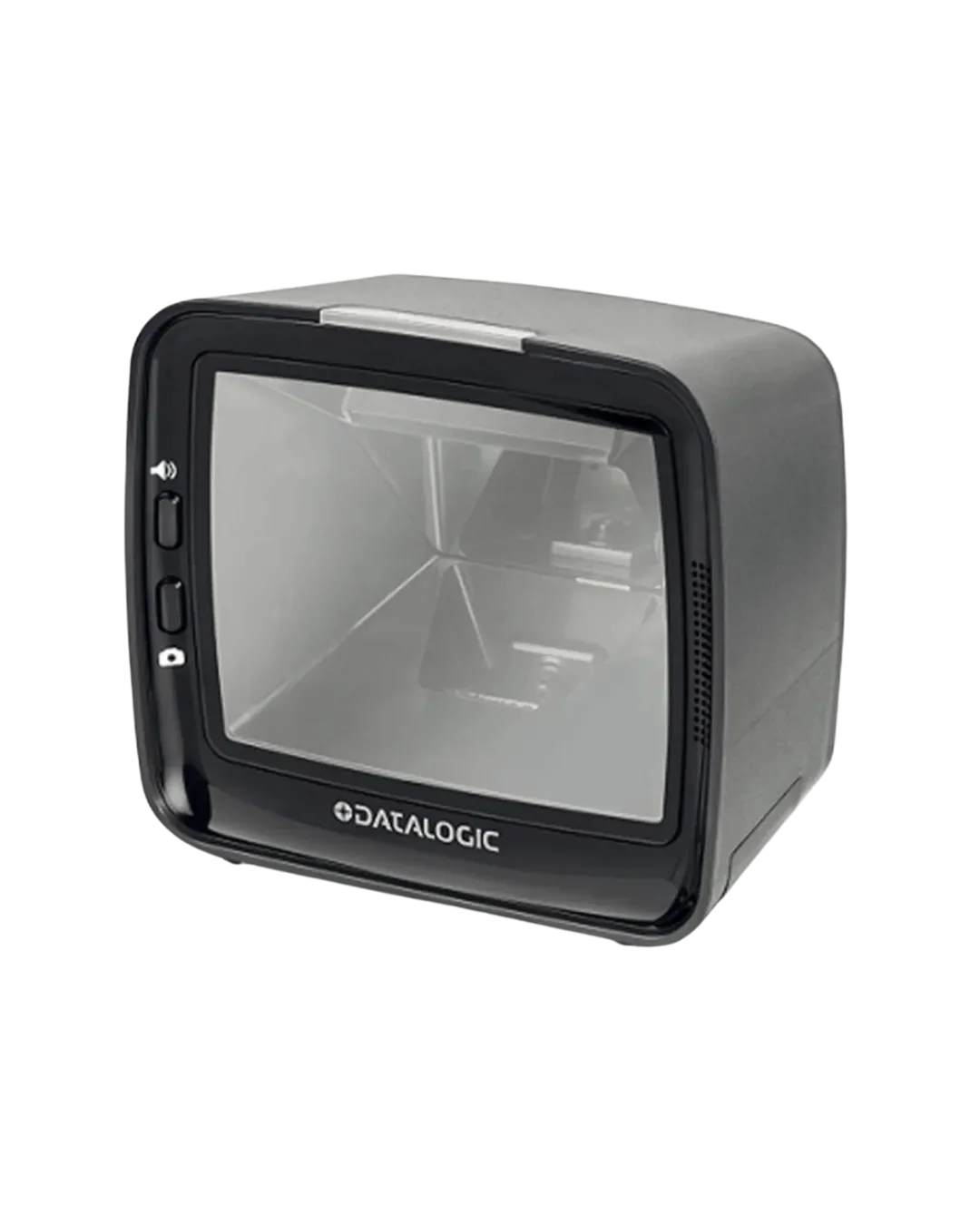

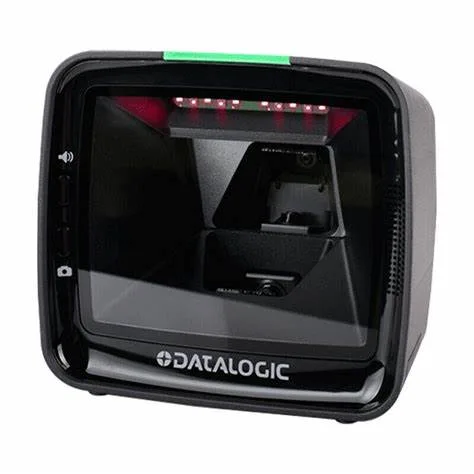

Datalogic Magellan 3410VSi Surface Mount Barcode Scanner

Description

​

🔧 Technical Specifications

• Scanner Type: 2D Area Imager

• Sensor Resolution: 1280 x 800 pixels

• Scan Mode: Fixed projection (hands-free)

• Scan Field Width: Up to 20.3 cm

• Max Working Distance: Up to 14 cm

• Minimum Bar Width: 5 mil

• Print Contrast Signal (PCS): 25%

• Supported Barcodes:

  • 1D: GS1 DataBar, UPC, EAN, Code 39, Code 128, and more

  • 2D: QR Code, PDF417, Data Matrix, Aztec, MicroPDF417, and more

  • Optional: Digimarc® digital watermarking

• Interfaces: USB, RS-232, IBM

• Power Supply: Powered via USB Type A (5V, 2.5W)

• Auxiliary Port: Powered USB (disabled when using 5V USB host port)

• MicroSD Card Slot: Yes

• Environmental Protection: IP52 rated (dust and water-resistant)

• ESD Protection: Up to 25 kV (air discharge)

• Operating Temperature: 10°C to 40°C

• Storage Temperature: -40°C to 70°C

• Humidity: 5% to 95% (non-condensing)

• Dimensions:

  • Width: 15.2 cm

  • Height: 13.7 cm

  • Depth: 9.4 cm

• Weight: Approximately 600 g

• Certifications: RoHS compliant, IEC 62471

• Warranty: 3-year limited warranty​

✅ Key Features

• Advanced Imaging: Captures high-quality images of both 1D and 2D barcodes, including those displayed on mobile devices.

• Adaptive Illumination: Utilizes subtle, near-infrared LEDs that adjust based on ambient lighting, ensuring user comfort.

• Solid-State Electronics: Ensures silent operation and superior reliability.

• Flexible Mounting: Compatible with existing mounts and enclosures, facilitating easy integration into various POS systems.

• Software Driven: Features a software-driven architecture, allowing for easy updates and customization.

• EAS Compatibility: Compatible with Checkpoint Systems and Tyco Sensormatic Electronic Article Surveillance systems.

• Diagnostic Reporting: Provides detailed diagnostics for maintenance and troubleshooting.

• Customer Service Scanner (CSS): Optional CSS allows for scanning of mobile coupons and loyalty cards, enhancing customer engagement.​jarltech.com+1datalogic.com+1jarltech.com+3ingrammicro24.com+3Accelerator
