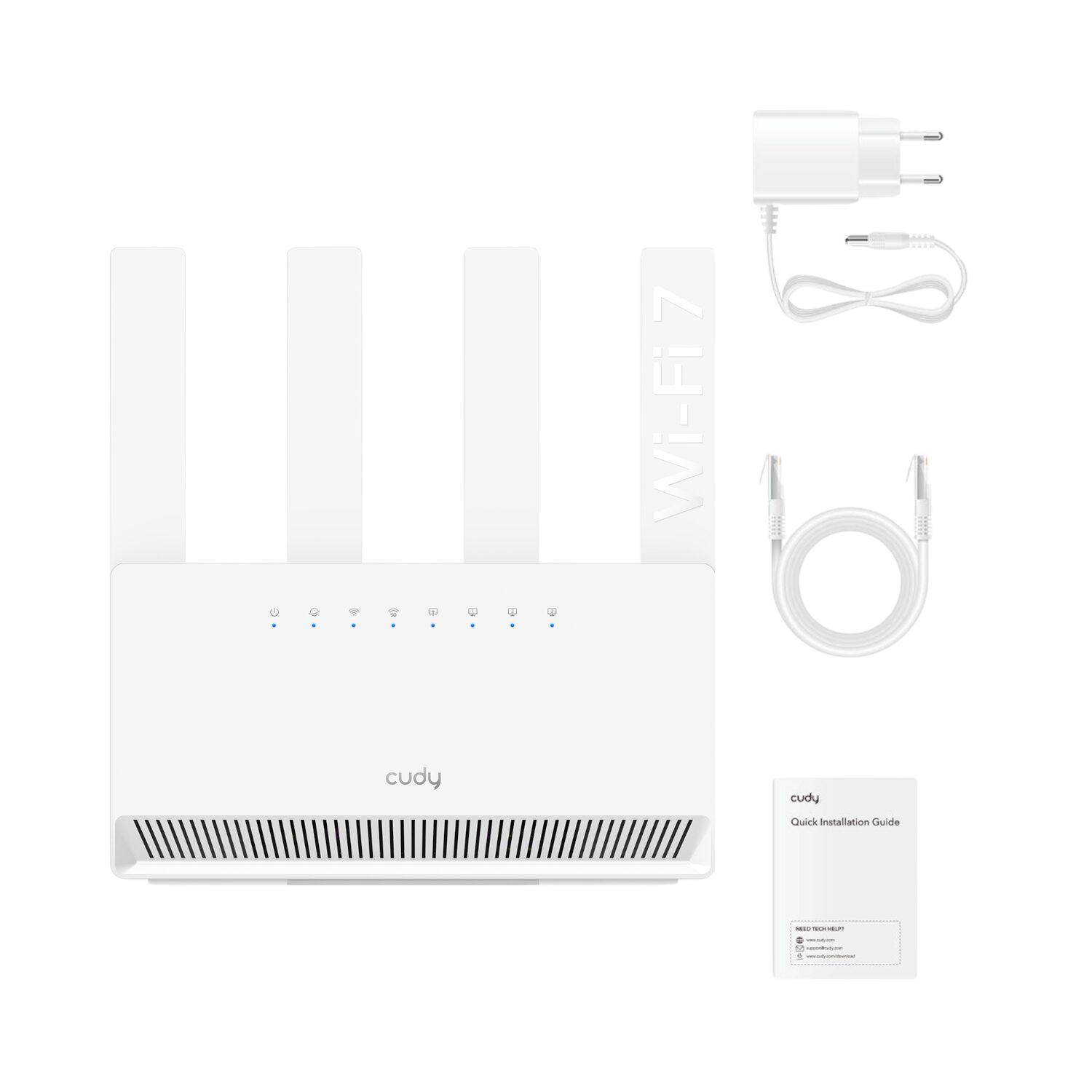

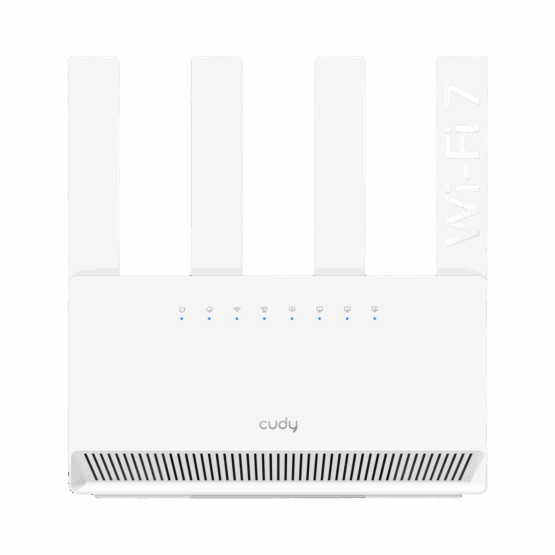

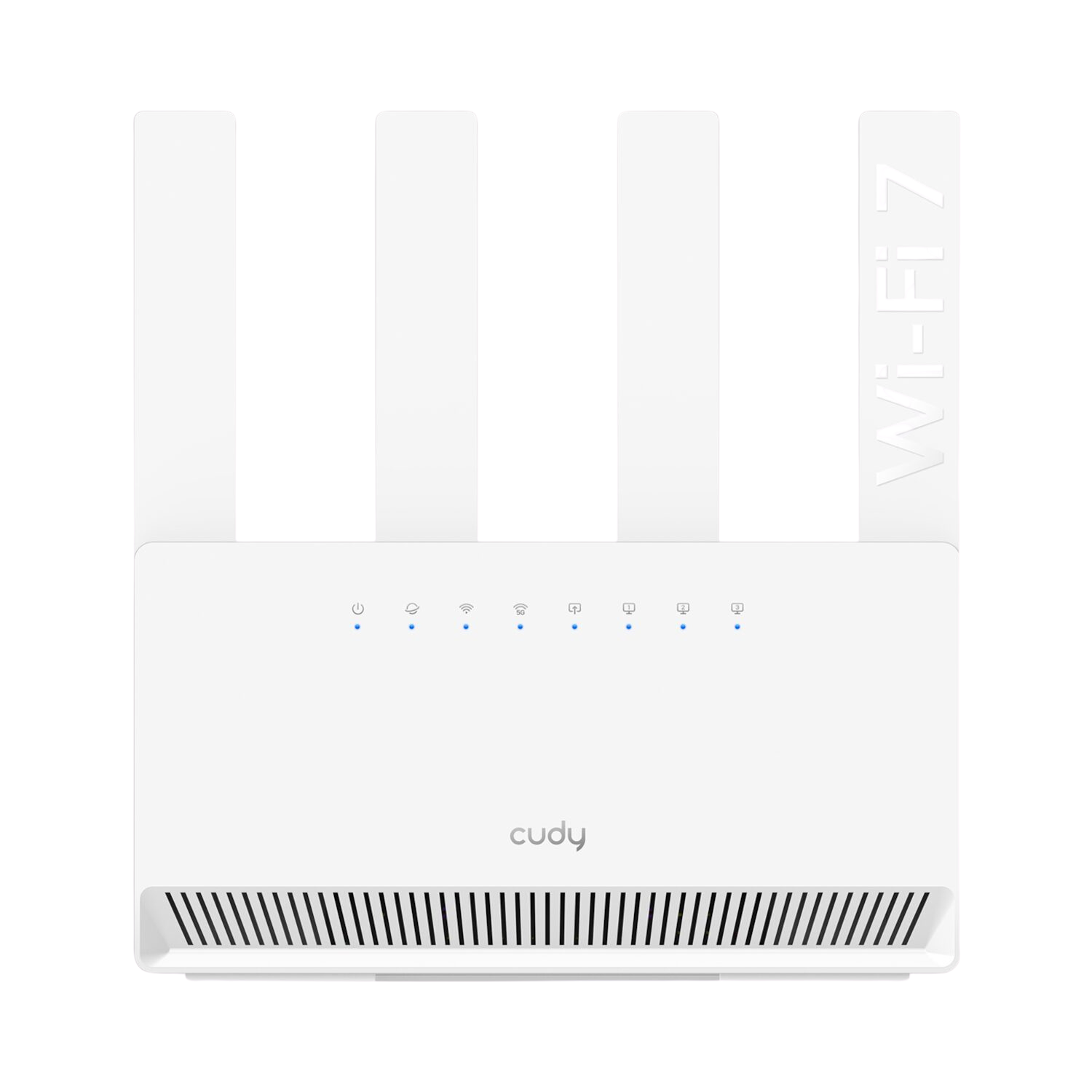

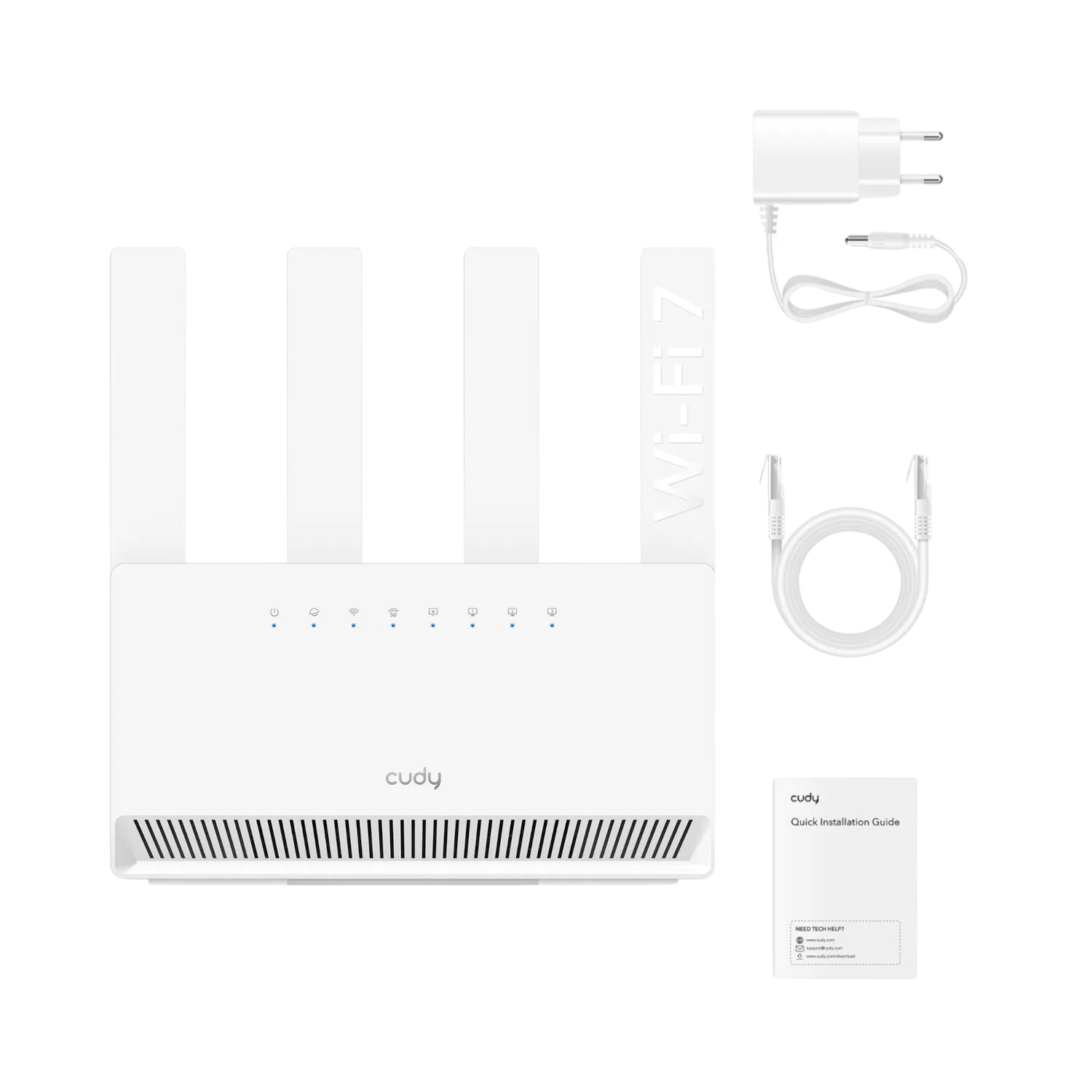

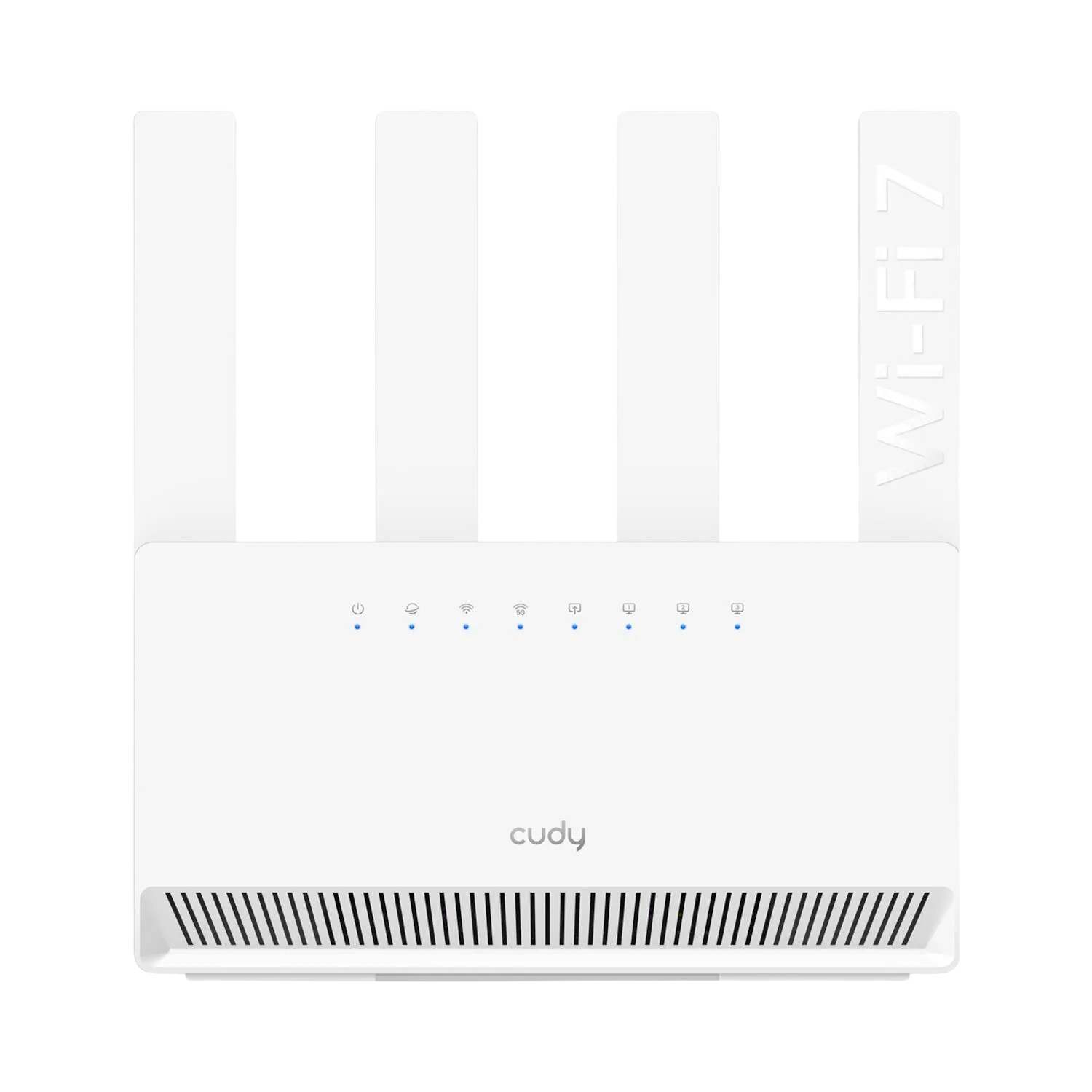

Cudy BE3600E (WR3600E) – Wi-Fi 7 Gigabit Router

Description

📡 Wireless Specifications

• Wi-Fi Standard: Wi-Fi 7 (802.11be)

• Dual-Band Speeds:

  • 5 GHz: Up to 2882 Mbps

  • 2.4 GHz: Up to 688 Mbps

• Total Wireless Throughput: 3600 Mbps (BE3600)

• Modulation: 4K-QAM

• MIMO Configuration: 2×2 (2T2R) on both 2.4 GHz and 5 GHz

• Beamforming: Supported

• Multi-Link Operation (MLO): Supported

📡 Antenna Setup

• Antennas: 4 × High-Gain Fixed External Antennas

  • 2.4 GHz Gain: Up to 5.2 dBi

  • 5 GHz Gain: Up to 6.8 dBi

⚙️ Hardware & Ports

• Processor: 2.0 GHz Quad-Core ARM Cortex-A7 (Broadcom)

• RAM: 512 MB DDR3L

• Flash Memory: 128 MB NAND

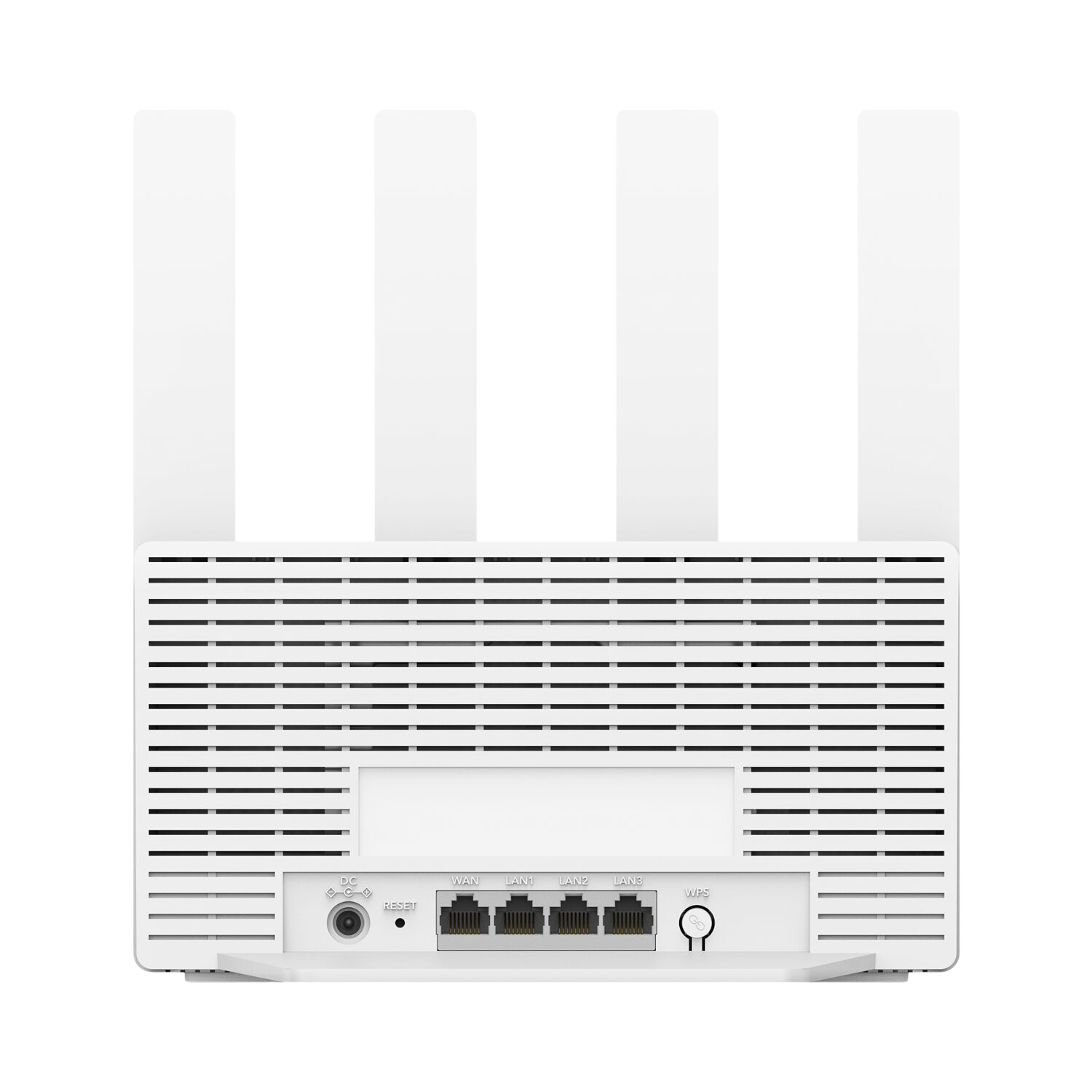

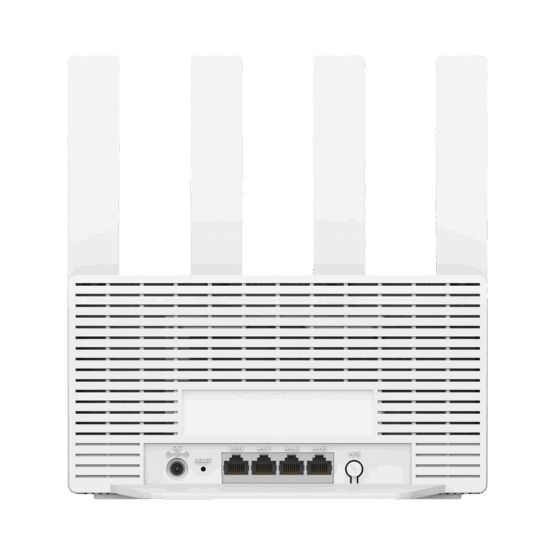

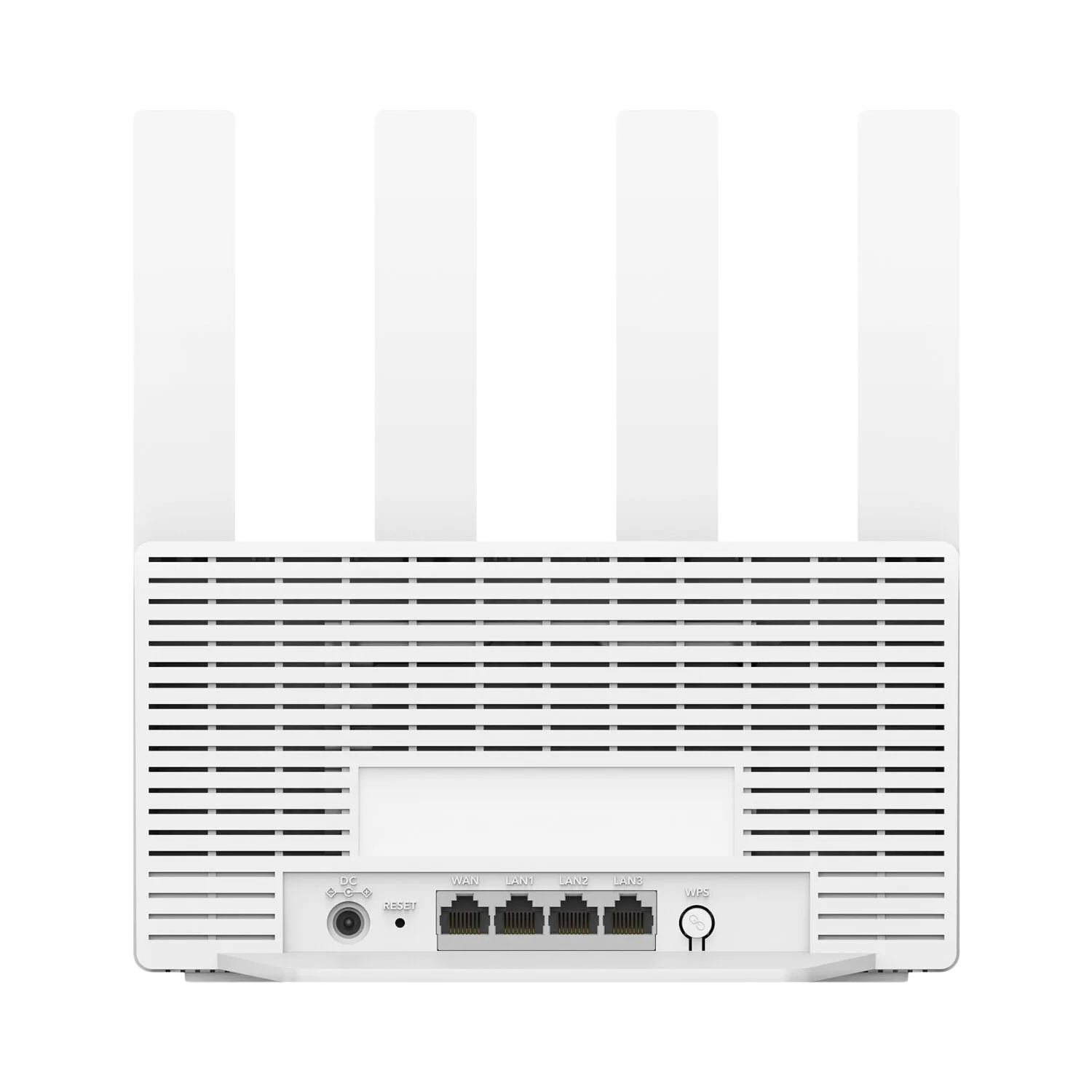

• LAN/WAN Ports:

  • 1 × Gigabit WAN

  • 3 × Gigabit LAN

• Power Supply: 12V / 1A

• Power Consumption: Max 8.5W

🌐 Software & Features

• OFDMA and MU-MIMO: Optimized multi-user handling

• Parental Controls: Device filtering and content blocking

• VPN Support: Built-in VPN Server & Client

• App Control: Remote management via Cudy App

• Cloud Management: Available

• Mesh Support: Compatible with Cudy Mesh (firmware-dependent)

• Security Protocols: WPA3/WPA2 Mixed, Firewall, and MAC Filtering

📏 Performance & Capacity

• Coverage Area: Up to 130 m² indoors

• Open Environment Range: Up to 220 meters

• Simultaneous Device Support: Up to 200 connected devices
