📏 Physical Specifications
-
Case Type: Mid-Tower, Single-Chamber Layout
-
Motherboard Compatibility: E-ATX (up to 305 × 277 mm), ATX, Micro-ATX, Mini-ITX
-
Dimensions: 460 mm (L) × 240 mm (W) × 506 mm (H)
-
Weight: ~10.54 kg
-
Material: Steel chassis, Tempered glass panels, Plastic accents
-
Color Options: Black / White
💾 Storage & Expansion
-
Drive Bays:
-
2 × 3.5″ HDDs
-
2 × 2.5″ SSDs
-
-
Expansion Slots:
-
7 horizontal
-
4 vertical (requires vertical GPU mount bracket)
-
-
GPU Clearance: Up to 425 mm
-
CPU Cooler Clearance: Up to 170 mm
-
PSU Length Support: Up to 180 mm
❄️ Cooling & Radiator Support
Fan Mounts:
-
Top: 3 × 120 mm or 2 × 140 mm
-
Side: 3 × 120 mm or 2 × 140 mm
-
Bottom: 3 × 120 mm or 1 × 140 mm
-
Rear: 1 × 120 mm
Radiator Mounts:
-
Top: Up to 360 mm
-
Side: Up to 360 mm
-
Rear: 120 mm

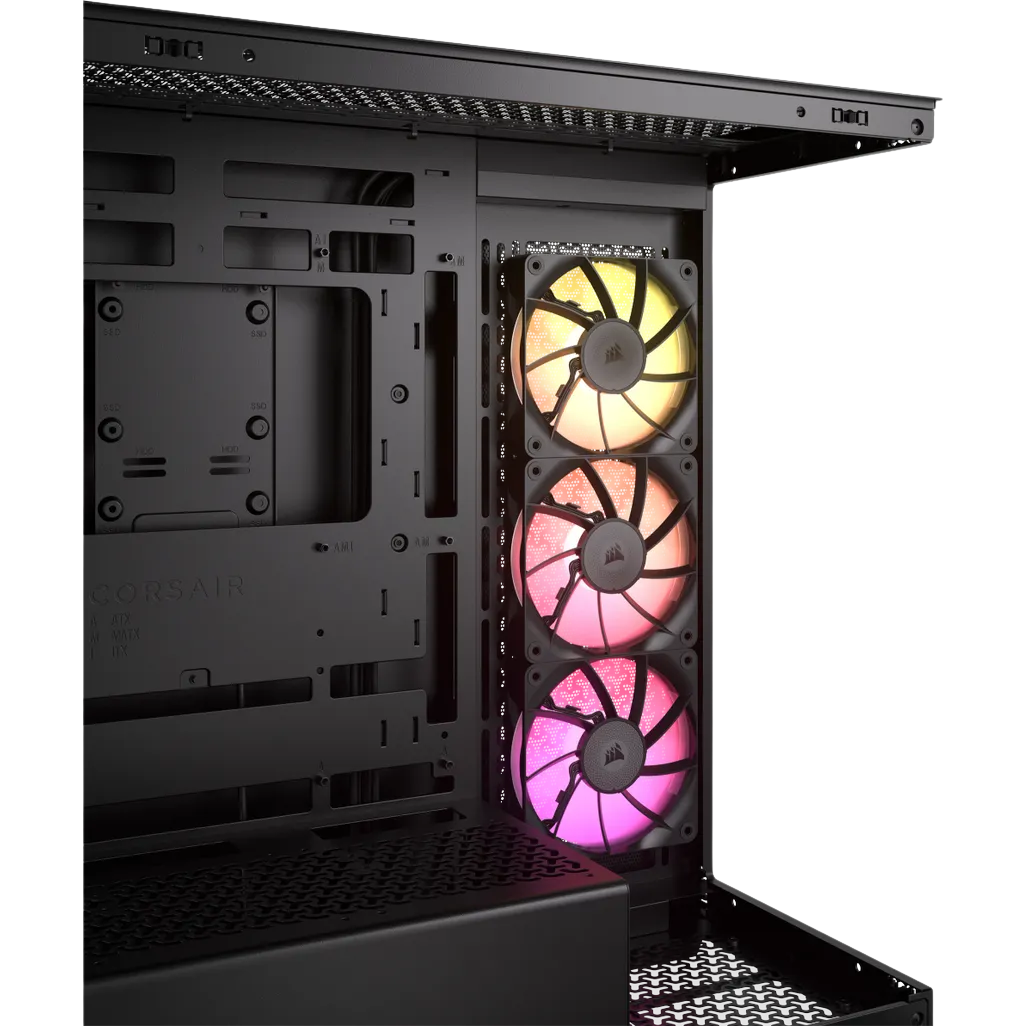

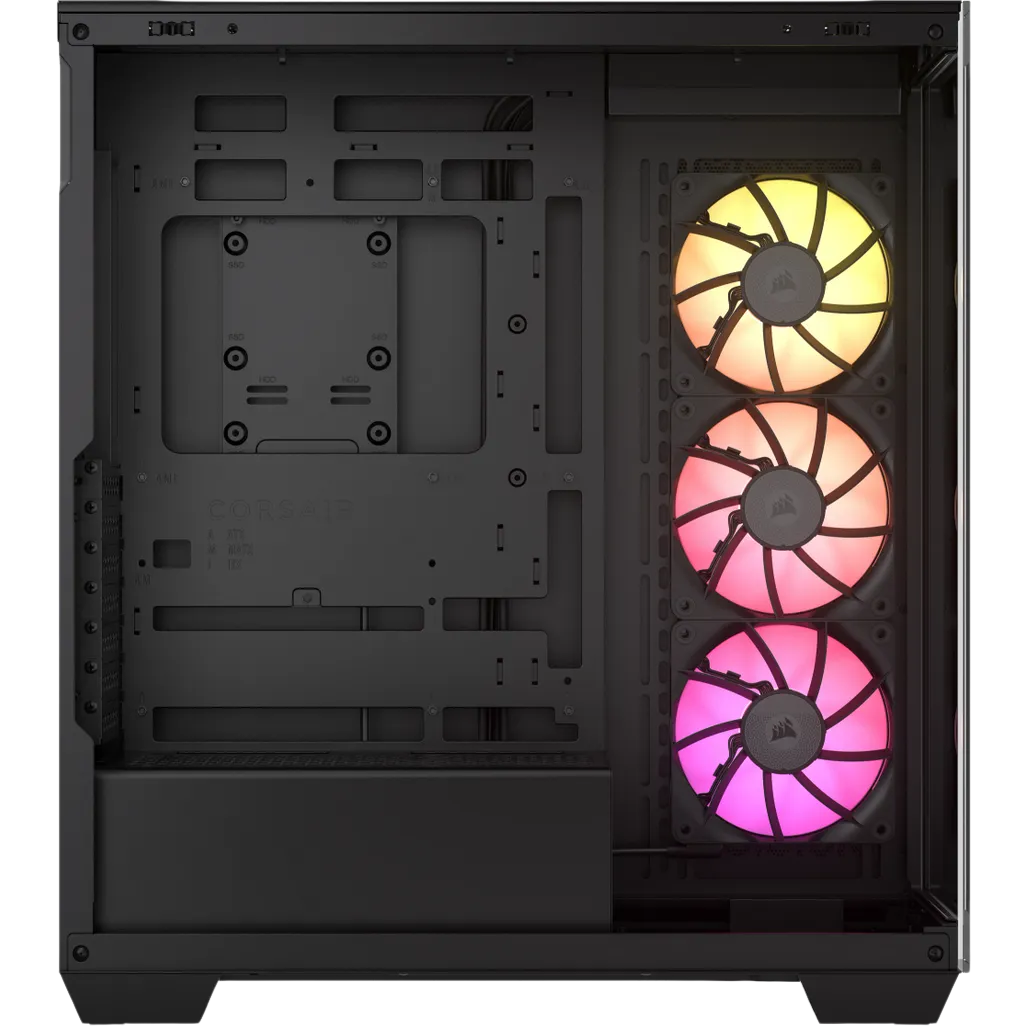

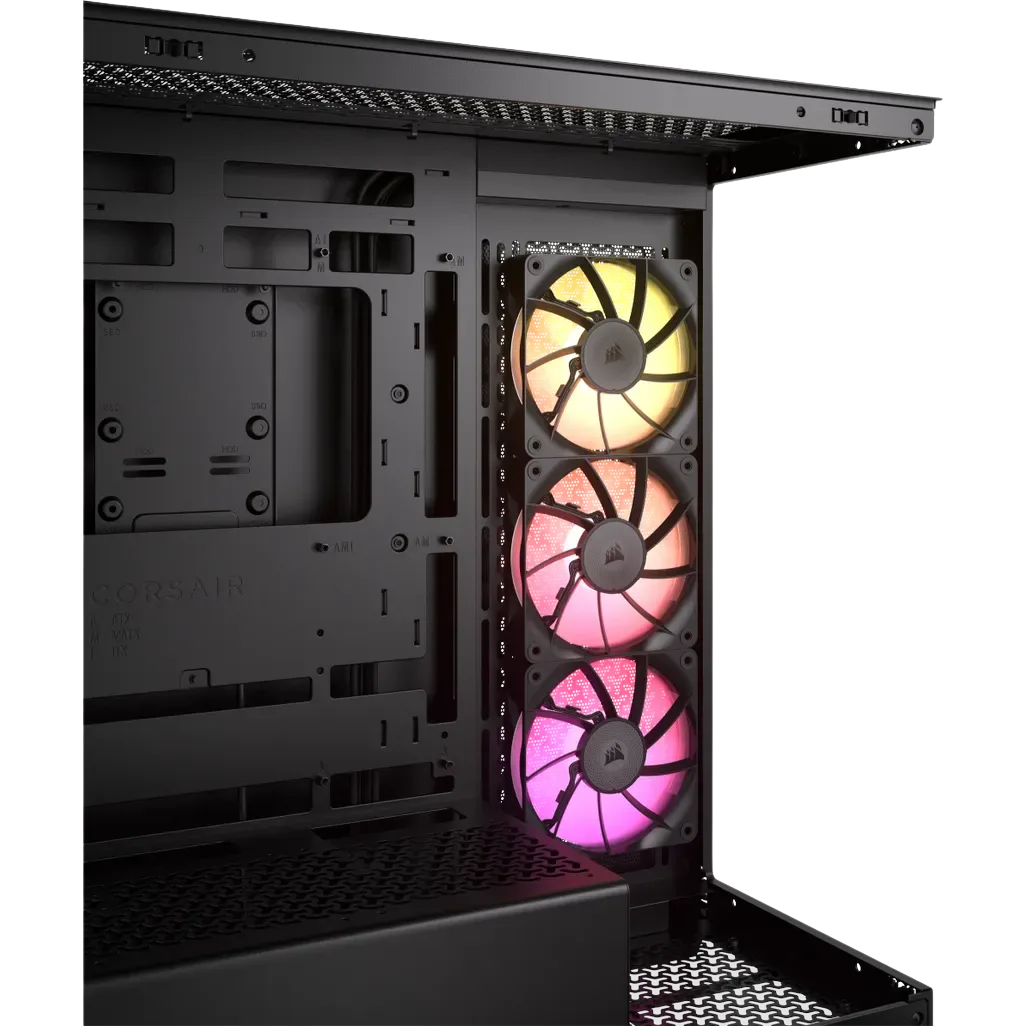

Pre-Installed Fans:
-
3 × iCUE LINK RX120 RGB fans (intelligent, daisy-chainable)
Dust Filters: Included on top, bottom, and side intake areas

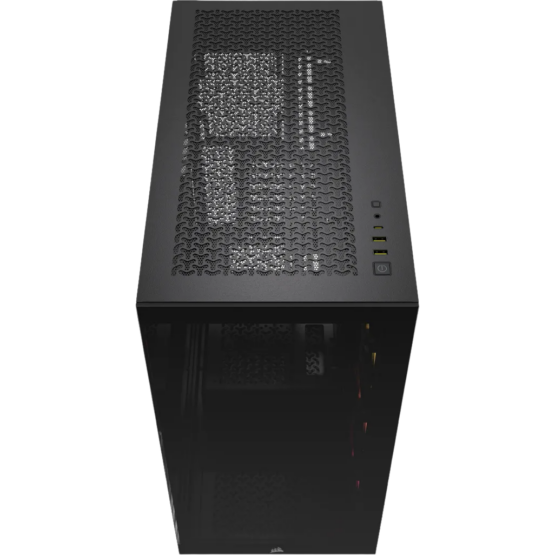

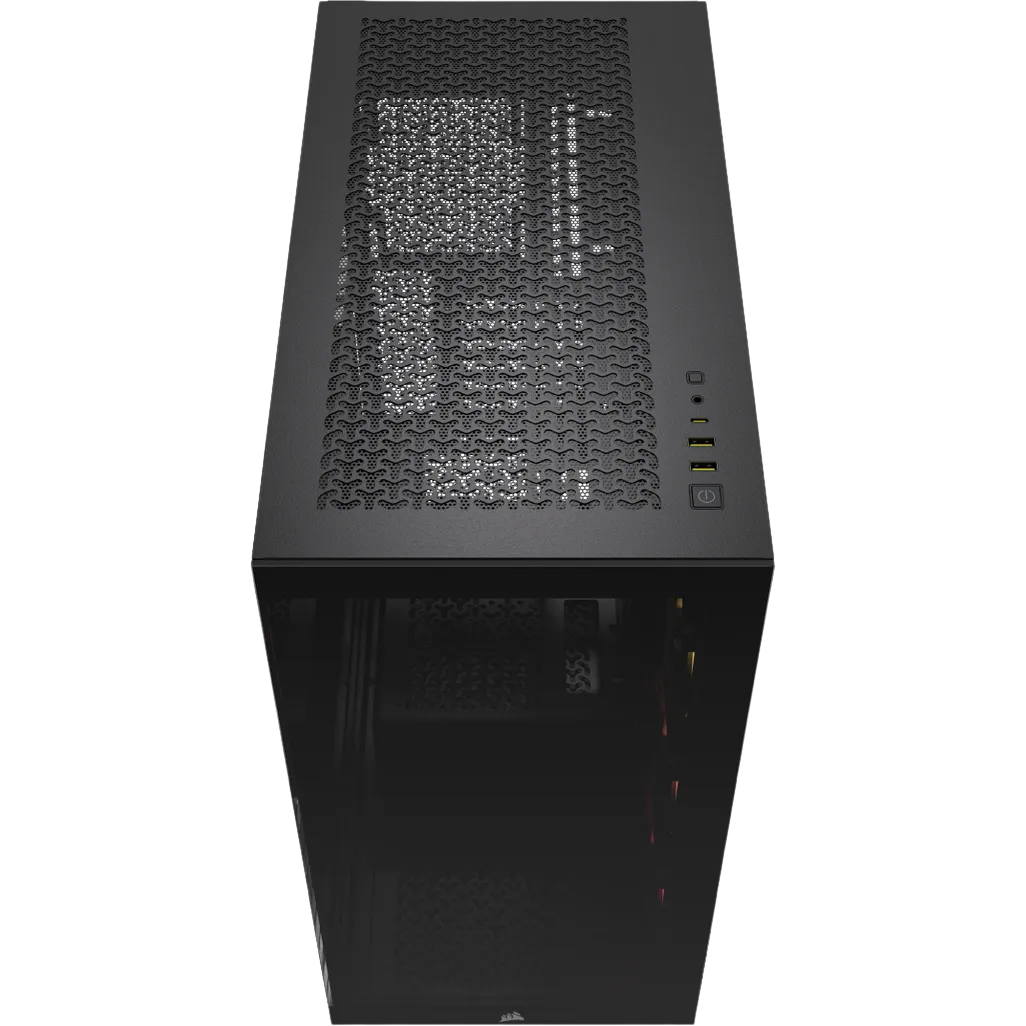

🔌 Front I/O Connectivity
-
1 × USB 3.2 Gen 2 Type-C
-
2 × USB 3.2 Gen 1 Type-A
-
1 × 3.5 mm combo audio jack
-
Power and reset buttons with activity LED
🛠️ Special Features
-

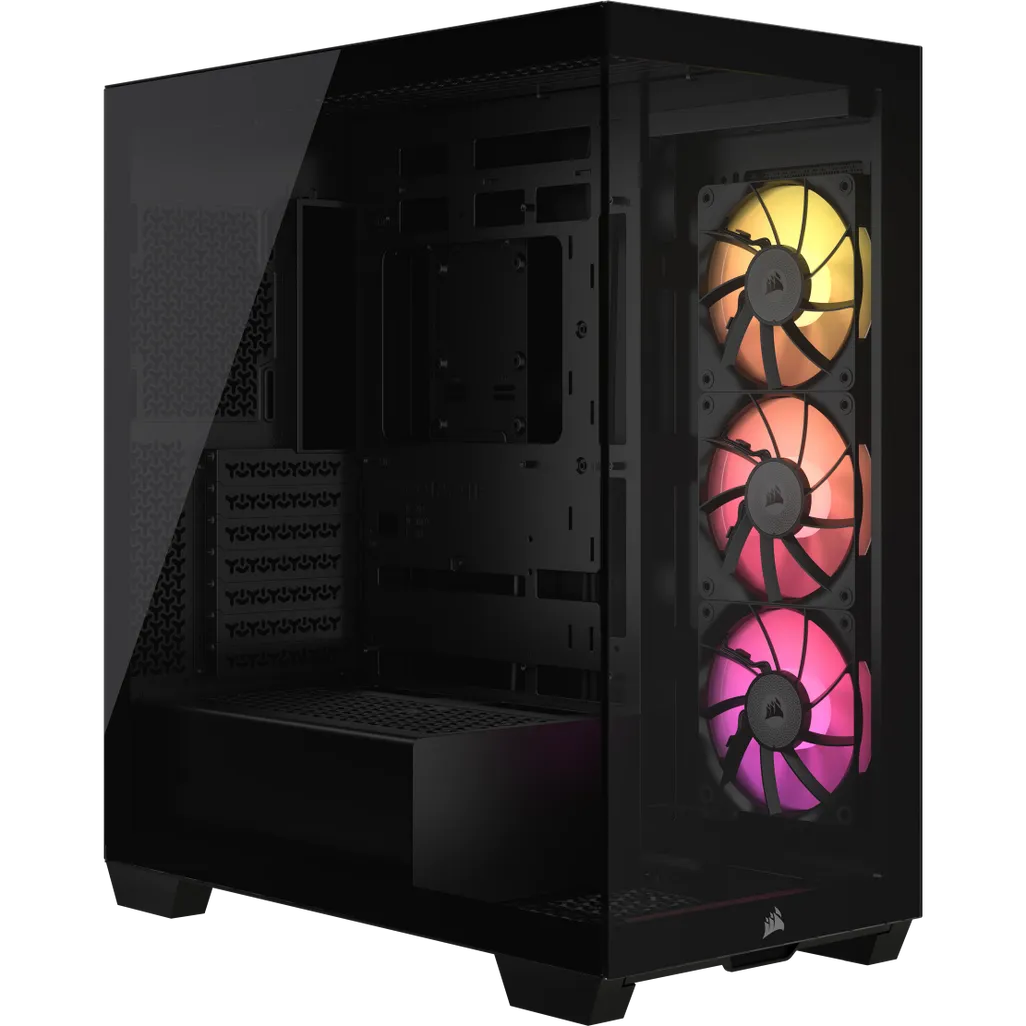

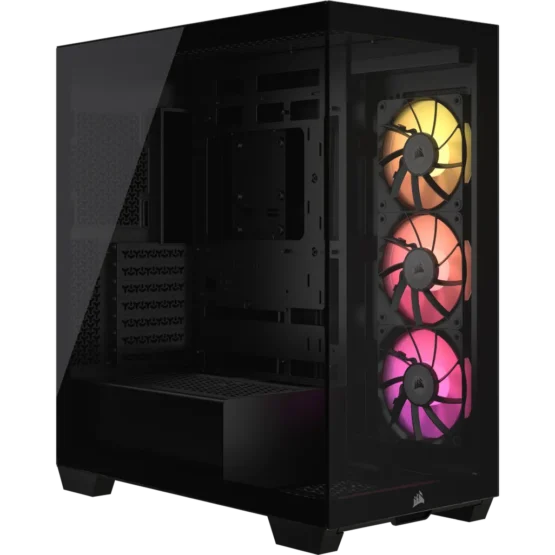

Panoramic Glass Design: Edge-to-edge tempered glass front and side panel for a premium, unobstructed hardware showcase
-
iCUE LINK Ready: Native support for Corsair iCUE LINK ecosystem allowing single-cable connectivity for fans, coolers, and lighting
-
Reverse Connector Motherboard Support: Fully compatible with ASUS BTF and MSI Project Zero boards for hidden cable routing
-
Vertical GPU Mount Ready: Includes 4 vertical slots for optional PCIe 4.0 riser cable (sold separately)
-

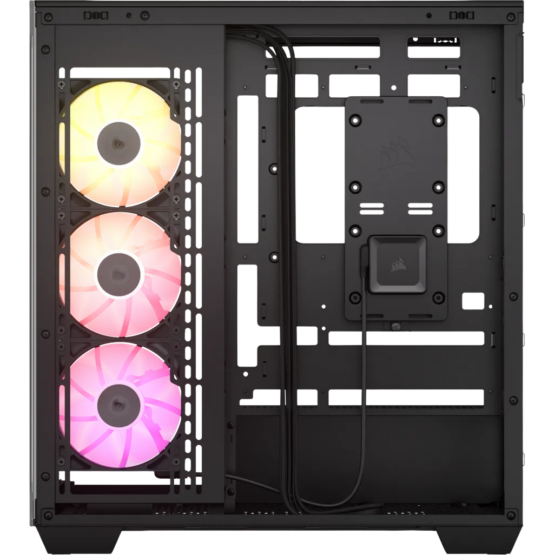

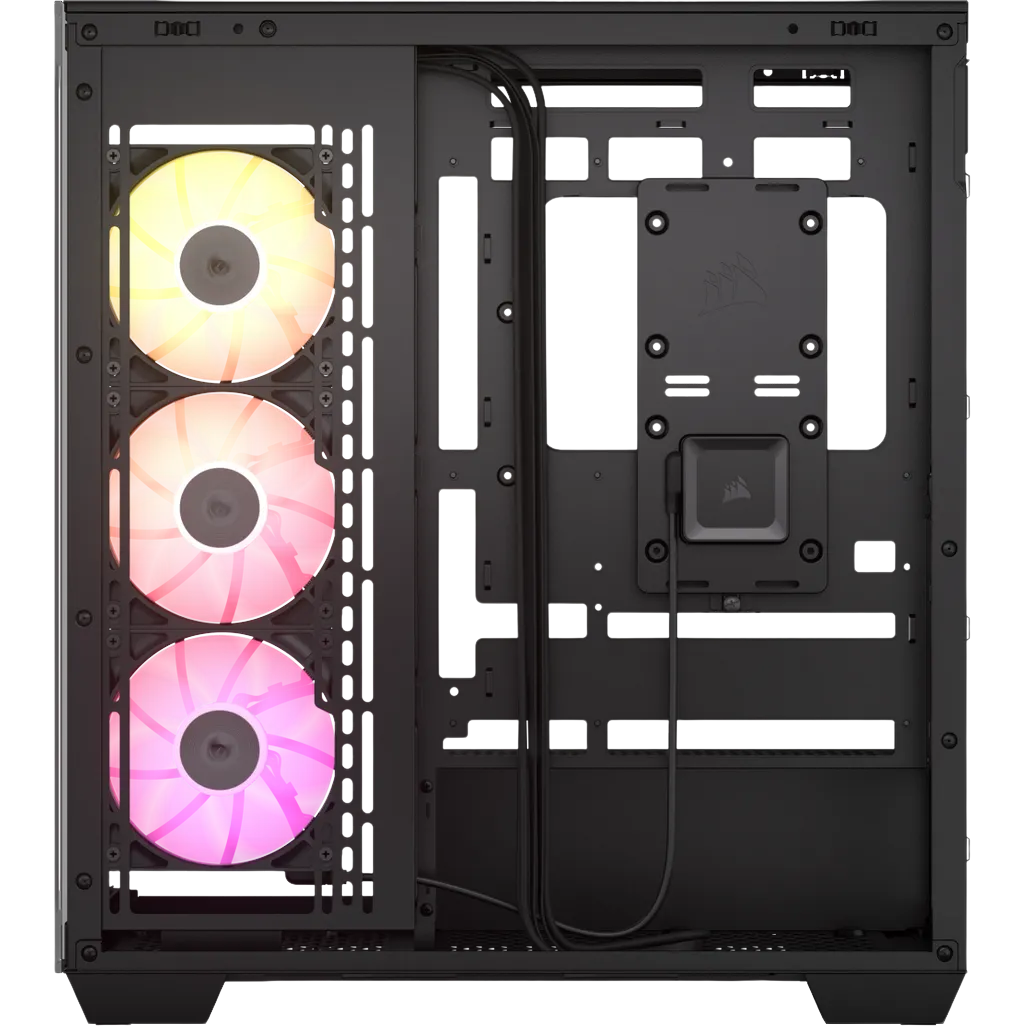

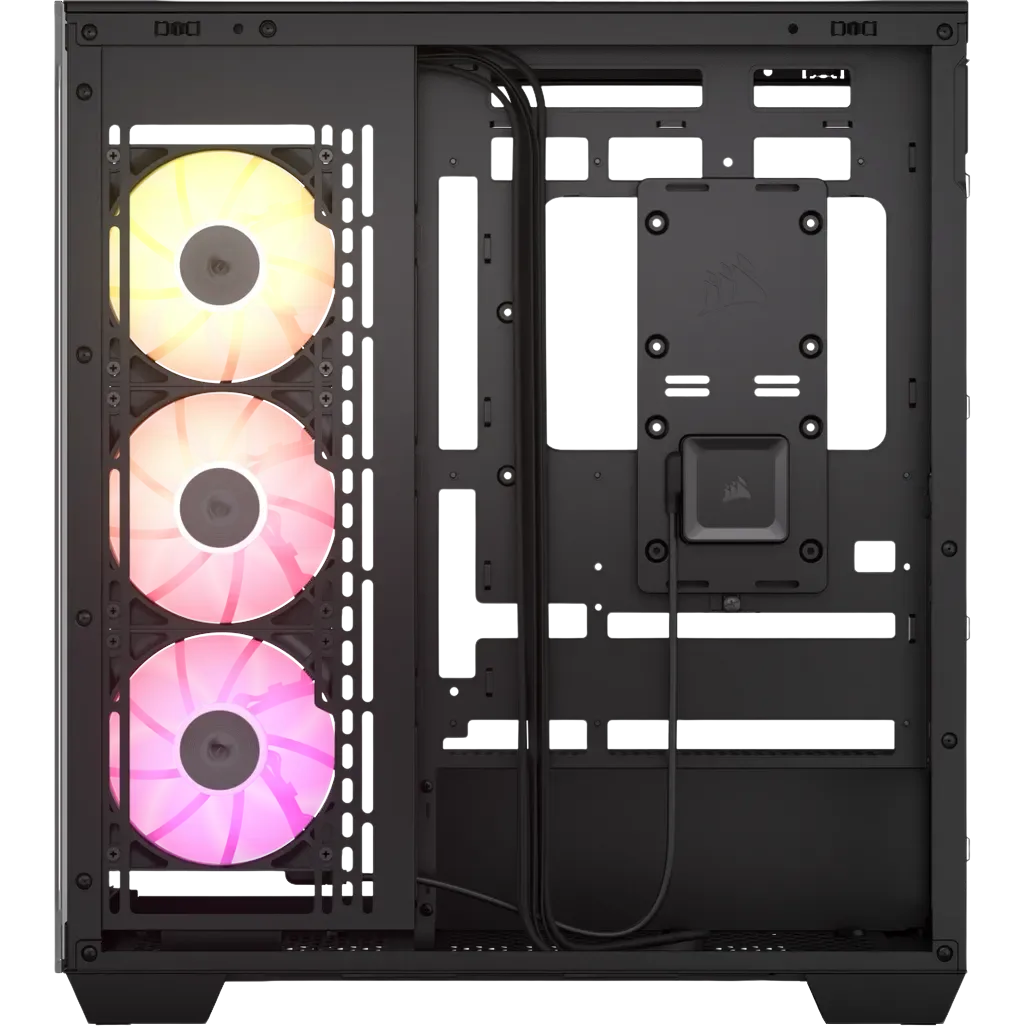

Cable Management: 45 mm routing space with cable channels and Velcro ties
-

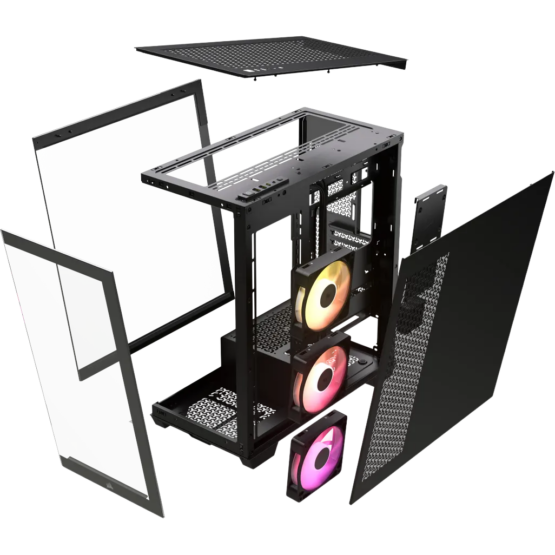

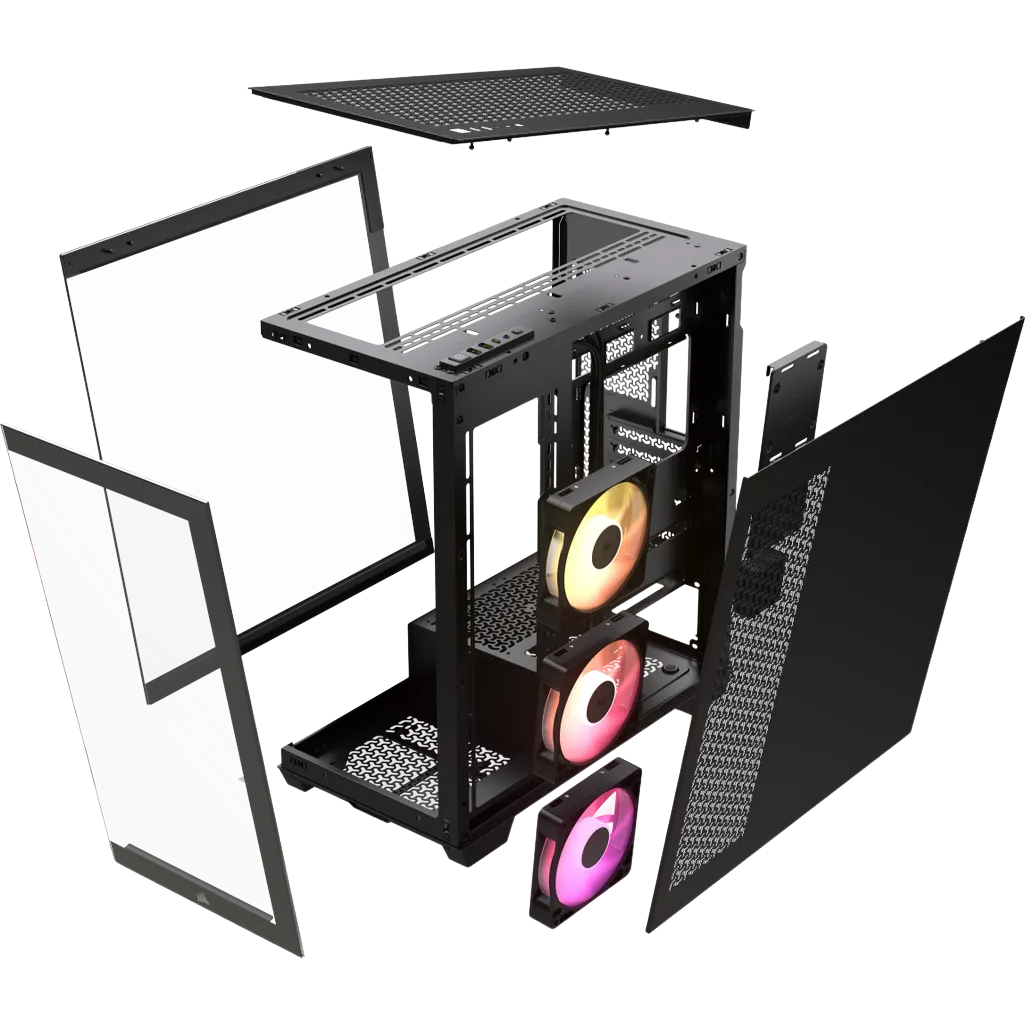

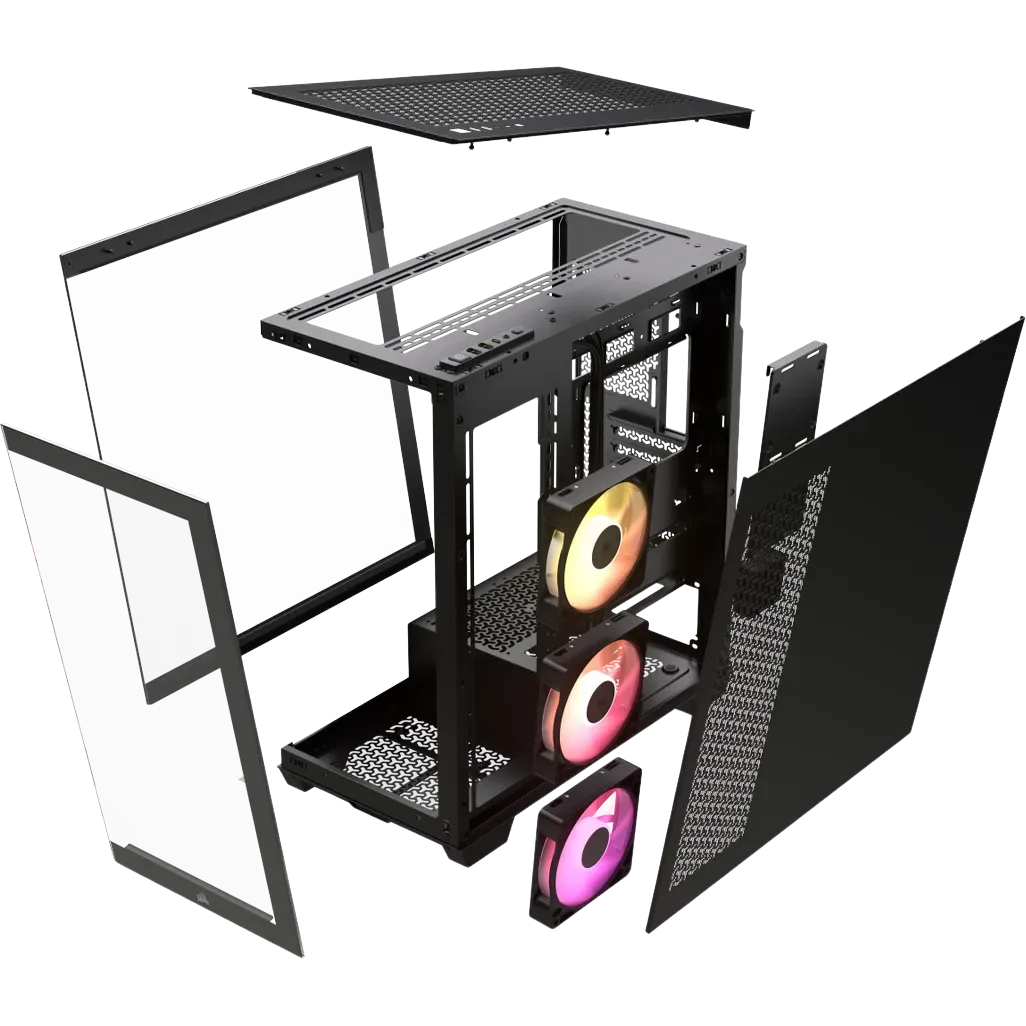

Tool-Free Access: Snap-off panels and removable trays for easy building and upgrades
