Corsair FRAME 4000D RS

Description

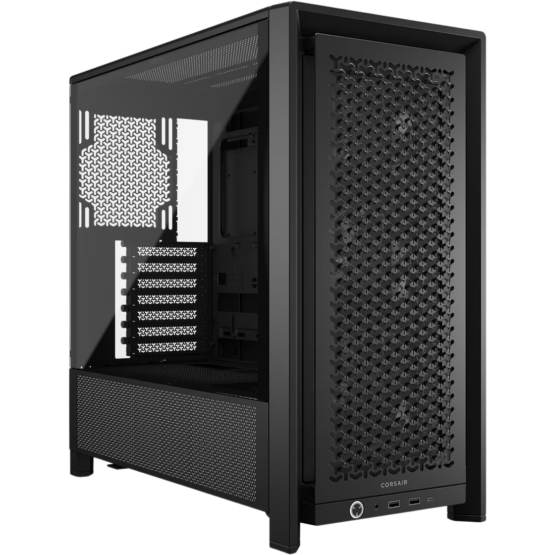

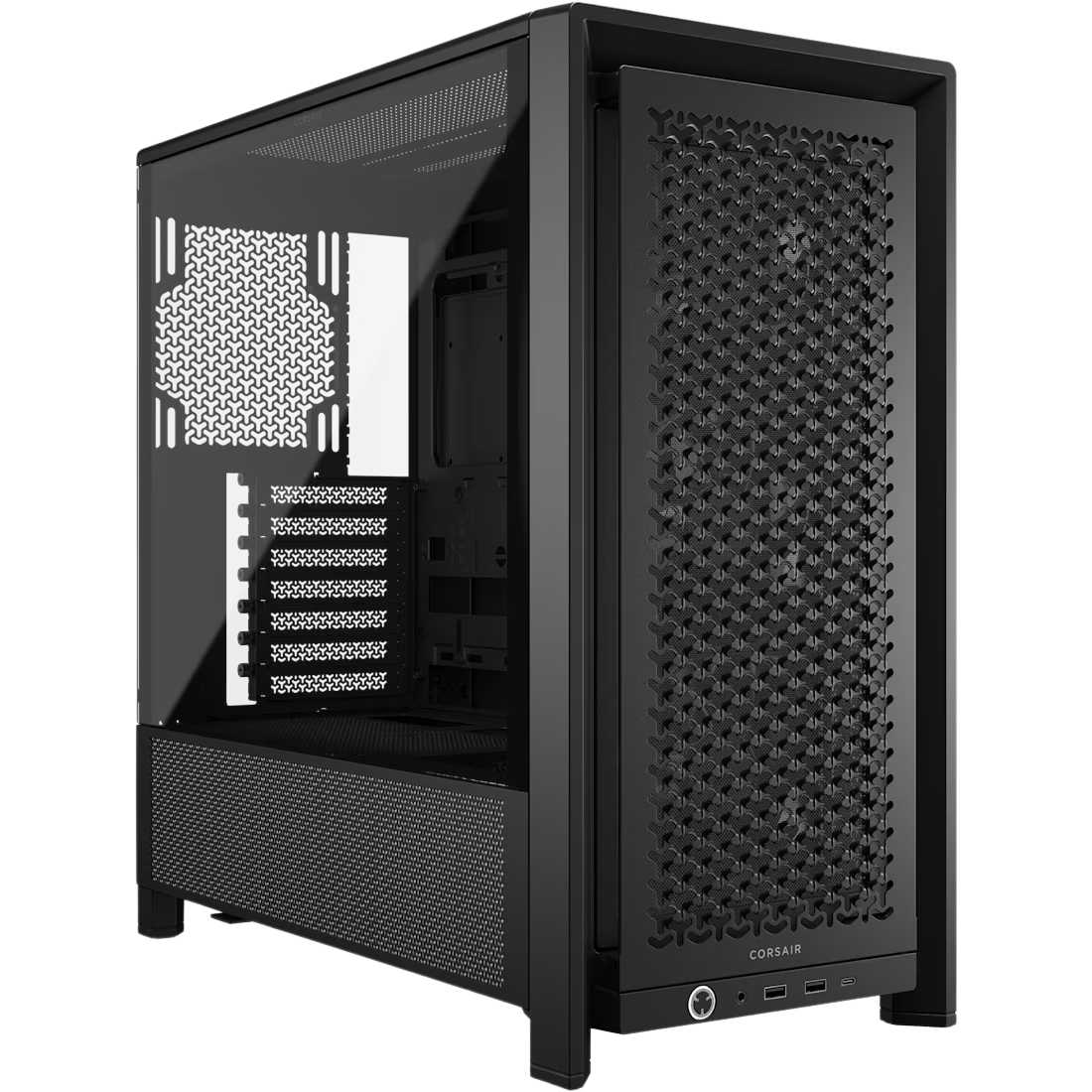

📦 Case Overview

• Case Type: Mid-Tower

• Color: Black

• Build Orientation: Standard ATX tower layout

• Tempered Glass: Yes, side panel (tool-free design)

• Weight: Approximately 7.85 kg

• Dimensions: 453 mm (L) × 230 mm (W) × 466 mm (H)

• Material: Steel frame, plastic accents, tempered glass panel

🧩 Motherboard Compatibility

• E-ATX (up to 305 mm × 277 mm)

• ATX

• Micro-ATX

• Mini-ITX

💾 Drive Support

• 2 × 3.5″ HDD Bays

• 2 × 2.5″ SSD Bays

🚀 Component Clearance

• GPU Length: Up to 360 mm

• CPU Cooler Height: Up to 170 mm

• PSU Length: Up to 220 mm

❄️ Cooling & Radiator Support

Pre-Installed Fans:

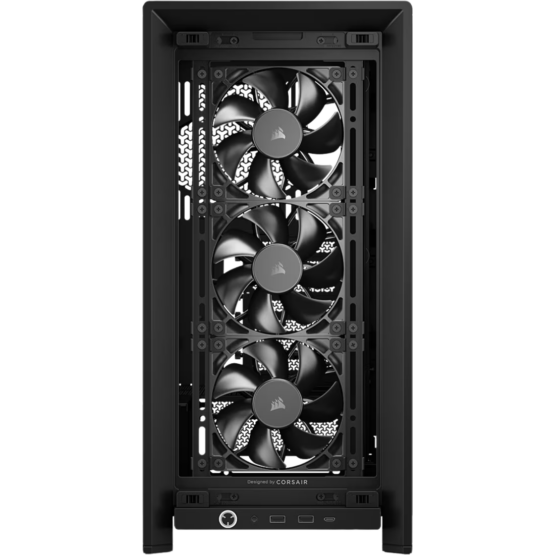

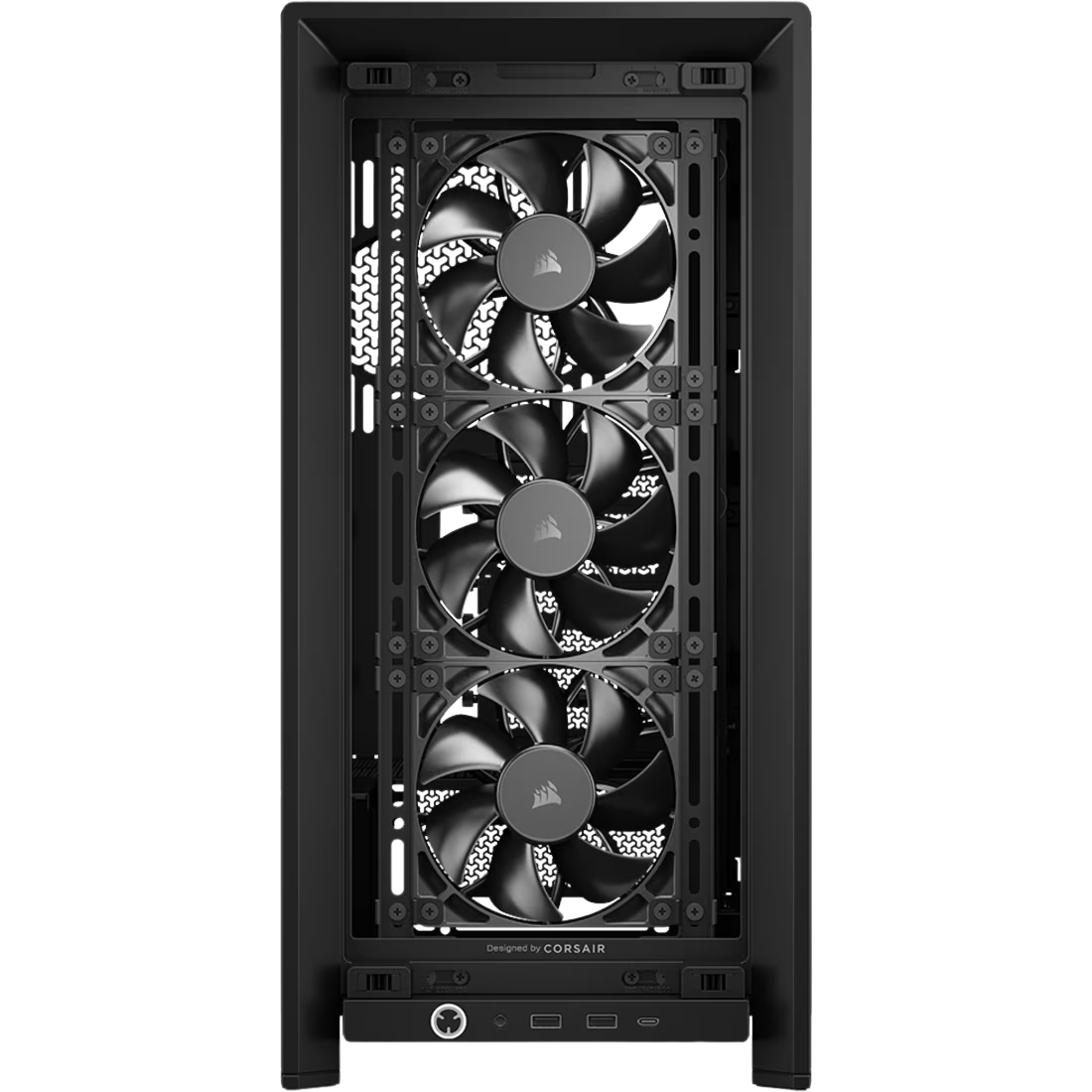

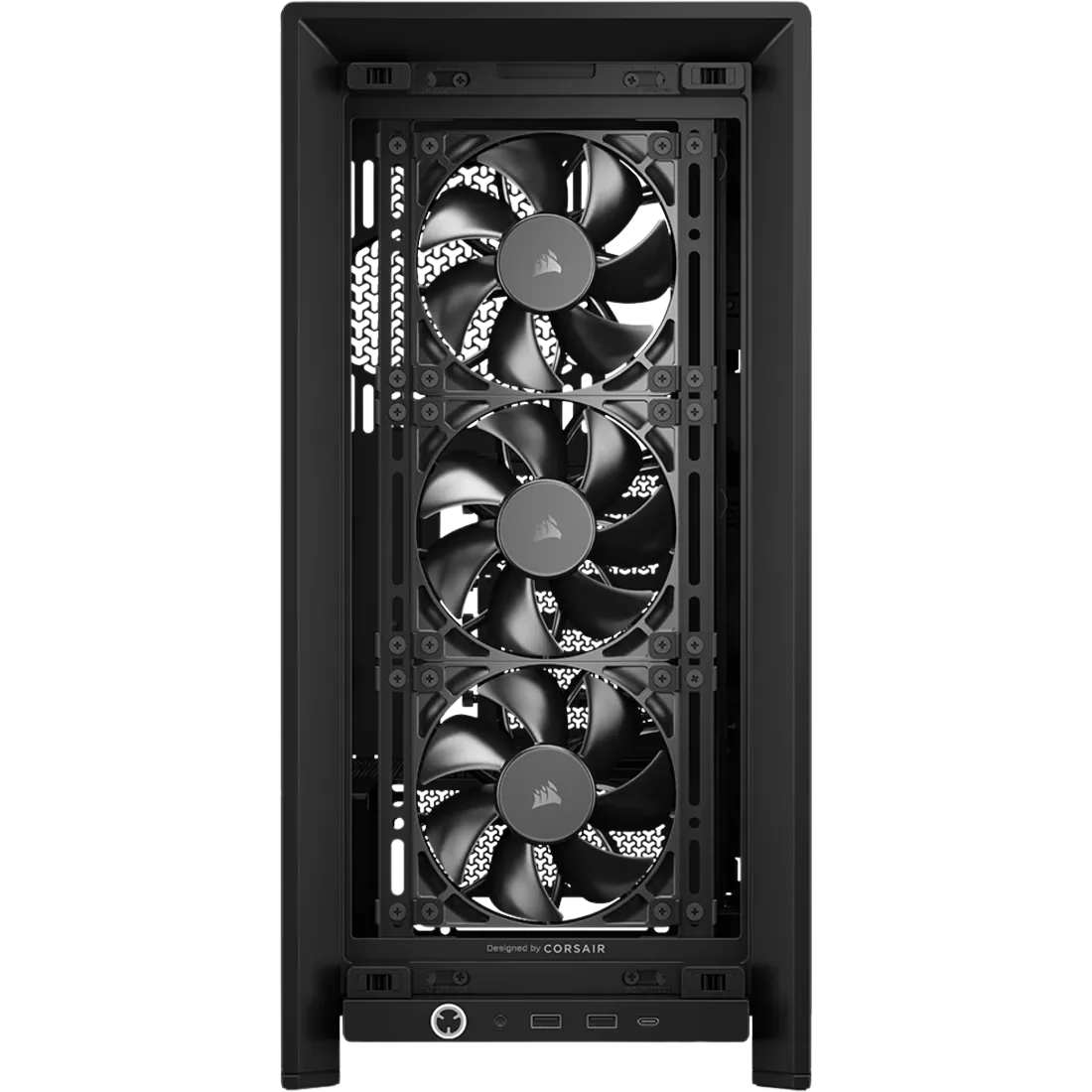

• 3 × 120 mm RS120 RGB Fans (Front)

Fan Mount Locations:

• Front: 3 × 120 mm or 2 × 140 mm

• Top: 2 × 120 mm or 2 × 140 mm

• Rear: 1 × 120 mm

Radiator Support:

• Front: Up to 360 mm

• Top: Up to 280 mm

• Rear: 120 mm

Dust Filters:

• Included on top, bottom, and front intake zones (magnetic or slide-out)

🔌 Front I/O Connectivity

• 1 × USB 3.2 Gen 2 Type-C

• 1 × USB 3.2 Gen 1 Type-A

• 1 × 3.5 mm combo audio/mic jack

• Power and Reset buttons

🛠️ Notable Features

• Modular InfiniRail Fan Mounting System: Customizable placement of cooling fans and radiators

• High-Airflow Mesh Front: Allows unrestricted air intake

• Vertical GPU Support: 2 vertical expansion slots for optional vertical GPU display (riser cable not included)

• Cable Management: 25 mm of routing space behind the motherboard tray with multiple tie points

• Clear Build Visibility: Large side tempered glass window for showcasing components

• Tool-Free Design: Simplified access to panels and storage mounts
