Description
📏 Dimensions & Physical Specs
-
Case Type: Mid-Tower, Dual-Chamber
-
Motherboard Support: E-ATX (up to 305 × 277 mm), ATX, Micro-ATX, Mini-ITX
-
Dimensions: 481 mm (L) × 328 mm (W) × 496 mm (H)
-
Weight: ~16.4 kg
-
Materials: Steel frame, Tempered glass side and front, Plastic accents
-
Color Variants: Black, White, Black/Walnut Wood, White/Bamboo Wood, Aluminum Editions
🧩 Storage & Expansion
-

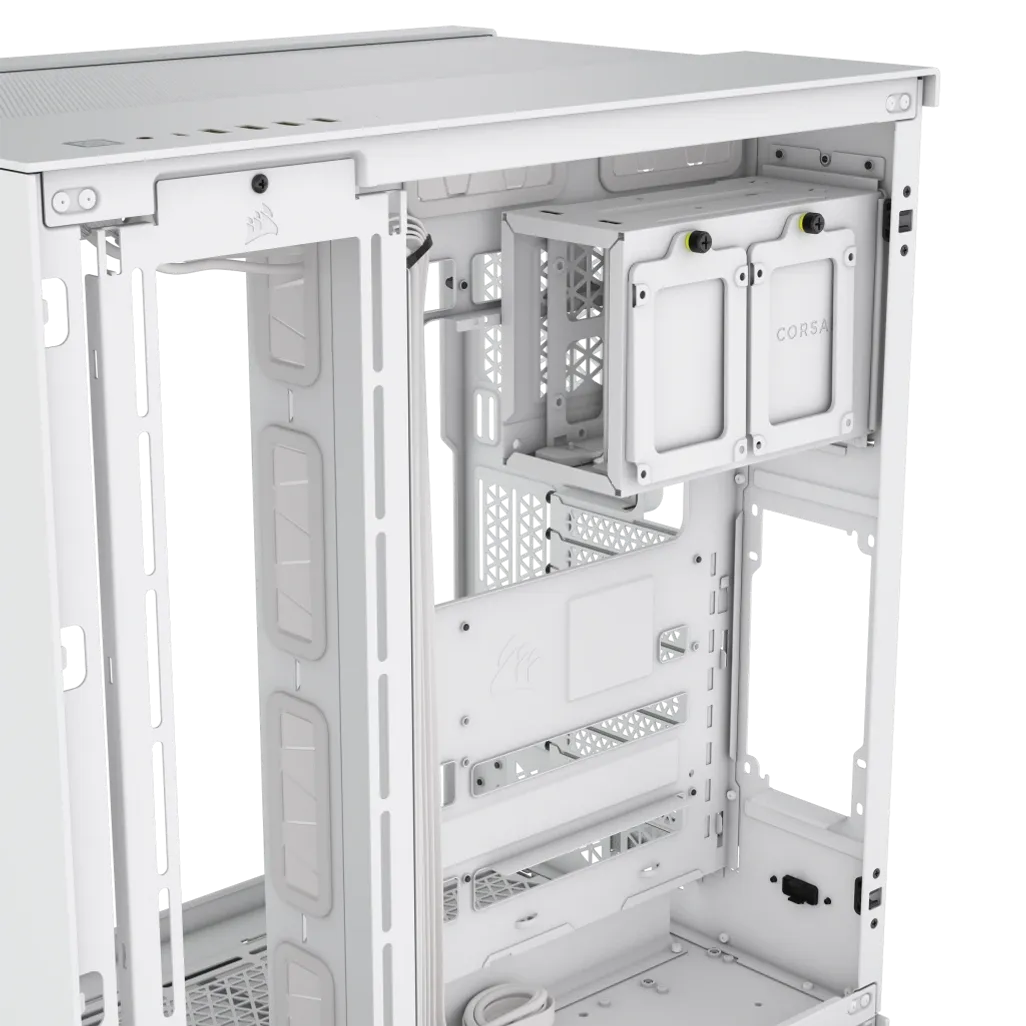

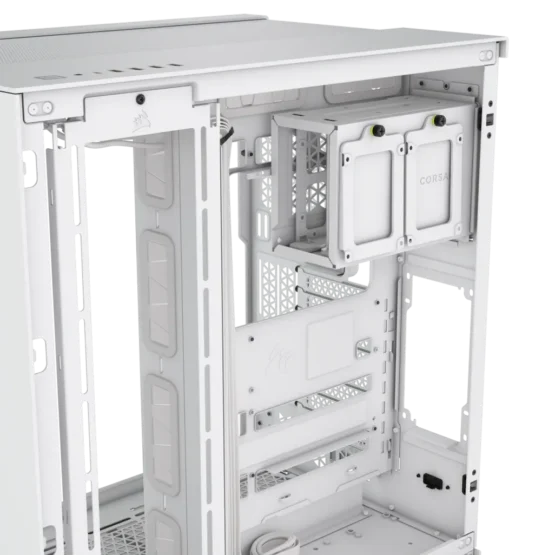

Drive Bays:
-
2 × 3.5″ HDD
-
2 × 2.5″ SSD
-
-
Expansion Slots: 8 horizontal + 4 vertical (with optional bracket)
-
GPU Clearance: Up to 400 mm
-
CPU Cooler Clearance: Up to 190 mm
-
PSU Length Support: Up to 225 mm
❄️ Cooling Compatibility
Fan Mounts:
-
Top: 3 × 120 mm or 3 × 140 mm
-
Side: 3 × 120 mm
-
Bottom: 3 × 120 mm or 3 × 140 mm
-
Rear: 1 × 120 mm or 1 × 140 mm
-
Front: Not supported (solid glass panel)
Radiator Support:
-
Top: Up to 360 mm
-
Side: Up to 360 mm
-
Bottom: Up to 360 mm
-
Rear: Up to 140 mm
-
Front: Not supported
Dust Filters: Included (Bottom)
🔌 Front I/O Ports
-
1 × USB 3.2 Gen 2 Type-C
-
4 × USB 3.2 Gen 1 Type-A
-
1 × 3.5 mm audio/mic combo jack
-
Power & Reset Buttons with LED indicators
🛠️ Special Features
-

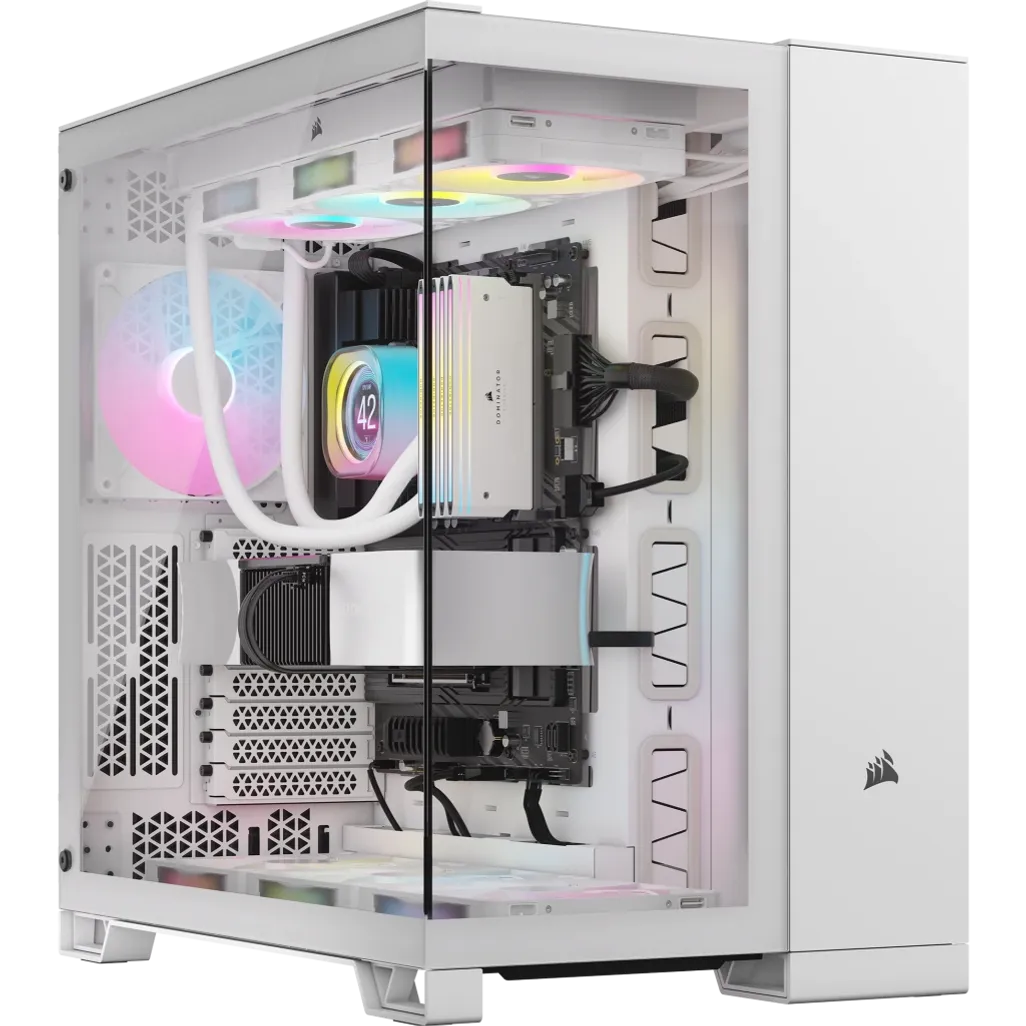

Dual-Chamber Layout: Separates GPU, CPU, and cooling components from PSU and storage for superior thermal performance and clean cable routing.
-
Panoramic View: Dual tempered glass side and front panels for hardware showcase builds.
-
Reverse Connector Compatibility: Fully supports ASUS BTF and MSI Project Zero motherboards.
-

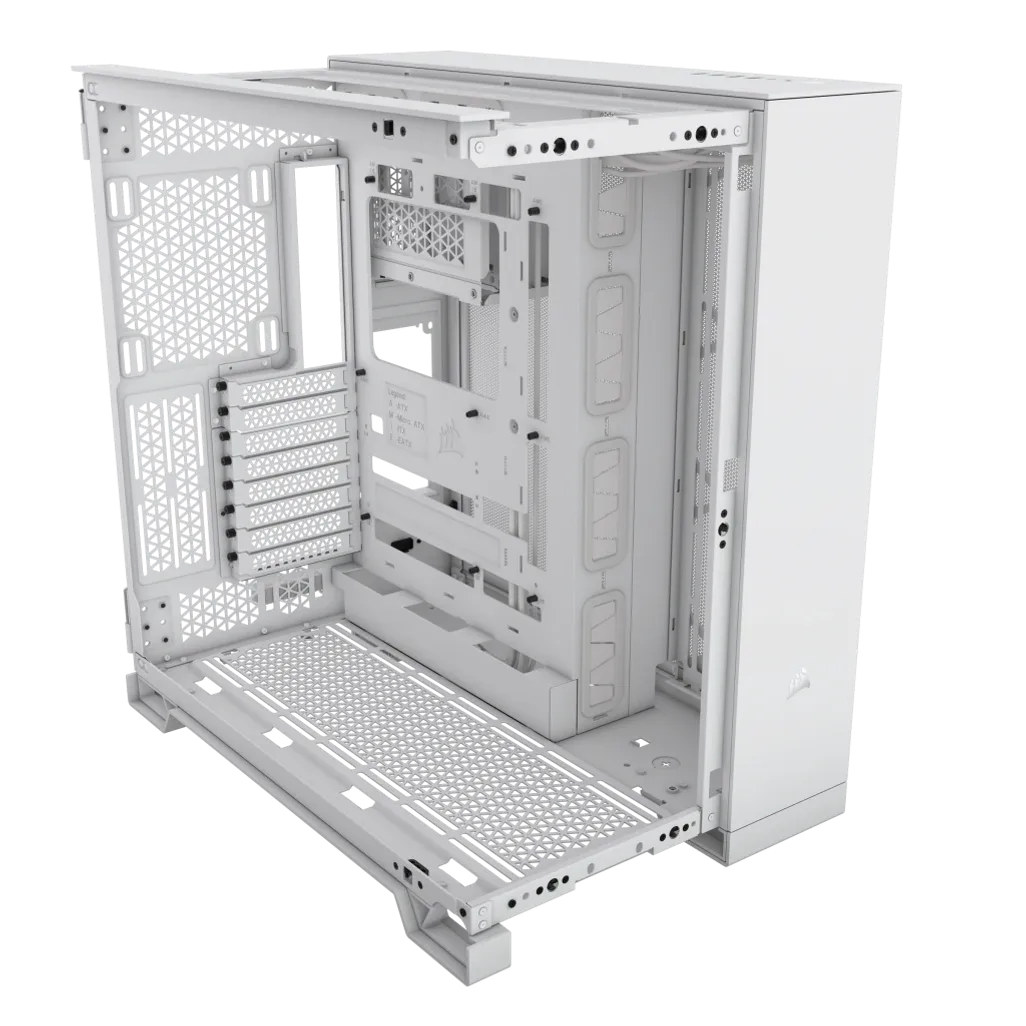

Modular Design: Tool-less panels, removable trays, and optional vertical GPU mount.
-

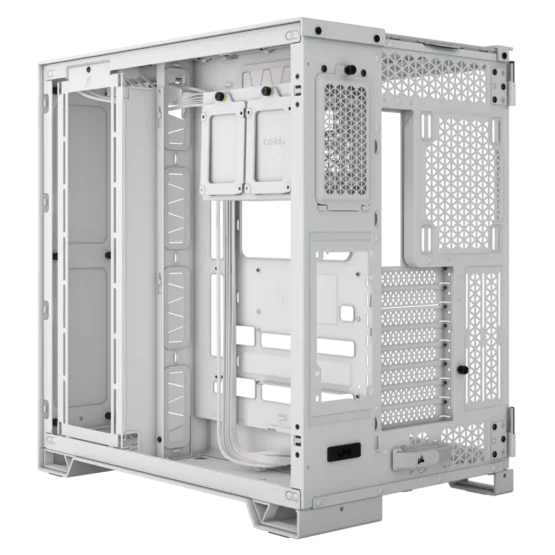

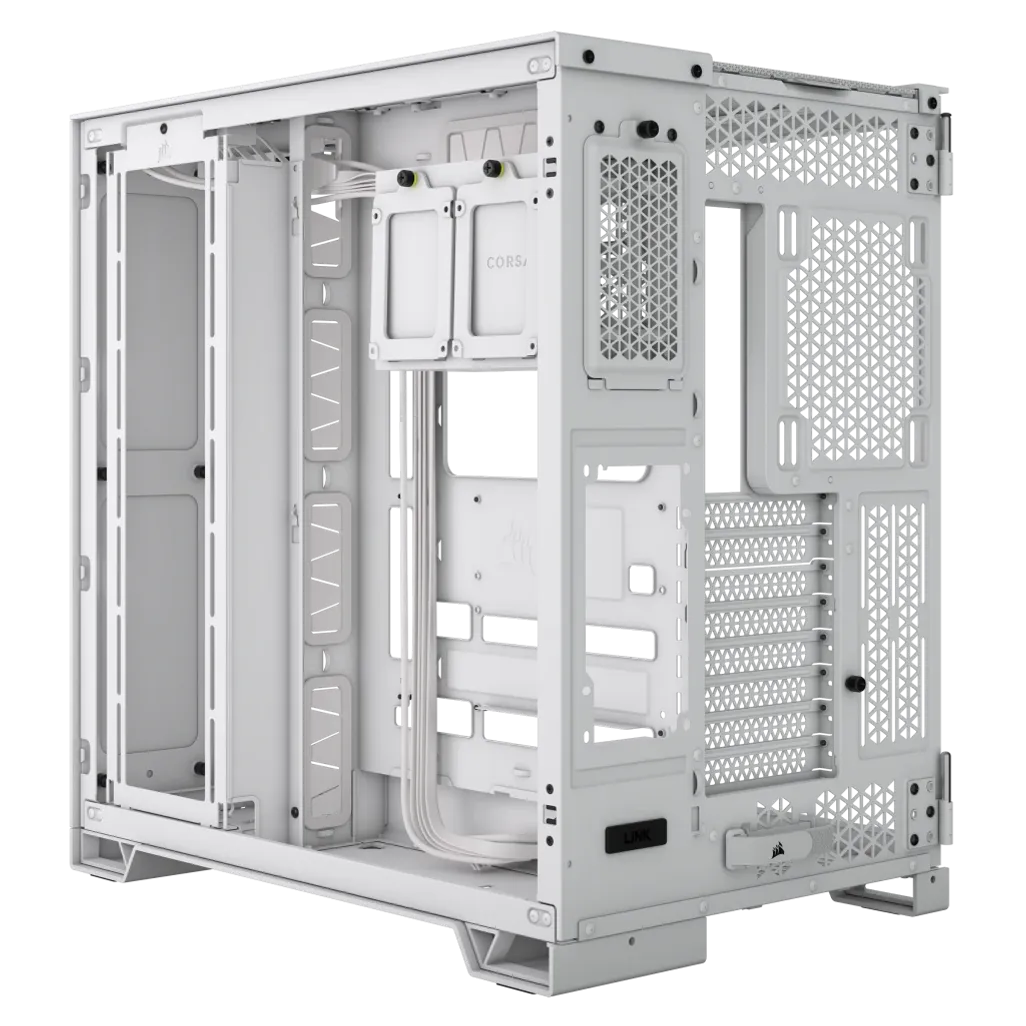

Cable Routing Space: 109 mm behind motherboard tray for hidden cables and easy organization.
-
Accessory Support: Compatible with Corsair iCUE LINK ecosystem and vertical GPU bracket (sold separately).
