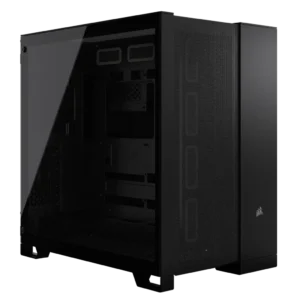

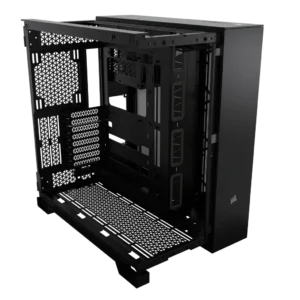

Corsair 6500D AIRFLOW

Description

Case Specifications

• Type: Mid-Tower, Dual-Chamber Layout

• Motherboard Support: E-ATX (up to 305 mm × 277 mm), ATX, Micro-ATX, Mini-ITX

• Dimensions: 481 mm (L) × 328 mm (W) × 496 mm (H)

• Weight: Approximately 16.9 kg

• Materials: Steel, Mesh Panels, Tempered Glass Side Panel, Plastic Accents

• Color Options: Black, White

Storage & Expansion

• Drive Bays:

  • 2 × 3.5″ HDD

  • 2 × 2.5″ SSD

• Expansion Slots:

  • 8 horizontal

  • 4 vertical (for optional vertical GPU mounting)

• GPU Clearance: Up to 400 mm

• CPU Cooler Clearance: Up to 190 mm

• Power Supply Clearance: Up to 225 mm

Cooling Compatibility

Fan Mounts:

• Top: 3 × 120 mm or 3 × 140 mm

• Front: 3 × 120 mm or 2 × 140 mm

• Side: 3 × 120 mm

• Bottom: 3 × 120 mm or 3 × 140 mm

• Rear: 1 × 120 mm or 1 × 140 mm

Radiator Support:

• Top: Up to 360 mm

• Front: Up to 360 mm

• Side: Up to 360 mm

• Bottom: Up to 360 mm

• Rear: Up to 140 mm

Dust Filters: Included for top, bottom, and side intakes

Front I/O Panel

• 1 × USB 3.2 Gen 2 Type-C

• 4 × USB 3.2 Gen 1 Type-A

• 1 × 3.5 mm combo audio jack

• Power and Reset buttons with activity LED

Key Features

• High-Airflow Mesh Design: Full mesh panels on the front, side, top, and bottom allow for unrestricted ventilation

• Dual-Chamber Layout: Separates components from PSU and drives, improving cable management and thermals

• Reverse Connector Motherboard Support: Fully compatible with ASUS BTF and MSI Project Zero for rear cable routing

• Tool-Free Panel Access: Quick release side panels and removable trays for easy installation

• Cable Management: 109 mm behind motherboard tray with routing channels and tie points

• Customizability: Optional accessories such as vertical GPU mount, different panel finishes, and expansion kits
