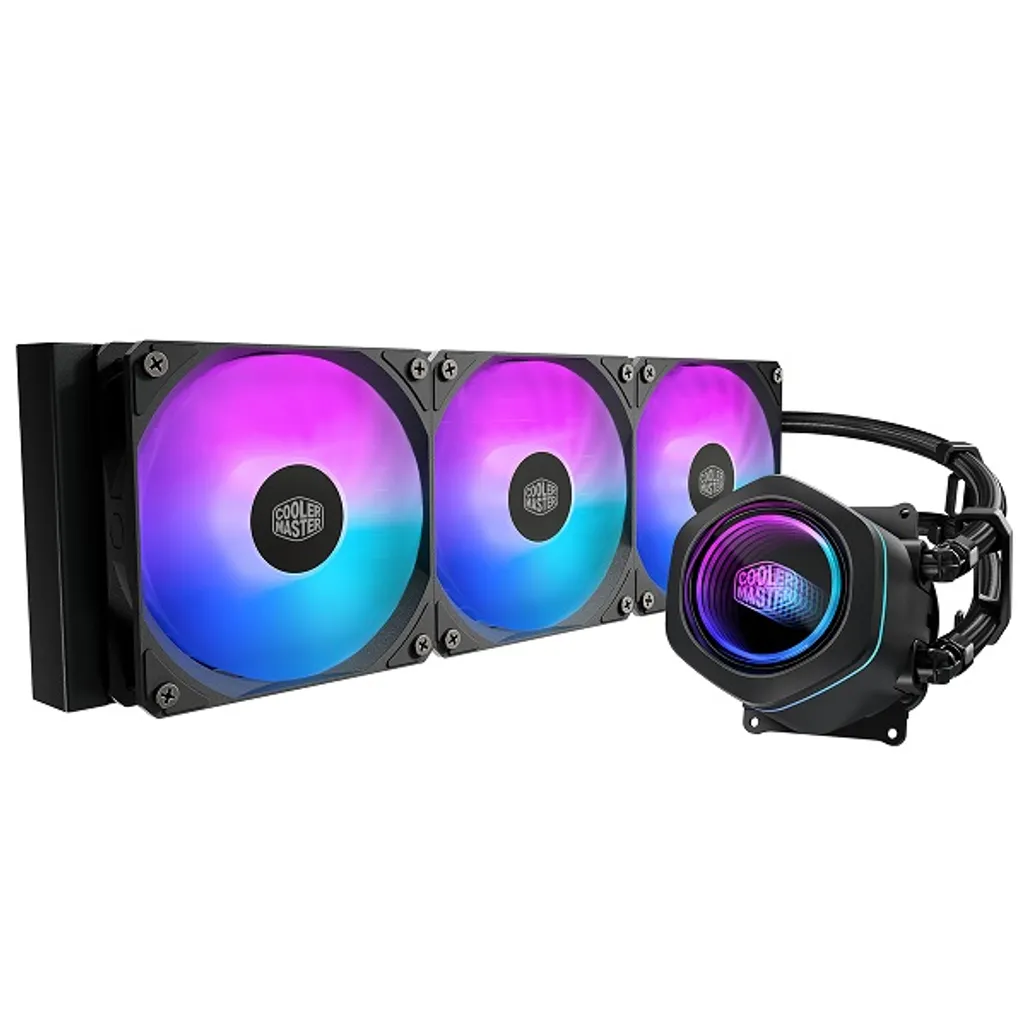

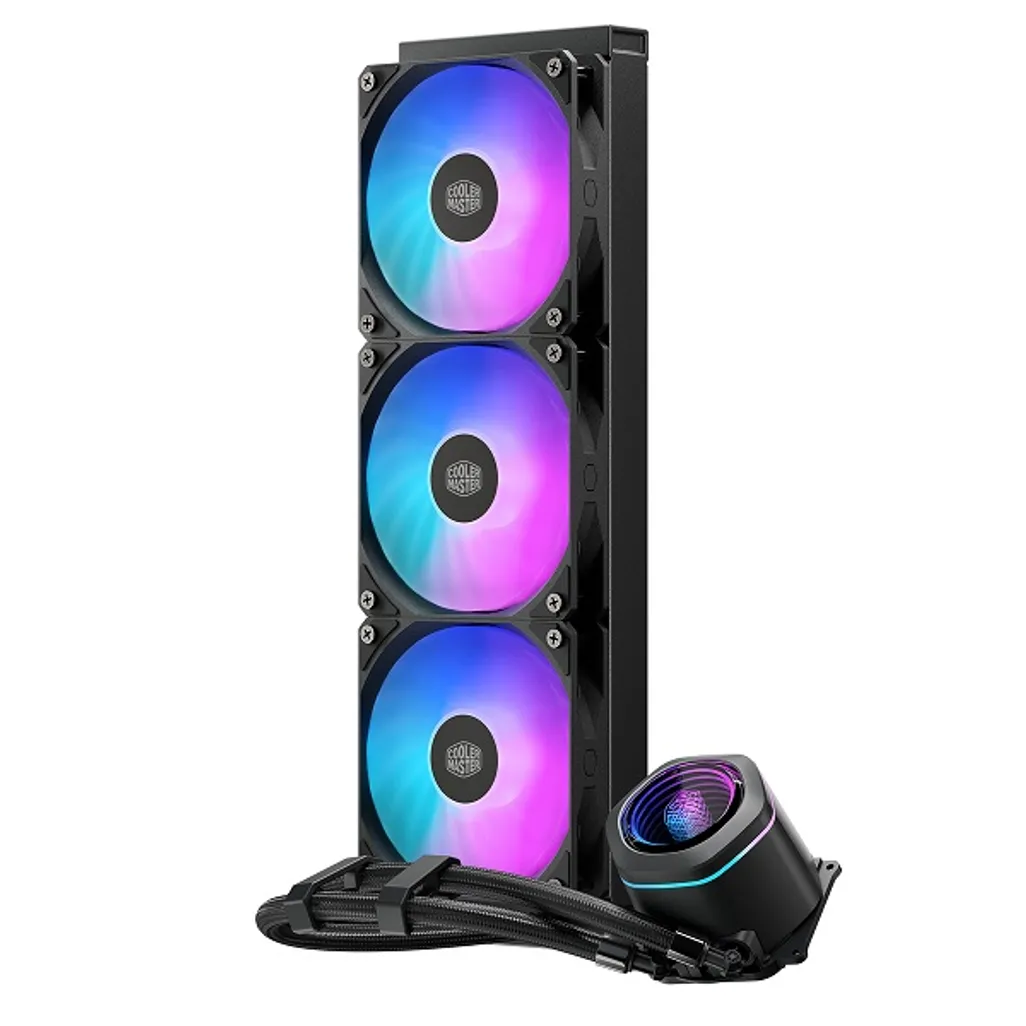

Cooler Master MasterLiquid Core Nex 360 ARGB

• Material: Aluminum

• Dimensions: approx. 394 × 119 × 27 mm

• Tube length: ~400 mm

• Tube material: Reinforced rubber (EPDM-based)

Pump

• Pump type: Dual-chamber design

• Bearing: Ceramic bearing

• Pump speed: ~3100 RPM (±10%)

• Rated voltage: 12 V DC

• MTTF: ~70,000 hours

Fans (3× 120 mm ARGB)

• Model type: 120 mm ARGB PWM fans

• Dimensions: 120 × 120 × 25 mm

• Speed range: ~650 – 1750 RPM (PWM)

• Airflow: ~71.9 CFM (per fan)

• Static pressure: ~1.6 mmH₂O

• Noise level: up to ~30 dBA

• Bearing type: Rifle bearing

• Connector: 4-pin PWM (fan), 3-pin 5 V ARGB

Lighting

• ARGB standard: 5 V, 3-pin addressable RGB

• Zones: Pump block + fan hubs

• Compatibility: Standard motherboard ARGB headers (ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, ASRock Polychrome)

CPU Socket Compatibility

• Intel: LGA 1700, 1200, 115x

• AMD: AM5, AM4

Thermal Interface

• Thermal paste: Pre-applied (Cooler Master compound)

Physical / Installation

• Mounting: Universal bracket system

• Orientation: Front / top radiator mounting supported (case dependent)

Box Contents

• 360 mm radiator with pre-installed tubing

• Pump/block assembly

• 3 × 120 mm ARGB fans

• Mounting hardware (Intel & AMD)

• PWM splitter / ARGB cabling

• User manual
