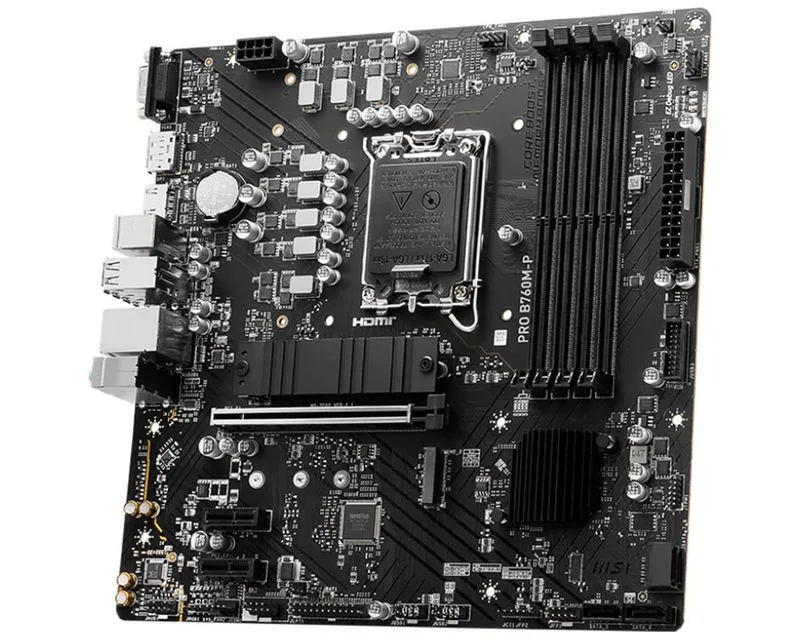

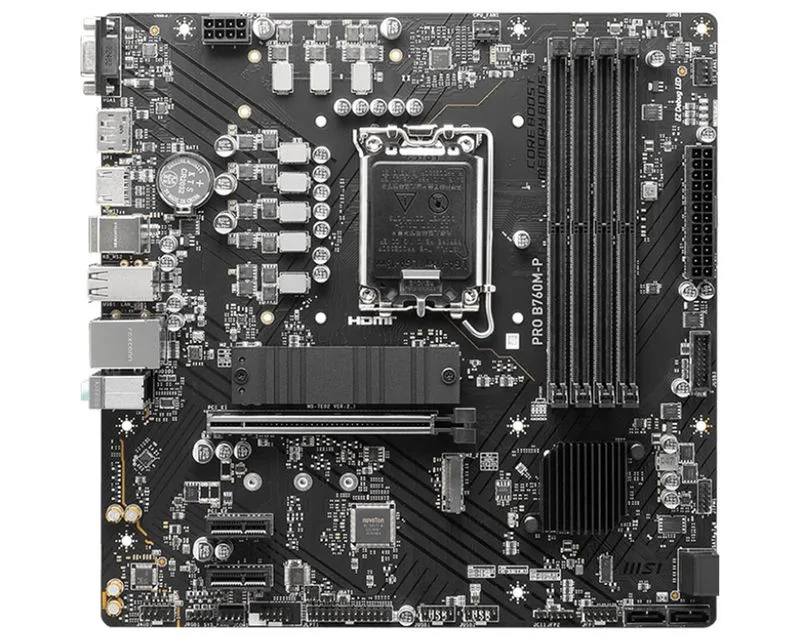

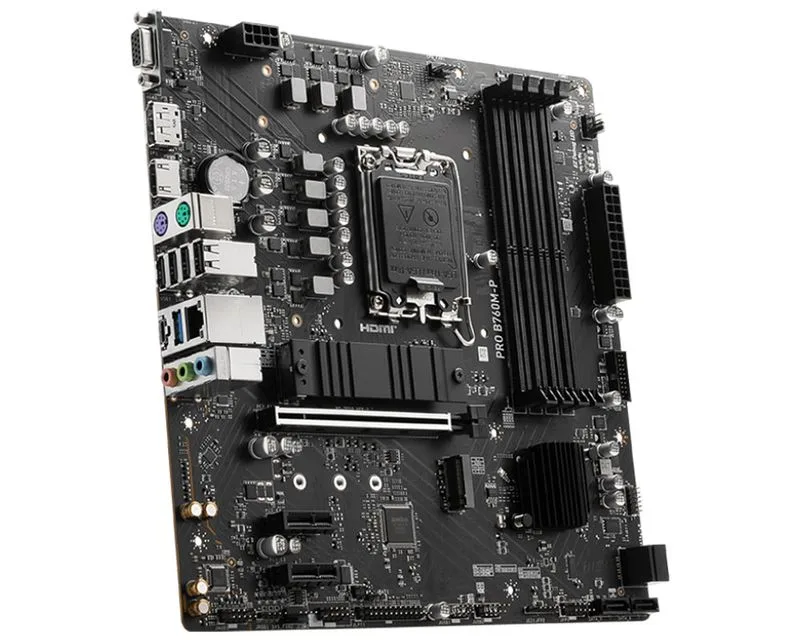

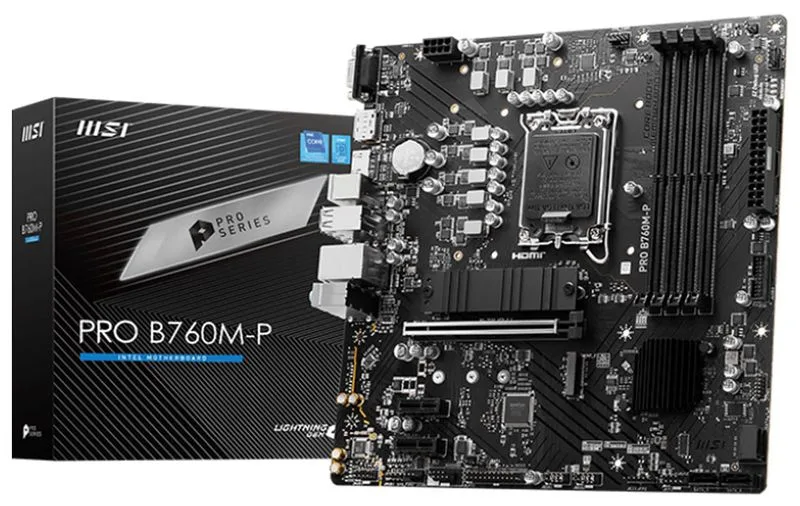

B760M-P PRO DDR4

Description

Specifications:

CPU Support:

• Intel Core 14th / 13th / 12th Gen

• LGA 1700 Socket

• Optimized power design for efficiency and stability

Memory:

• 2× DDR4 DIMM slots

• Up to 64GB total

• Up to 5333 MHz (OC)

Graphics Output:

• 1× HDMI 2.1

• 1× VGA

• Supports integrated graphics (based on CPU)

Expansion Slots:

• 1× PCIe 4.0 x16

• 1× PCIe 3.0 x1

Storage:

• 1× M.2 Slot (PCIe 4.0 x4)

• 4× SATA 6Gb/s Ports

Networking:

• Realtek Gigabit LAN (1G Ethernet)

Audio:

• Realtek ALC897

• 7.1 Channel High Definition Audio

Internal Features:

• USB 3.2 Gen 1, USB 2.0 headers

• Front Panel Audio

• TPM Header

• ARGB/RGB headers

---

Ideal For:

• Small business desktops

• Compact workstations

• Budget builds using DDR4 memory
