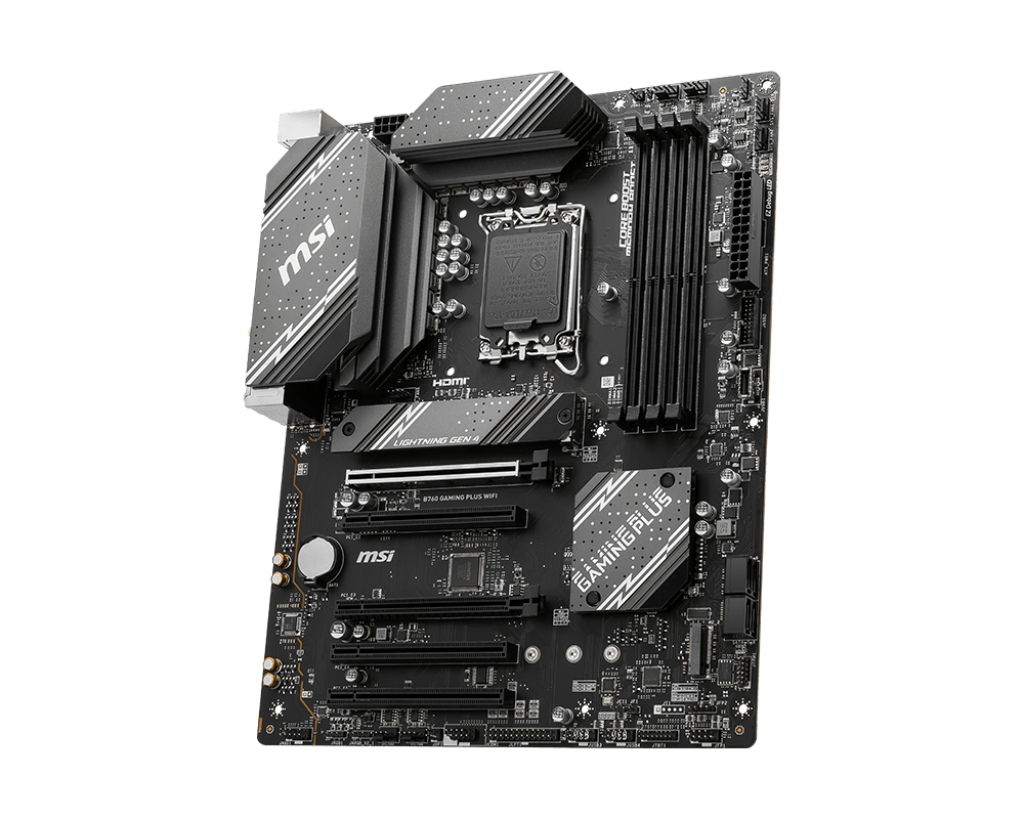

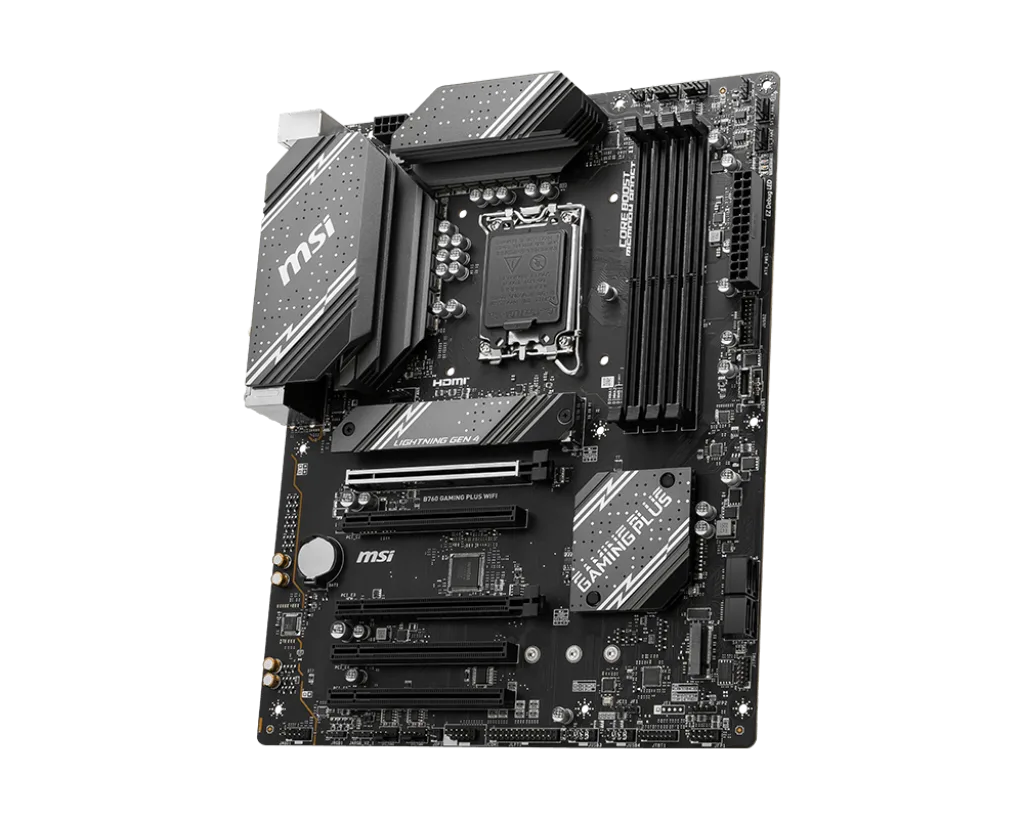

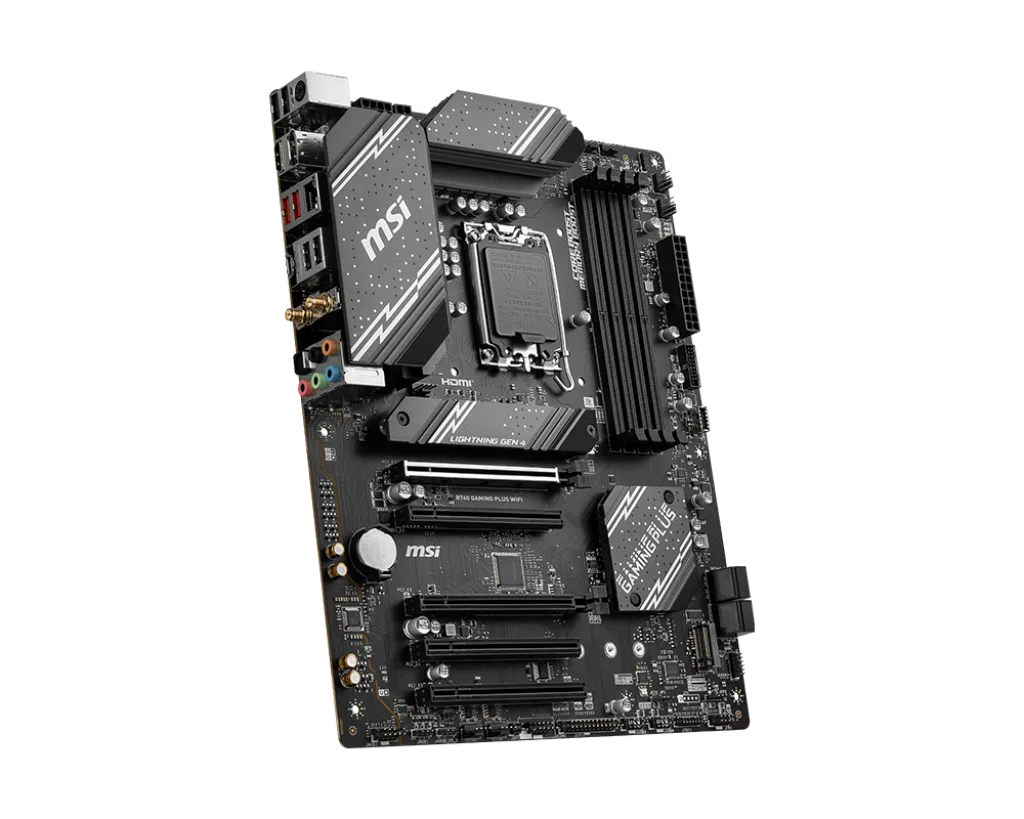

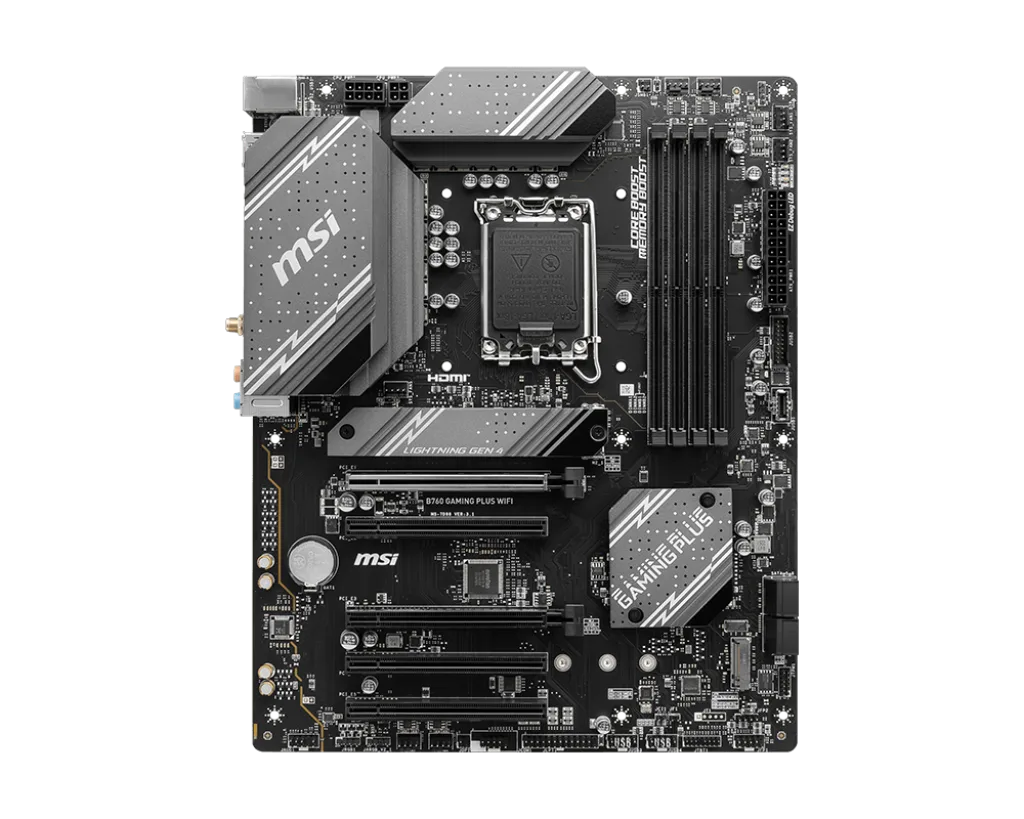

B760 GAMING PLUS WIFI

Description

• Socket: LGA 1700
• Chipset: Intel® B760
• Form Factor: ATX
• CPU Support: 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors

Memory

• Memory Channels: Dual
• DIMM Slots: 4
• Max Memory (GB): 192
• Supported Speeds: DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800 MT/s
• Features: Supports Intel® Extreme Memory Profile (XMP)

Expansion Slots

• PCI-E x16: 1 (PCIe 4.0 x16)
• PCI-E x16 (x4 mode): 1 (PCIe 4.0 x16)
• PCI-E x1: 3 (PCIe 3.0 x1)

Storage

• SATA III: 4 ports
• M.2 Slots: 2
  • M.2_1: PCIe 4.0 x4 (supports 2242, 2260, 2280, 22110 devices)
  • M.2_2: PCIe 4.0 x4 / SATA mode (supports 2242, 2260, 2280 devices)
• RAID: Supports RAID 0, 1, 5, and 10 for SATA storage devices

USB Ports

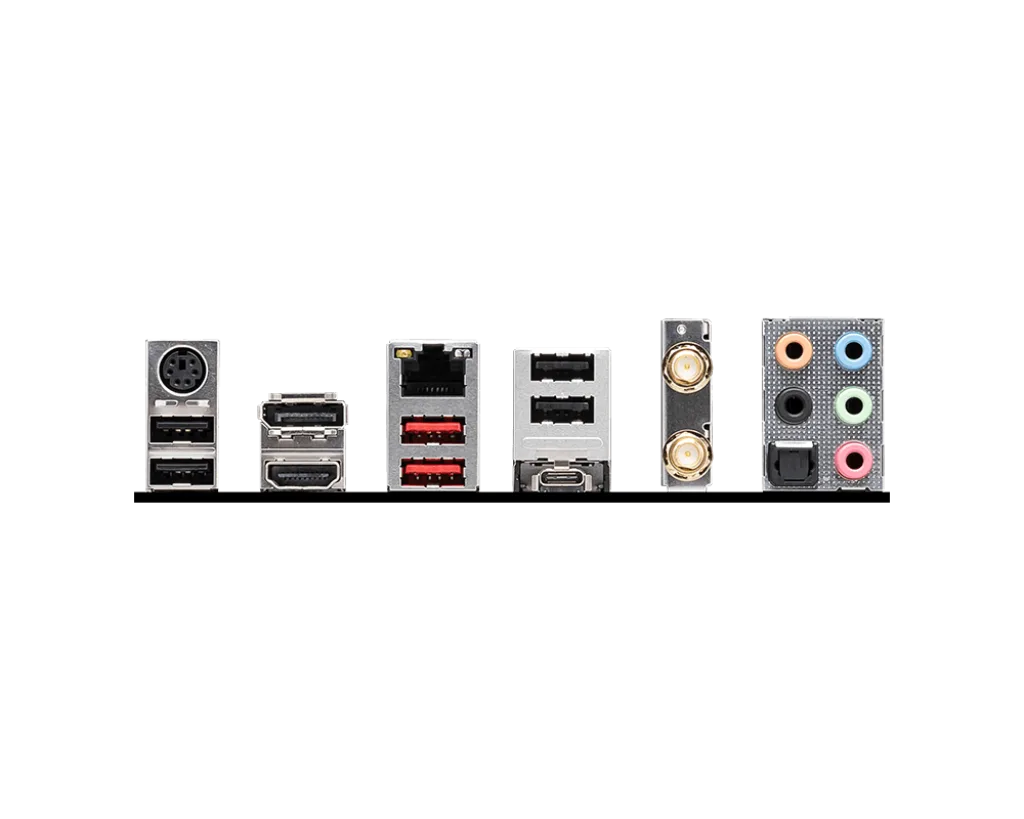

• Rear Panel:
  • 1 × USB 3.2 Gen 2 10Gbps (Type-C)
  • 2 × USB 3.2 Gen 2 10Gbps (Type-A)
  • 4 × USB 2.0
• Internal Headers:
  • 1 × USB 3.2 Gen 1 5Gbps (supports additional 2 × Type-A)
  • 1 × USB 3.2 Gen 2 10Gbps (supports additional 1 × Type-C)
  • 2 × USB 2.0 (supports additional 4 × Type-A)

Networking

• LAN: Realtek® 8125BG 2.5Gbps
• Wireless: Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
• Bluetooth: 5.3

Audio

• Codec: Realtek® ALC897
• Channels: 7.1-Channel High Definition Audio

Video Output

• HDMI: 1 (Supports HDMI™ 2.1)
• DisplayPort: 1 (Supports DisplayPort 1.4)

Other Features

• Operating System Support: Windows® 11 64-bit, Windows® 10 64-bit
• LED Feature: Mystic Light Extension (2 × 3-pin ARGB, 1 × 4-pin RGB)
