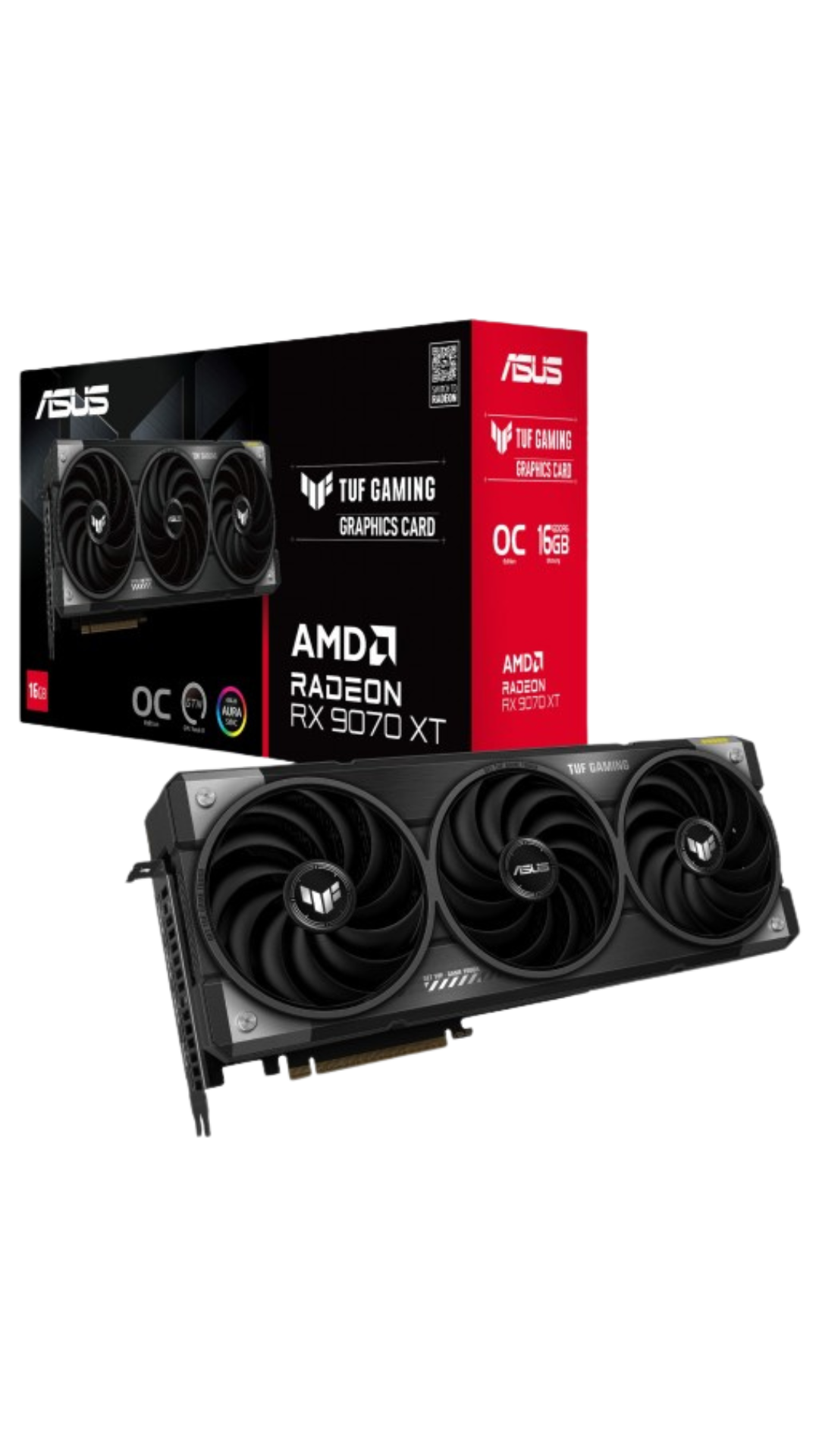

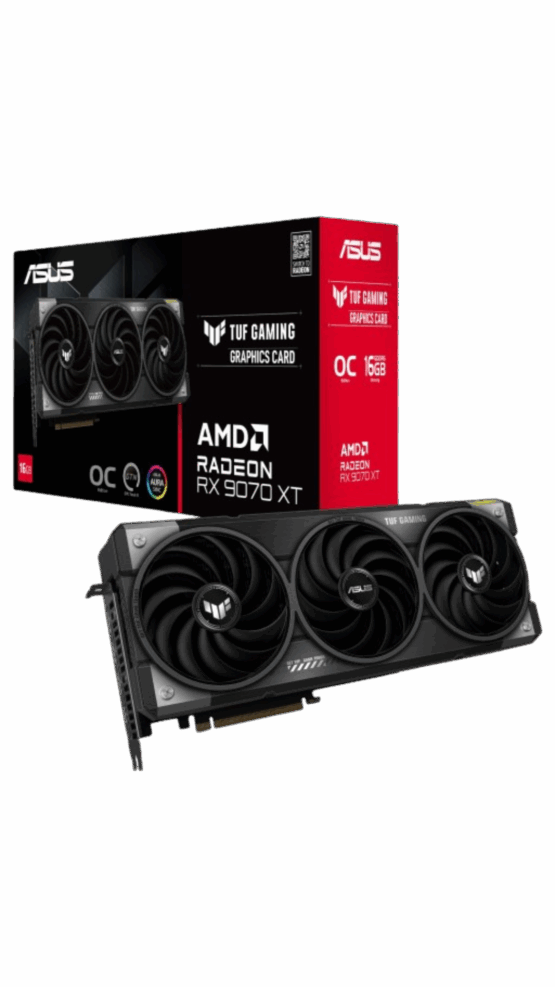

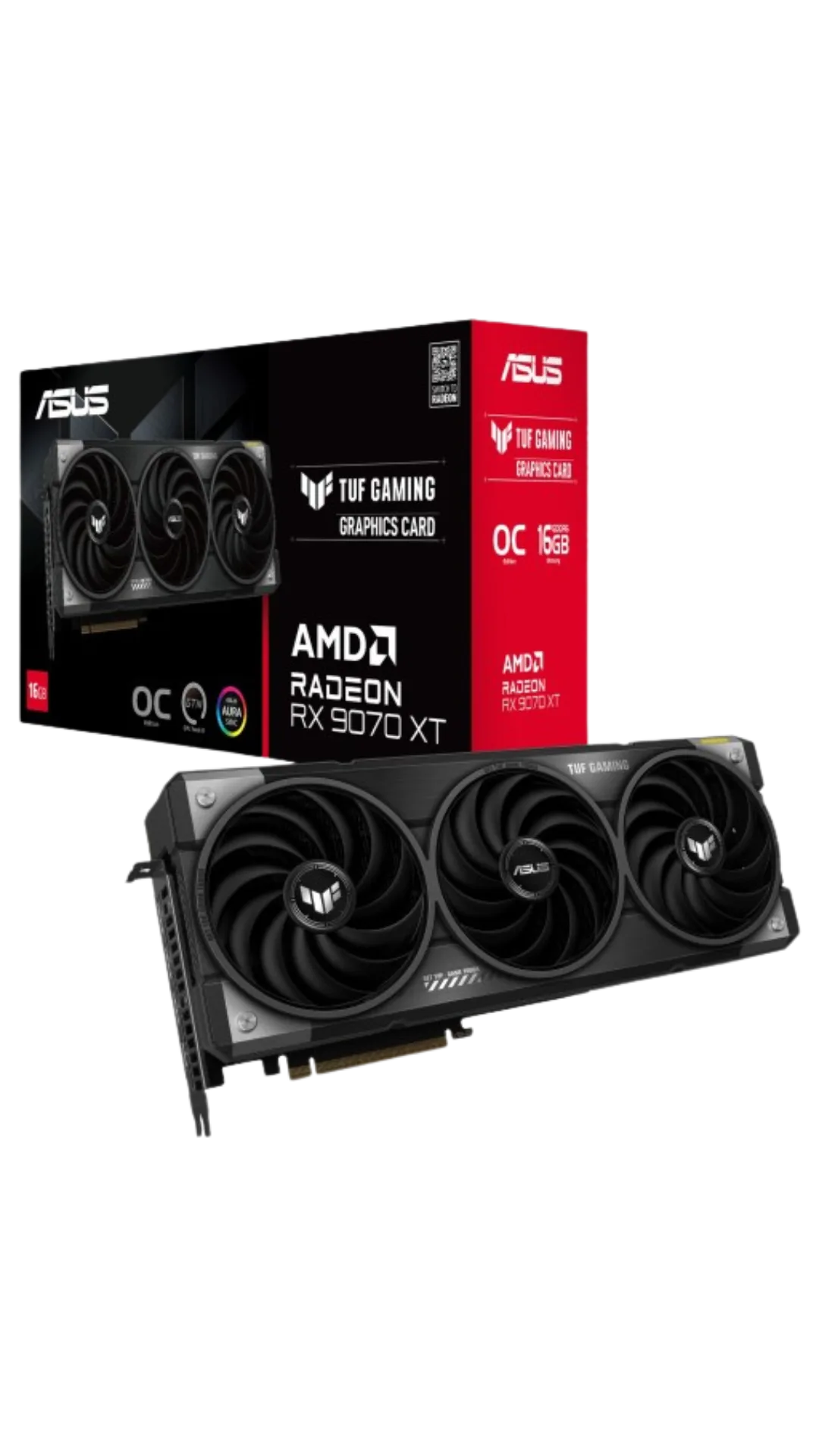

🛡️ ASUS TUF Gaming Radeon RX 9070 XT OC Edition – 16GB GDDR6

Description

🧠 GPU Architecture

• GPU: AMD Radeon RX 9070 XT

• Architecture: RDNA 4 (Navi 48 XT)

• Compute Units: 64

• Stream Processors: 4096

• Ray Accelerators: 64

• AI Accelerators: 128

• Fabrication: 4 nm (TSMC N4)

---

⏱️ Clock Speeds

• • OC Mode (GPU Tweak III):

    • Boost Clock: up to 3080 MHz

    • Game Clock: up to 2540 MHz

  • Default Mode:

    • Boost Clock: up to 3060 MHz

    • Game Clock: up to 2520 MHz

---

💾 Memory

• VRAM: 16GB GDDR6

• Memory Speed: 20 Gbps

• Interface: 256-bit

• Bandwidth: 640 GB/s

---

❄️ Cooling & Thermal Design

• Cooler Type: Triple Axial-tech fans

• Fan Features:

  • 0 dB mode for silent idle

  • Reversed center fan for reduced turbulence

• Heatsink: Extended aluminum fin-stack with vapor chamber

• Backplate: Full-length vented metal backplate with anti-sag support

• Slot Design: 3.15-slot for enhanced cooling surface area

• Durability: Military-grade components (20K capacitors, metal chokes)

---

🔌 Power & Connectivity

• Interface: PCIe 5.0 x16

• Power Connectors: 2 x 8-pin PCIe

• Recommended PSU: 750W

• Display Outputs:

  • 3 x DisplayPort 2.1a

  • 1 x HDMI 2.1b

• Max Resolution: 7680 × 4320 (8K UHD)

• HDCP: 2.3 compliant

---

⚙️ Build Features

• Manufacturing: ASUS Auto-Extreme process for precision soldering

• Dual BIOS: Quiet and Performance switch

• Shroud Design: TUF-industrial with sandblasted metal and bold accents

• Software Support:

  • ASUS GPU Tweak III

  • Aura Sync compatible ARGB lighting on shroud logo

---

📐 Dimensions

• Size (L x W x H): Approx. 320 x 150 x 63 mm

• Weight: Approx. 1.5–1.7 kg

---

🎯 Best For

• High-performance 1440p and 4K gaming

• Users valuing military-grade reliability and robust cooling

• ASUS TUF ecosystem builders

• Quiet operation with selectable BIOS and 0 dB mode 🔇🎮
